Description

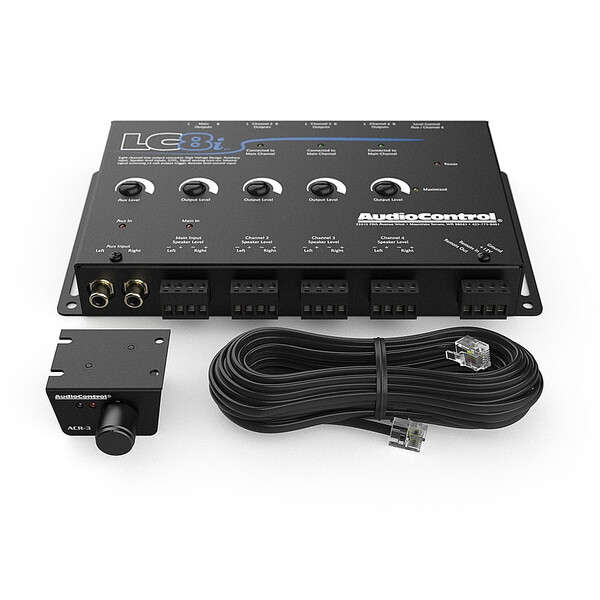

AUDIOCONTROL LC8i Eight Channel Converter/Aux Input BLACK
Features:
- Eight input and output channels – will accept 400-watt signals per channel
- Auxiliary input for easy interfacing of iPods or other portable audio devices
- Multi-function dash control (included) allows for Source Selection, Auxiliary Input Volume plus Subwoofer Level Control
- Internal channel summing
- Selectable GTO™ Signal-sensing Turn-on Circuit
Specifications:
Inputs
Speaker Level Inputs: 4 (8 channels)
Maximum Input (speaker level): 400W per channel at 4Ω
Preamp Inputs (Aux): 1 (2 channels)
Input Impedance: 20kΩ
Outputs
Preamp Outputs: 4 (8 channels)
Maximum Output Level: 8.5Vrms
Output Gain: ±12dB
Output Impedance: 150Ω
Performance
Total Harmonic Distortion: 0.01%
Frequency Response: 10Hz-22kHz
Control
Remote In
12VDC Remote Out (always active when the unit is on)
General
Power Supply: High Headroom PWM Switching
Current Draw: 350mA
Recommended Fuse Rating: 2A
Weights & Dimensions
Dimensions: 8.6”W x 4.75”D x 1.2”H
Weight: 3.0lbs (1.4kg)
What's in the box: LC8i, ACR-3 Remote, Speaker and Power connectors, Manual, Warranty
