Description

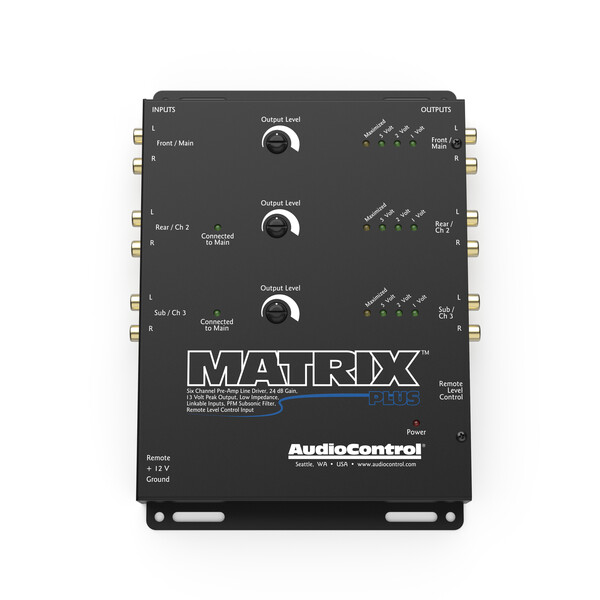

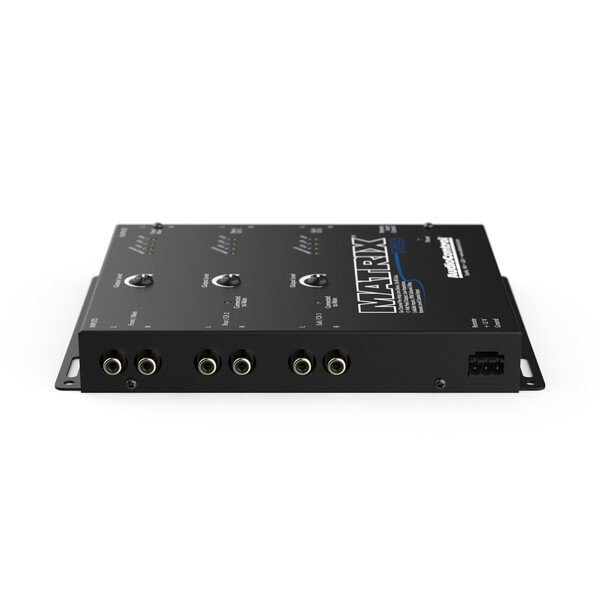

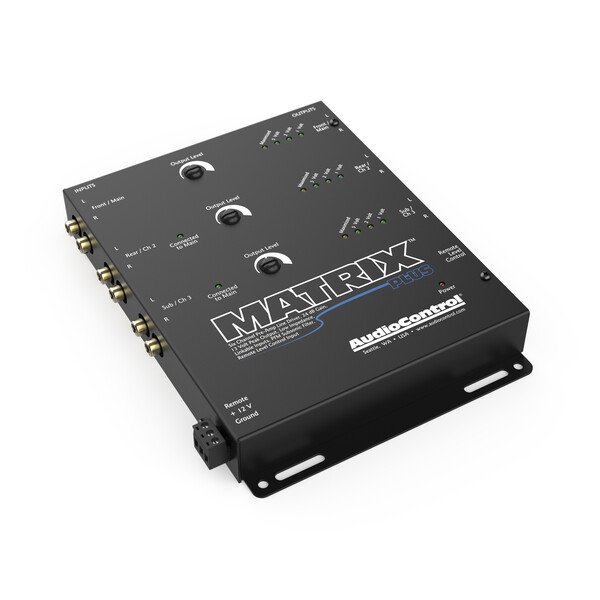

AUDIOCONTROL Matrix Plus Six Channel Line Driver BLACK
Features:
- High signal voltage capability: 13 volts peak output
- 24dB of gain
- Six channels of input and output
- Balanced differential inputs
- Low-impedance outputs
- Optional Remote Level Control (ACR-1)
- PFM Subsonic filter
- Output level controls
- Ultra-low distortion, ultra-quiet operation
- Selectable ground isolation
- Optimum voltage indicator LED’s
- Conformally coated PCB for increased resistance to the elements
Specifications:
Inputs
Preamp Inputs: 3 (6 channels)
Input Gain: 24dB
Input Impedance: 20kΩ
Outputs
Preamp Outputs: 3 (6 channels)
Maximum Output Level: 9.5Vrms
Output Gain: -12dB to +24dB
Output Impedance: 50Ω
Performance
Total Harmonic Distortion: 0.005%
Frequency Response: 10Hz-100kHz ±1dB
Signal to Noise: >110dB
Control
Remote In
General
Power Supply: Transformer Isolated PWM
Current Draw: 250mA
Recommended Fuse Rating: 1A
Weights & Dimensions
Dimensions: 4.6″W x 7.1″D x 1.2″H
Weight: 1.3lbs (0.6kg)
What's in the box: Matrix Plus, Power Connector, Manual, Warranty
