Description

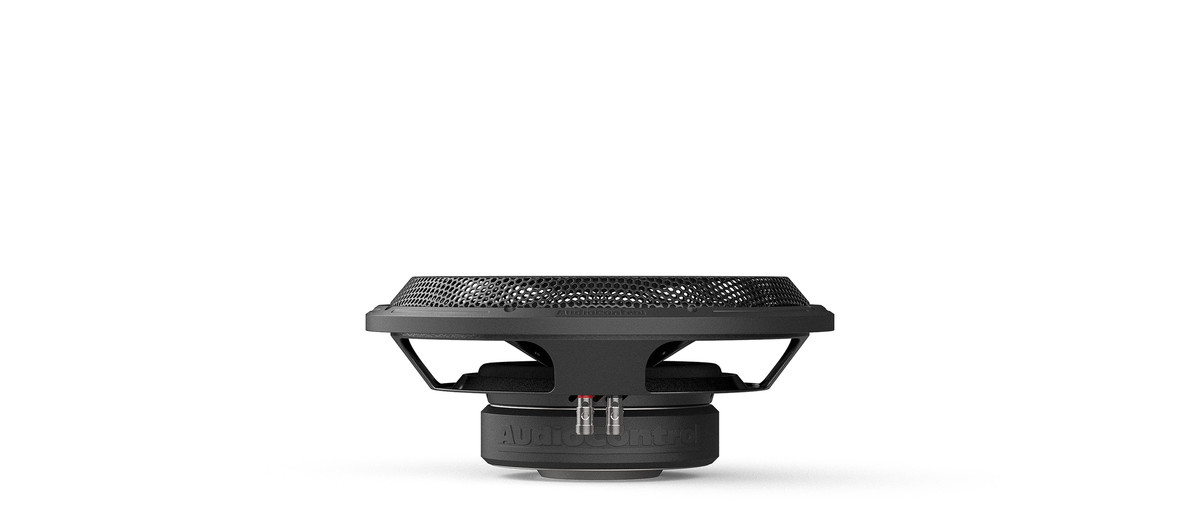

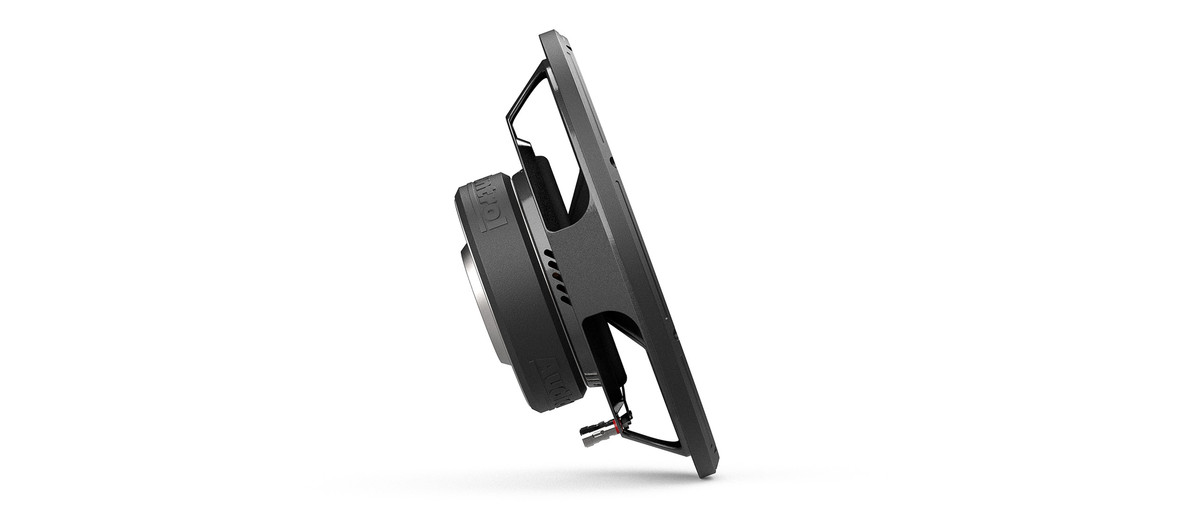

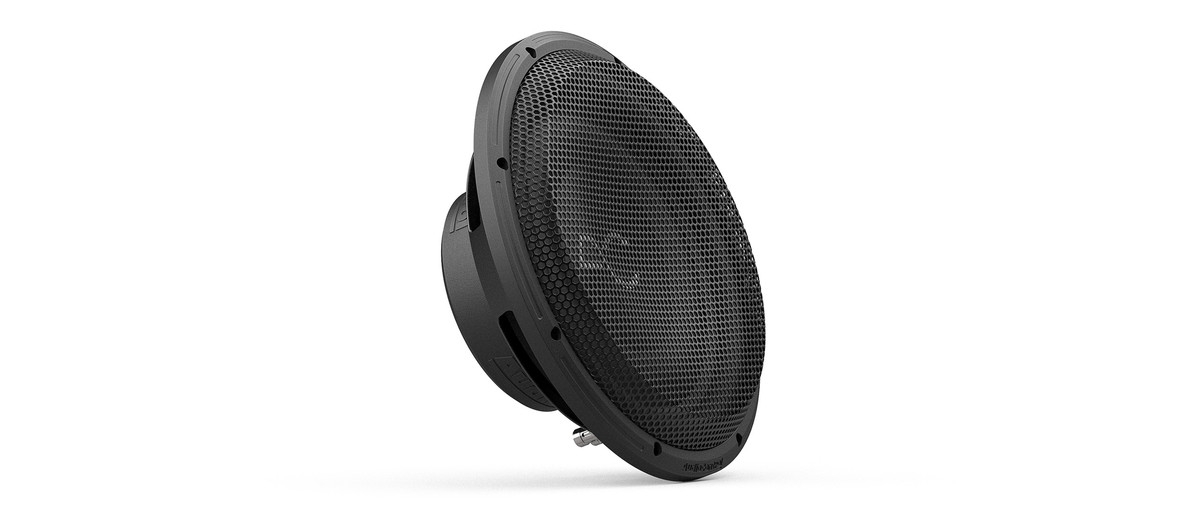

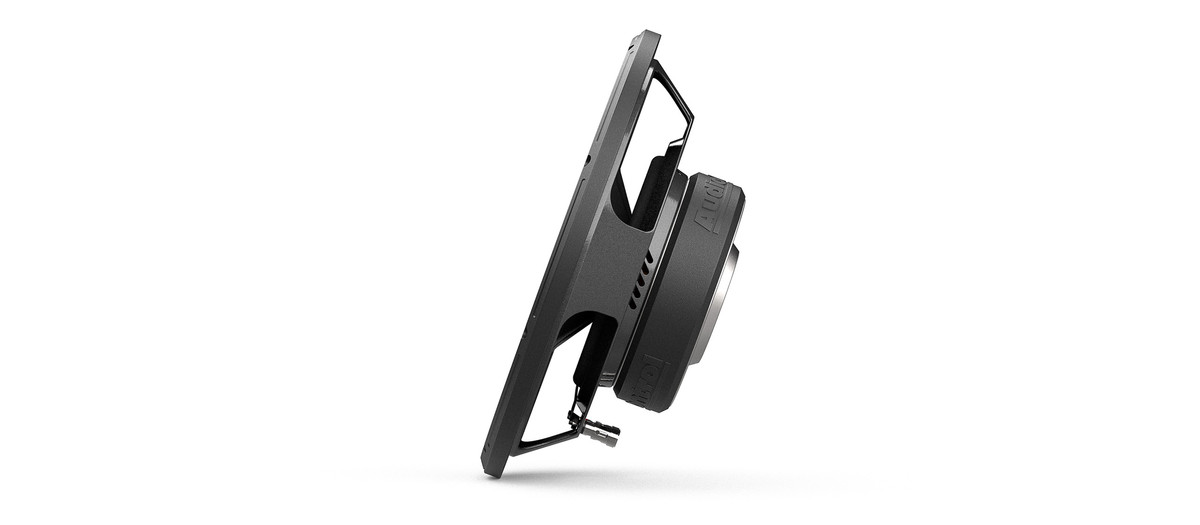

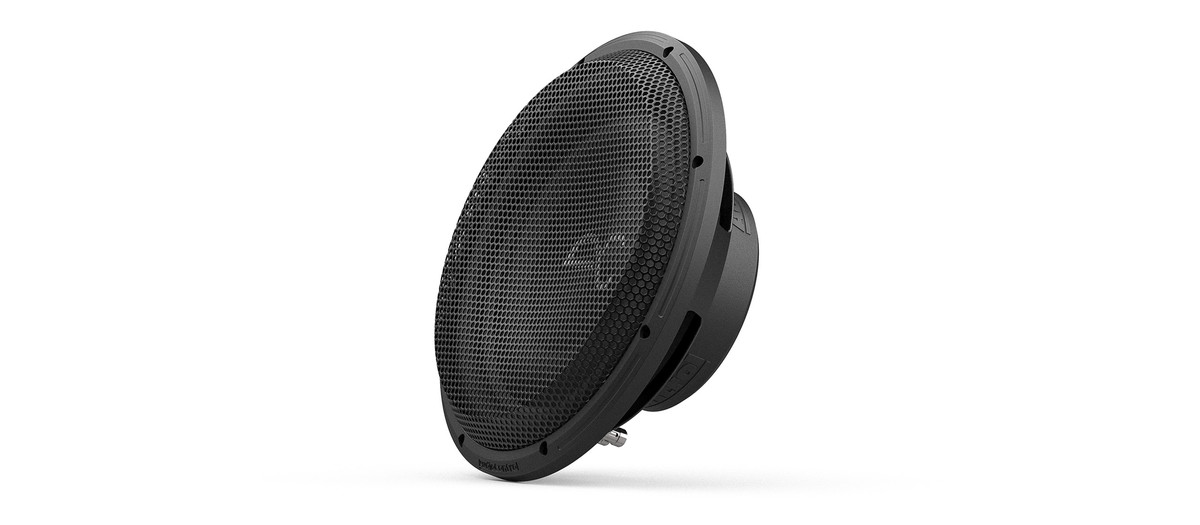

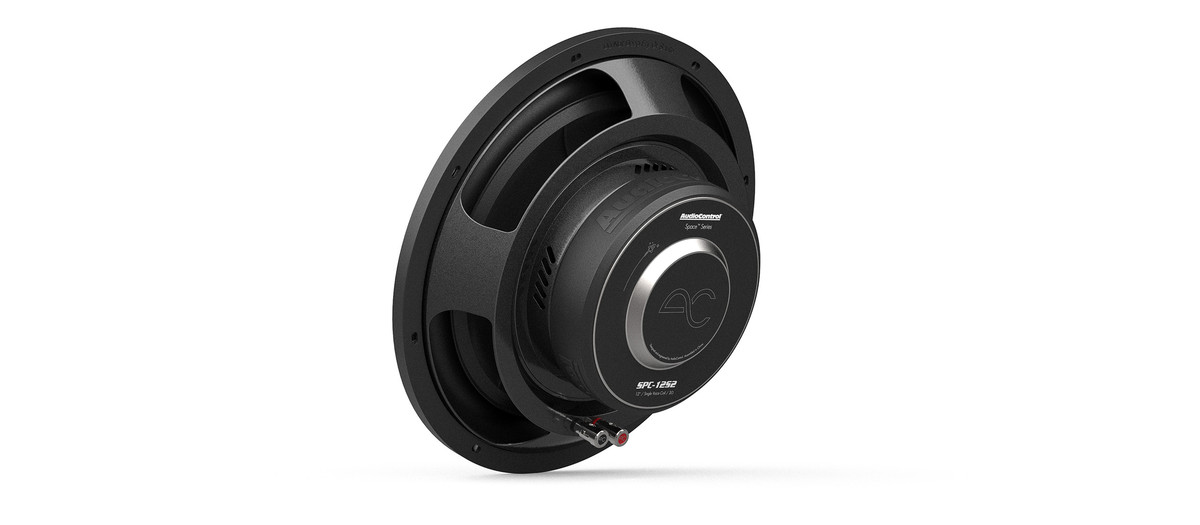

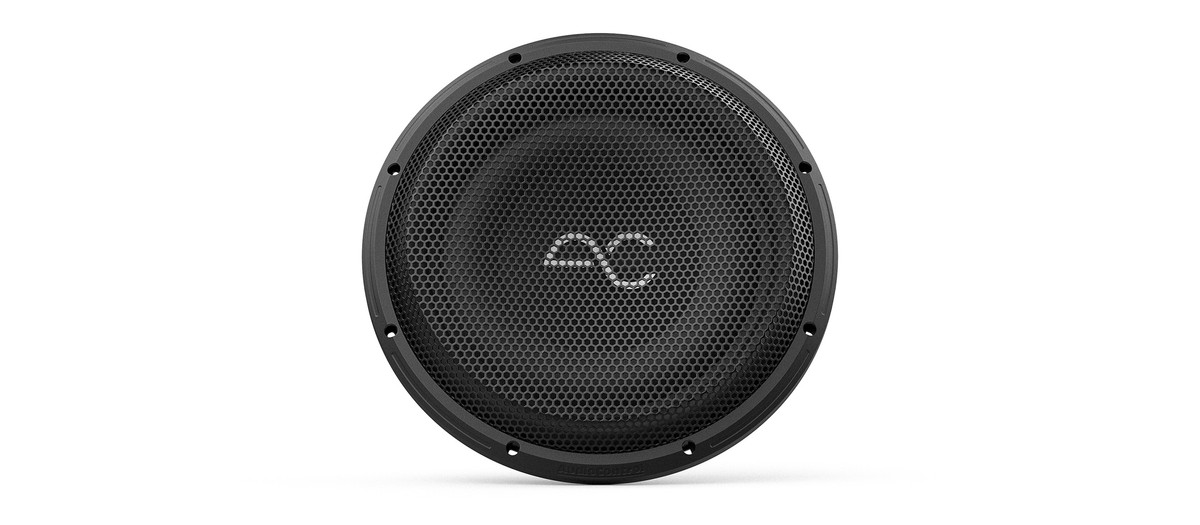

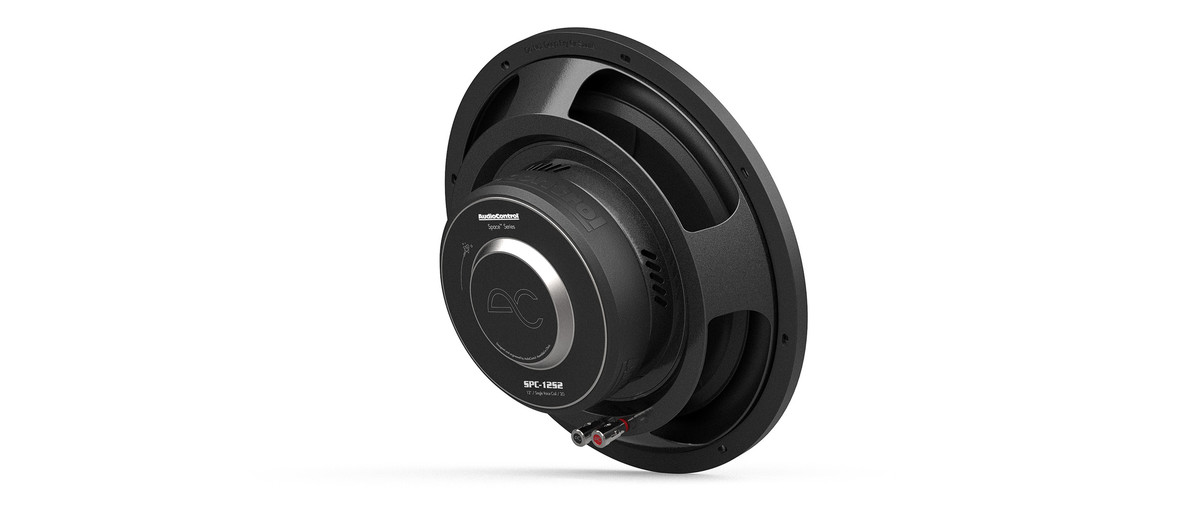

AUDIOCONTROL Space Series 12" Single 2 Ohm Low Profile Subwoofer
- Low-Profile Shallow Mount Subwoofer
- Fiber Matrix Injection Molded Polypropylene Cone
- Weather-Resistant Design
- 3-Layer High Temp Voice Coil Former
- Optimal Thermal Efficiency
- Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
- Removable Subwoofer Grille Included
PAIRINGS
Our Sonic Sommeliers Recommend the Following:
A single Space Series 2 ohm subwoofer pairs splendidly with the ACM-1.300 or ACX-300.1 for the conservative to moderate listener.
For more lusty lows, seek out the ACX-600.1.
Planning to enjoy the phenomenal performance from one of our LC-5.1300 or D-5.1300 ampliļ¬ers? The extraordinary power delivered from the output of channel 5 is a match made in heaven. Bon appétit!
For system designs utilizing two Space Series 2 ohm subwoofers, we recommend the LC-1.1500… Impeccable!
Seeking a bountiful bouquet of bass? Planning to include three or more Space Series subwoofers in your system? Consult an expert at your favorite authorized AudioControl dealer, or visit audiocontrol.com for more system conļ¬gurations that deliver a plethora of power and precision.
specifications
thiele/small parameters
Nominal Impedance (Z) 2 ohms
DC Resistance (Re) ]] 1.8 ohms
Resonance Frequency (Fs) 27.8430 Hz
Piston Area (Sd) 0.0511 m2
Force Factor (BL) 10.3379 T.m
Mechanical Q Factor (Qms) 4.0762
Electrical Q Factor (Qes) 0.4073
Total Q Factor (Qts) 0.4216
Sensitivity 1W/M (SPL) 87.3655
Mechanical Comp (Cms) 0.2047 mm/N
Moving Mass (Mms) 159.6086 g
Linear Excursion (Xmax) . 9 mm
Volume Acoustic Comp (Vas) 74.5578 Ltr/2.632984 cu ft
Reference Efficiency (NO.) 0.33% RMS
Power (Pe) 400 Watts
Frequency Response 20-250 Hz
Voice Coil Diameter 2.5 in/63.5 mm
Displacement 0.0619 cu ft/1.752 Ltr
