Description

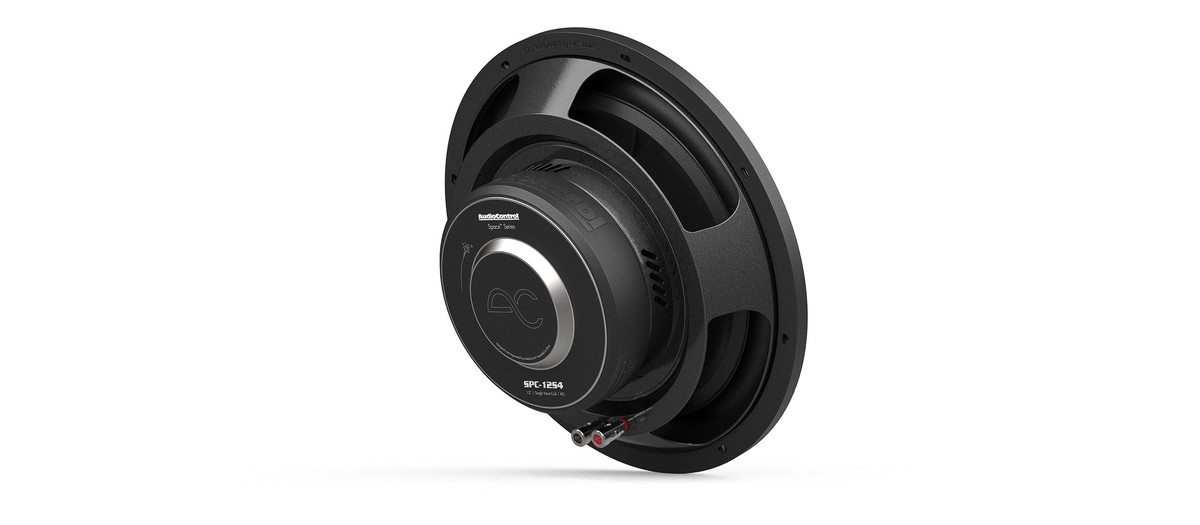

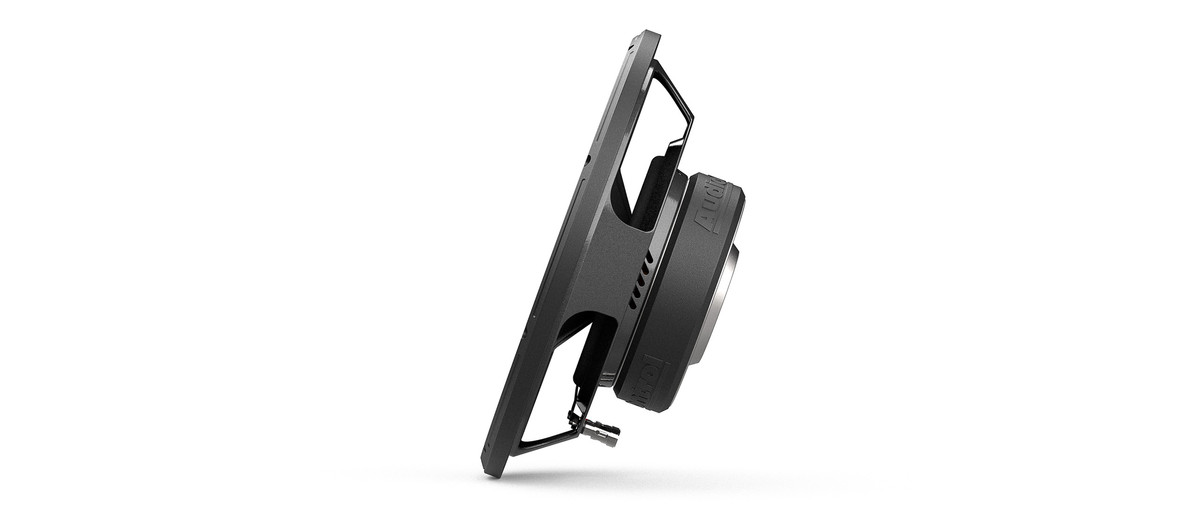

AUDIOCONTROL Space Series 12" Single 4 Ohm Low Profile Subwoofer
- Low-Profile Shallow Mount Subwoofer
- Fiber Matrix Injection Molded Polypropylene Cone
- Weather-Resistant Design
- 3-Layer High Temp Voice Coil Former
- Optimal Thermal Efficiency
- Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
- Removable Subwoofer Grille Included
PAIRINGS
Our Sonic Sommeliers Recommend the Following:
A single Space Series 4 ohm subwoofer pairs fabulously with the ACM-2.300 or ACX-300.2 for the conservative to moderate listener. For more copious output levels, pursue the LC-1.800.
Planning to relish the rich, rotund output from our LC-5.1300 or D-5.1300 ampliļ¬er? The plentiful power delivered from the output of channel 5 is an excellent match. Bon appétit!
For system designs utilizing two Space Series 4 ohm subwoofers, we recommend the LC-1.800… delectable!
Seeking an even more superb sonic signature? Planning to include three or more Space Series subwoofers in your system? Consult an expert at your favorite authorized AudioControl dealer, or visit audiocontrol.com for more system conļ¬gurations that deliver an abundance of amplitude.
specifications
thiele/small parameters
Nominal Impedance (Z) 4 ohms
DC Resistance (Re) ]] 3.2 ohms
Resonance Frequency (Fs) 30.7061 Hz
Piston Area (Sd) 0.0511 m2
Force Factor (BL) 12.4924 T.m
Mechanical Q Factor (Qms) 3.7494
Electrical Q Factor (Qes) 0.5764
Total Q Factor (Qts) 0.4996
Sensitivity 1W/M (SPL) 87.3024
Mechanical Comp (Cms) 0.1844 mm/N
Moving Mass (Mms) 145.7101 g
Linear Excursion (Xmax) 9 mm
Volume Acoustic Comp (Vas) 67.1494 Ltr/2.371348 cu ft
Reference Efficiency (NO.) 0.32% RMS
Power (Pe) 400 Watts
Frequency Response 20-250 Hz
Voice Coil Diameter 2.5 in/63.5 mm
Displacement 0.0619 cu ft/1.752 Ltr
