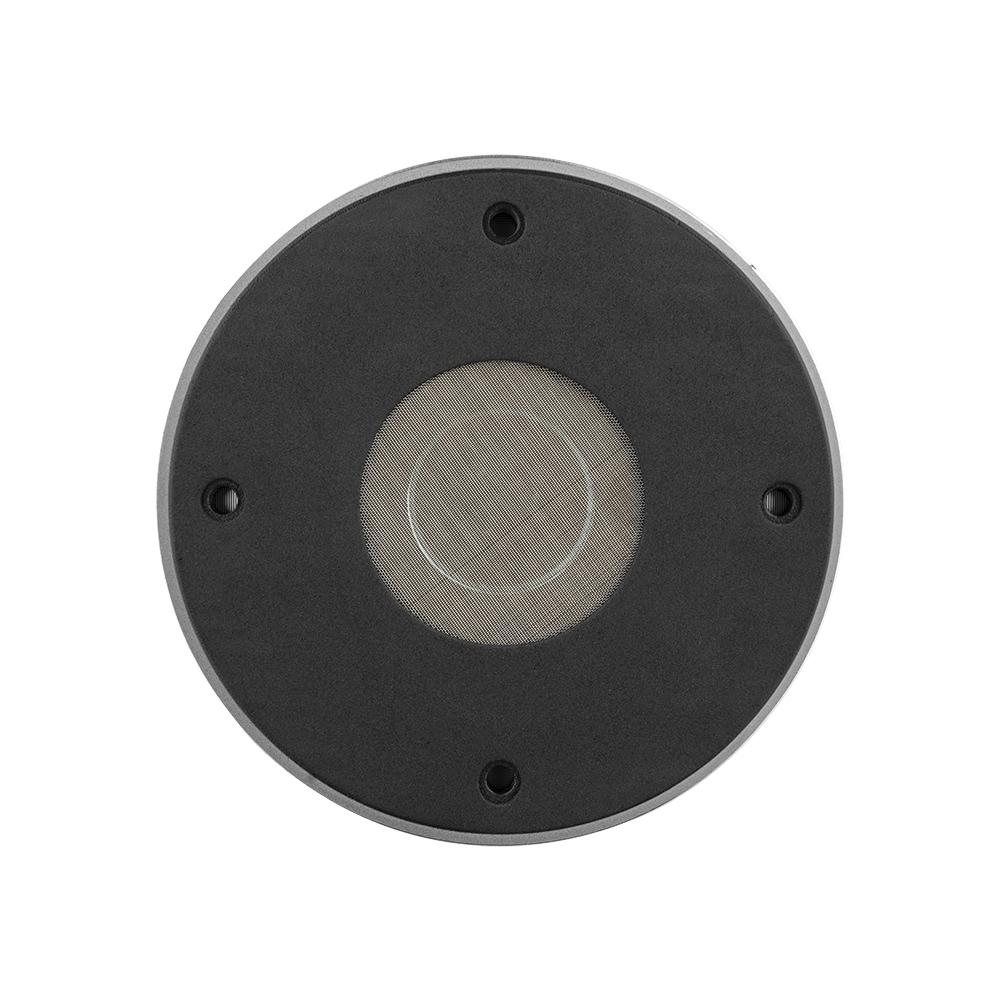

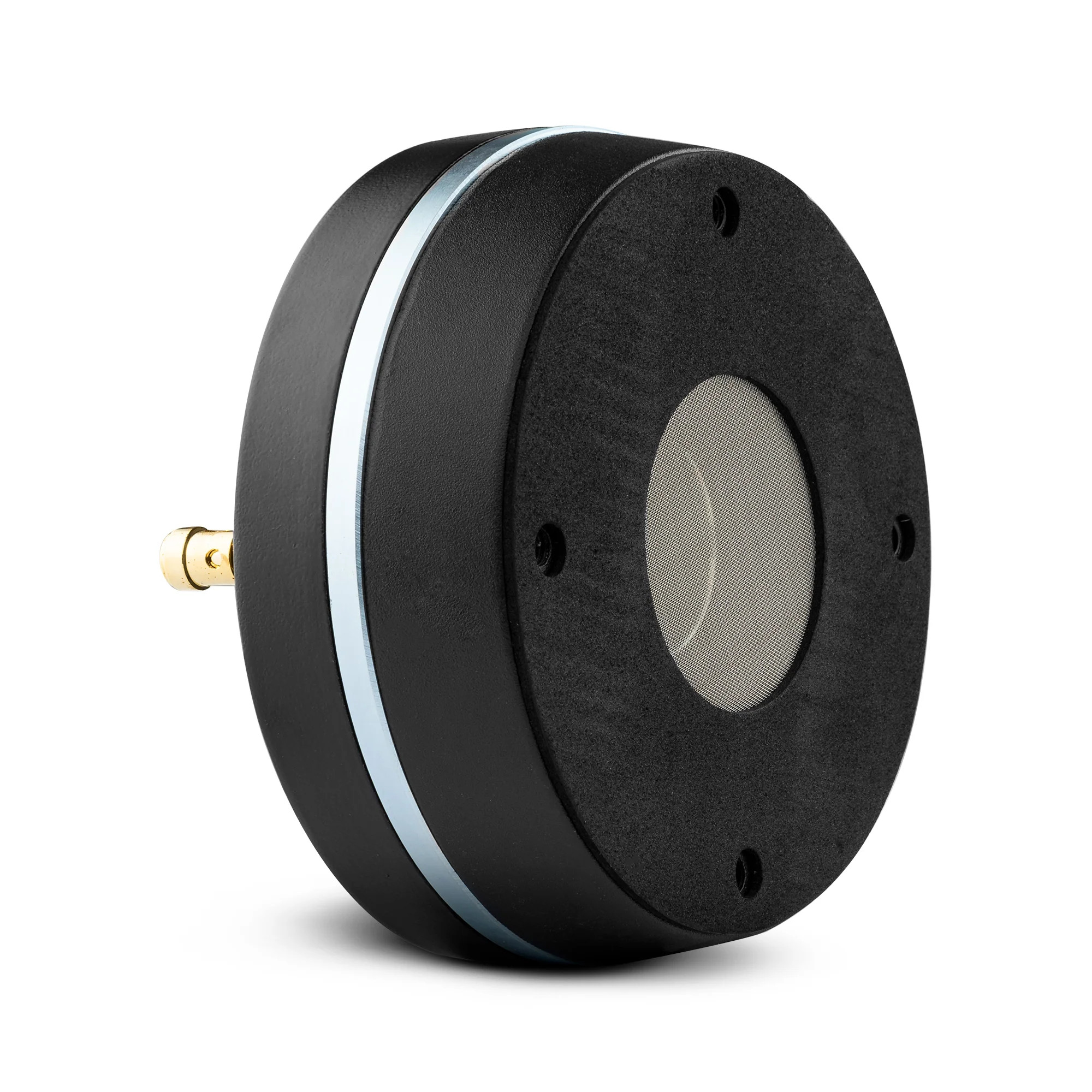

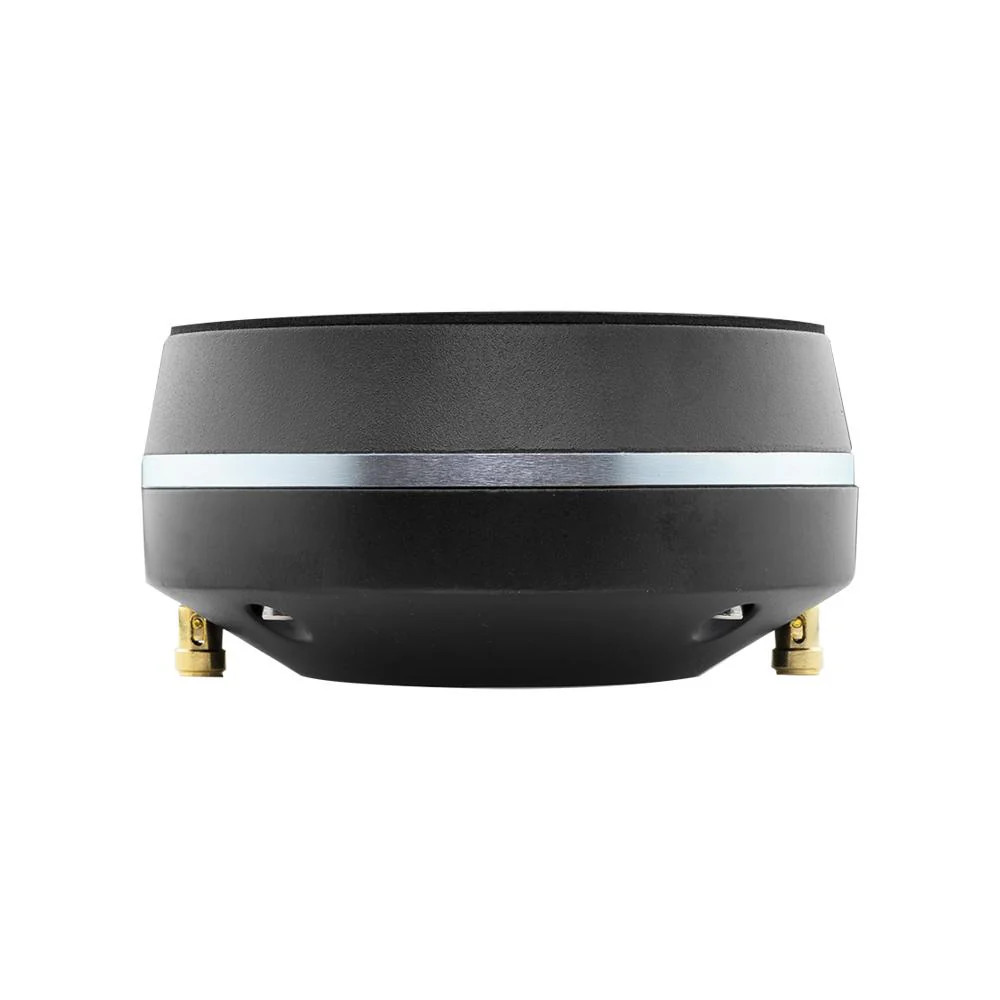

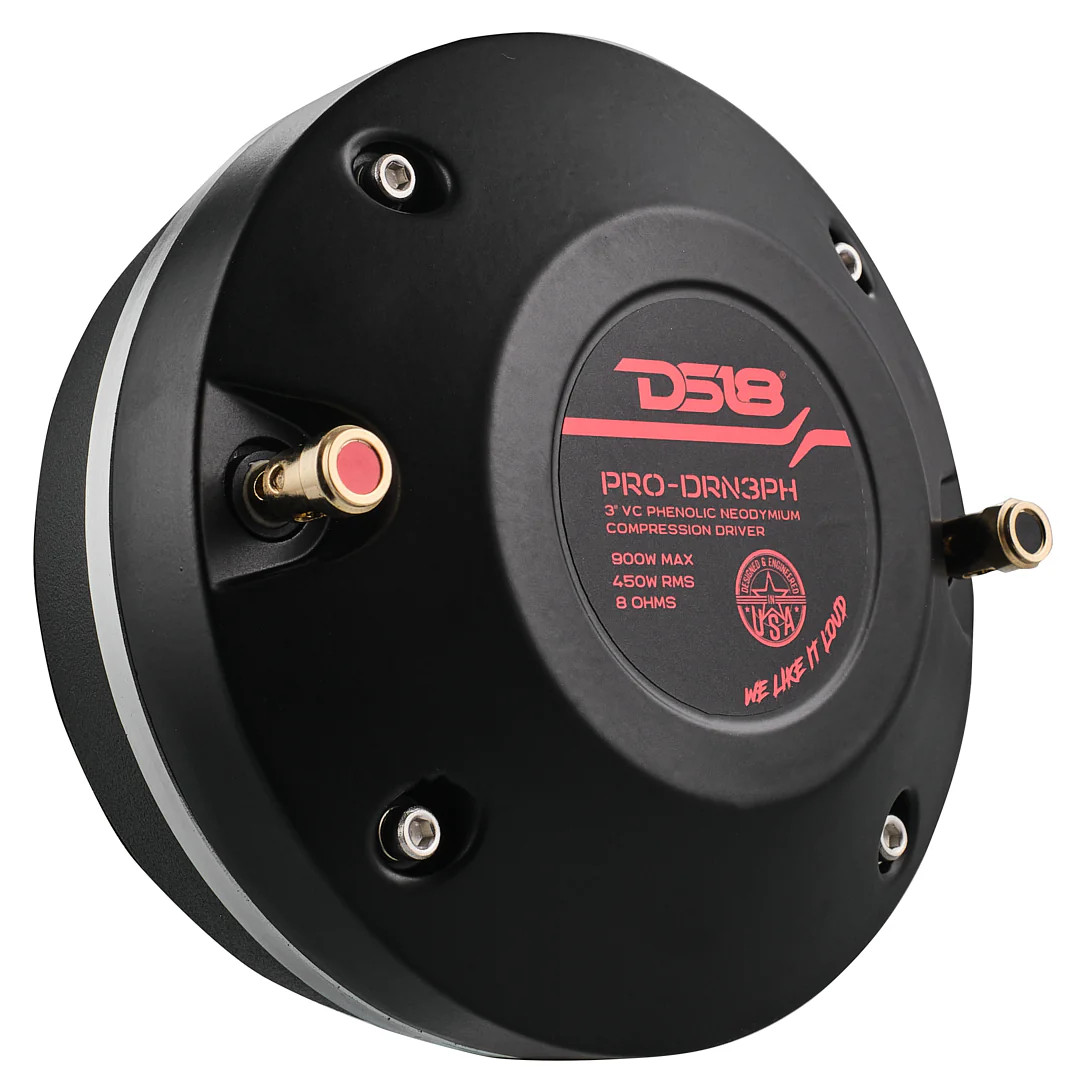

DS18 2" Throat Bolt on Neodymium Driver 450 Watts 3" Phenolic Vc 8-Ohm

SPECS

SKU
PRO-DRN3PH
Throat Diameter
2"
Installation Type
Bolt-on
Nominal Impedance
8 ohm
AES Power Handling
225W
Program Power Handling
450W
Peak Power Handling
900W
Sensitivity (1w/1m)
110 dB
Frequency Response
500Hz-10KHz
Recommended Hi Pass Crossover
800 Hz

MOTOR

Voice Coil Diameter
3" / 75mm
Voice Coil Former Material
Kapton
Winding Material
Aluminum Wire
Diaphragm Material
Phenolic
Magnet Material
Neodymium
Magnet Diameter
130mm
Body Material
Aluminum

MEASUREMENTS

Overall Width
5.12" / 130mm
Overall Depth
2.52" / 64mm
Bolt Pattern
4" / 102mm - M6
Product Weight
5.5 lbs
Product Dimensions
5.5 x 5.5 x 3
M/C Weight
23.5 lbs
M/C Dimensions
11.75 x 6.5 x 7.25
M/C QTY
4
Sold In
Piece

DS18's PRO-DRN3PH, a masterpiece crafted for the discerning car audio enthusiast, stands as a testament to the fusion of artistry, engineering prowess, and sonic innovation. This isn't just a driver; it's a masterpiece designed to make every listening session special.
The PRO-DRN3PH is reinforced by a Neodymium motor structure, a lightweight magnet that delivers an unrivaled magnitude of motor force. Prepare to be swept away by the and ear-piercing high-range frequencies that only Neodymium can effortlessly deliver. But it's not just about raw power – the PRO-DRN3PH strikes an exquisite balance between intensity and finesse, ensuring that every note resonates with remarkable clarity, maintaining the highest sound quality even at extreme volumes.
Bolt on the PRO-DRN3PH and set the stage for a new era of professional audio. With its 2" throat, this driver aligns perfectly with 4-bolt horns of varying sizes, offering you a world of mounting possibilities. Embrace the freedom to experiment, to sculpt your soundstage exactly as you envision it. Neodymium's inherent lightweight nature grants you a decisive advantage – a weightless conduit to sonic bliss, allowing you to push the boundaries of your car audio dreams without the encumbrance of traditional ferrite motors.
At the heart of the PRO-DRN3PH lies a Phenolic 3-inch voice coil, a technological marvel that transforms electrical energy into perfect audio reproduction. With a power-hungry appetite for 225W AES and a colossal 900W peak power handling, this voice coil breathes life into every note, every rhythm, and every beat. Feel the vibrations resonate in your very core as the PRO-DRN3PH high-efficiency Neodymium motor propels you into a new dimension of sound.
