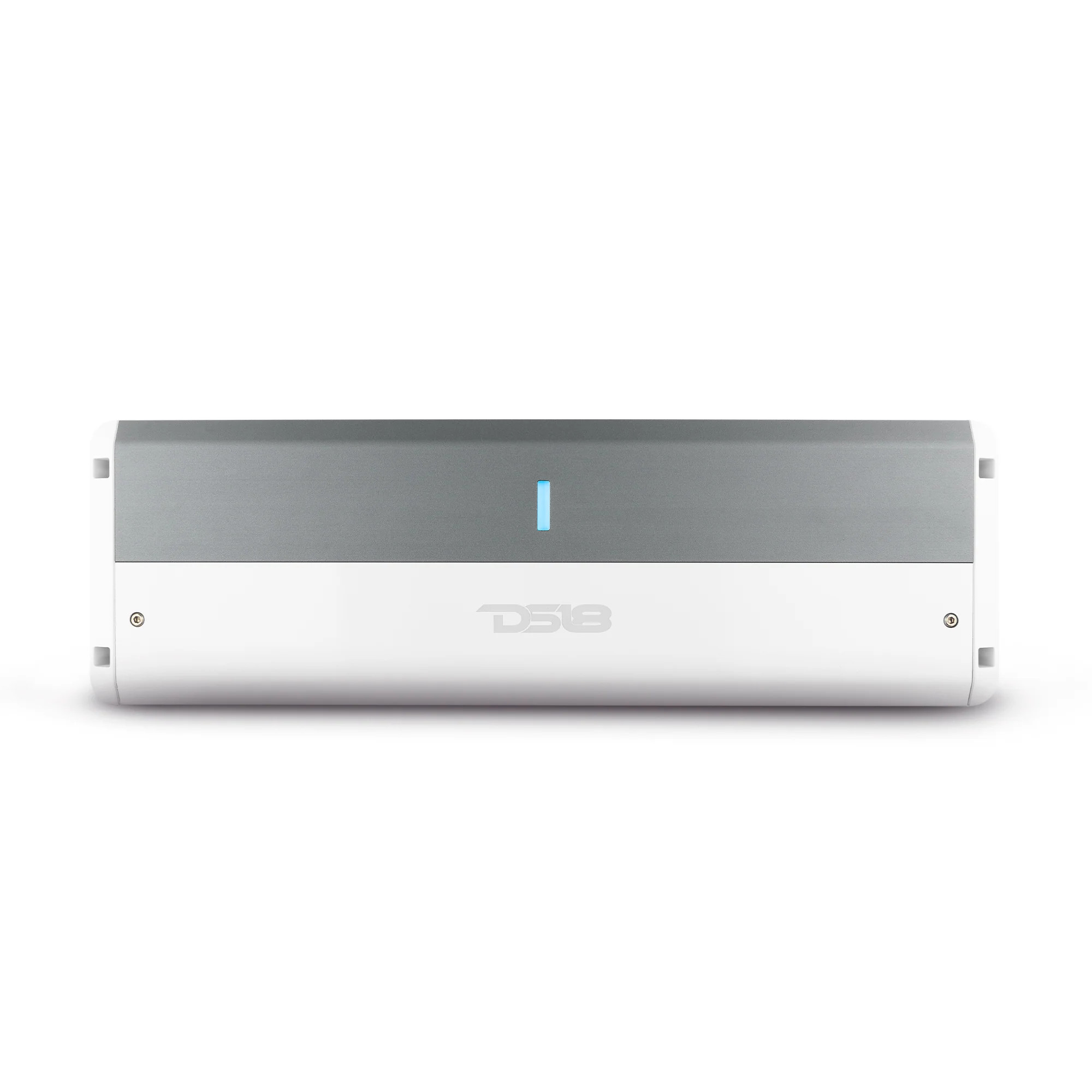

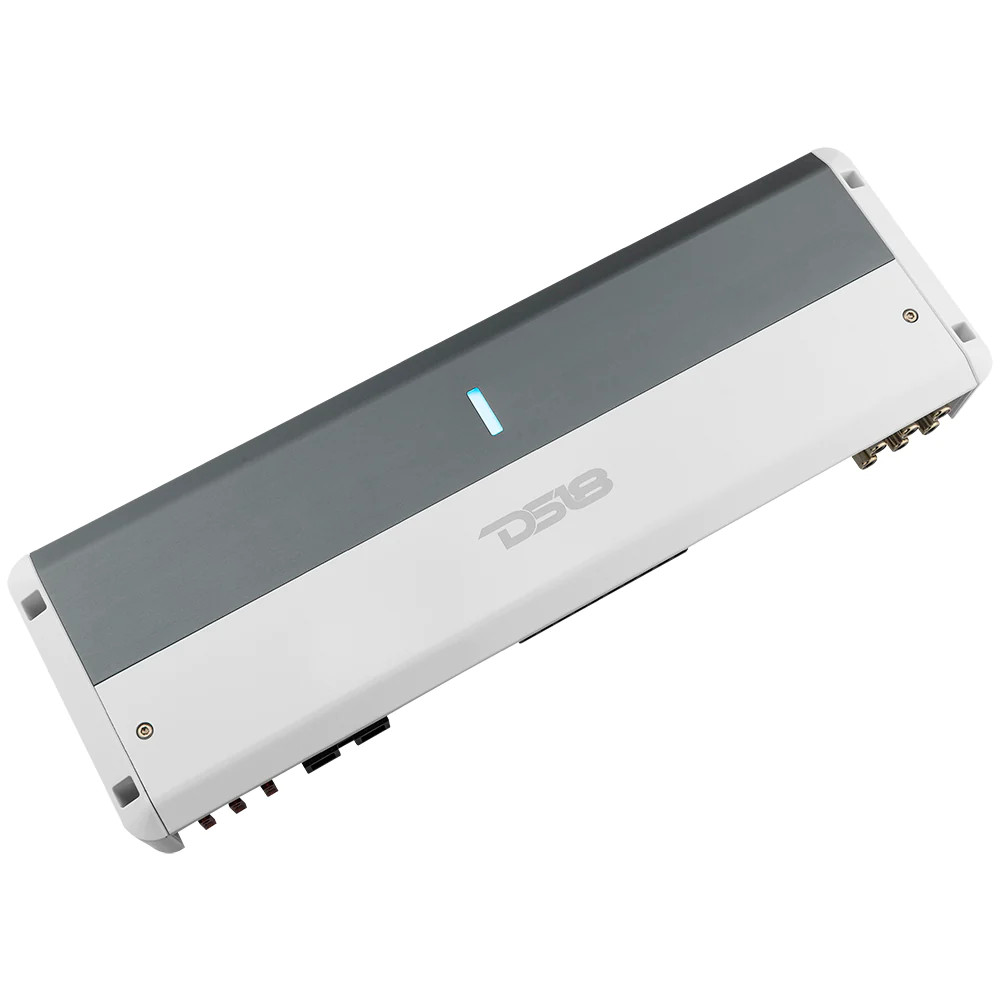

DS18 5 CHANNEL MARINE IPX5 AMPLIFIER 180 WATTS X 4 @ 4 OHM + 600 WATTS X 1 @ 2 OHM

GENERAL SPECIFICATIONS

SKU
NXL-M5
Total Watts (Peak)
3600W
RMS Power @ 4 ohm
4 x 150W / SUB: 300W
RMS Power @ 2 ohm
4 x 230W / SUB: 600W
RMS Power @ 4 ohm Bridge
2 x 440W

AUDIO

Frequency Response
20Hz - 20KHz
Signal to Noise Ratio 1W @ 4Ω
>90dB
Efficiency @ 4 ohm
>97%
Channel Separation
>55dB
Total Harmonic Distortion (THD)
<0.15%
Low Level Input Range
0.2V-6V
High Level Input
Yes: >5V
Selectable X-Over
HPF/LPF/FULL
X-Over Filter Range
40Hz - 2KHz / SW: 32Hz - 320Hz
Bass Boost Range
0-12dB (SW)
Bass Boost Frequency
45Hz +- 5Hz
Phase Selector
Yes 0~180 (SW)

FEATURES 1

Amplifier Class
Digital (D)
Amplifier Type
Stereo Full Range
Number of Channels
5 Channels
Minimum Impedance
2ohm St / 4ohm Bridge / 2ohm SW
Led Indicator
Clipping / Protect / Power
Power Input Terminal Size
4 Ga
Fuse Size
120A (3x40A)

FEATURES 2

Thermal Protection
Yes
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Body Color | Finish
Gray+White / Aluminum+ABS
DC Output Protection
Yes
Clipping Protection
Yes

EXTRA FEATURES

Water Resistant Rated
Yes, IPX5 (Water Splashing)
PCB Layout Design
4 Layers / Coated
RCA Output
No
UV Compliant
Yes, UV Protected and PCB Coated
Input Sum Selector
Yes, 2/4/5 Ch Input Mode
Tiffany Style RCA
Yes
High Level Input
Yes, 4ch Speaker level
Stainless Steel Hardware
Yes, (Screws)
Potenciometers
High Quality Metal Knob
Remote Level Control
No

MEASUREMENT

Overall Length
14.3" / 365mm
Overall Wide
4.5" / 116mm
Overall Height
1.7" / 43mm
Heatsink Length
13.3" / 340mm
Gross Single Unit Weight
2.24kg
