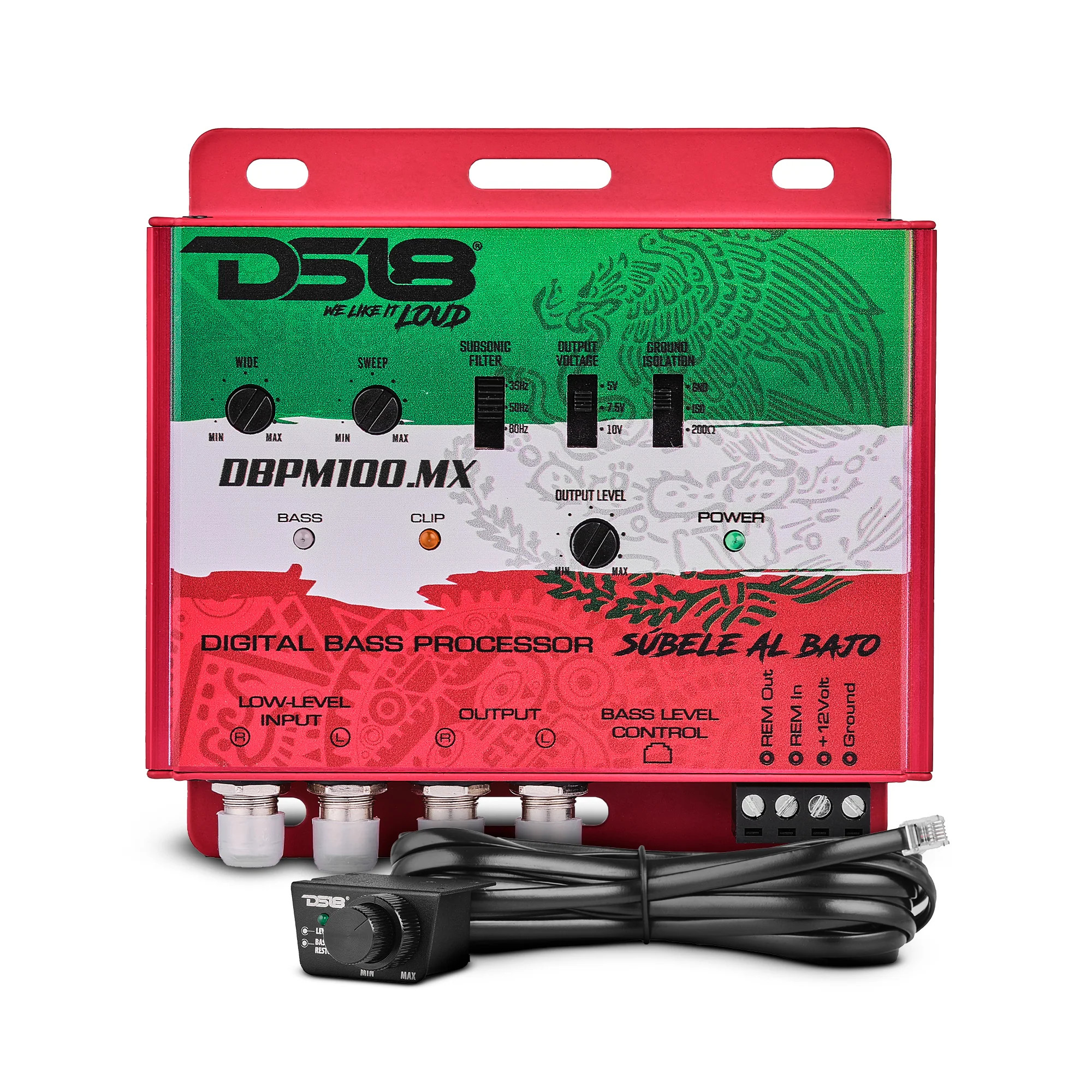

DS18 DIGITAL BASS PROCESSOR - MEXICO EDITION

GENERAL FEATURES

SKU
DBPM100.MX
Operating Voltage
8-17V
Power Consumption
0.24A
Recommended Fuse Rating
1A
Power Input Terminal Size
16ga
LED Indicator
Power / Bass Enhancer / Clip
Ground Isolation Switch
Yes (GND/ISO/200Ω)
Hi-Level Speaker Input
No
Auto Turn-on Function
No
Remote Turn-on (Input / Output)
Yes
Remote Level Control
Yes (Bass Enhancer)
RCA Connector Type
Tiffany (Silver)
Housing Material
Aluminum
Body Color / Finish
Red/Green/White (Mexico Theme)

AUDIO SPECIFICATIONS

Frequency Response
10Hz-20kHz
S/N Ratio
120dB
THD
0.0022%
Input Sensitivity (Low-Level)
<10V
Input Sensitivity (Hi-Level)
N/A
Input Impedance
20Kohms
Output Voltage
Selectable (5V/7.5V/10V)
Output Impedance
100ohms
Balanced Input Noise Rejection
>60dB
Stereo Separation
>80dB

CROSSOVER SECTION & BASS PROCESSOR

Subwoofer LPF Frequency Cut-off
No (Full Range Signal)
Subwoofer Infrasonic Frequency Cut-off
Selectable (35/50/80Hz)
Gain
0~8.8V
Center Frequency (Sweep)
75Hz~120Hz
Q Factor (Wide)
1~3

EXTRA FEATURES

Compact Size to easy Installation for Any Applications
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes

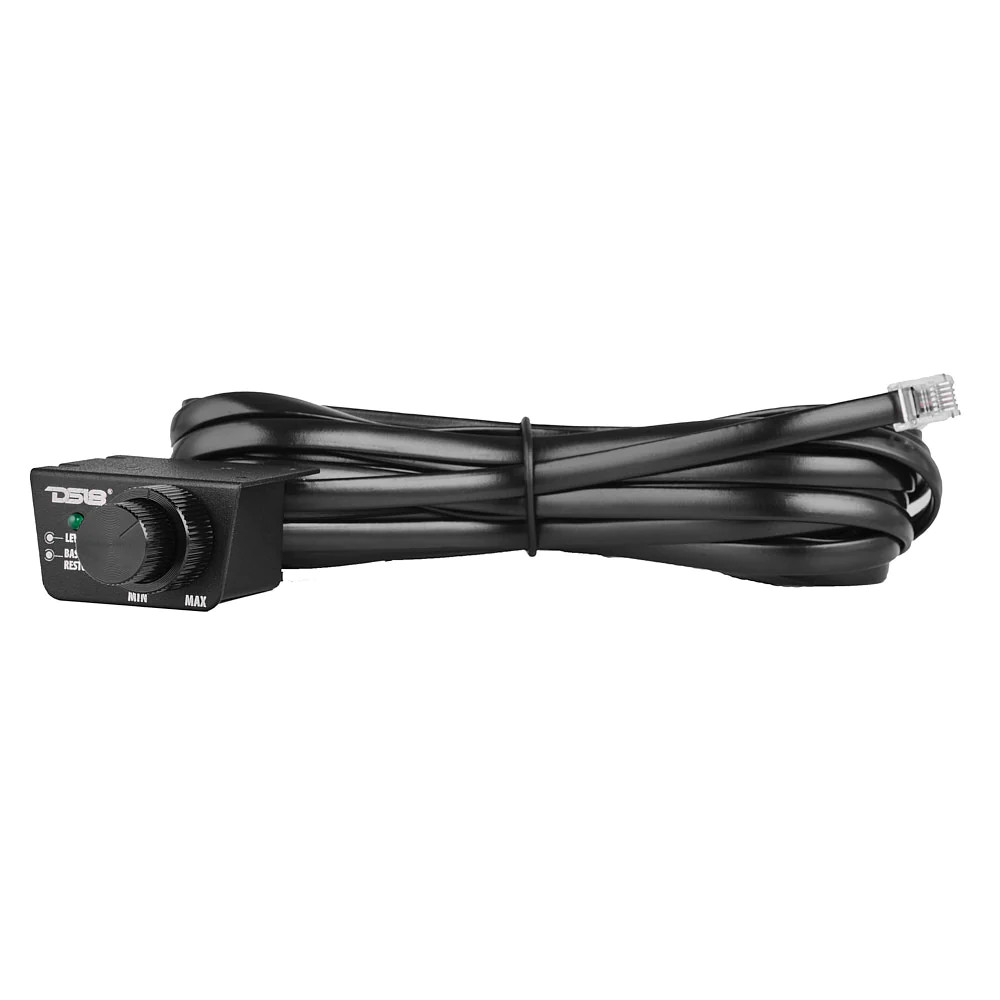

Remote Level Control with Clip Indicator
Yes

MEASUREMENTS

Overall Length
4.72" / 120mm
Overall Width
4.4" / 113mm
Overall Height
1" / 26mm
