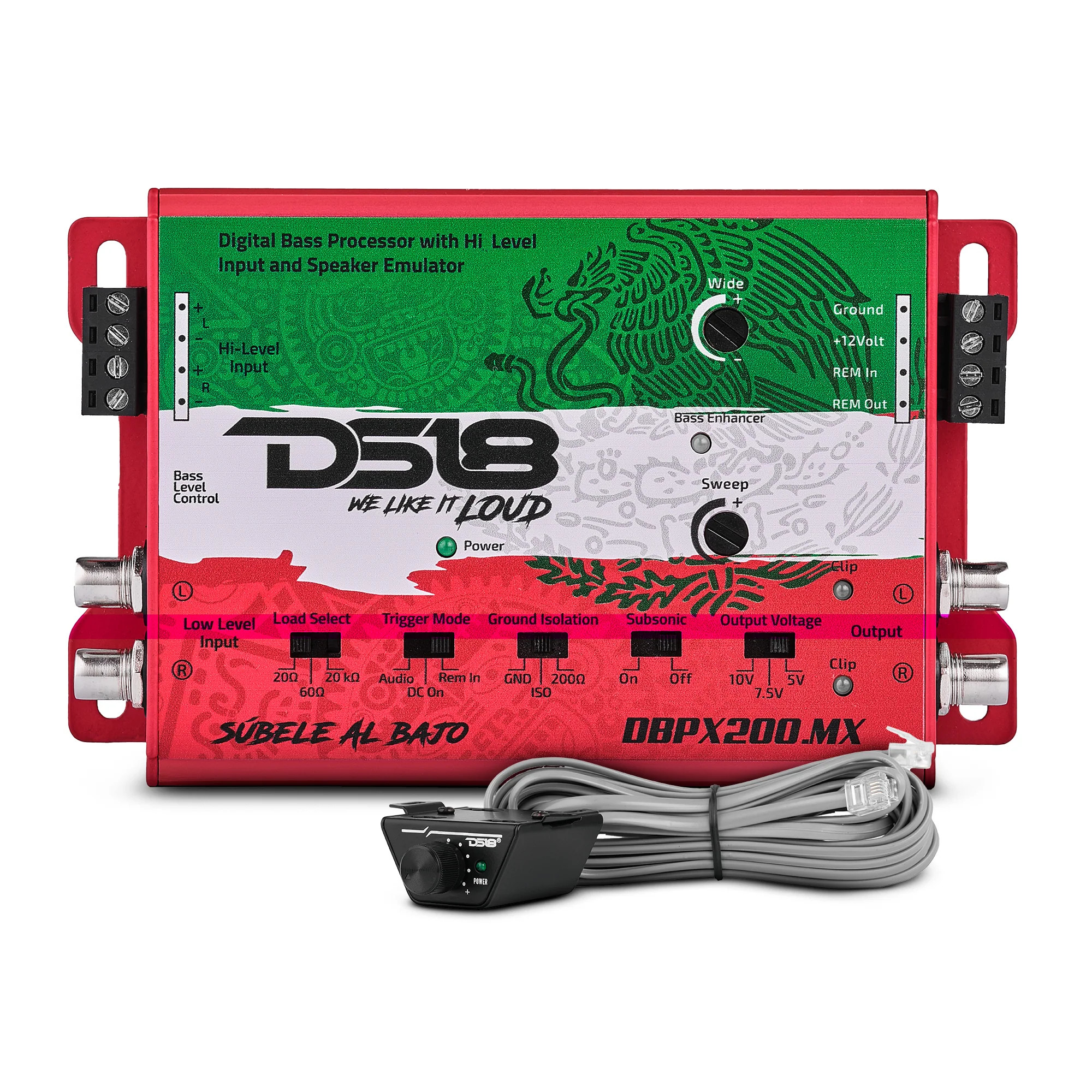

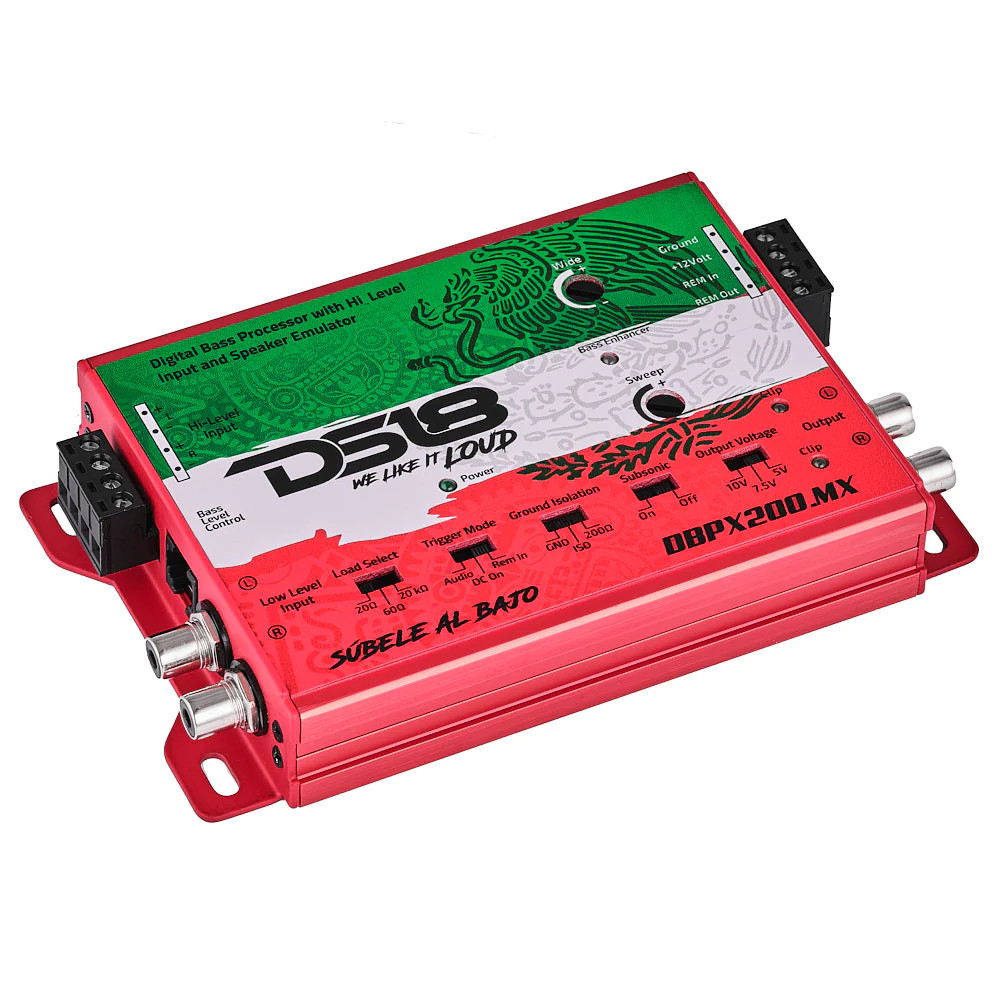

DS18 Digital Bass Processor With Hi to Low Signal Converter & Speaker Emulator - MEXICO EDITION

GENERAL FEATURES

SKU
DBPX200.MX
Operating Voltage
9-16V
Power Consumption
0.18A
Recommended Fuse Rating
1A

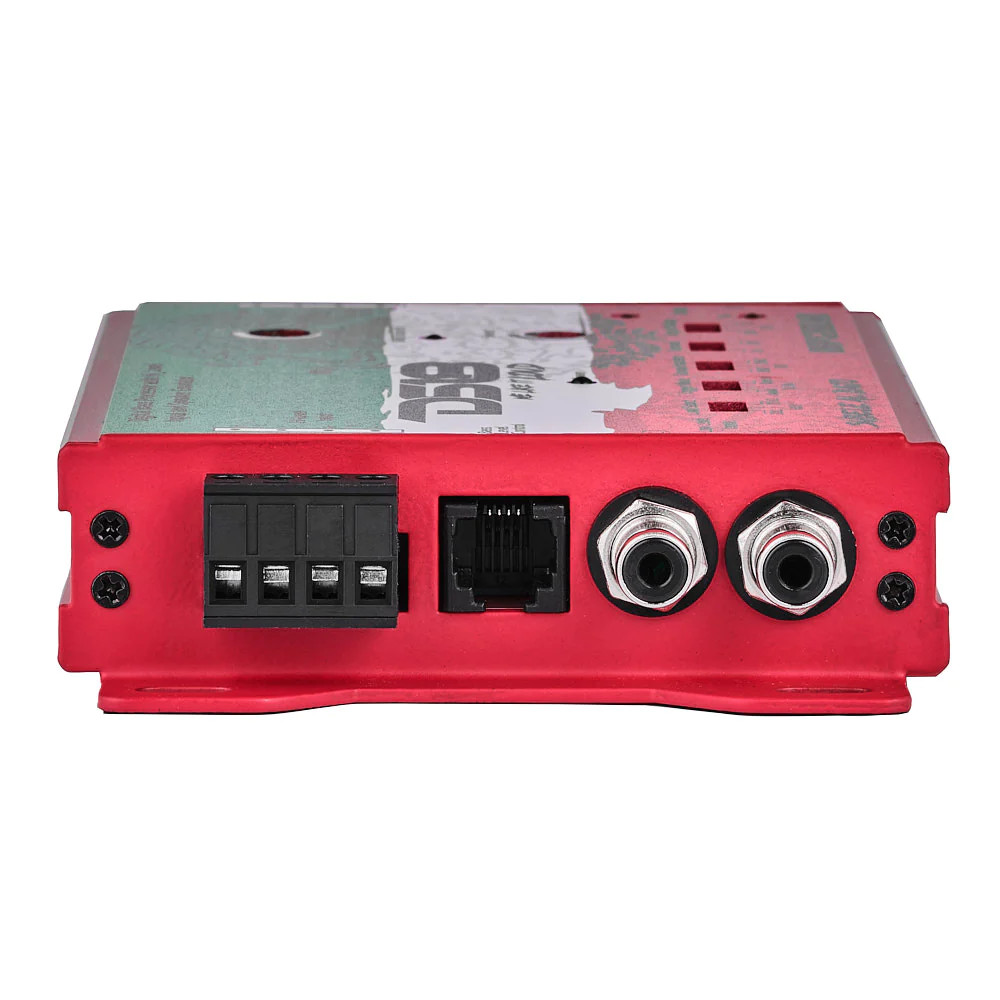

Power Input Terminal Size
16ga
LED Indicator
Power / Bass Enhancer
Ground Isolation Switch
Yes (GND/ISO/200?)
Hi-Level Speaker Input
Yes (2 Channels)
Auto Turn-on Function
Yes (Audio/DC)
Remote Turn-on (Input / Output)
Yes
Remote Level Control
Yes (Bass Enhancer/Level)
RCA Connector Type
Tiffany (Silver)
Housing Material
Aluminum
Body Color / Finish
Red / Green / White (Mexico Theme)

AUDIO SPECIFICATIONS

Frequency Response
10Hz-20kHz
S/N Ratio
95dB
THD
0.05%
Input Sensitivity (Low-Level)
<8.8V
Input Sensitivity (Hi-Level)
>15V
Input Impedance
20Kohms
Output Voltage
Selectable (5V/7.5V/10V)
Output Impedance
110ohms
Balanced Input Noise Rejection
>45dB
Stereo Separation
>50dB

CROSSOVER SECTION

Subwoofer LPF Frequency Cut-off
No (Full Range Signal)
Subwoofer Infrasonic Frequency Cut-off
Selectable (Off/50Hz)

BASS PROCESSOR SECTION

Gain
0~8.8V
Center Frequency (Sweep)
75Hz~120Hz
Q Factor (Wide)
1~4

EXTRA FEATURES

Compact Size to easy Installation for Any Applications
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Remote Level Control with Clip Indicator
Yes

MEASUREMENTS

Overall Length
6" / 153mm
Overall Width
3.7" / 95mm
Overall Height
1.1" / 28mm
