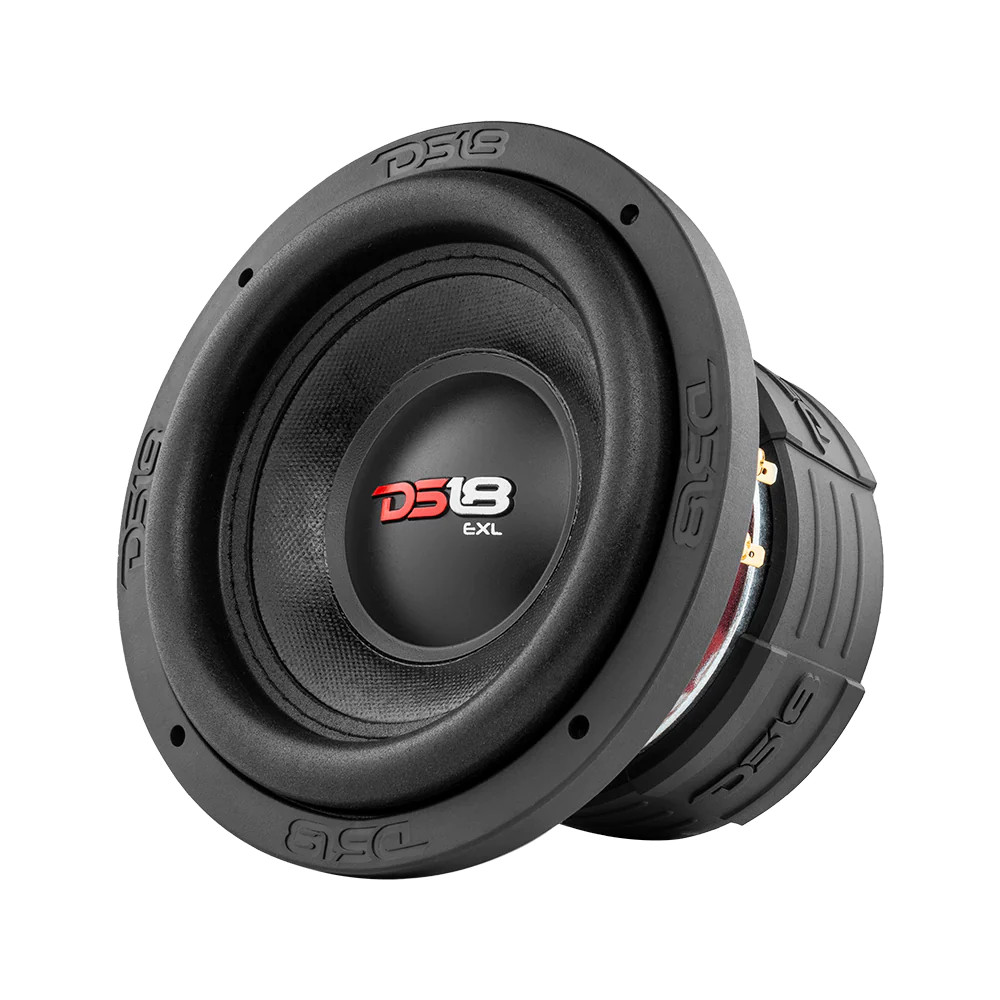

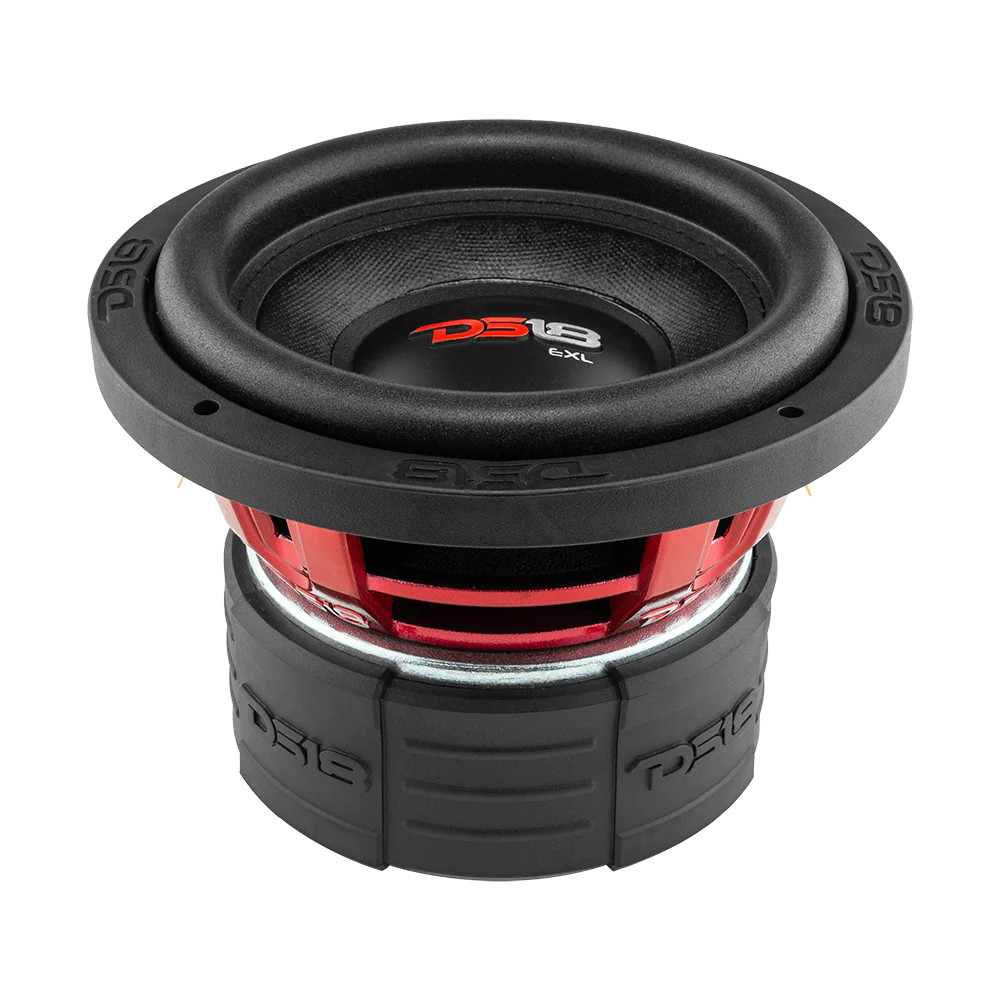

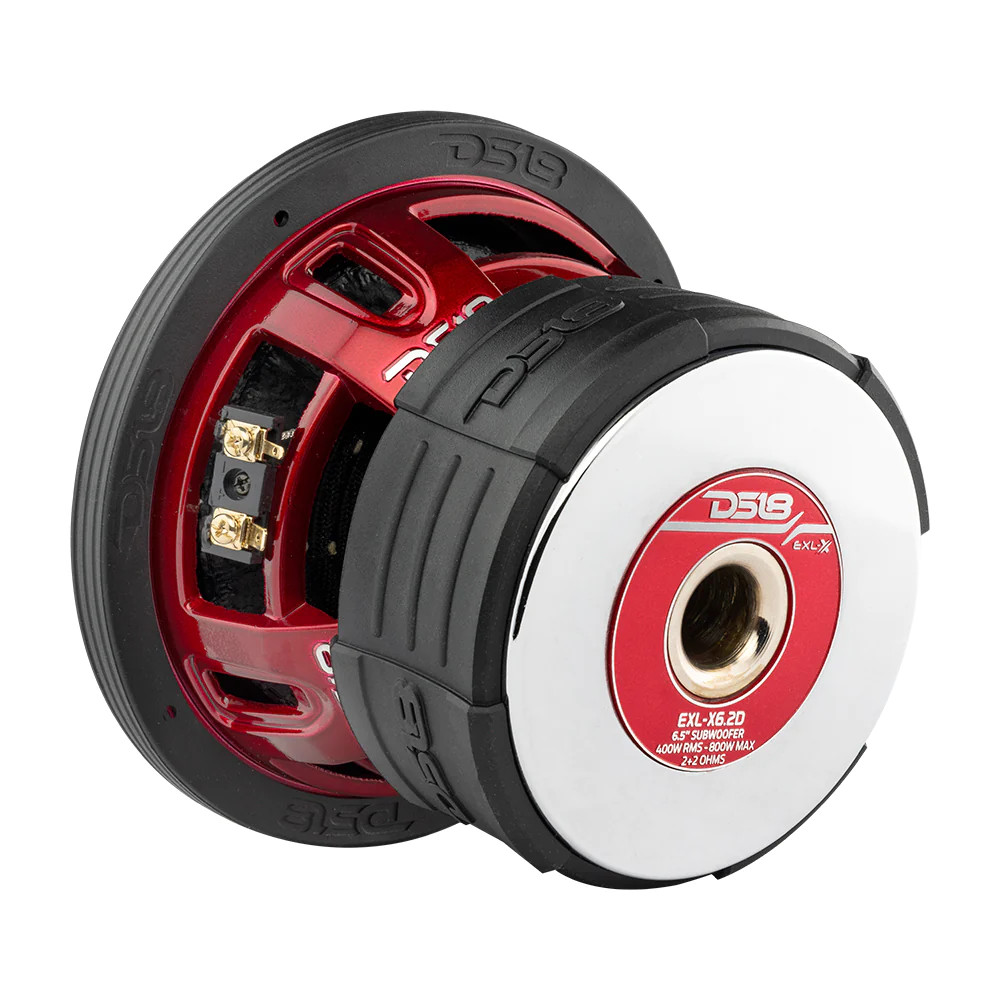

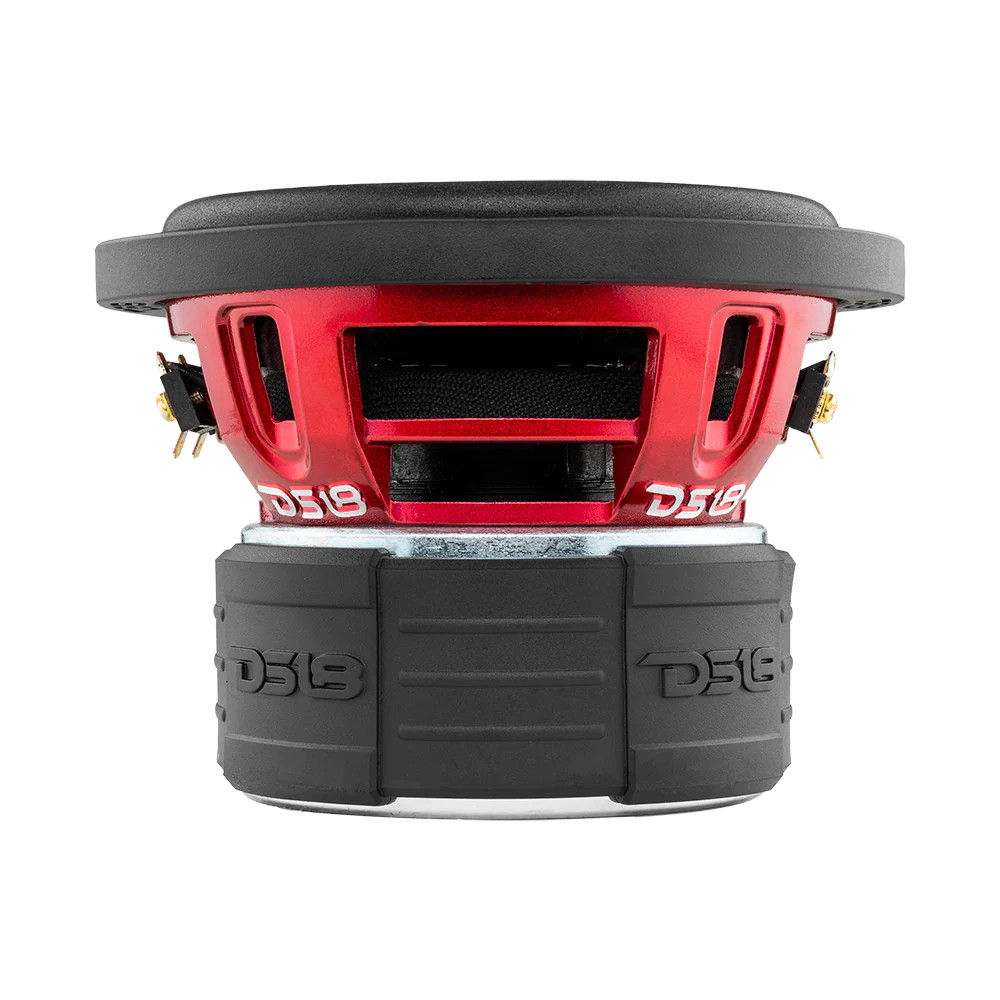

DS18 EXL SERIES 6" 800W DUAL 2 OHM SUBWOOFER

SPECS

SKU
EXL-X6.2D
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
2+2 ohms
RMS Power Handling
400W
Maximum Power Handling
800W
Sensitivity (1w/1m)
89.8dB
Frequency Response
40-820Hz
Recommended Lo Pass Crossover
90Hz

MOTOR

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non Pressed Paper + Glass fiber
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
90 oz
Displacement Volume
N/A

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
2L / 0.07ft3
Free Air Resonance Fs
76Hz
Mechanical Factor Qms
6.416
Electrical Factor Qes
1.242
Total Factor Qts
0.925
Moving Mass Mms
78.638g
Compliance Cms
0.036mm/N
Bl Factor Bl
16
Voice Coil Inductance Le
9.35mH
Diaphragm Area Sd
143.14cm2
DC Resistance Re
2+2 ohm
Efficiency Bandwidth Product EBP
61

RECOMMENDED ENCLOSURES

Sealed Internal Volume
0.2ft3
Sealed Box Output Response
75Hz
Ported Internal Volume
0.3ft3
Port Size *Square (W x H x Long)
0.75" x 7.24" x 10.68" / 19 x 184 x 271.2mm
Port Tuning Frequency
60Hz
Ported Box Output Response
48Hz

MEASUREMENTS

Overall Diameter
6.92" / 176mm
Overall Depth
5.15" / 131mm
Front Mount Baffle Cutout
5.78" / 147mm
Mounting Depth
4.25" / 108mm
Motor Diameter
4.96" / 126mm
Gross Single Unit Weight (lb)
10
Dimensions W x L x H (Inches)
7 x 7 x 6
Quantity of Units in Master Carton
4
Gross Master Carton Weight (lb)
20.5
M/C Dimensions W x L x H (Inches)
16 x 8 x 14
