Description

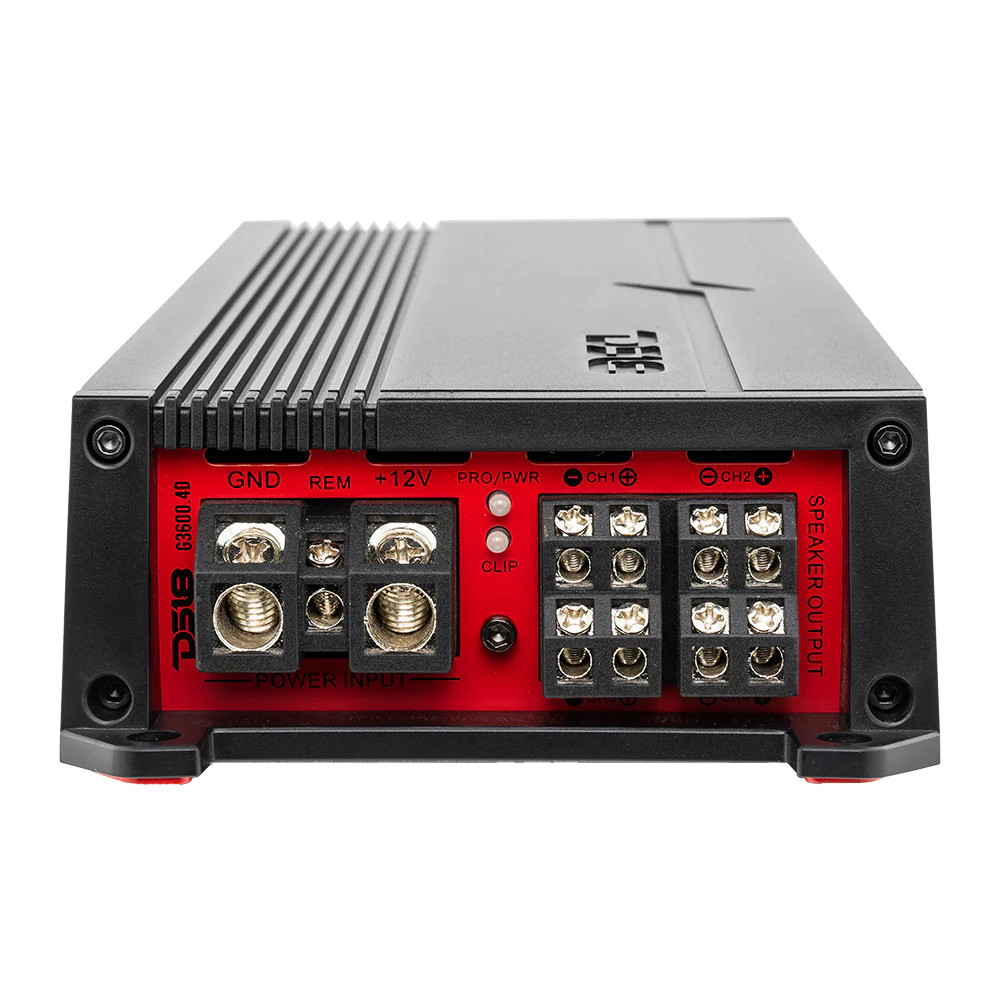

GEN-X Full-Range Class D 4-Channel Amplifier 4 x 300 Watts Rms @ 4-ohm

4 Channel Full Range
Class D
2 ~ 4 Ohm Stable
4 x 300 Watts @ 4 Ohm
Power/Protection/Clip Indicator
Built in Crossover

SPECS

SKU
G3600.4D
Class
Digital (D)
Amplifier Type
4 CH Full Range
Channels
4 CH
Peak Power
3600W
RMS Power @ 4 Ohm/14.4V
4 x 300W
RMS Power @ 2 Ohm/14.4V
4 x 420W
RMS Power @ 4 Ohm/14.4V Bridged
2 x 740W
Minimum Impedance
2 Ohm St / 4 Ohm Bridge
Operation Voltage
9 - 15V

SPECS

Frequency Response
20Hz-20KHz
Signal/Noise Ratio
>90dB
Low Pass Filter
50Hz - 250Hz
High Pass Filter
50Hz - 250Hz
Subsonic
NO
Subsonic Frequency
N/A
Efficiency @ 4 Ohm
80%
Damping Factor
78
THD %
0.01
Input Sensitivity
0.25V - 6V
X-Over Filter Range
50 - 250Hz
Bass Boost Range
N/A
Bass Boost Frequency
N/A
Phase Selector
NO

SPECS

High Level Input
NO
Selectable X-Over
LPF/FLAT/HPF
Led Indicator
Power / Protection / Clip
Voltage Input Protection
Yes
Clipping Protection
Yes
Thermal Protection
Yes
Cooling Fan
No
Speaker Output Size
12GA
Power Input Size
4GA
Fuse Rating
120A
Remote Level Control
No
Body Color / Finish
Matte black

MEASUREMENTS

Product Weight (lb)
4.5
Product Dimensions L x W x H (Inches)
13.75 x 6.25 x 3.25
M/C Weight (lb)
29.5
M/C Dimensions L x W x H (Inches)
14 x 13 x 10.5
M/C Qty
6
Sold In
Single
