Description

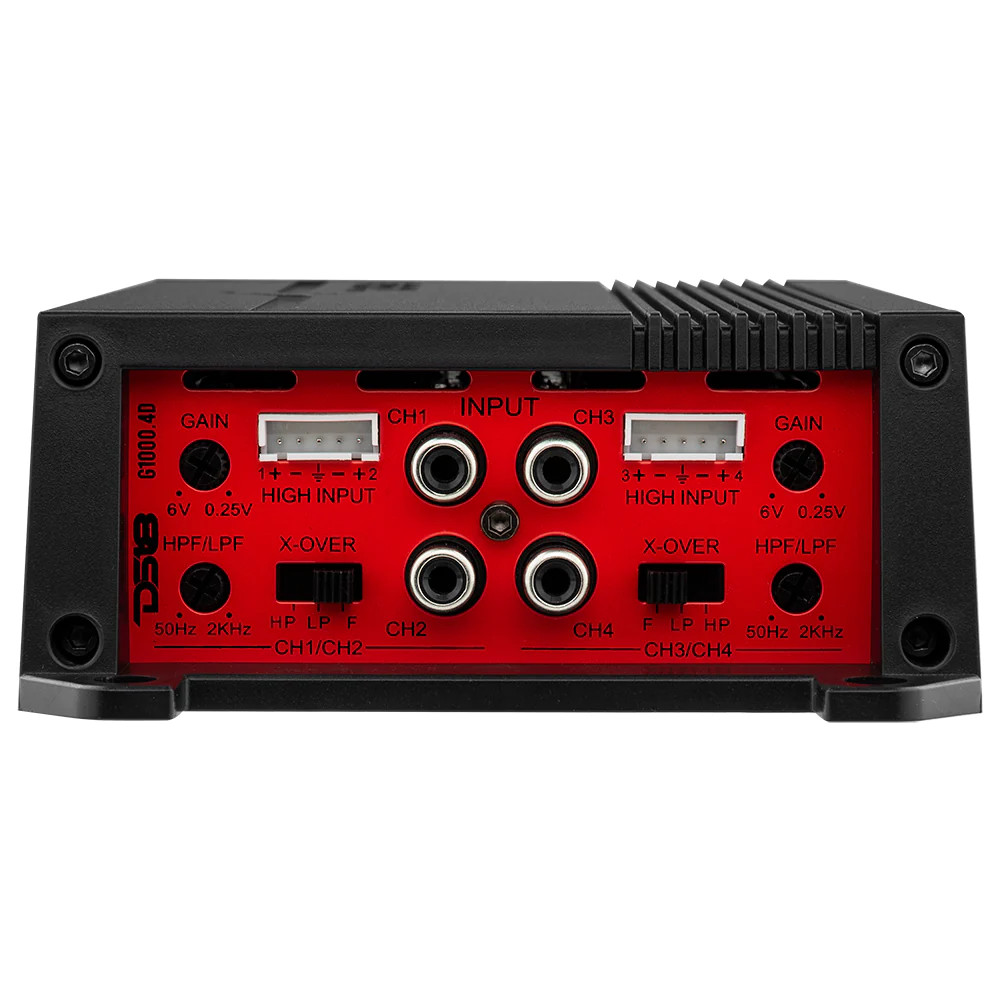

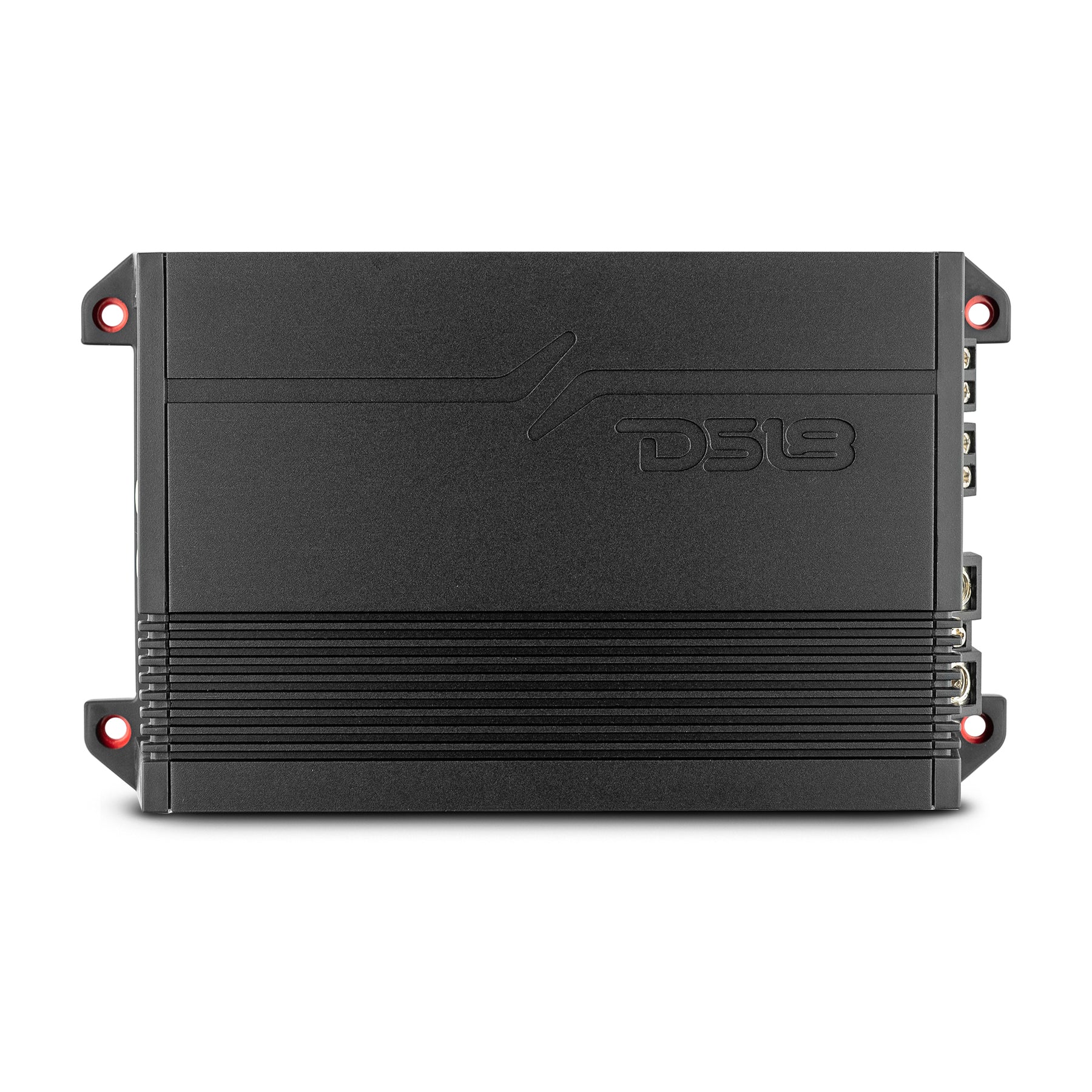

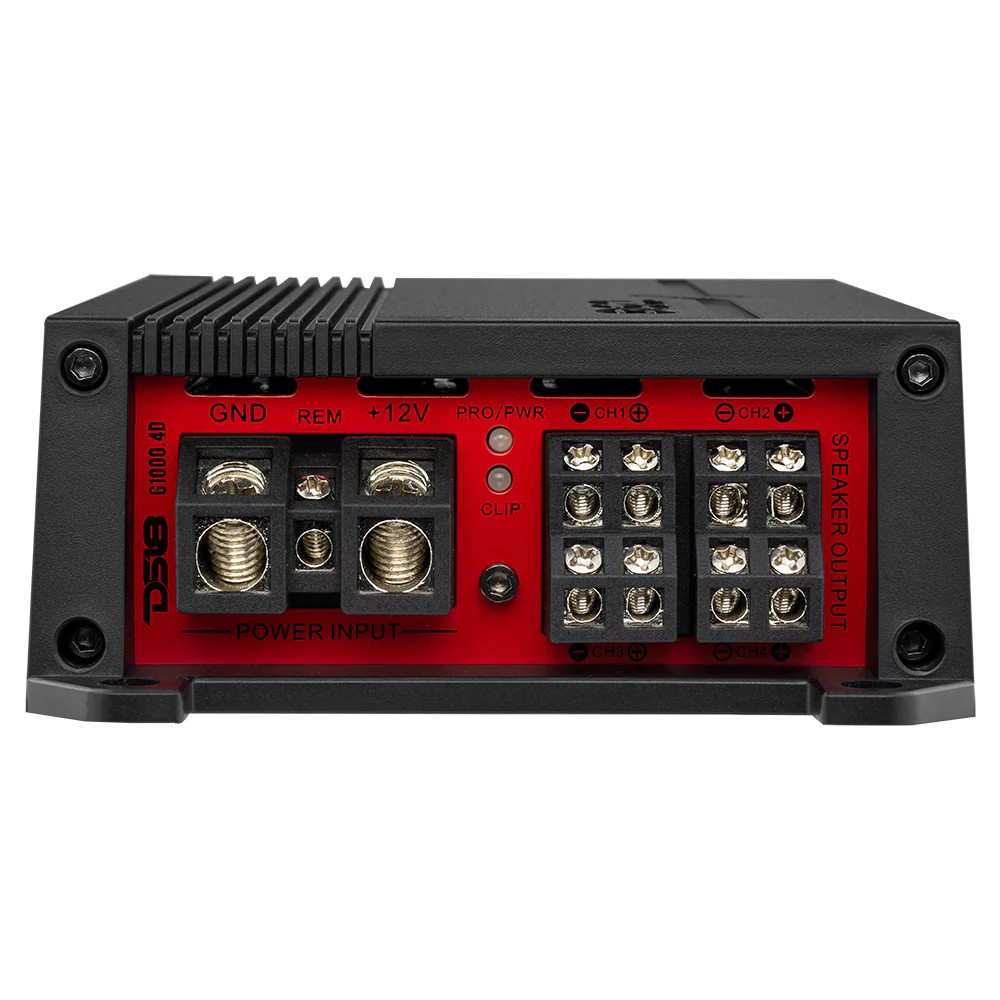

GEN-X Full-Range Class D 4-Channel Amplifier 4 x 90 Watts Rms @ 4-ohm

4 Channel Full Range
Class D
2 ~ 4 Ohm Stable
4 x 90 Watts @ 4 Ohm
Power/Protection/Clip Indicator
Built in Crossover

SPECS

SKU
G1000.4D
Total Watts (Peak)
1000W
RMS Power @ 4 Ohm
4 x 90W
RMS Power @ 2 Ohm
4 x 150W
RMS Power @ 4 Ohm Bridge
2 x 300W

AUDIO

Frequency Response
20Hz-20Khz
Signal to Noise Ratio
>90dB
Efficiency @ 4 Ohm
0.92
Damping Factor
78
Input Impedance
22K
Channel Separation
55 dB
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.25 - 6 V
High Level Input
Yes
Selectable X-over
LPF/FLAT/HPF
X-over Filter Range
50Hz-2KHz

FEATURES

Amplifier Class
Digital (D)
Amplifier Type
4 CH Full Range
Number Of Channels
4 CH
Minimum Impedance
2 Ohm St / 4 Ohm Bridge
Led Indicator
Power | Protection | Clip
Power Input Terminal Size
4 GA
Fuse Size
2 X 25A
Thermal Protection
Yes
Over-Load Protection
Yes
Dc Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color | Finish
Matte Black

MEASUREMENT

Overall Length
8.1" / 205mm
Overall Wide
4.72" / 120 mm
Overall Height
1.96" / 50 mm
Heatsink Length
6.2" / 158 mm
Gross Single Unit Weight
1.2 Kg
