General

SKU
NXL-X8TP
Nominal Diameter
8 inch
Nominal Impedance
4 ohms
RMS Power Handling
125 W
MAX Power Handling
375 W
Sensitivity (1w/1m)
93 dB
Frequency Response
55 Hz - 23 KHz
Recommended HI Pass Crossover
70Hz

Body / Features

Enclosure Material
Injection PC+ABS
Marine Grade Type
IP65+UV Stable
RGB LED
Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting 6 Core Wires for Lighting and Speaker
Grill Type
ASA (Injection Grill)
Pair
Yes

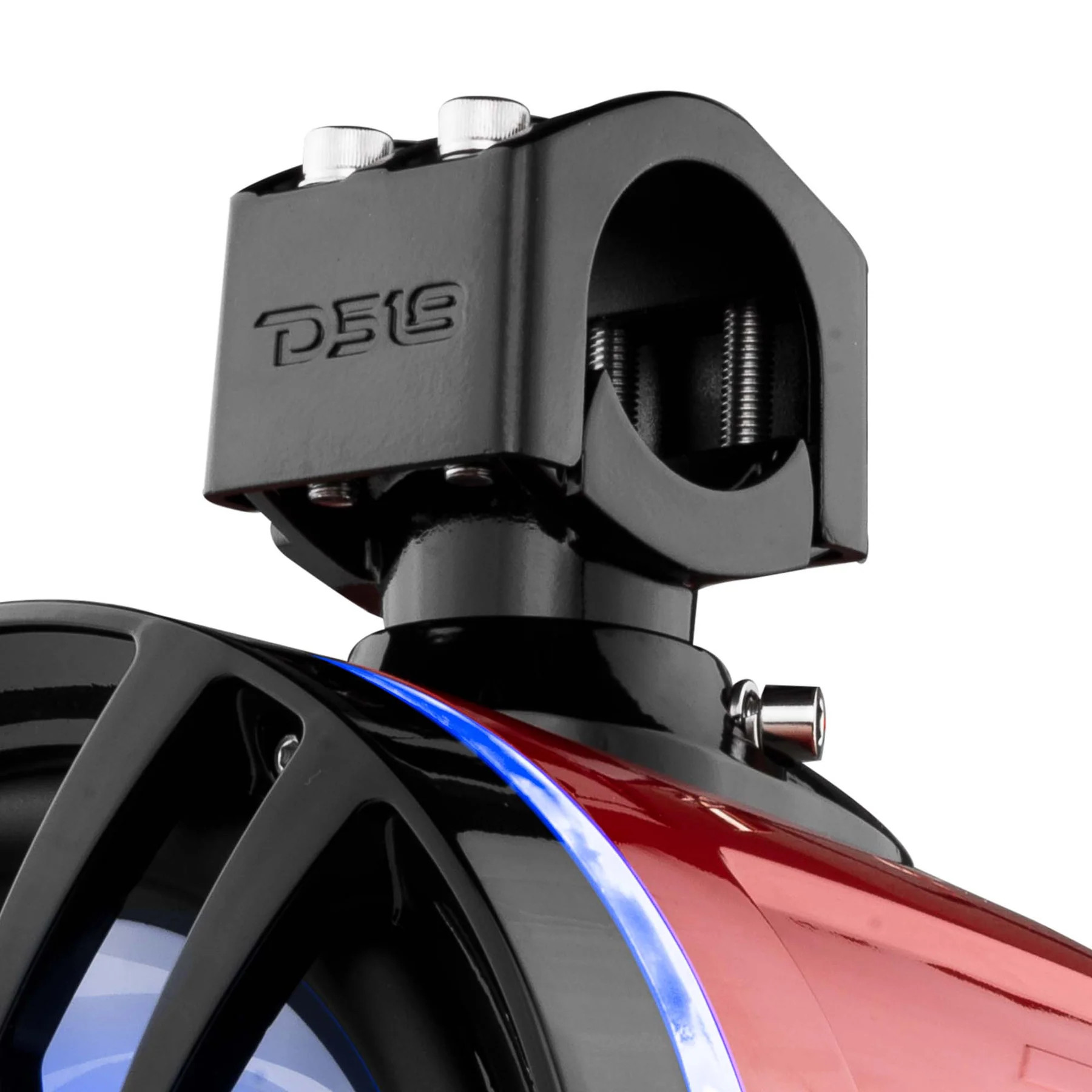

Clamps
Die-Cast Adjustable (1"~2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware(Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
Front Logo
Yes, can be rotated for correct angle display
Rear Logo
Yes, can be rotated for correct angle display
Finish
Matt Black / Gloss White / Gloss Red

Woofer Specifications

Voice Coil Diameter
1.2 inch
Cone Material
waterproof Injection Polypropylene
Surround Material
Butyl
Basket Material
PC Injection Molded Composite
Magnet Material
Ferrite + Reverse Neodymium
Magnet Grade
Y35 + N40H
Passive Radiator
No

Tweeter Specifications

Voice Coil Diameter
1 inch
Type
Dome PEI Surround
Diaphragm Material
Titanium
Magnet Material
Neodymium
Crossover
6dB/Oct

Thiele & Small Parameters

Equivalent Volume Vas
22.5 L
Excursion (one way) Xmax
4 mm
Free Air Resonance Fs
50 Hz
Total Factor Qts
0.532

Speaker Measurement

Overall Diameter
8.59" / 218.1mm
Overall Depth
13.89" / 352.9mm
Overall Height
12.37" / 314.3mm
