SPECS

SKU
NXL-X8TPNEO/BK
Nominal Diameter
8
Nominal Impedance
4 Ohms
RMS Power Handling
180W
MAX Power Handling
550W
Sensitivity (1w/1m)
95dB
Frequency Response
60Hz - 21Khz

Body / Features

Enclosure Material
Injection PC+ABS
Marine Grade Type
IP65 + UV Stable
RGB LED
Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting 6 Core Wires for Lighting and Speaker
Grill Type
ABS+316 Stainless Metal Mesh
Pair
Yes
Clamps
Die-Cast adjustable (1" ~ 2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
Front Logo
Yes, Can be Rotated For Correct Angle Display

Woofer Specifications

Voice Coil Diameter
2"
Cone Material
Waterproof Compress Paper + Carbon Fiber
Surround Material
Soft PC Damping Glued
Basket Material
PC Injection Molded Composite
Magnet Material
Neodymium
Magnet Grade
N40H

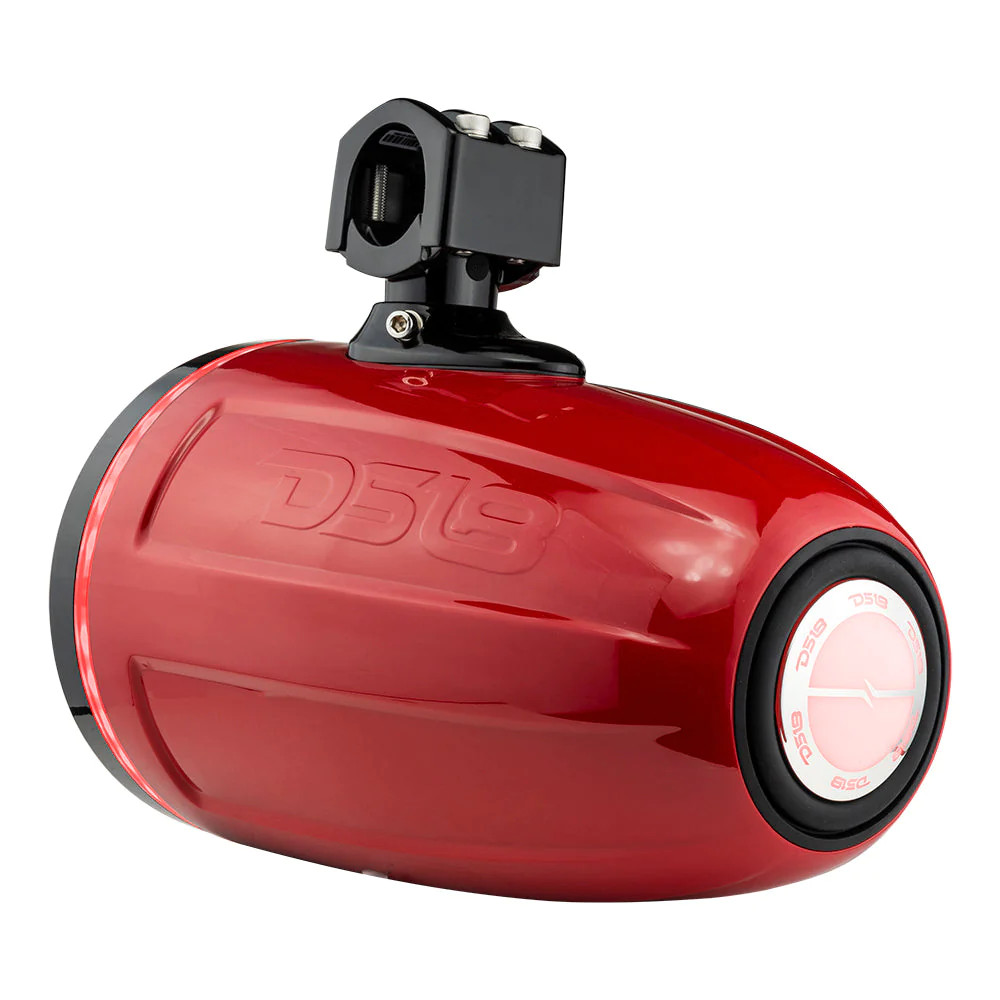

Passive Radiator
4" With LED RGB Light

Tweeter Specifications

Voice Coil Diameter
1"
Type
Compression Driver with CNC Solid Aluminum Horn
Diaphragm Material
PEN
Magnet Material
Neodymium
Crossover
12dB with Over Power Protection

Thiele & Small Parameters

Equivalent Volume
Vas - 17.5L
Excursion (one way)
Xmax - 3mm
Free Air Resonance
Fs- 62Hz
Total Factor
Qts - 0.756

Speaker Measurements

Overall Diameter
8.59" / 218.1mm
Overall Depth
13.89" / 352.9mm
Overall Height
12.37" / 314.3mm
