DS18 HYDRO MARINE IPX7 4CH AMPLIFIER 250 X 4 WATTS @ 4 OHMS

SPECS

SKU
NXL-X850.4D
Total Watts (Peak)
2400W
RMS Power @ 4 ohm
4 x 200W
RMS Power @ 2 ohm
4 x 300W
RMS Power @ 4 ohm Bridge
2 x 600W

AUDIO

Frequency Response
10Hz-20KHz
Signal to Noise Ratio 1W@4?
> 83dB
Efficiency @ 4ohm
83%
Input Impedance
20K?
Channel Separation
60dB
Total Harmonic Distortion (THD)
< 0.04%
Low Level Input Range
200mV-5V
Selectable X-Over
Yes (HPF/Full/LPF)
X-Over Filter Range
40Hz-2KHz
Bass Boost Range
N/A
Bass Boost Frequency
N/A
Infrasonic Filter
No
Phase Selector
No

FEATURES

Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 Ohm (Stereo) / 4 Ohm (Bridge)
Led Indicators
Power / Protection / Clip
Power Input Size
8GA Tinned OFC
Fuse Size
2 x 50A (100A)
Thermal Protection
Yes (78?C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (7-16V)
Body Color / Finish
Black Brushed Aluminum

EXTRA FEATURES

Channels Input Selector
Yes
RCA Audio Output
Yes
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Power Direct Harness Design
Yes
Quick Connect Plug
Yes
Surface Mount Component Technology
Yes

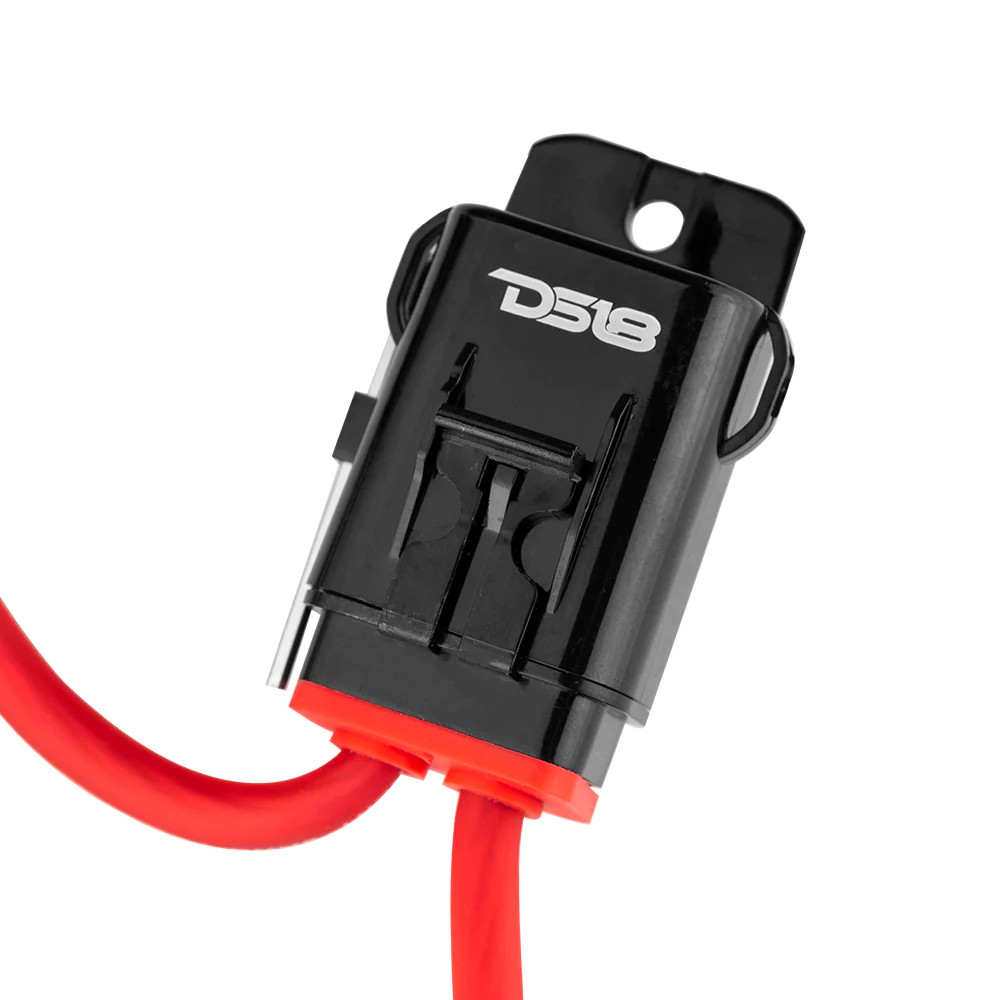

Marine Grade Fuse Holder
Yes

MEASUREMENT

Overall Length
11.8" / 301mm
Overall Wide
4.4" / 112mm
Overall Height
1.77" / 45mm
Heatsink Length
10.2" / 261mm
Gross Single Unit Weight
2.4kg
