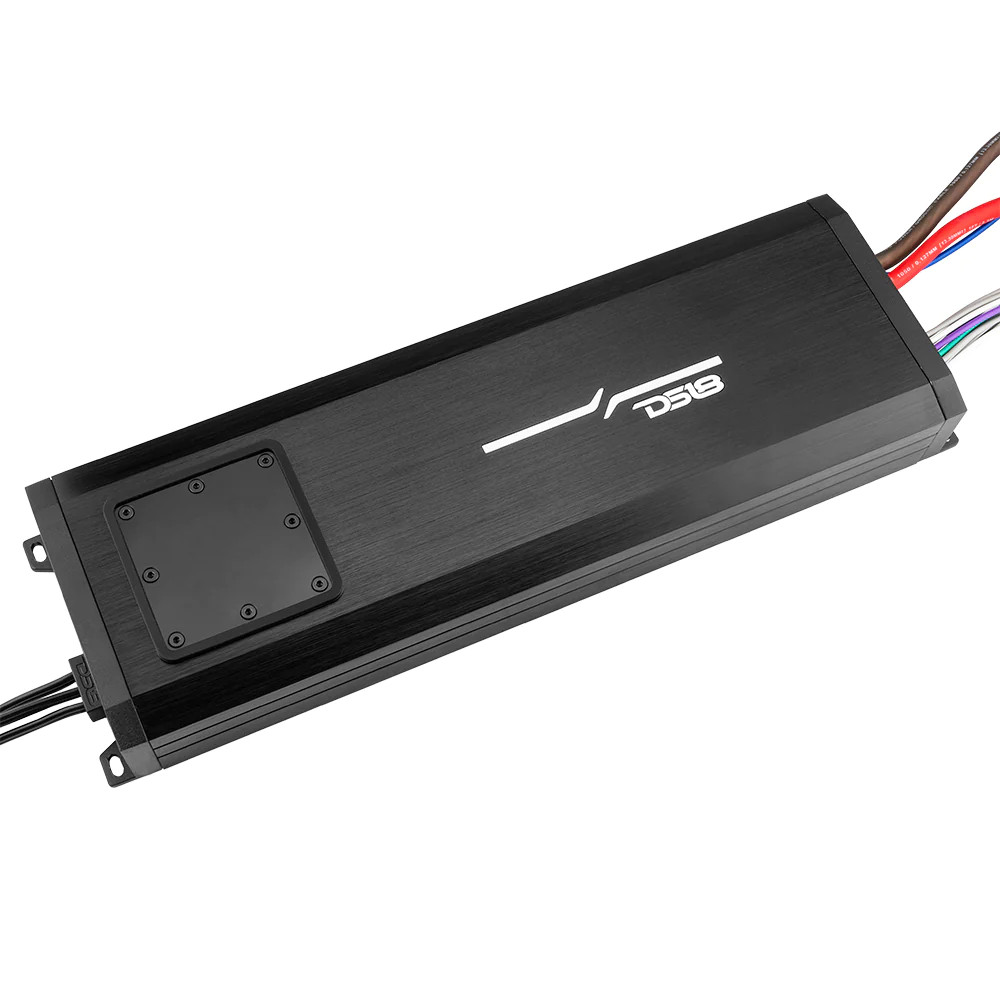

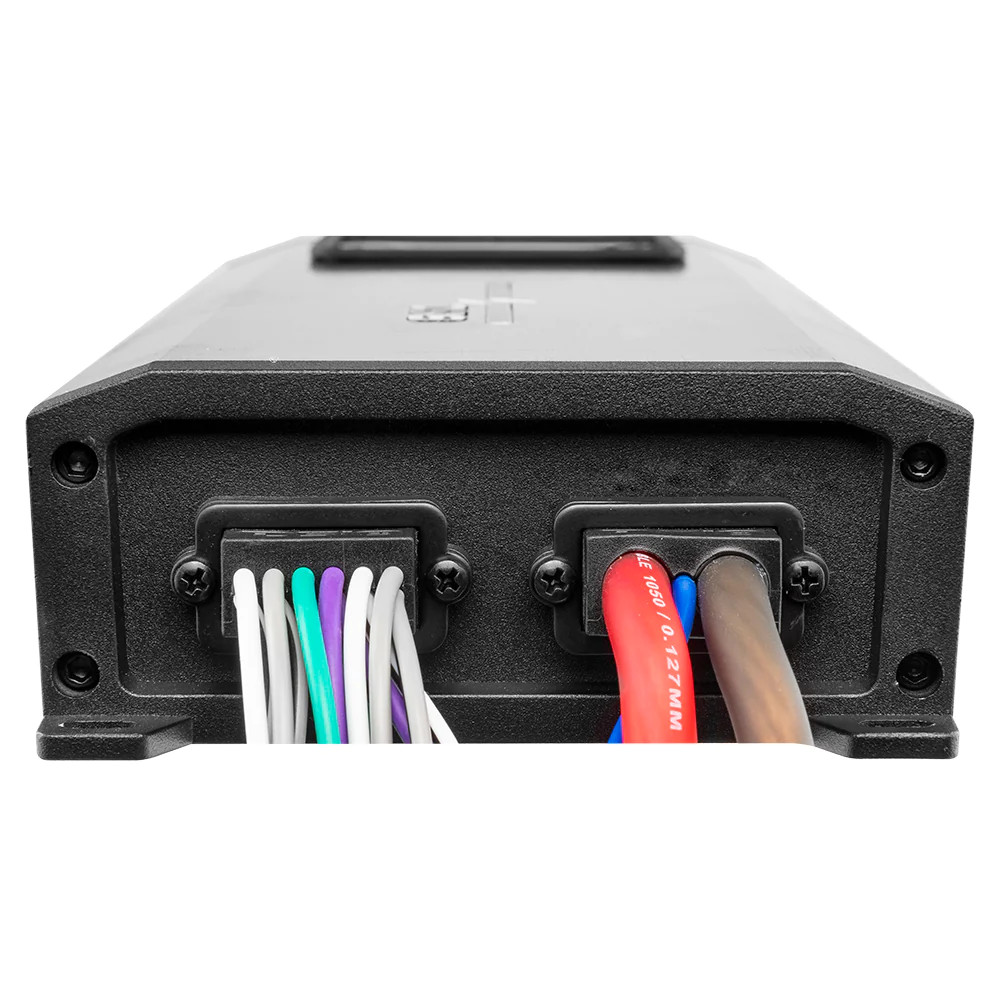

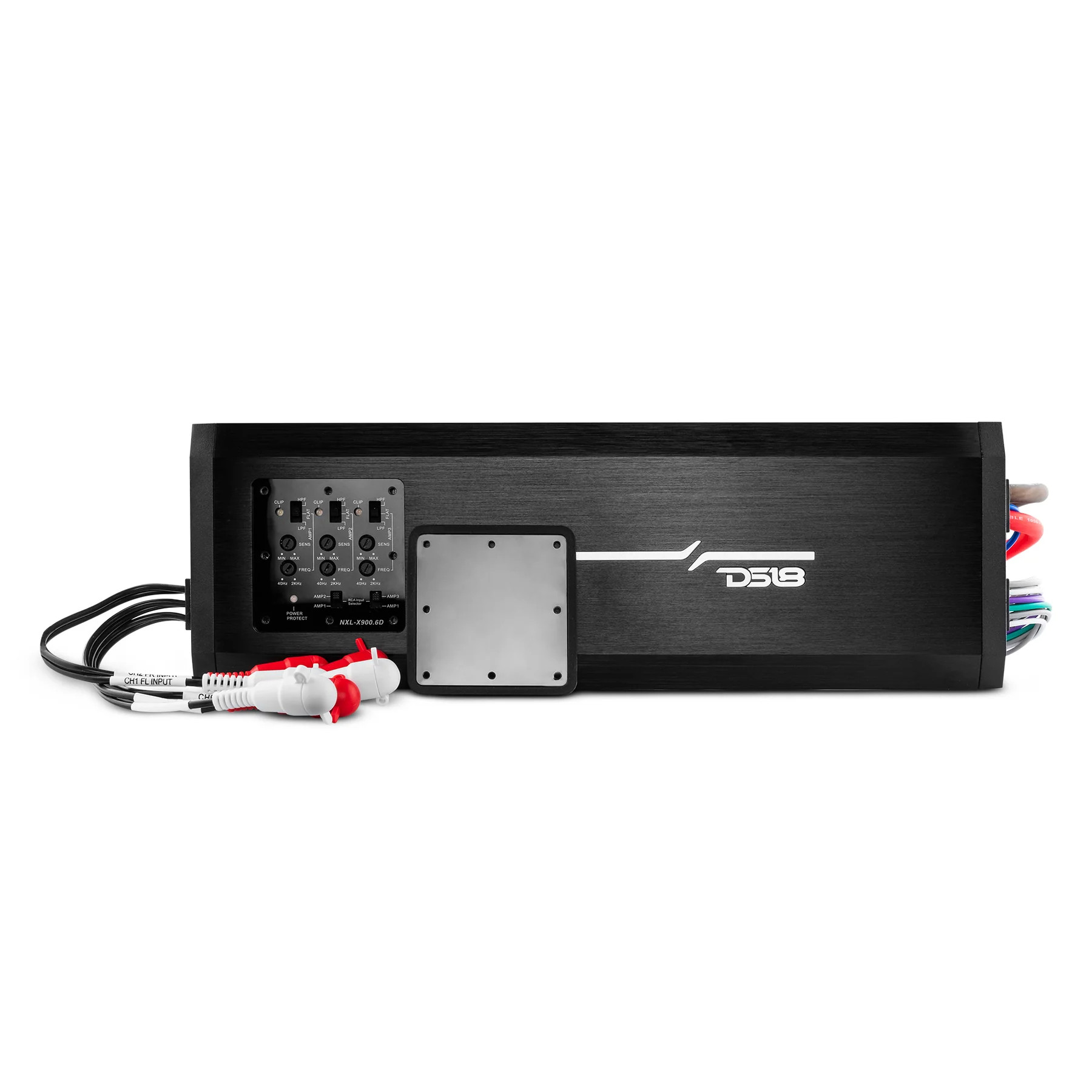

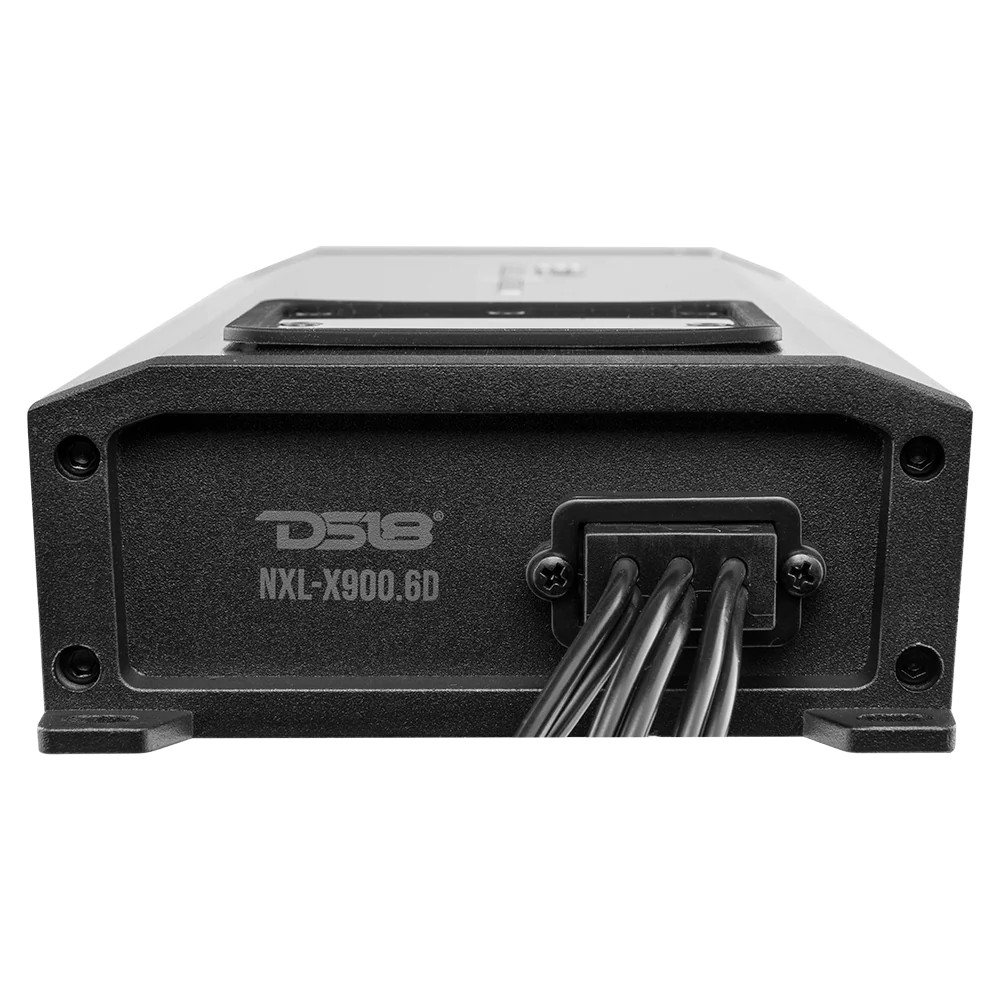

DS18 HYDRO MARINE IPX7 6CH AMPLIFIER 150 X 6 WATTS @ 4 OHMS

GENERAL SPECIFICATIONS

SKU
NXL-X900.6D
Total Watts (Peak)
3000W
RMS Power @ 4 ohm
6 x 150W
RMS Power @ 2 ohm
6 x 250W
RMS Power @ 4 ohm Bridge
3 x 500W

AUDIO

Frequency Response
10Hz-250Hz
Signal to Noise Ratio 1W @ 4Ω
> 84dB
Efficiency @ 4 ohm
87%
Input Impedance
20K OHM
Channel Separation
60dB
Total Harmonic Distortion (THD)
< 0.03%
Low Level Input Range
200mV-5V
Selectable X-Over
(HPF/Full/LPF)
X-Over Filter Range
40Hz-2KHz

FEATURES 1

Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
6
Minimum Impedance
2 Ohms (Stereo) / 4 Ohms (Bridge)
Led Indicator
Power | Protection | Clip
Power Input Size
4GA Tinned OFC

FEATURES 2

Fuse Size
2 x 60A (120A)
Thermal Protection
Yes (75°C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (7-16V)
Body Color | Finish
Black Brushed Aluminum

EXTRA FEATURES

2Ch / 4Ch Input Selector
Yes (2/4/6 CH)
RCA Audio Output
No
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Direct Power Harness Design
Yes
Quick Connect Plug
Yes
Surface Mount Component Technology
Yes

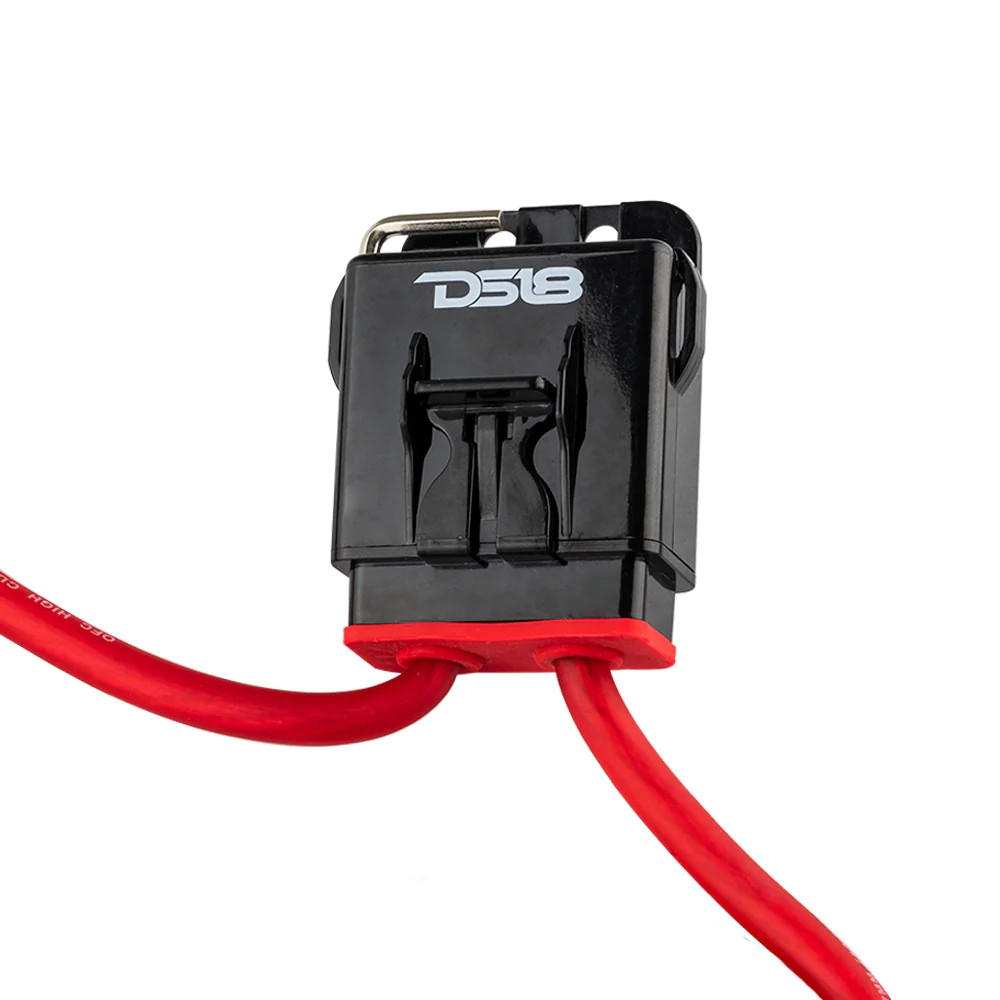

Marine Grade Fuse Holder
Yes

MEASUREMENT

Overall Length
14" / 360mm
Overall Wide
4.4" / 112mm
Overall Height
1.77" / 45mm
Heatsink Length
12.5" / 320mm
Gross Single Unit Weight
2.6kg
Product Weight
7.5 lbs
Product Dimensions
17.75 x 9 x 3.75
M/C Weight
33.5 lbs
M/C Dimensions
19.25 x 18 x 10
M/C QTY
5
Sold In
Piece
