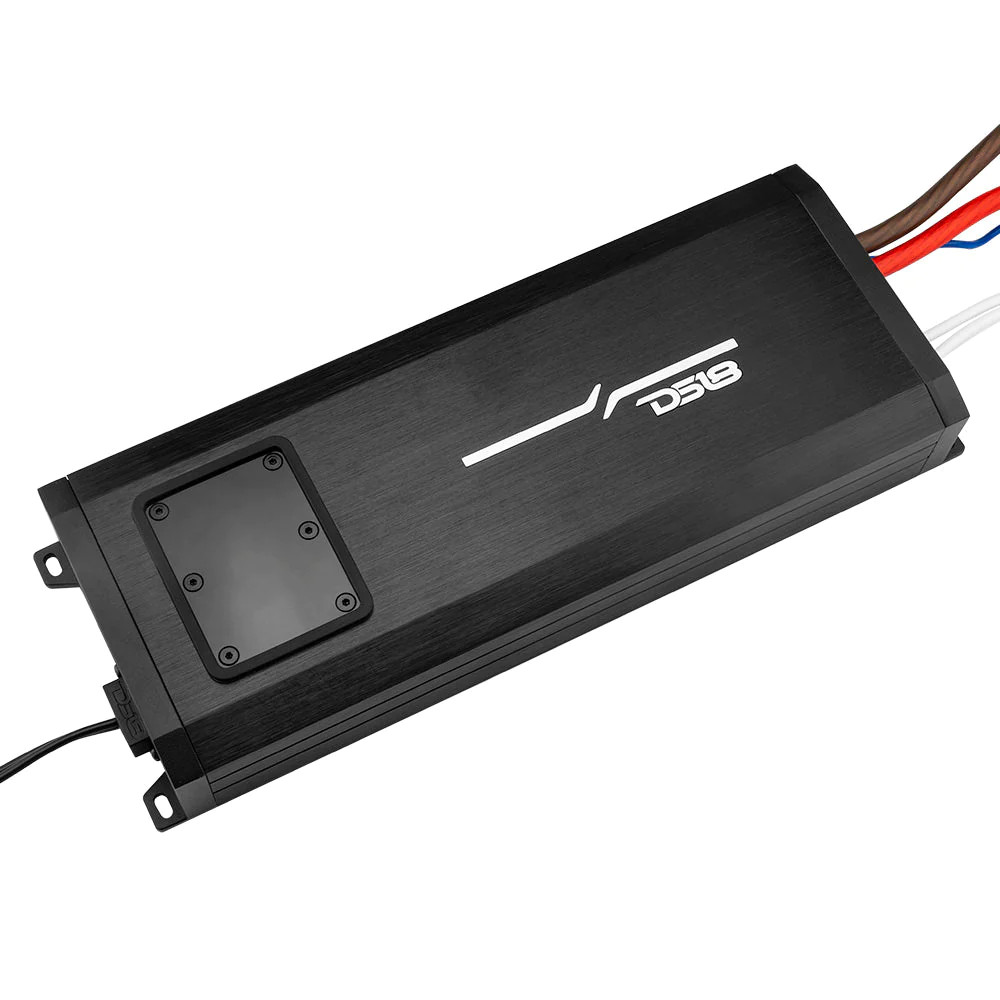

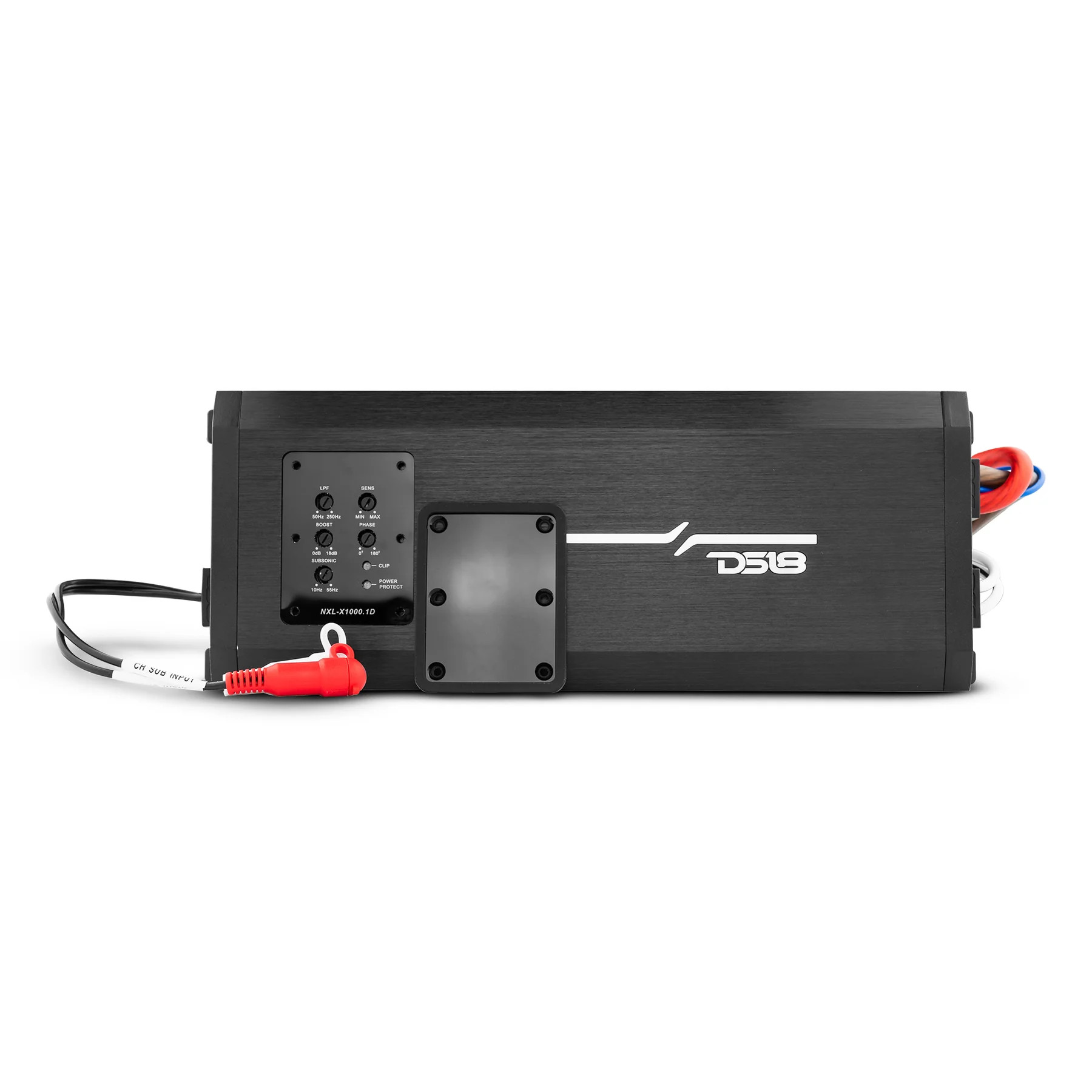

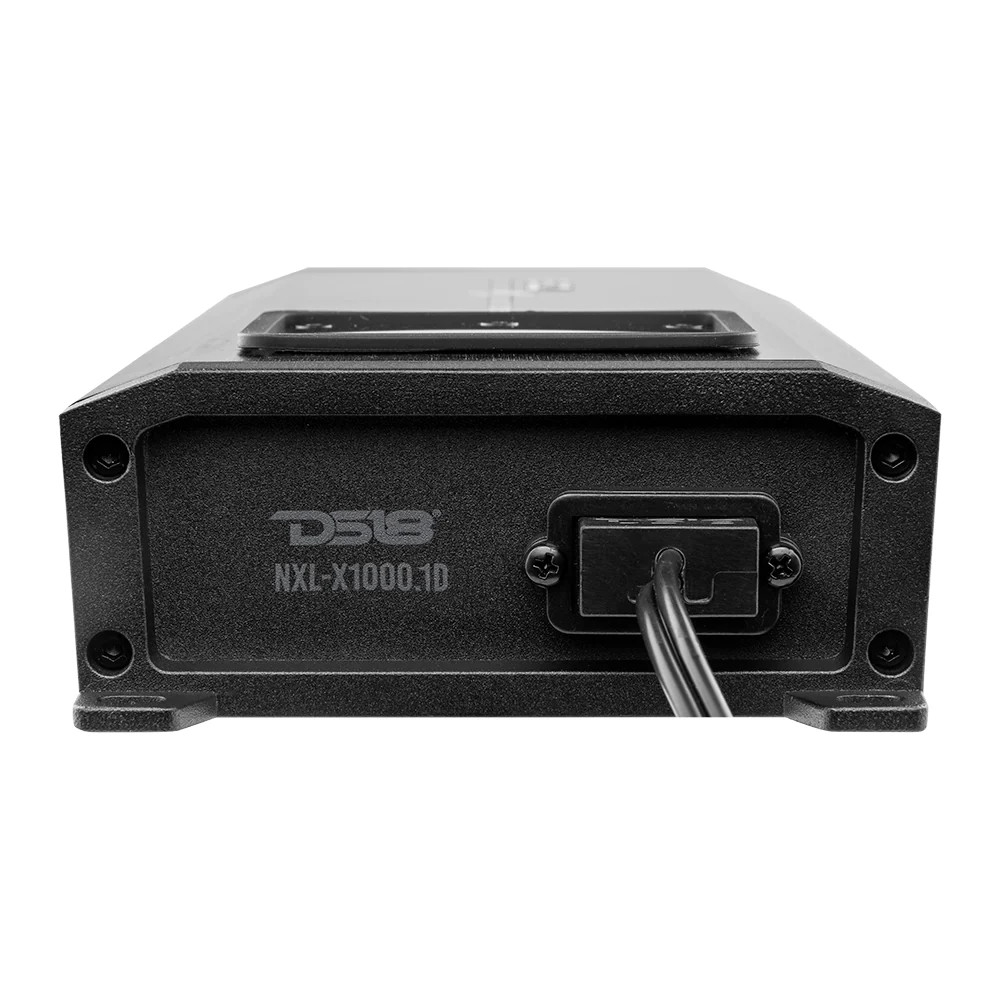

DS18 HYDRO SERIES 1000W MONO BLOCK CLASS D AMPLIFIER

GENERAL SPECIFICATIONS

SKU
NXL-X1000.1d
Total Watts (Peak)
2000W
RMS Power @ 4 ohm
350W
RMS Power @ 2 ohm
600W
RMS Power @ 1 ohm
1000W

AUDIO

Frequency Response
10Hz-250Hz
Signal to Noise Ratio 1W @ 4Ω
> 82dB
Efficiency @ 4 ohm
83%
Input Impedance
20K OHM
Total Harmonic Distortion (THD)
< 0.05%
Low Level Input Range
200mV-5V

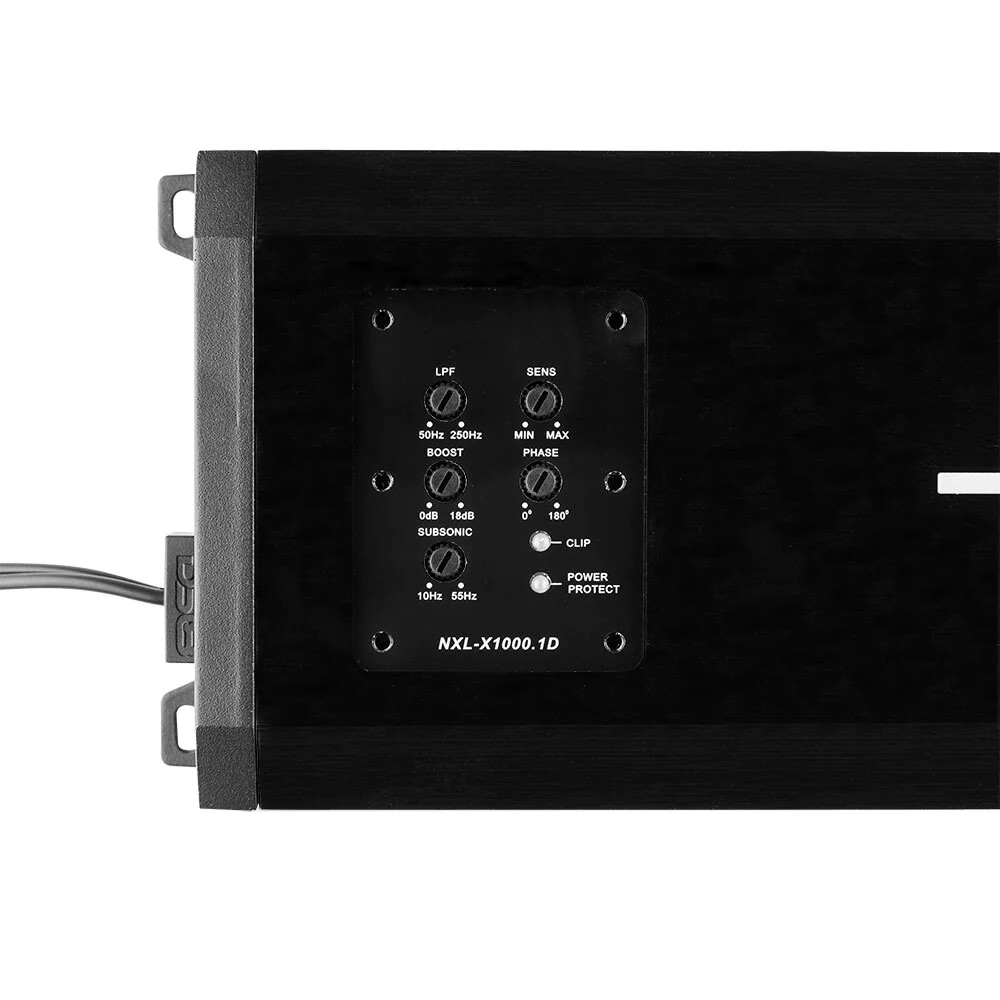

X-Over Filter Range
50Hz-250Hz
Bass Boost Range
0-18dB
Bass Boost Frequency
42Hz
Infrasonic Filter
10Hz-55Hz
Phase Selector
0-180°
Selectable X-Over
LPF Fixed°

FEATURES 1

Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power | Protection | Clip
Power Input Size
4GA Tinned OFC

FEATURES 2

Fuse Size
2 x 50A (100A)
Thermal Protection
Yes (75°C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (7-16V)
Body Color | Finish
Black Brushed Aluminum

EXTRA FEATURES

RCA Audio Output
No
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes

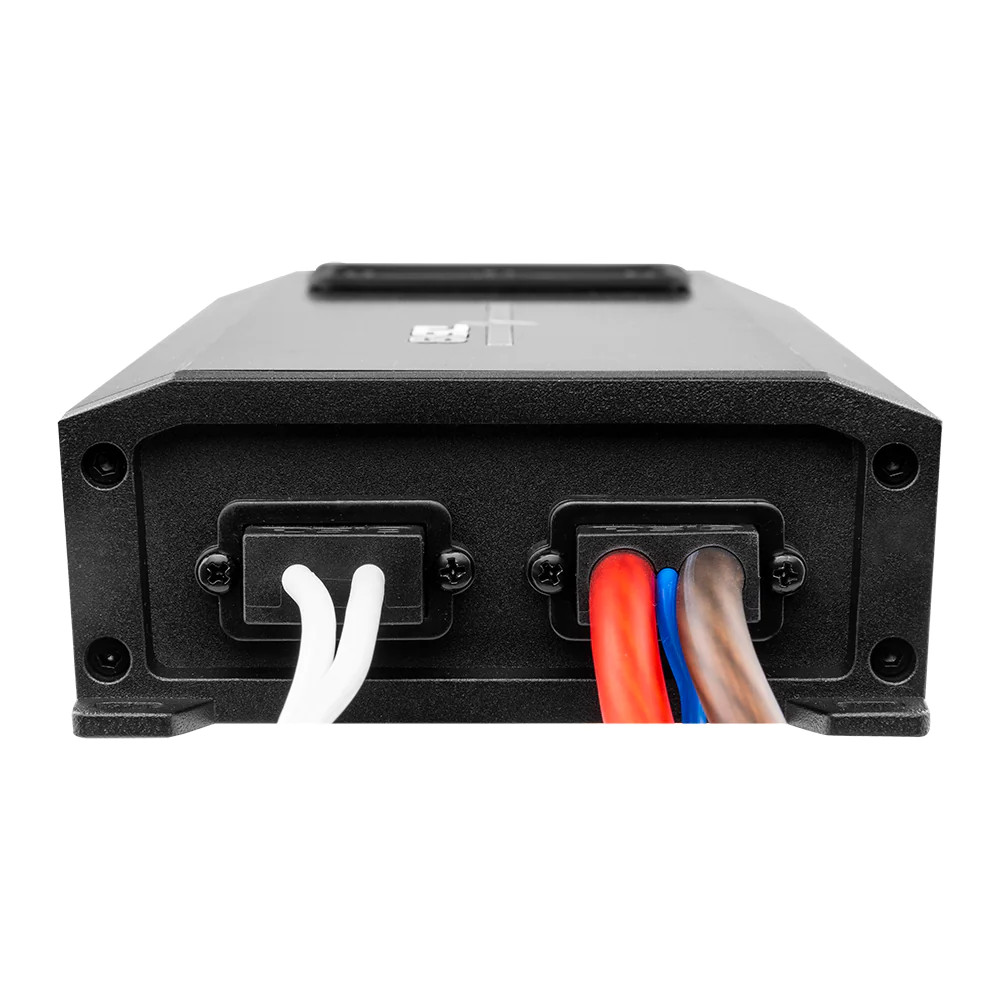

Direct Power Harness Design
Yes
Quick Connect Plug
Yes
Surface Mount Component Technology
Yes

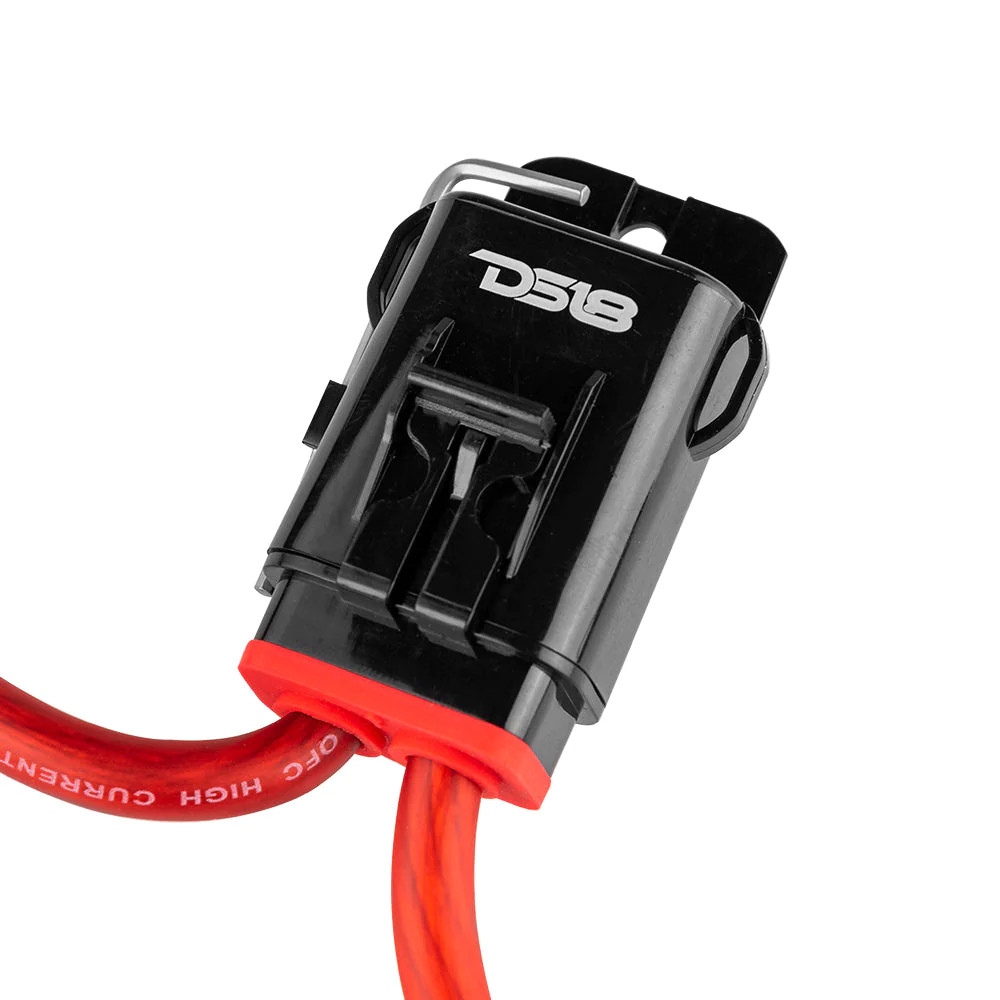

Marine Grade Fuse Holder
Yes

MEASUREMENT

Overall Length
11.8" / 302mm
Overall Wide
4.4" / 112mm
Overall Height
1.77" / 45mm
Heatsink Length
11" / 281.6mm
Gross Single Unit Weight
2.21kg
Product Weight
6 lbs
Product Dimensions
15.5 x 9 x 3.75
M/C Weight
31 lbs
M/C Dimensions
19.25 x 16.5 x 10
M/C QTY
5
Sold In
Piece
