Description

NXL 5-Channel Full-Range Class D IP67 Marine and Powersports Amplifier 4 x 150 @ 4-Ohm and 1 x 600 @ 2-Ohm Watts Rms

Marine Full Range
5 Channel
4 x 150 Watts @ 4 Ohm
1 x 600 Watts @ 2 Ohm
Built in Crossover ~ Class D
Water Resistant IP67

TECHNICAL DATA

GENERAL SPECIFICATIONS

SKU
NXL-X1200.5D
Total Watts (Peak)
2800W
RMS Power @ 4 ohm
4 x 150W + 350W (SUB)
RMS Power @ 2 ohm
4 x 200W + 600W (SUB)
RMS Power @ 4 ohm Bridge
2 x 400W

AUDIO

Frequency Response
10Hz-250Hz
Signal to Noise Ratio 1W @ 4Ω
> 85dB
Efficiency @ 4 ohm
85%
Input Impedance
20K OHM
Channel Separation
60dB
Total Harmonic Distortion (THD)
< 0.05%
Low Level Input Range
200mV-5V

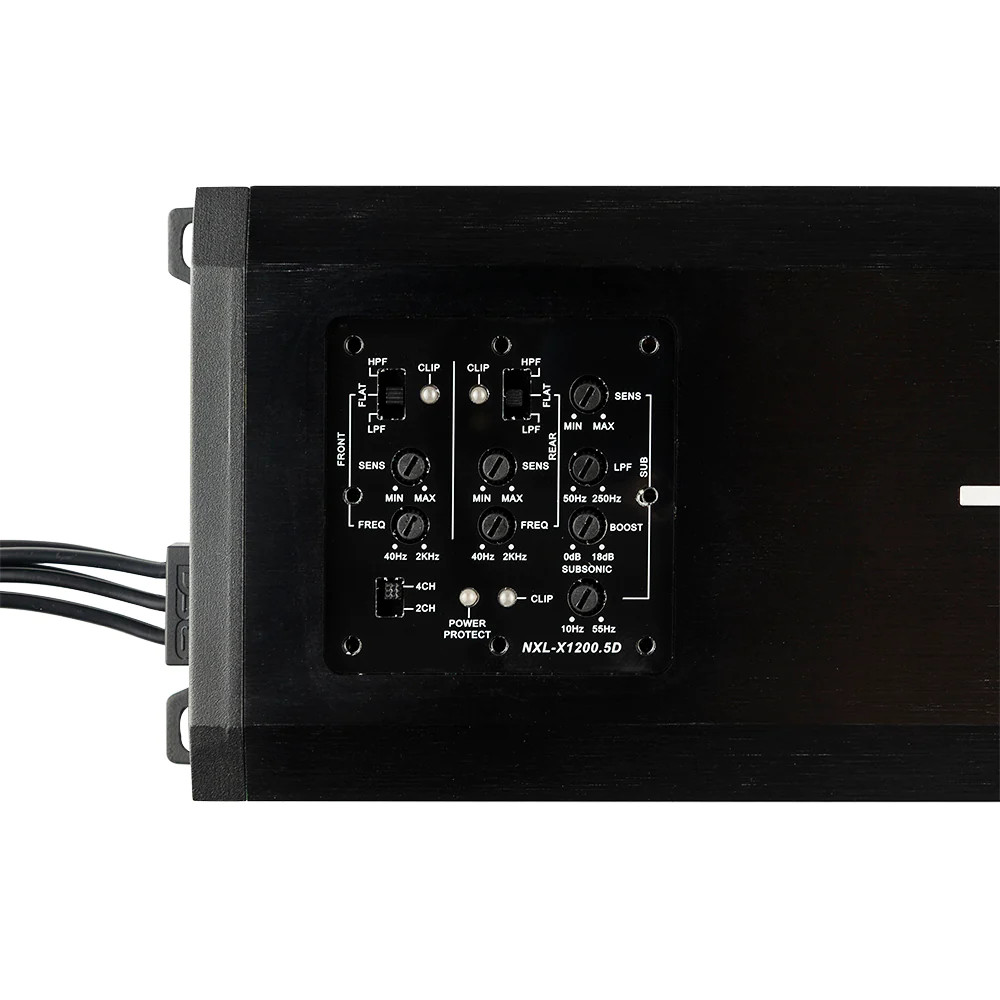

Selectable X-Over
(HPF/Full/LPF) / LPF Fixed (SUB)
X-Over Filter Range
40Hz-2KHz / 50Hz-250Hz (SUB)
Bass Boost Range
0-18dB (SUB)
Bass Boost Frequency
42Hz (SUB)
Infrasonic Filter
10Hz-55Hz (SUB)

FEATURES 1

Amplifier Class
Digital
Amplifier Type
Stereo Full Range + Subwoofer
Number of Channels
5
Minimum Impedance
2 Ohm (Stereo) / 4 Ohm (Bridge) / 2 Ohm (Sub)
Led Indicator
Power | Protection | Clip
Power Input Size
4GA Tinned OFC

FEATURES 2

Fuse Size
2 x 50A (100A)
Thermal Protection
Yes (75°C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (7-16V)
Body Color | Finish
Black Brushed Aluminum

EXTRA FEATURES

2Ch / 4Ch Input Selector
Yes / Dedicated SUB input
RCA Audio Output
No
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Direct Power Harness Design
Yes

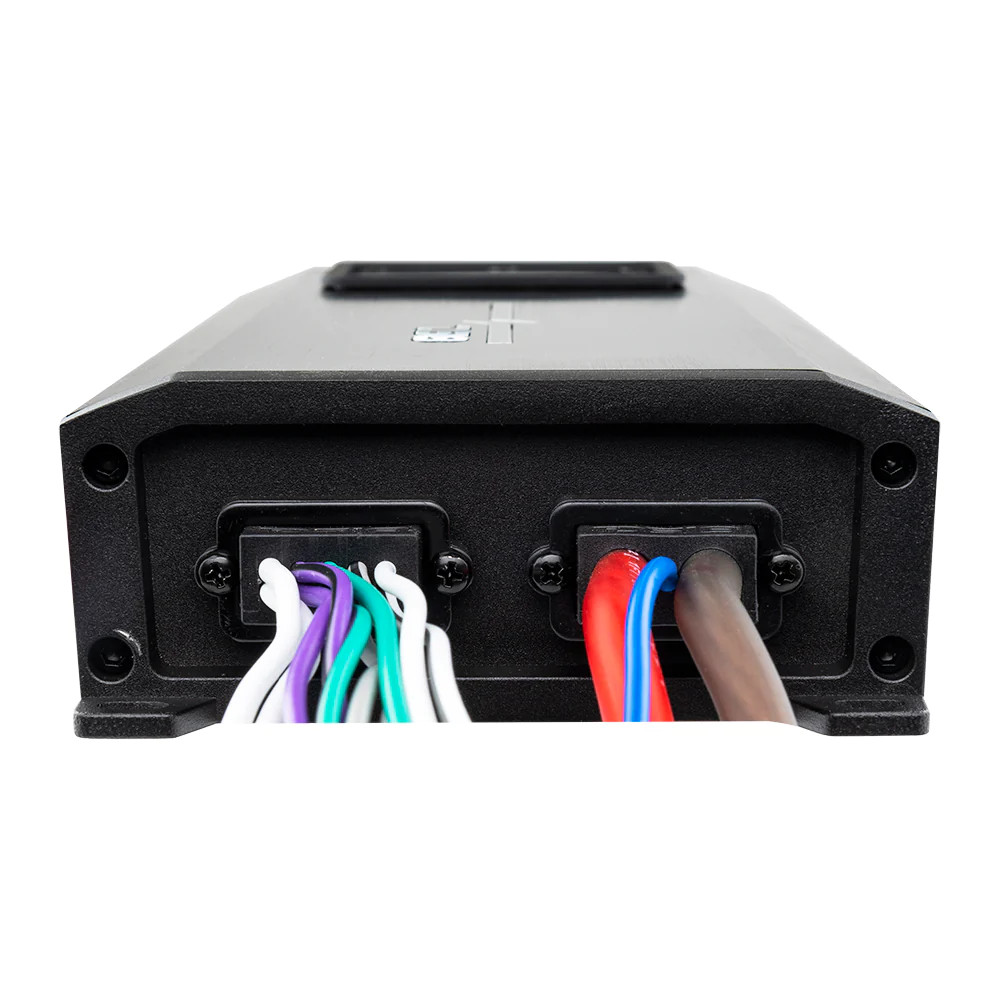

Quick Connect Plug
Yes
Surface Mount Component Technology
Yes

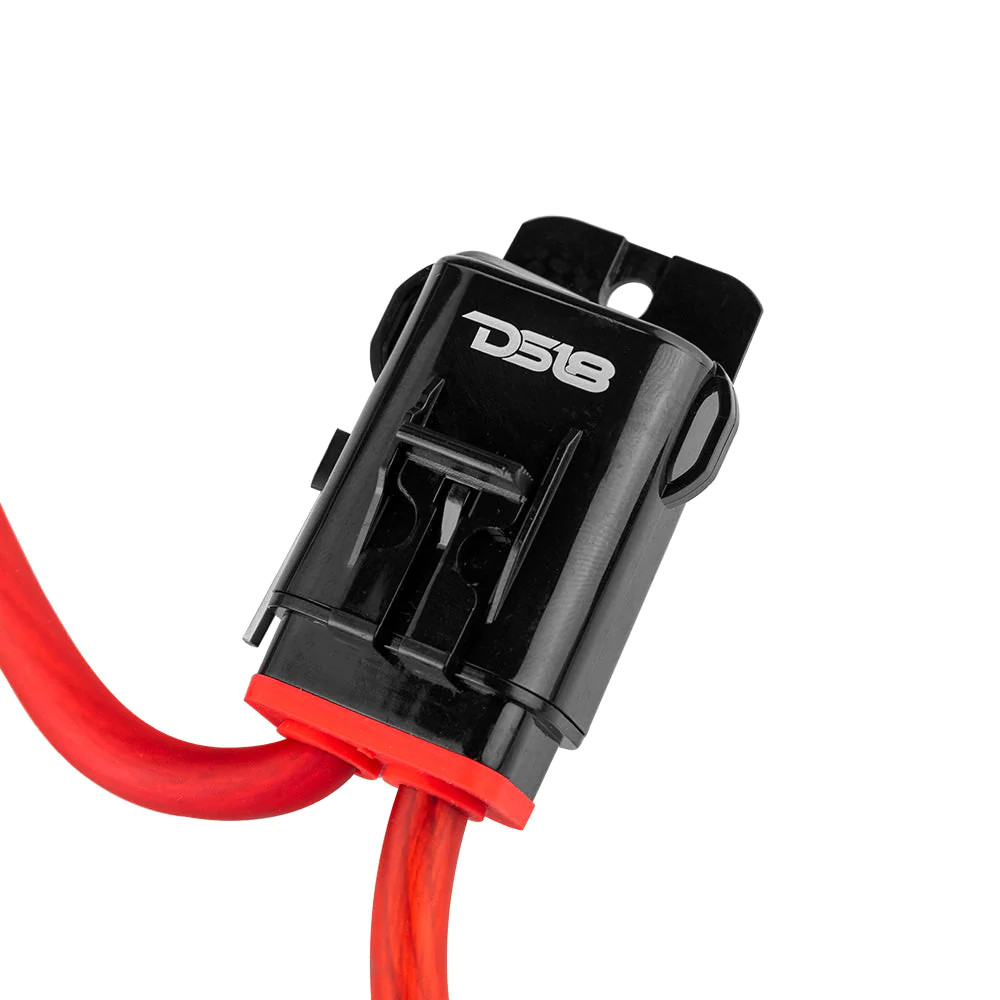

Marine Grade Fuse Holder
Yes

MEASUREMENT

Overall Length
12.67" / 322mm
Overall Wide
4.4" / 112mm
Overall Height
1.77" / 45mm
Heatsink Length
11.87" / 301.7mm
Gross Single Unit Weight
2.4kg
Product Weight
6.5 lbs
Product Dimensions
16 x 9 x 3.75
M/C Weight
33.5 lbs
M/C Dimensions
19.25 x 16.75 x 10
M/C QTY
5
Sold In
Piece
