DS18 JEEP JL/JLU/JT OE DASH TWEETER UPGRADE SPEAKERS

SPECS

SKU
JL-TW
Nominal Diameter
2.7" / 68mm
Nominal Impedance
4 ohms
AES Power Handling
50W
Program Power Handling
100W
Peak Power Handling
200W
Sensitivity (1w/1m)
98dB
Frequency Response
1KHz-20KHz
Recommended Hi Pass Crossover
4KHz
Sold In Pair or Single
Pair

Body / Features

Filter (Bass Blocker)
Bilt-in 2.2uf
Body Material
ABS/PC
Body Color / Finish
Black
Faceplate Color / Finish
Black
Bullet Material
PC

Motor

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
PEN
Magnet Material
Neodymium
Magnet Size / Weight
0.57 Oz

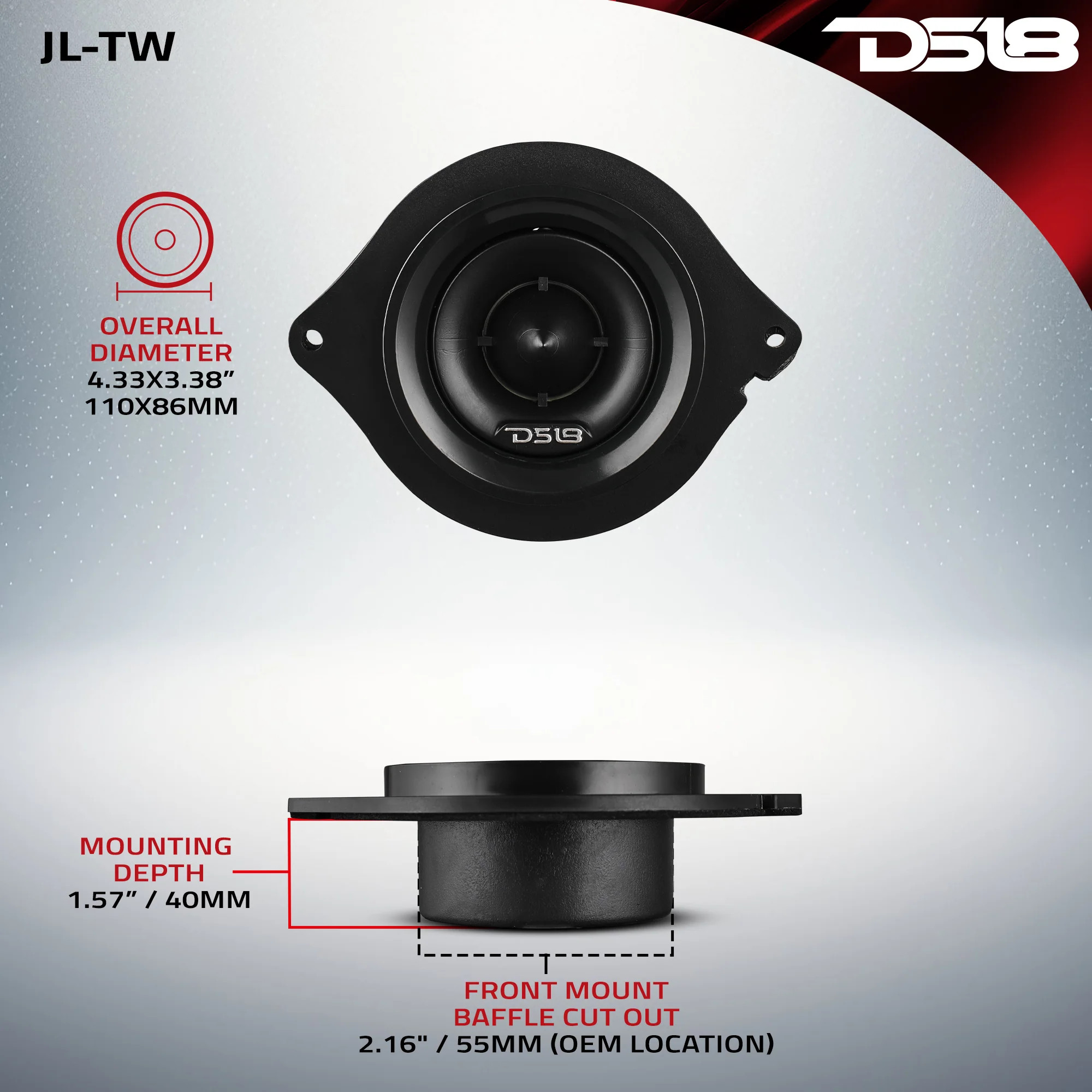

Measurement

Overall Diameter
4.33 X 3.38" / 110 X 86mm
Overall Depth
1.77" / 45 mm
Front Mount Baffle Cutout
2.16" / 55mm (OEM Location)
Mounting Depth
1.57" / 40mm
