Description

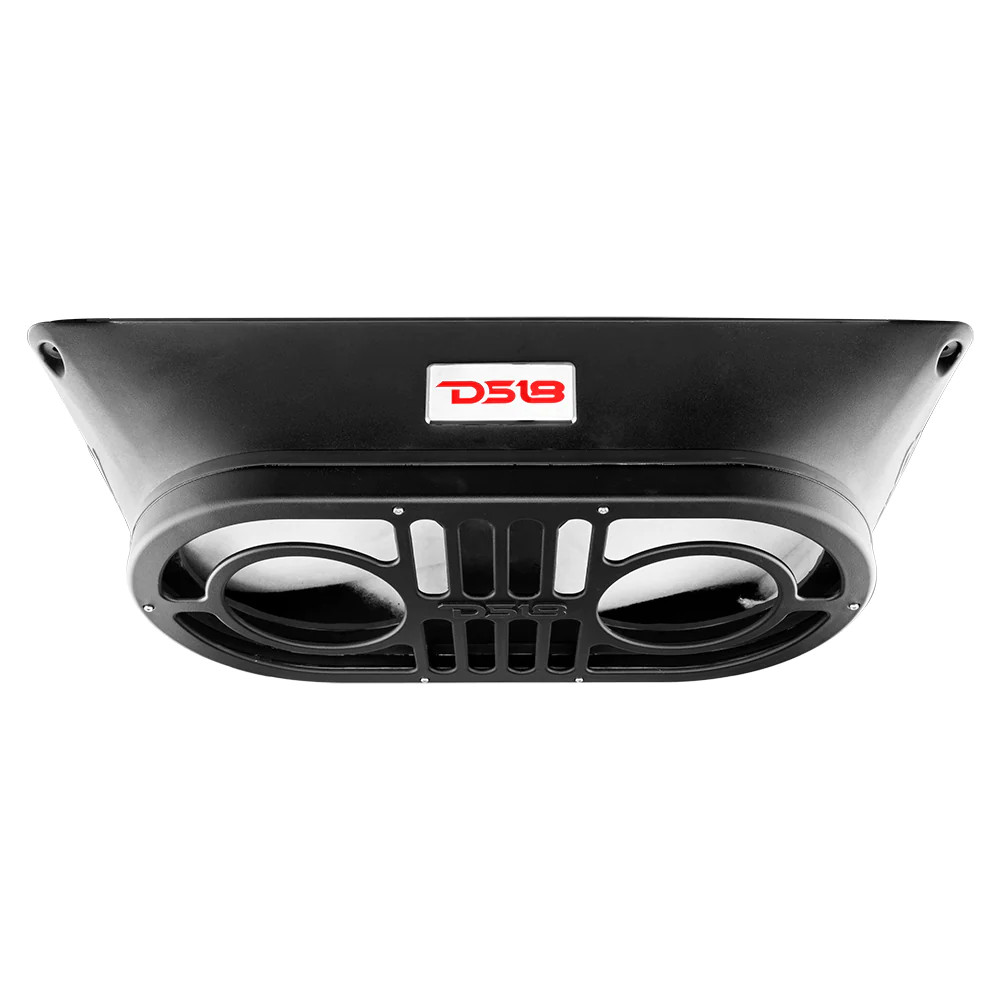

DS18 JEEP TAILGATE DUAL 10" MIDRANGE & 2 BULLET TWEETER ENCLOSURE
- TJ,JK/JKU,JL/JLU Tailgate Loudspeaker Package
- 2 X 10" PRO Loudspeaker
- 2 X 3.8" Super Bullet Tweeters
- 1 X 4 Channel Amplifier
- 1 X Amp Kit
- 1 X LED Module
TECHNICAL DATA
JMID LOADED PKG Tailgate
Compatible with
Jeep TJ, JK, JL
Houses
2 x 10" Mid-Range
Houses
2 x 3" Pro Tweeters
Colors available
Black
Dimensions D x W x H
28.74 x 13.77 x 5.9
Control lights via Bluetooth
Yes, LED-BTC Included
Amplifier Installation Wiring Kit Included
Yes, AMPKIT Included
PRO-X10.4 Midrange Loudspeaker
Size
10"
RMS Power
300 Watts
MAX Power
600 Watts
Frequency Response
76-6.8KHz
Impedance
4 Ohm / 8 Ohm
Sensitivity
100.2dB
Surround
Cloth Edge
Frame
Red Steel Basket
Cone
Non-Pressed Paper Cone
Magnet
Ferrite
Voice Coil Wire
CCAW
PRO-TW120 Tweeters
AES Power Handling
60 Watts
Program Power Handling
120 Watts
Peak Power Handling
240 Watts
Sensitivity
103dB
Recommended Hi Pass Crossover
3 KHz
Magnet Material
Ferrite
Frequency Response
2KHz-20KHz
Impedance
4 Ohm
Voice Coil Diameter
1"/25.4 mm
Voice Coil Former Material
CCAW
Winding Material
Aluminum
Diaphragm Material
Aluminum
G1800.4D Amplifier 4 Channel
Total Watts (Peak)
1800W
RMS Power @ 4 ohm
4 x 150W
RMS Power @ 2 ohm
4 x 230W
RMS Power @ 4 ohm Bridge
2 x 430W
Frequency Response
20Hz-20KHz
Signal to Noise Ratio
>90dB
Efficiency @ 4ohm
81%
Damping Factor
78
Input Impedance
22K
Channel Separation
70dB
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.25-6V
High Level Input
NO
Selectable X-Over
LPF/FLAT/HPF
X-Over Filter Range
50Hz-250Hz
Bass Boost Range
N/A
Bass Boost Frequency
N/A
Infrasonic Filter
N/A
Phase Selector
NO
Amplifier Class
Digital (D)
Amplifier Type
4CH Full Range
Number of Channels
4CH
Minimum Impedance
2 ohm St / 4 ohm Bridge
Led Indicator
Power / Protection / Clip
Power Input Terminal Size
4 ga
Fuse Size
2 X 40A
Remote Level Control
NO
Cooling Fan
NO
Voltmeter
NO
Thermal Protection
YES
Over-Load Protection
YES
DC Output Protection
YES
Short Circuit Output Protection
YES
Voltage Input Protection
YES
Clipping Protection
YES
Body Color / Finish
Matte black
Overall Length
10.43" / 265mm
Overall Wide
4.72" / 120mm
Overall Height
1.96" / 50mm
Heatsink Length
8.58" / 218mm
Gross Single Unit Weight
1.6KG
