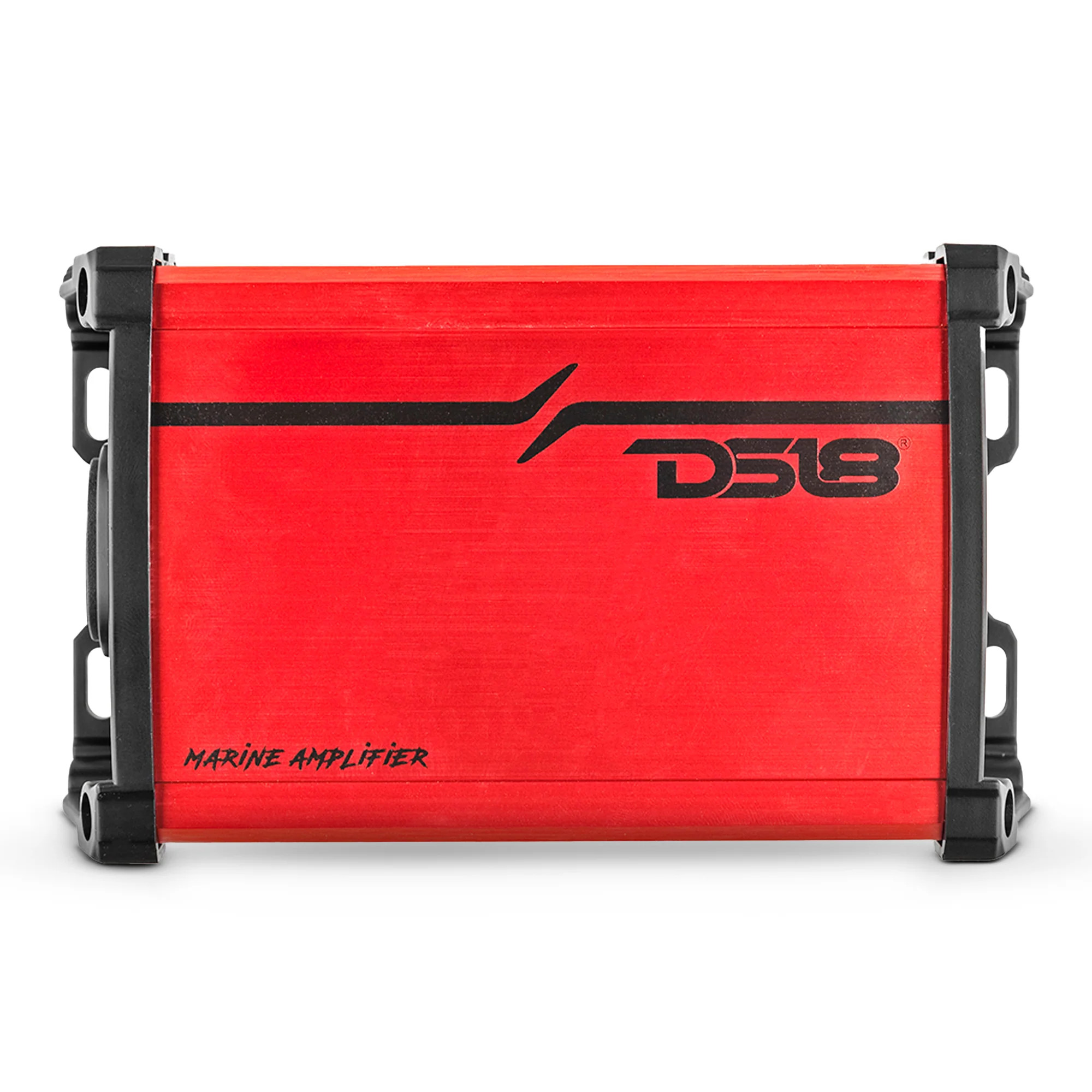

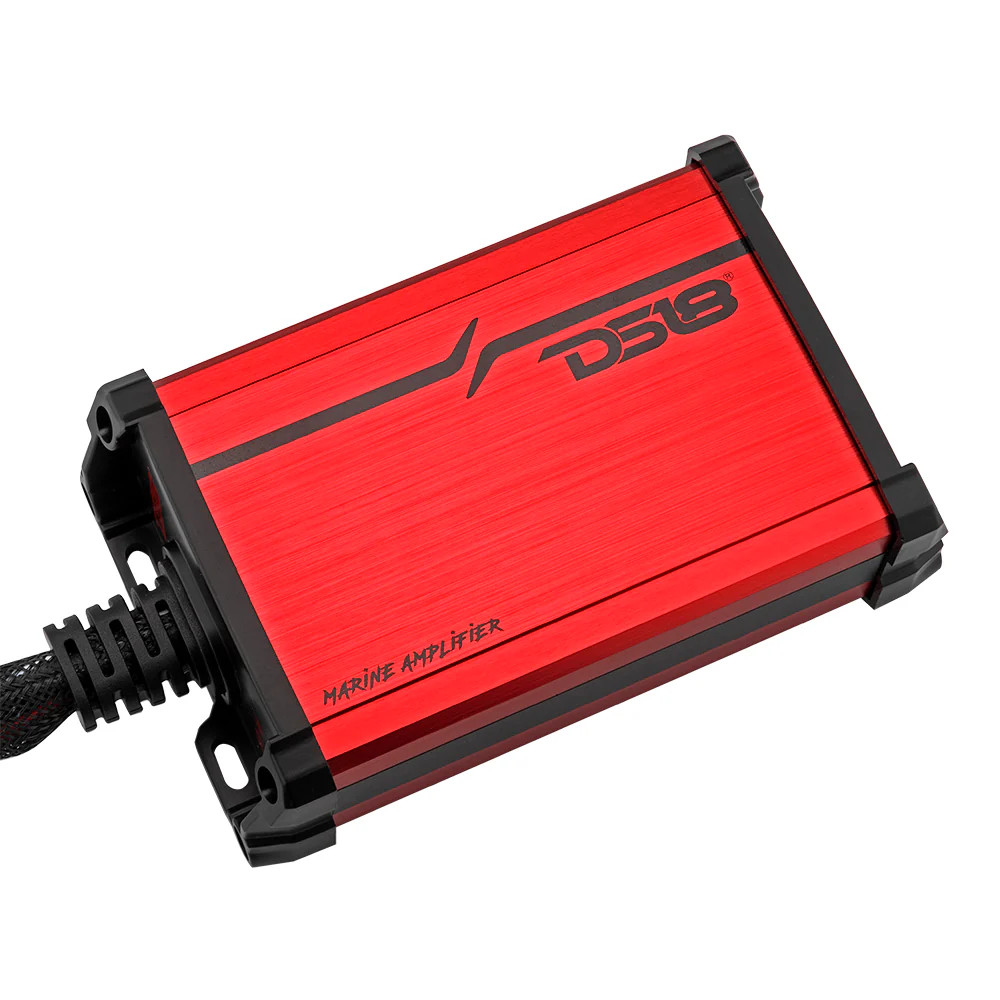

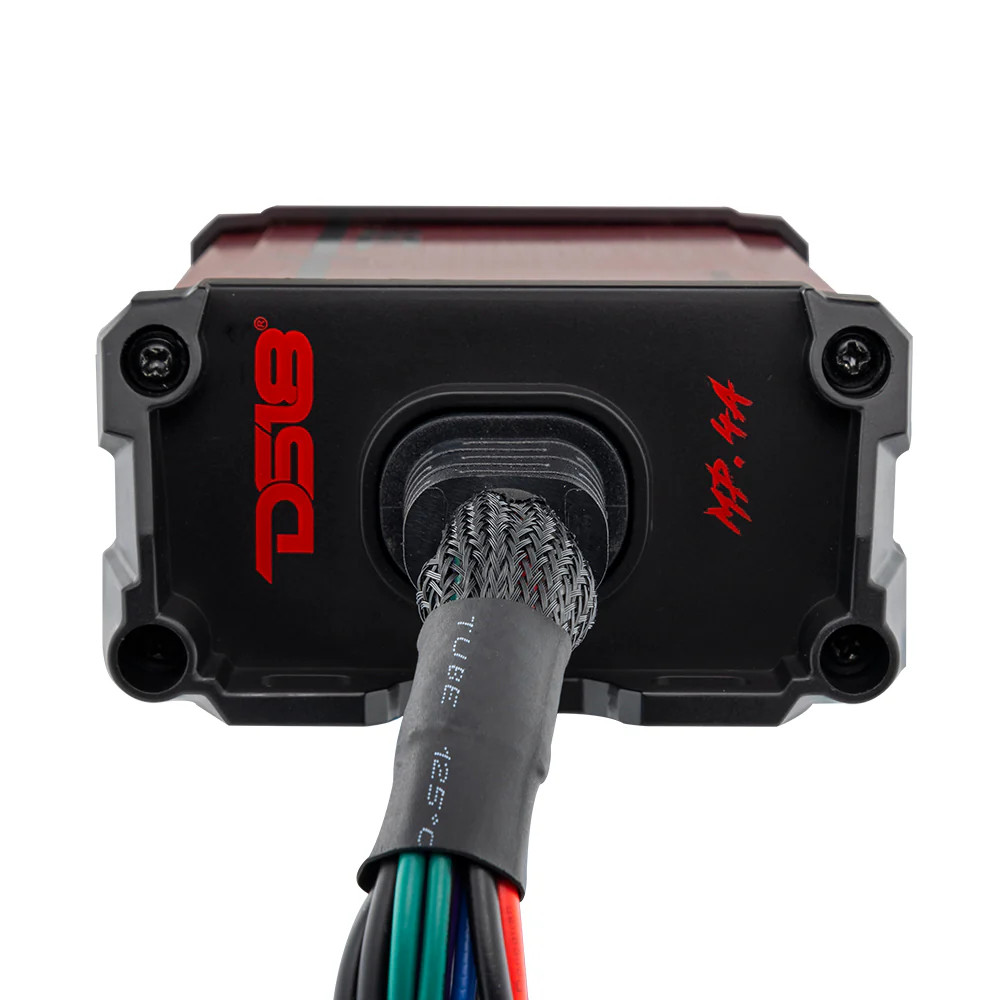

DS18 MARINE / POWERSPORTS 4 CHANNEL FULL RANGE CLASS D IP67 WATERPROOF AMPLIFIER 40 WATTS RMS X 4 @ 4 OHMS

SPECS

SKU
MP.4A
Total Watts (Peak)
480W
RMS Power
4 x 40W
Frequency Response
20Hz-20KHz
Signal to Noise Ratio
82dB
Efficiency @ 4ohm
80%
Damping Factor
200
Total Harmonic Distortion (THD)
0.1%
Low Level Input Range
2.5V (Fixed)

FEATURES

Amplifier Class
Digital (D)
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
4 Ohm Stereo (Not Bridgeable)
Power Input Terminal Size
16GA
Fuse Size
20A
Voltage Operation
9-15V DC
Thermal Protection
Yes (>75°C)

FEATURES

Body Color / Finish
Brushed Red Aluminum
Input Audio Connector
3.5mm jack
Audio Output
Yes, RCA left and right
Waterproof Rating
IPX5
Salt Fog Protection
Yes
Power Direct Harness Design
Yes
Surface Mount Component Technology
Yes
Marine Grade Fuse Holder
Yes

MEASUREMENT

Overall Length
6" / 153mm
Overall Width
3.66" / 93mm
Overall Height
1.96" / 50mm
Heatsink Length
4.72" / 120mm
Gross Single Unit Weight
1.62Lb / 735g
