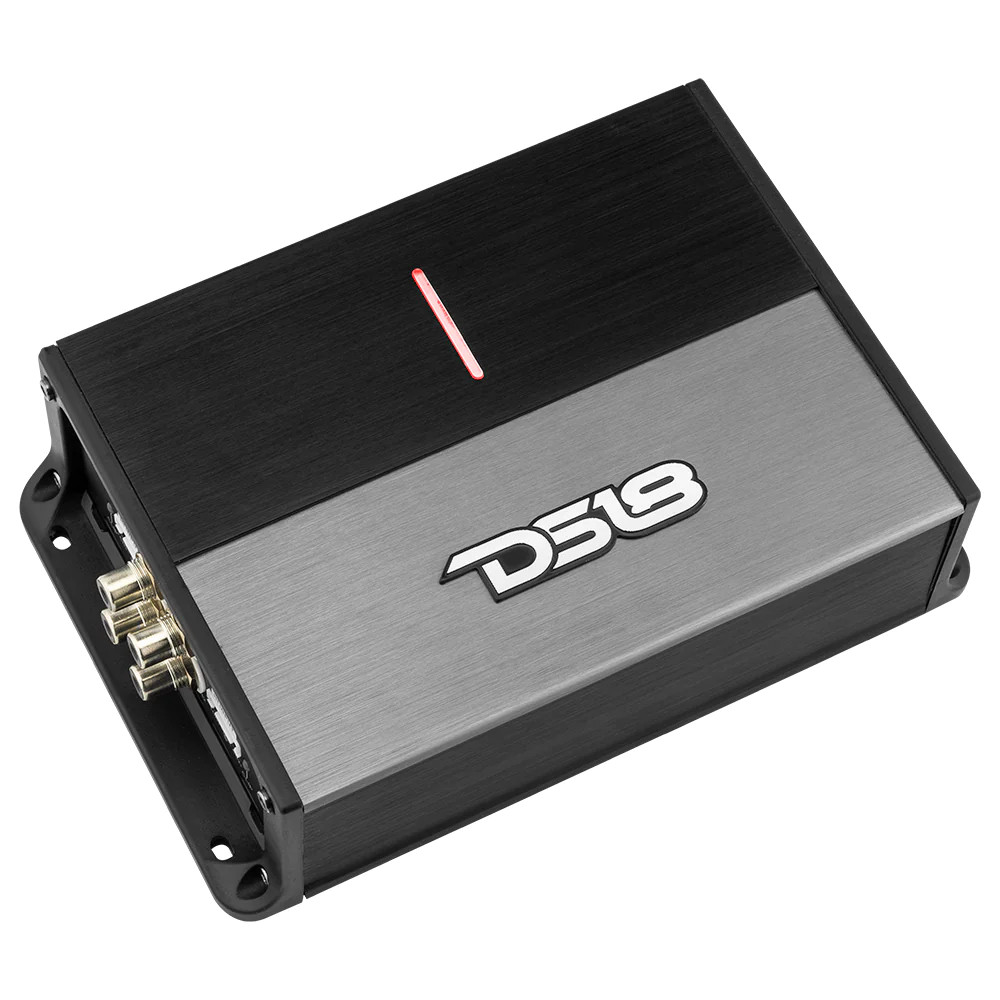

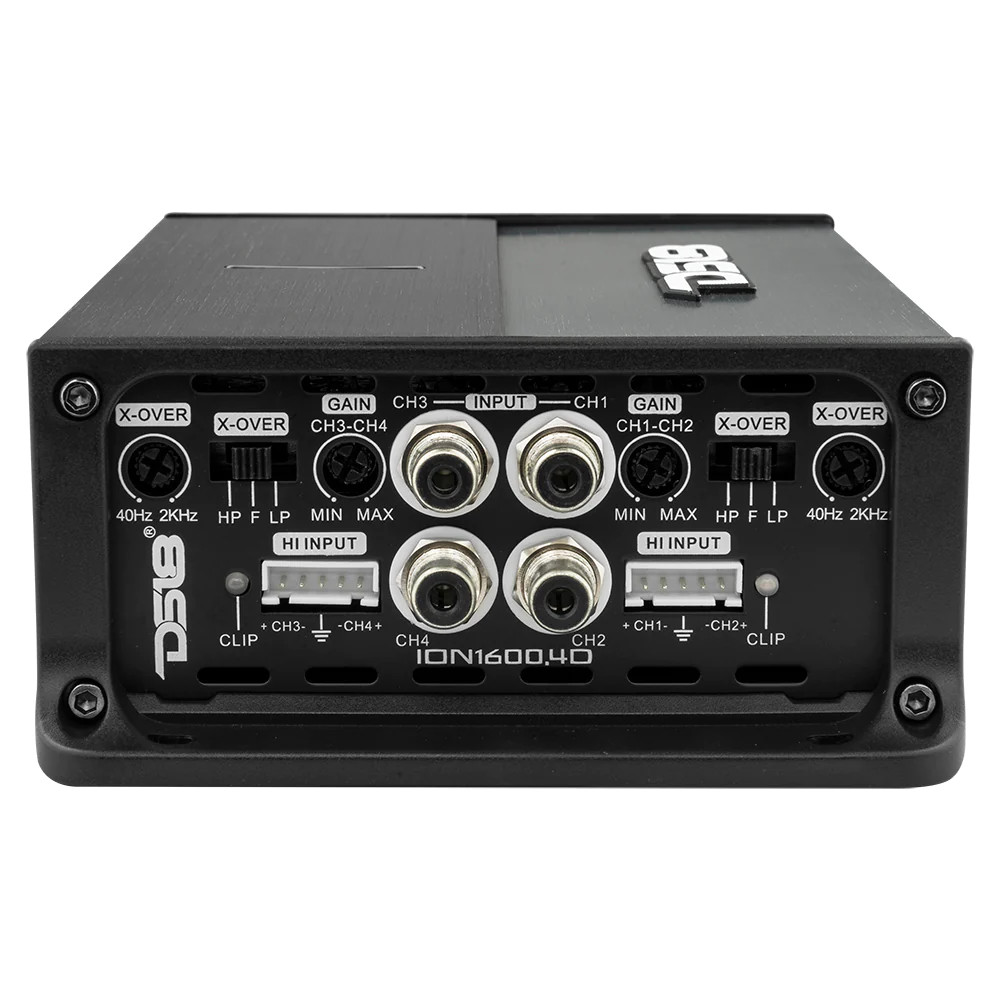

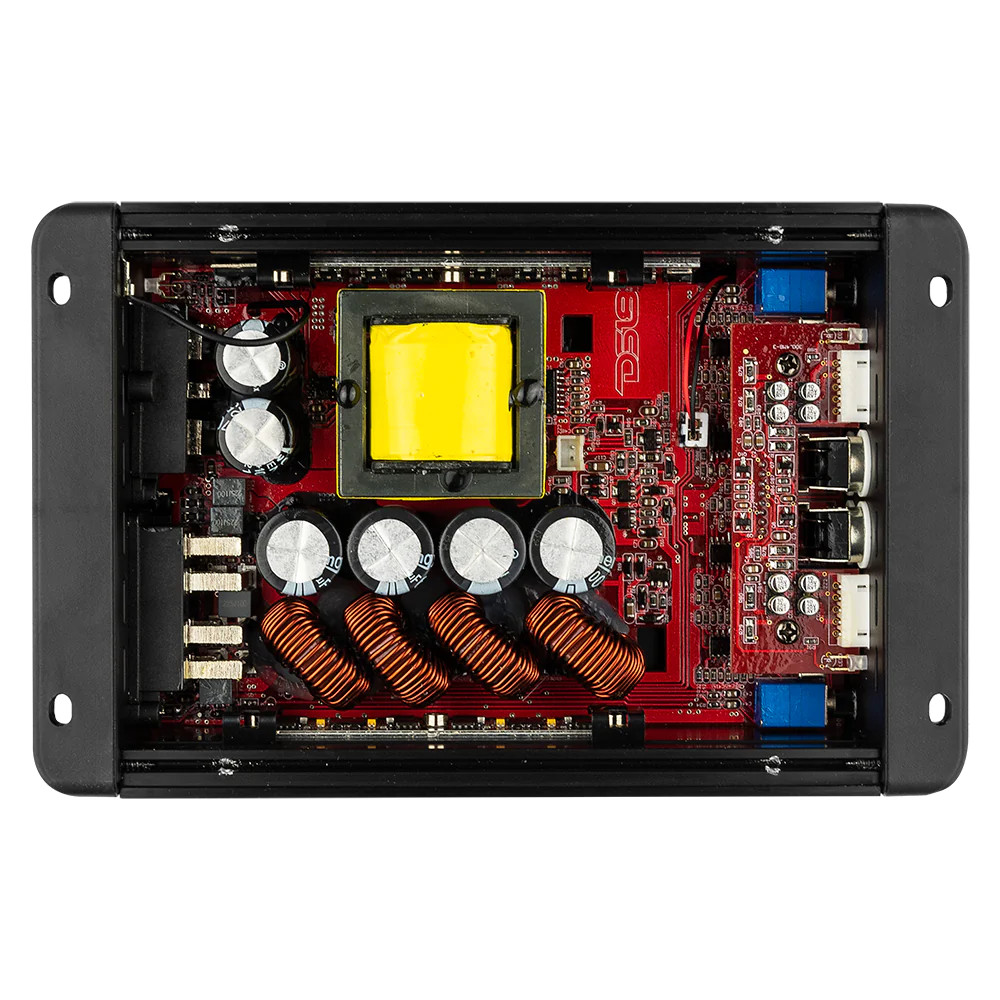

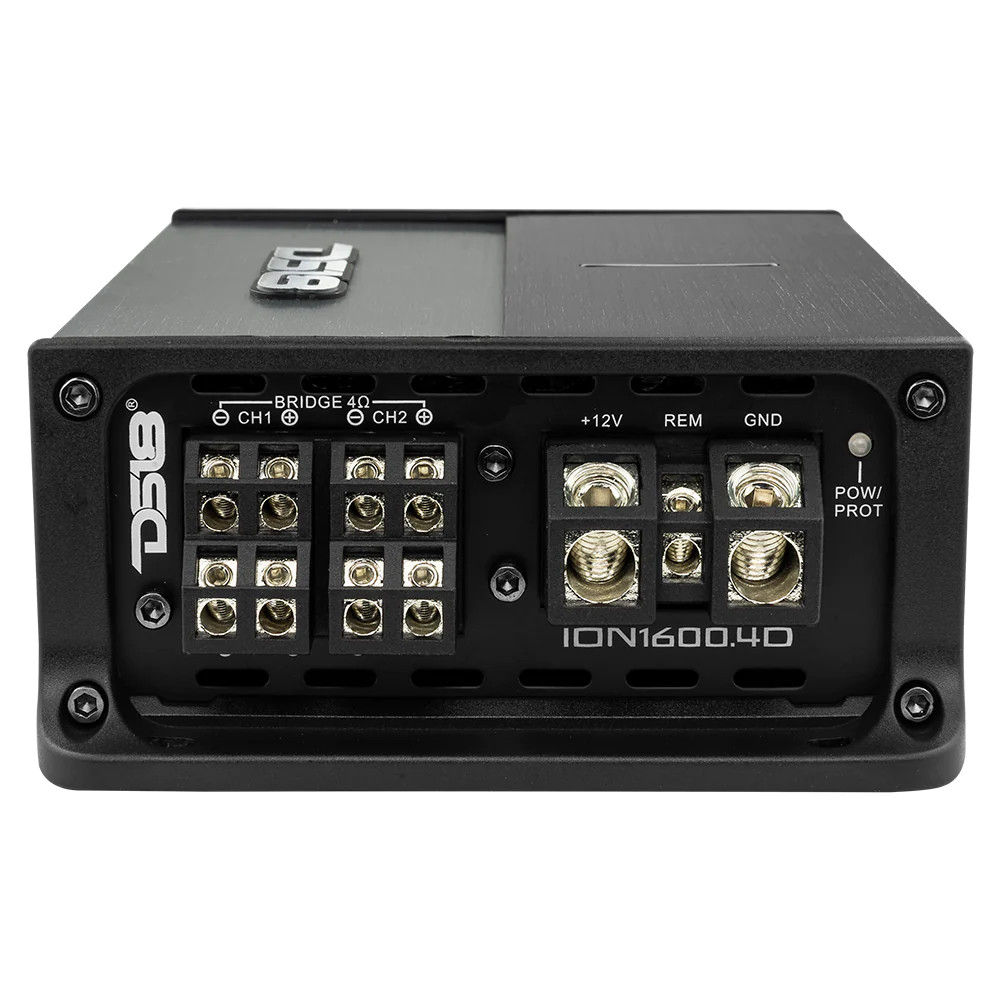

DS18 ION Compact Full-Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm

SPECS

SKU
ION1600.4D
Total Watts (Peak)
4800W
RMS Power @ 4 ohm
4 x 240W
RMS Power @ 2 ohm
4 x 400W
RMS Power @ 1 ohm
N/A
RMS Power @ 4 ohm Bridge
2 x 800W

AUDIO

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
>95dB
Efficiency @ 4 ohm
88%
Damping Factor
210
Input Impedance
27Kohms
Channel Separation
59dB
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.2-6V
High Level Input
Yes
Selectable X-Over
LPF/HPF/FULL
X-Over Filter Range
40Hz-2KHz
Bass Boost Range
0~12dB
Bass Boost Frequency
45Hz

FEATURES

Amplifier Class
Digital
Amplifier Type
Full-Range Stereo
Number of Channels
4
Minimum Impedance
2 Ohm (St) / 4 Ohms (Bridge)
Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
4 AWG
Fuse Size
140A (external)
Remote Level Control
No
Cooling Fan
Yes
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Aluminum Black / Silver
