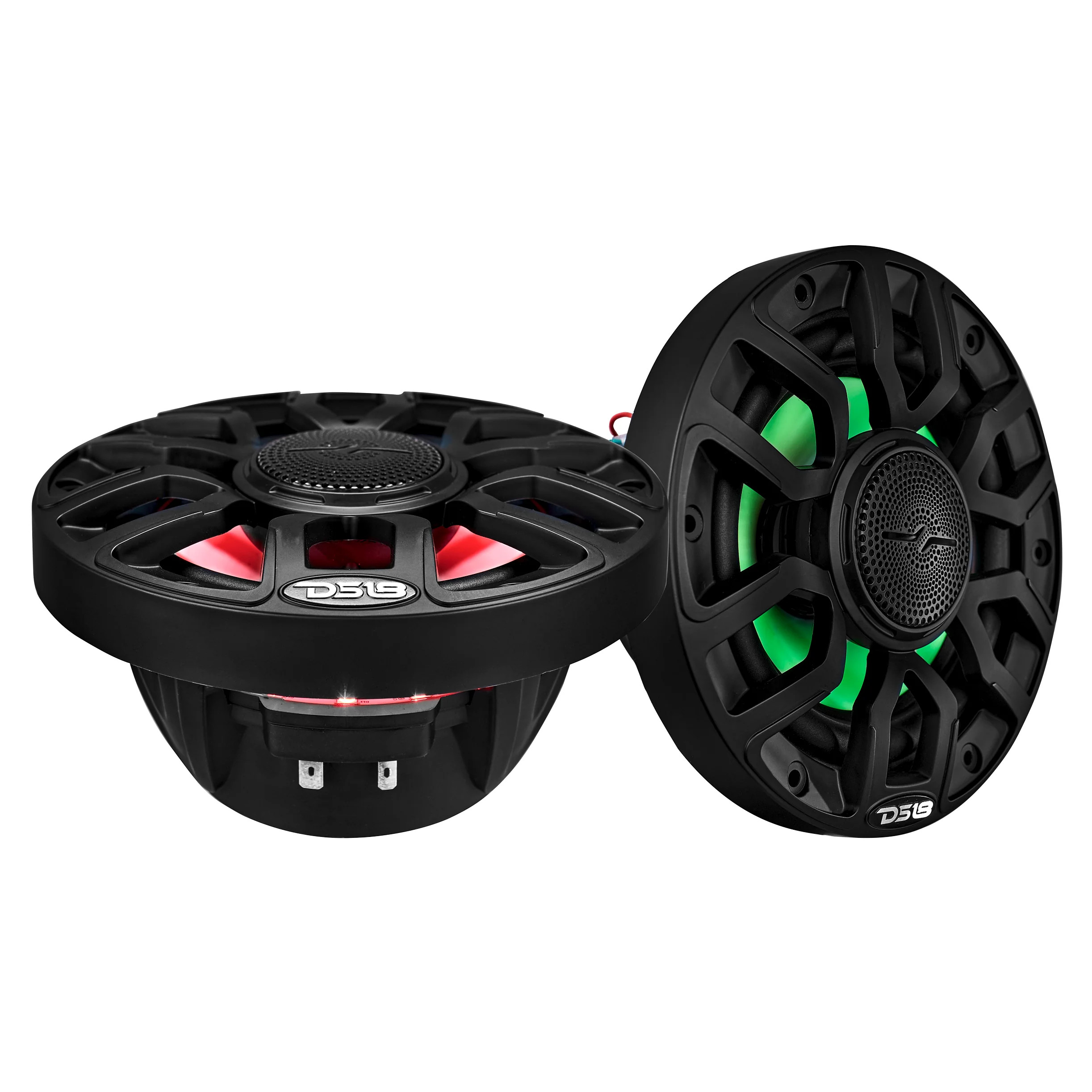

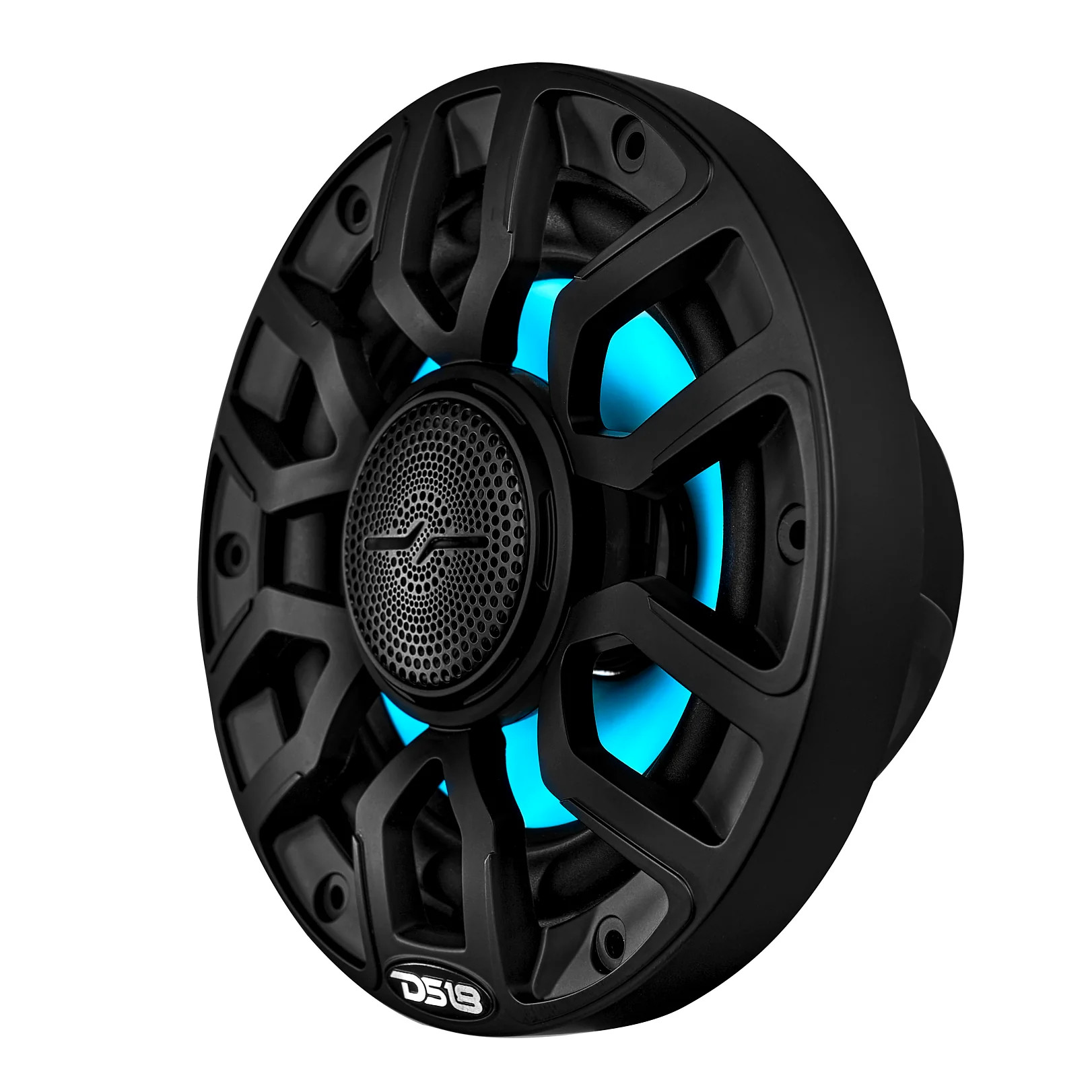

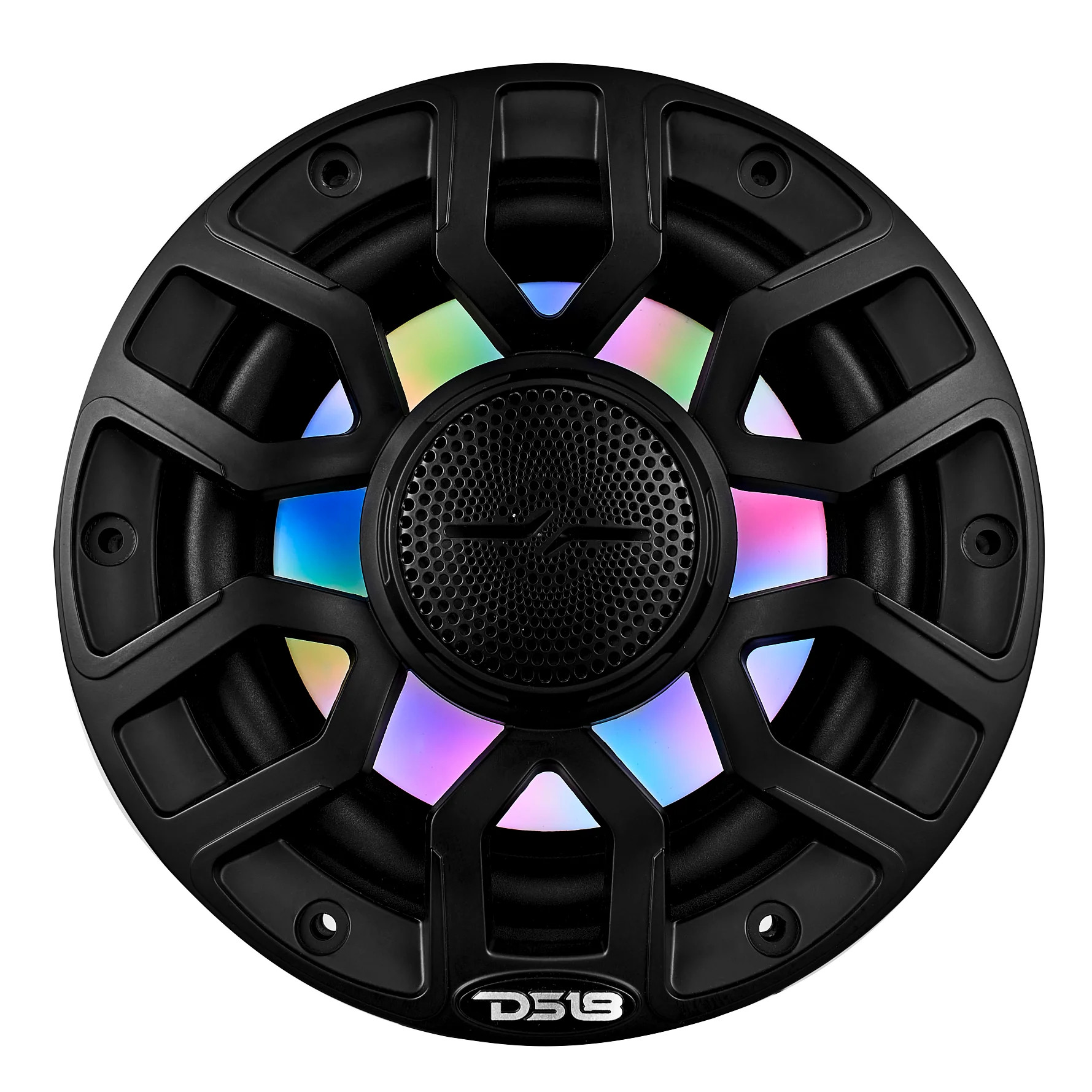

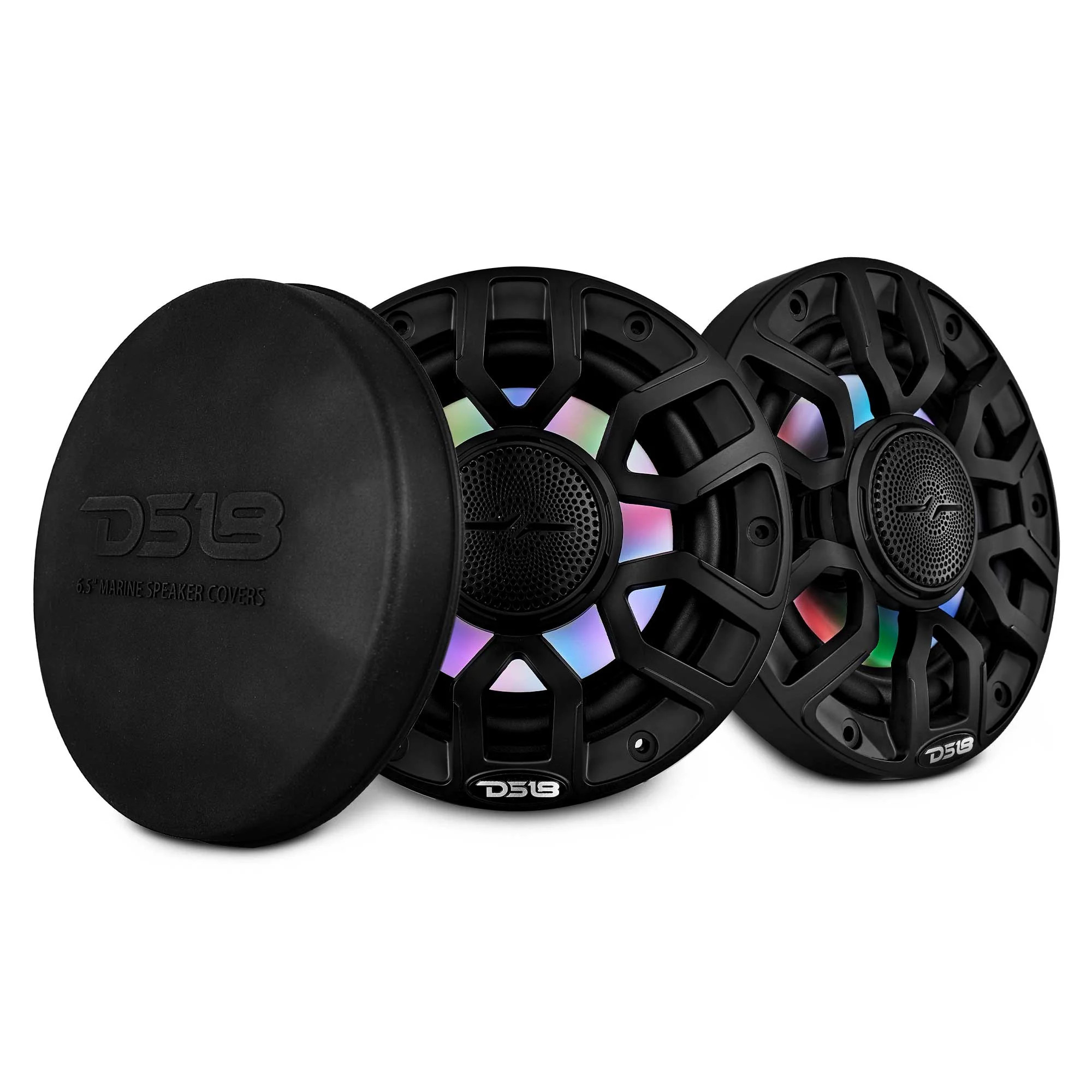

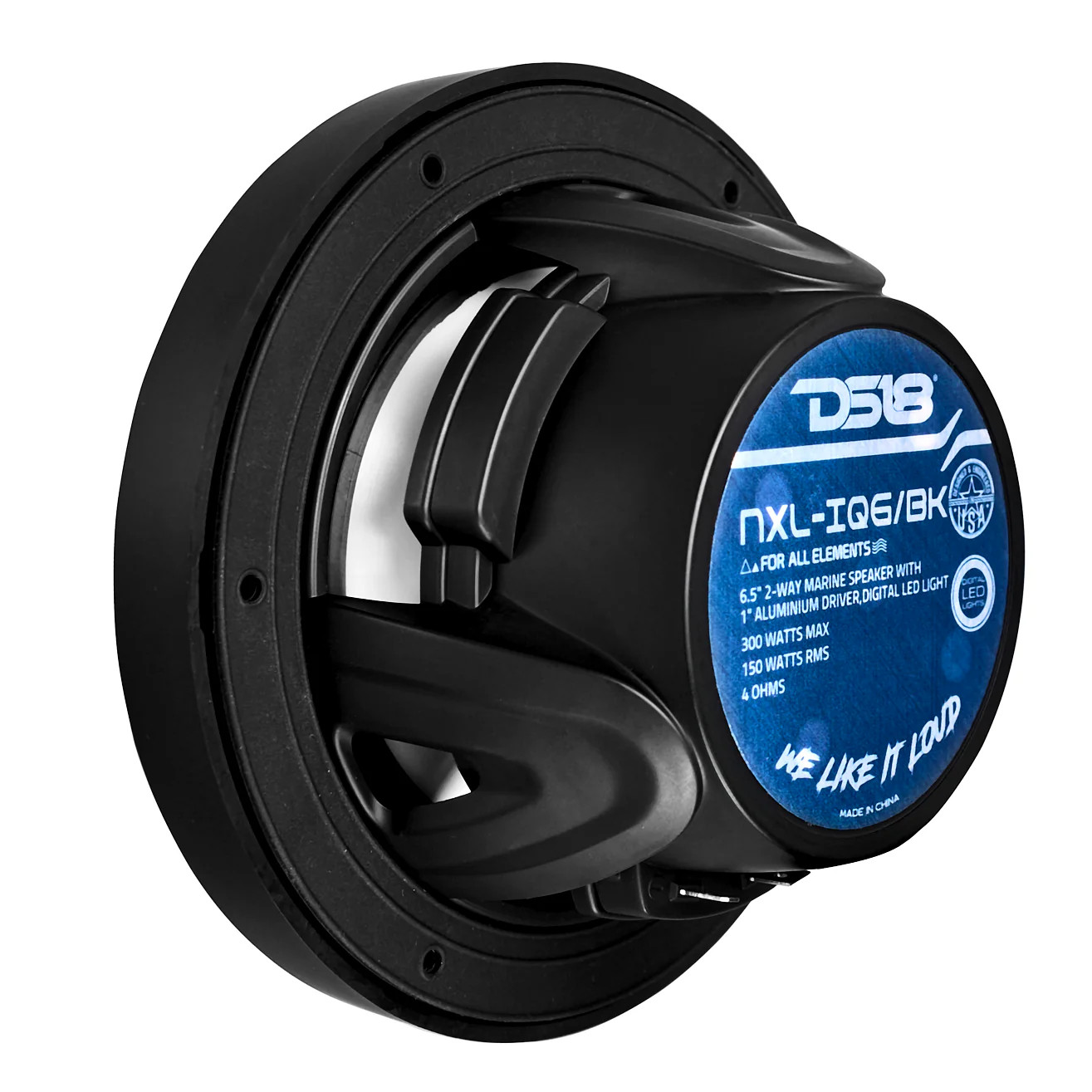

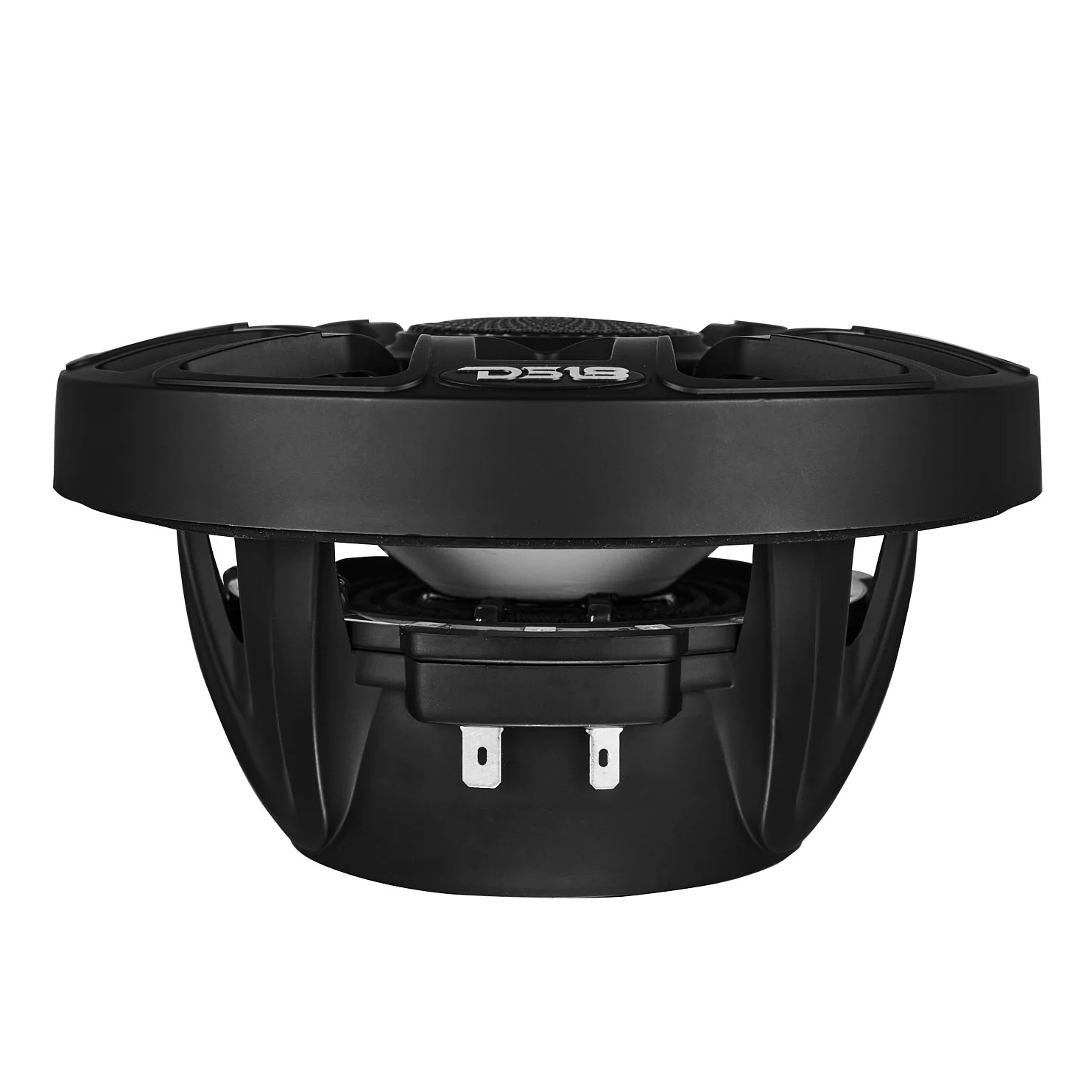

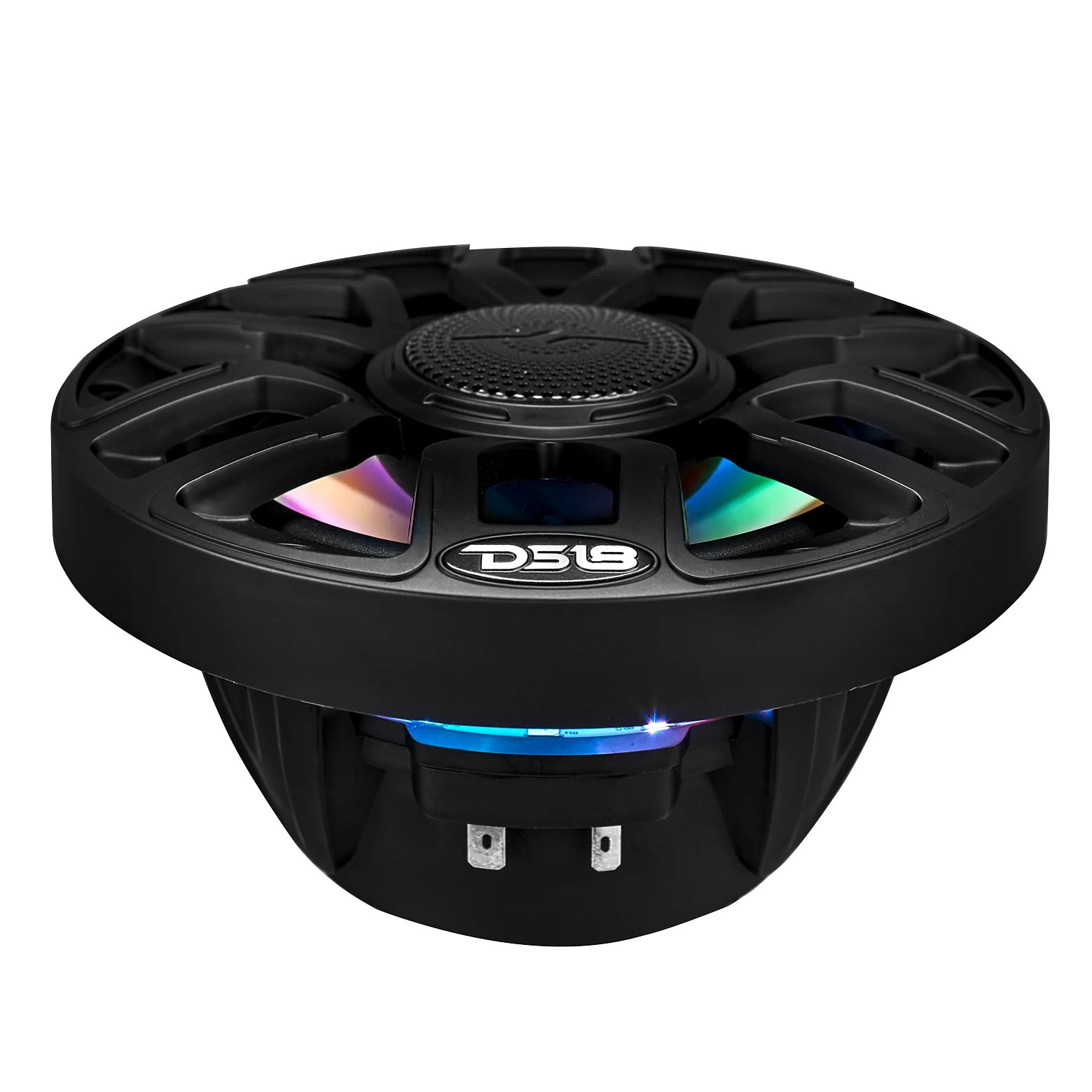

DS18 NXL 6.5" 2-Way Coaxial Marine Speaker With Digital Led Lights And Bullet Tweeter 150 Watts 4-Ohm - BLACK

General
Specifications

SKU
NXL-IQ6/BK
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 ohms
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
95dB
Frequency Response
45Hz-20KHz
Number of Ways
2-Ways
Recommended High-Pass Crossover
60Hz
Sold in Pair or Single
Pair

Body
Features

UV Protection
Yes, 100% Stable
Marine Grade Type
IP65
LED Lights
Yes, Digital LED integrated (behind cone)
Digital LED Connection Type
12V & Digital IN/OUT terminal
Digital LED Chip Type
1815S
Grill Type
Injection Molded Composite ASA with UV Protection coating
Color / Finish
Matte Black

Woofer
Specifications

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
PPI
Dust Cap Material
PPI
Surround Material
Rubber
Basket Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
13 oz + 1.1 oz

Tweeter
Specifications

Type
Floating Bullet Tweeter
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminium
Bullet Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Neodymium (N35H)
Magnet Weight
0.4 oz

Thiele
Small Parameters

Equivalent Volume Vas
3.15L / 0.11ft3
Excursion (one way) Xmax
3mm
Free Air Resonance Fs
94Hz
Mechanical Factor Qms
7.497
Electrical Factor Qes
1.205
Total Factor Qts
1.038
Moving Mass Mms
16.603 g
Compliance Cms
0.1679 mm/N
Bl Factor BI
5.138
Voice Coil Inductance Le
1.4 mH
Diaphragm Area Sd
114.99cm2
DC Resistance Re
3.3 Ohms
Efficiency Bandwidth Product EBP
78.8

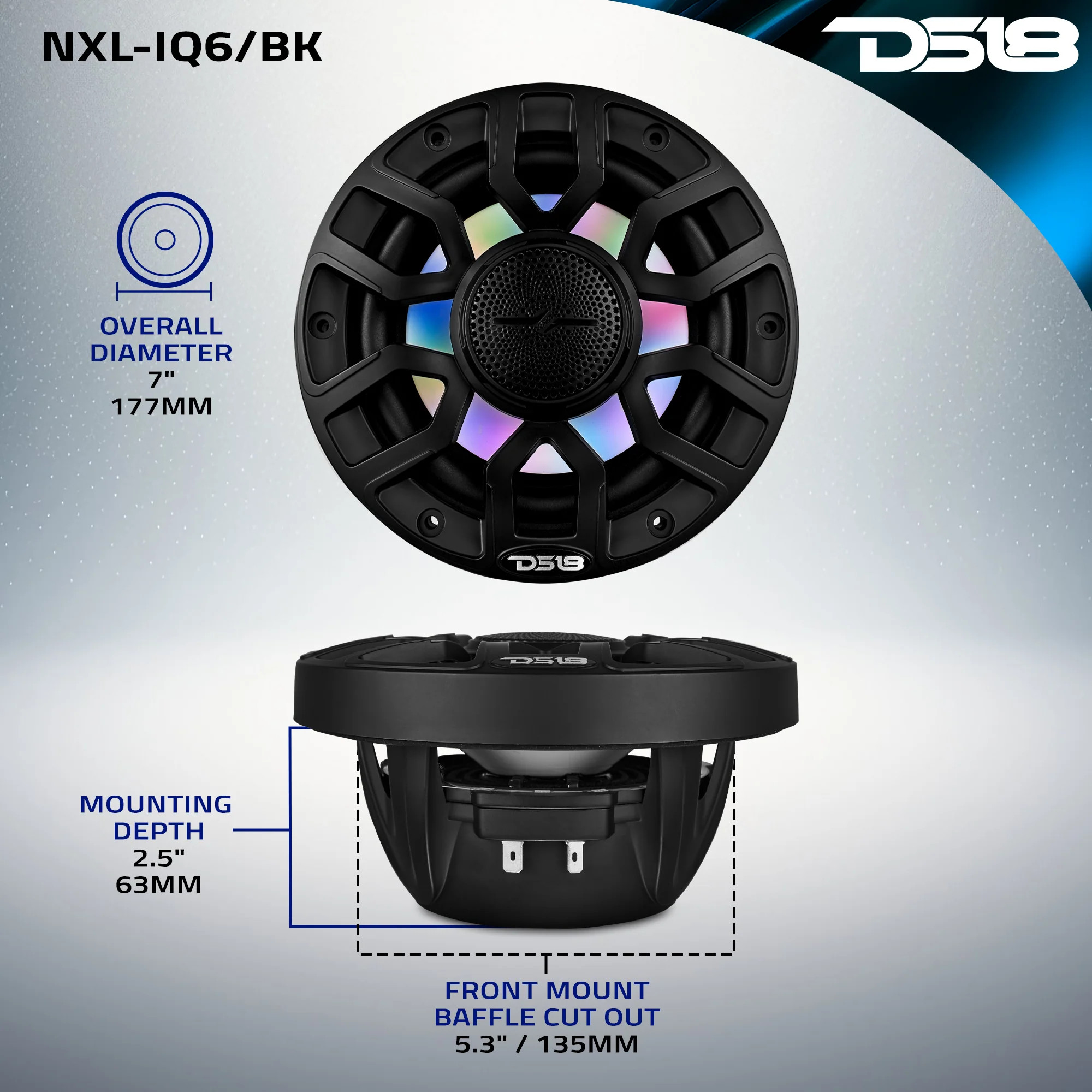

Speaker
Measurement

Overall Diameter
7" / 177mm
Overall Depth
3.75" / 95mm
Front Mount Baffle Cutout
5.3" / 135mm
Mounting Depth
2.5" / 63mm
Motor Diameter
3.75" / 95mm
