Description
DS18 Polaris RZR Front Kick Panel Pods with 6.5" Active Speakers and Bluetooth
- 2x 6.5" Water-Resistant Speakers
- Built-In 300W MAX power amplifier
- Supports Bluetooth® Audio Streaming From Any Device
- Pods Sold as a Set for Driver and Passenger Sides

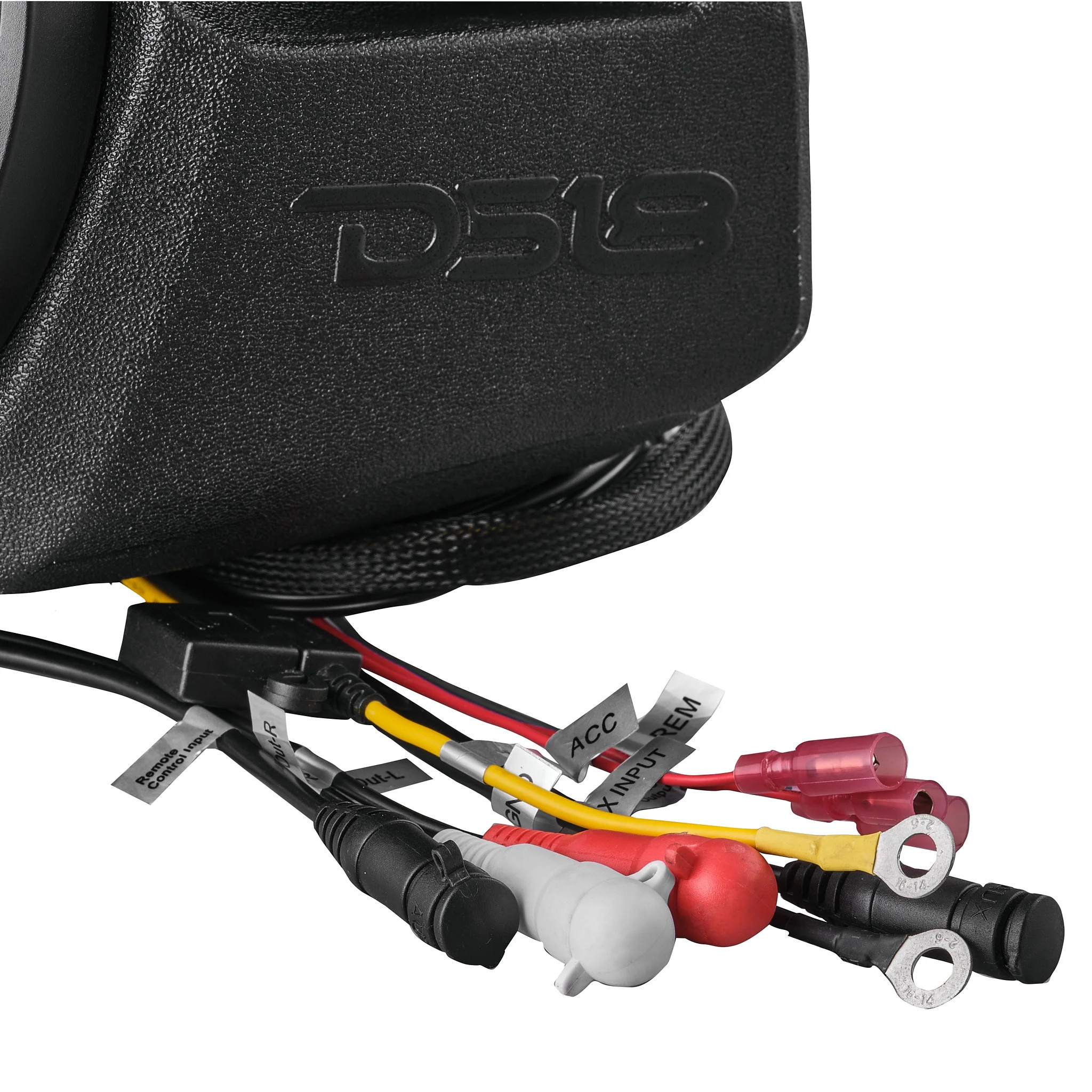

- Hardware and wiring included
- Durable (PE) waterproof enclosure with UV Protection
- Sealed Type Enclosure
SPECS
SKU
RZR-KP6BT
Nominal Size
6.5" / 165mm
Total Watts (Peak)
300W
RMS Power @ 4 ohm (Internal Amp)
2 x 50W
MAX Power @ 4 ohm (Internal Amp)
2 x 150W
Frequency Response
60Hz-20KHz
Operation Temperature
-20?~+60°C (-4?~140°F)
Operation Voltage
9.5-18V
Bluetooth Version
v5.0
Audio Protocols
A2DP
Range
>10M (33ft)
Marine Grade Type
IP66
Grill Type
Injection PC
Sold in Pair or Single
Pair (Left & Right)
Clamps
Metal for OEM Location
RCA Line Out (Pre-Amp)
Yes
Aux Line Input
Yes (3.5mm Jack)
Remote Out
Yes
Remote Control
Yes (MRXRC)
Body / Color / Finish
Black / OEM Texture
Woofer Specs
Nominal Diameter
6.5" / 165mm
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Diameter
Kapton
Cone Material
Injection Molded Polypropylene
Surround Material
Butyl (Rybber)
Basket Material
Injection PC+ABS
Magnet Material
Ferrite
Tweeter Specs
Nominal Diameter
1" / 25.4mm
Voice Coil Diameter
1" / 25.4mm
Type
Dome
Diaphragm Material
PEI
Magnet Material
Neodymium (N38H)
Crossover
6 dB/Oct
Amplifier Specs
Amplifier Class
Stereo Full Range
Amplifier Type
Digital
Number of Channels
2
Minimum Impedance
4 Ohms
Frequency Response
20Hz-30KHz
Signal to Noise Ratio
76dB
T.H.D.
1%
Channel Separation
58dB
Audio Source
BT / AUX
Power Input Wire Size
16Ga
Fuse Size
10A
MAX Current Draw
9A
Thermal Protection
Yes
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Measurements
Overall Width
11.65" / 296mm
Overall Height
Up to 9.15" / 232.5mm
Overall Depth
7.5" / 191.4mm
Shipping Info
Gross Single Unit Weight
2.3 kgs
Single Unit Box Dimensions W x L x H
296 x 232.5 x 191.4 mm
Quantity of Units in Master Carton
1 Pair
Gross Master Carton Weight
N.W:5.0 KGS G.W:5.7 KGS
Master Carton Dimensions W x L x H
539 x 299 x 292 mm
