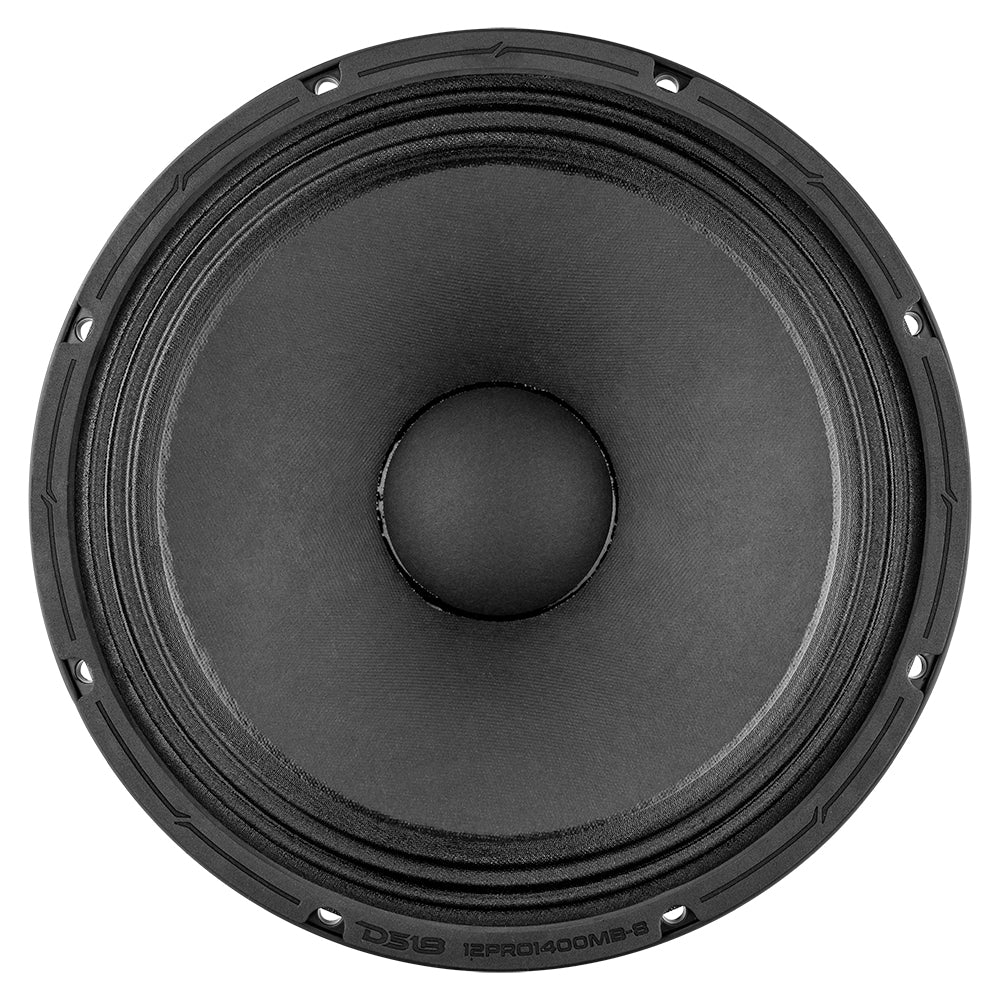

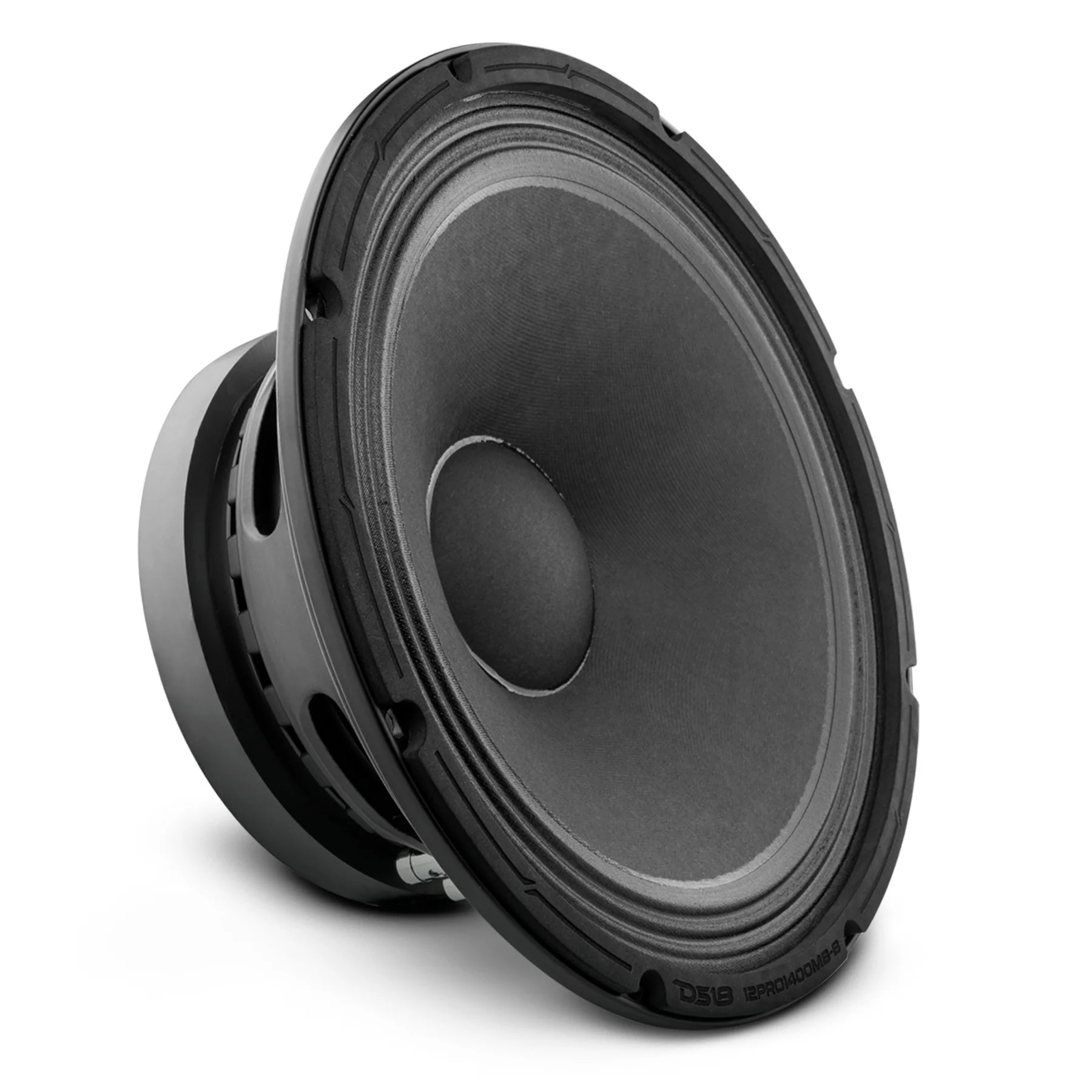

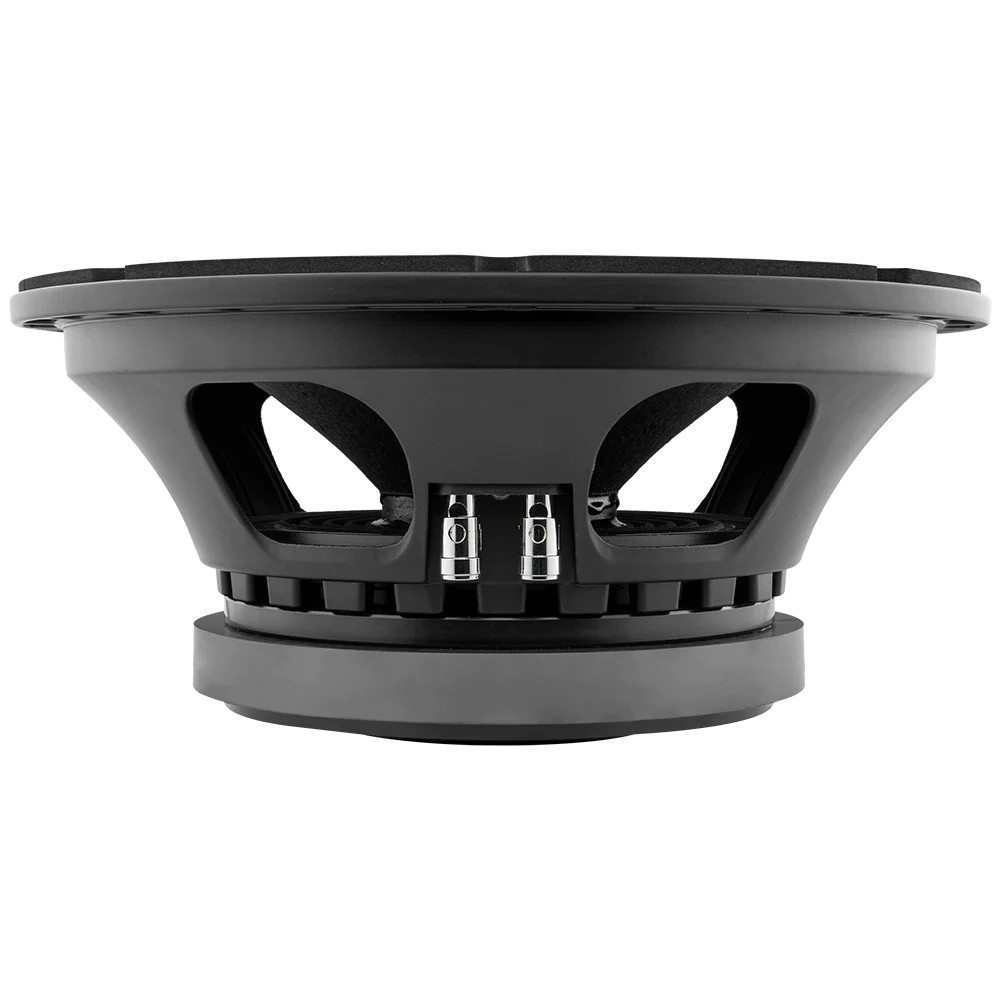

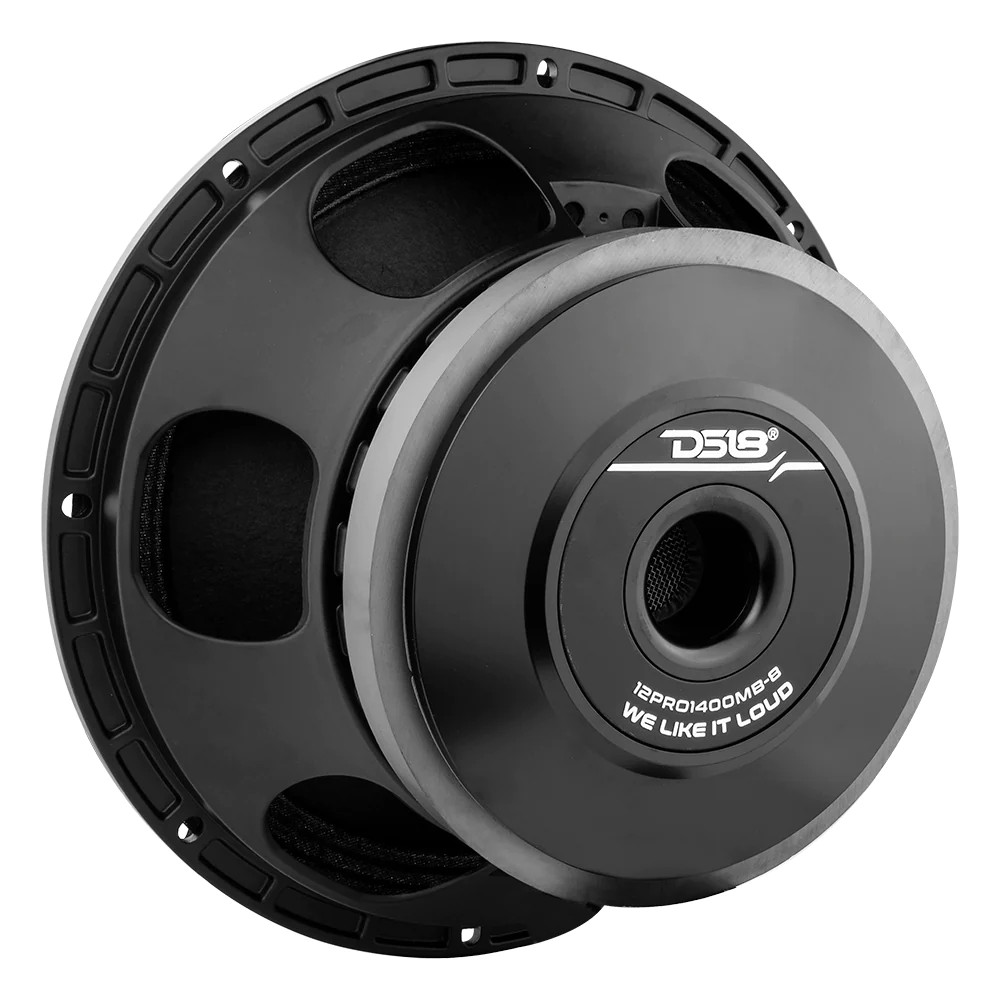

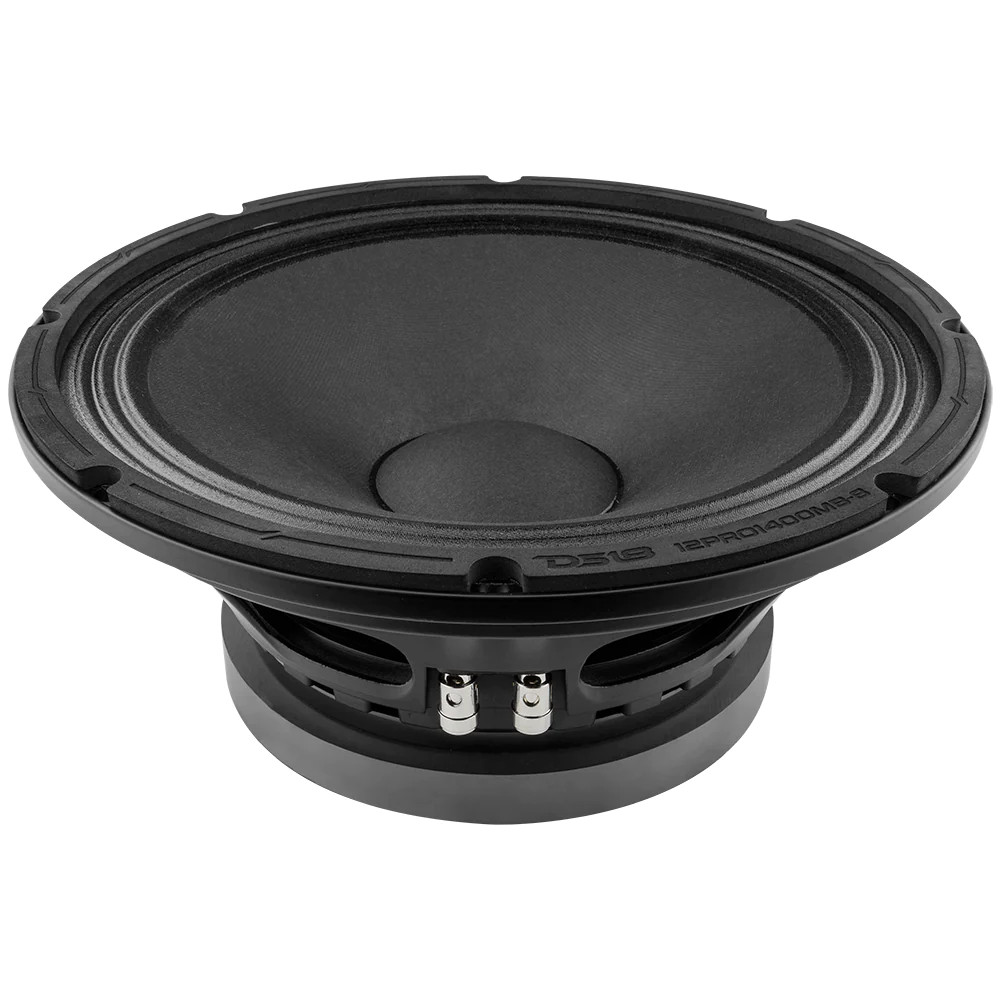

DS18 PRO 12" MIDBASS LOUDSPEAKER 1400 WATTS RMS 8 OHM

DS18

Write a Review
SKU:
DS-12PRO1400MB-8
27 people looking at this.

Description

DS18 PRO 12" MIDBASS LOUDSPEAKER 1400 WATTS RMS 8 OHM

SPECS

SKU
12PRO1400MB-8
Nominal Diameter
12" / 300mm
Nominal Impedance
8 Ohm
RMS Power Handling
700W
Maximum Power Handling
1400W
Sensitivity (1w/1m)
100dB
Frequency Response
50Hz-5KHz
Recommended HI Pass Crossover
60Hz
Sold in Pair or Single
Single
Grill Included
No



FEATURES

Double Demodulating Rings (DDR)
Yes
Interleaved Sandwich Voice coil (ISV)
Yes
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear



MOTOR

Voice Coil Diameter
3" / 76.2mm
Voice Coil Former Material
Fiberglass
Winding Material
Aluminum
Cone Material
Non-Pressed Paper
Dust Cap Material
Paper
Surround Material
Cloth
Basket Material
Die cast Aluminum
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
90 Oz
Displacement Volume
2.64L / 0.093ft3



THIELE & SMALL PARAMETERS

Equivalent Volume Vas
97.4L / 3.43ft3
Excursion (one way) Xmax
4.5 mm
Free Air Resonance Fs
49 Hz
Mechanical Factor Qms
9.08
Electrical Factor Qes
0.41
Total Factor Qts
0.39
Mechanical Mass Mms
41.619 g
Mechanical Compliance Cms
0.214 mm/N
BL Factor BL
14.64
Voice Coil Inductance Le
0.89 mH
Cone Area Sd
522.79 Cm2
DC Resistance Re
5.2 Ohm
Mechanical Mass w/o air Mmd
34.4 g



MEASUREMENT

Overall Diameter
12.3" / 314mm
Overall Depth
5.74" / 146mm
Front Mount Baffle Cutout
11.22" / 285mm
Mounting Depth
5.2" / 132mm
Motor Diameter
7.87" / 200mm
Gross Single Unit Weight
8.8 Kg
Single Unit Box Dimensions W x L x H
340 x 340 x 172 mm
Quantity of Units in Master Carton
2 pcs
Gross Master Carton Weight
19.5 Kg
Master Carton Dimensions W x L x H
360 x 358 x 361 mm
