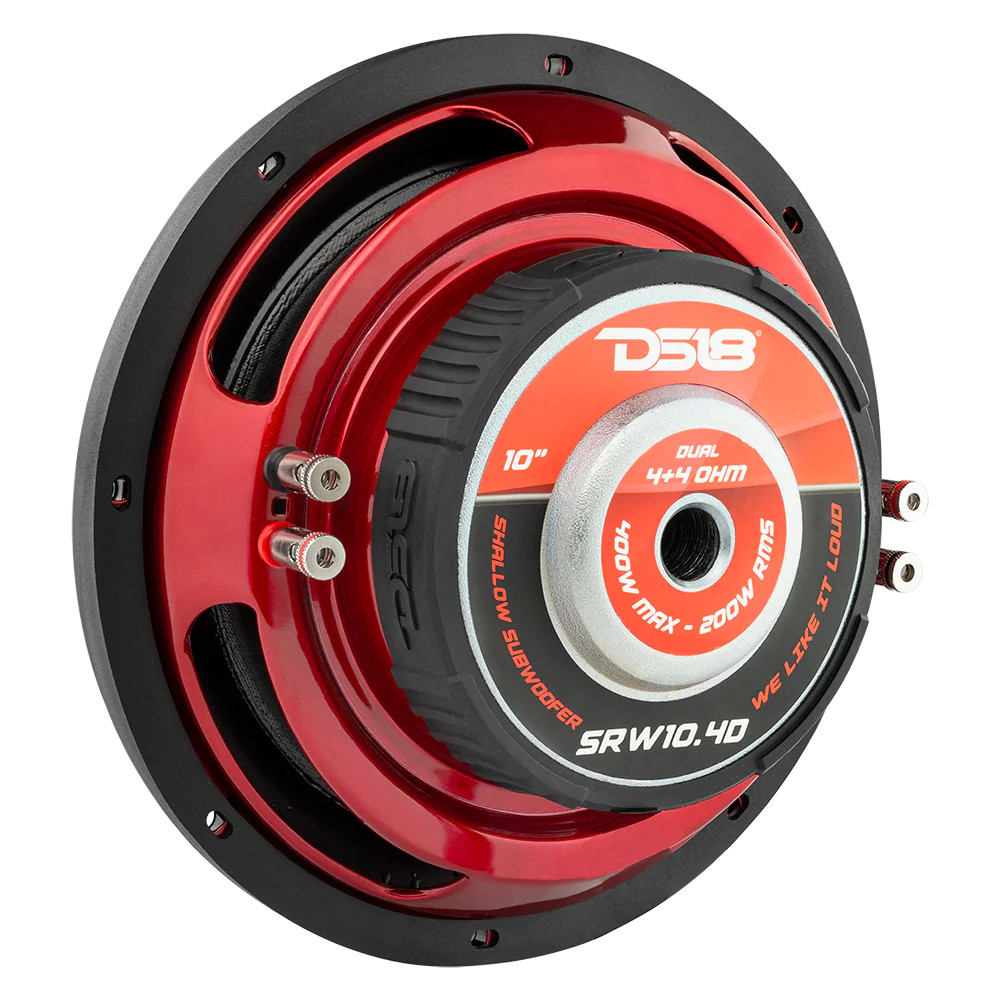

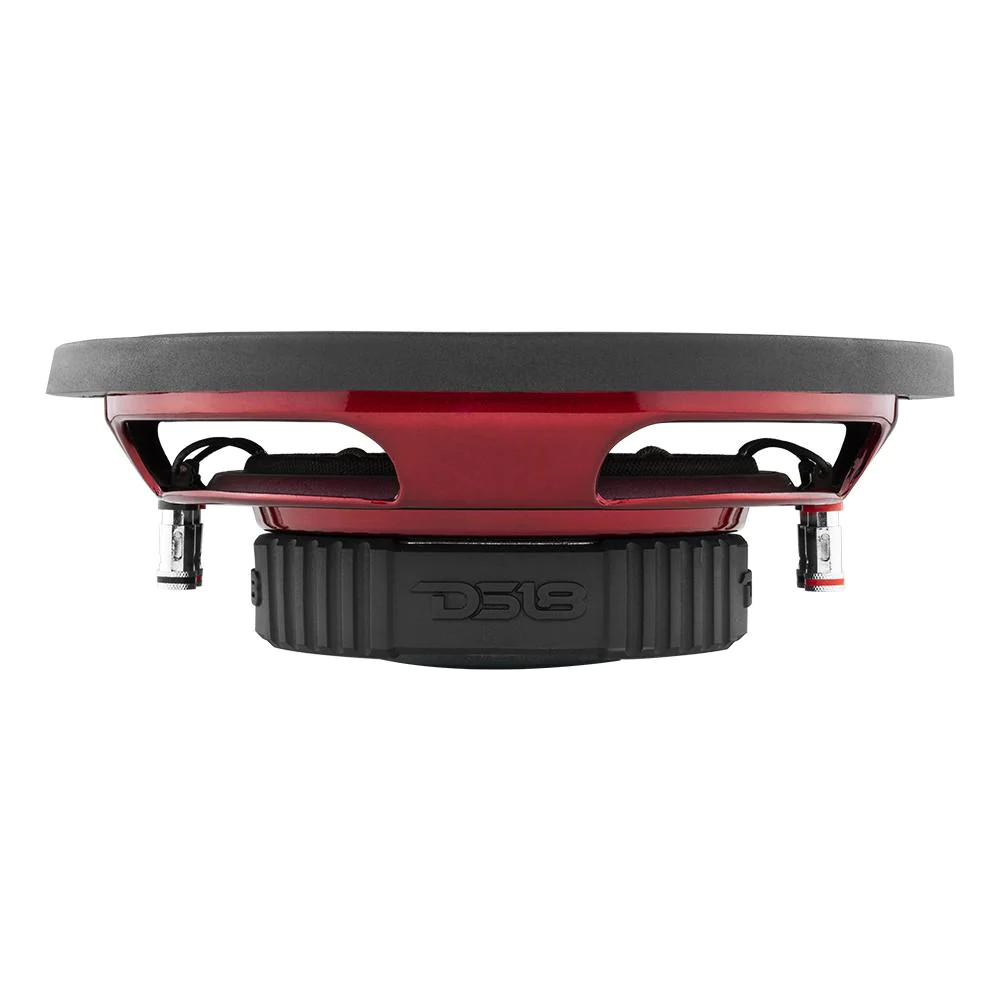

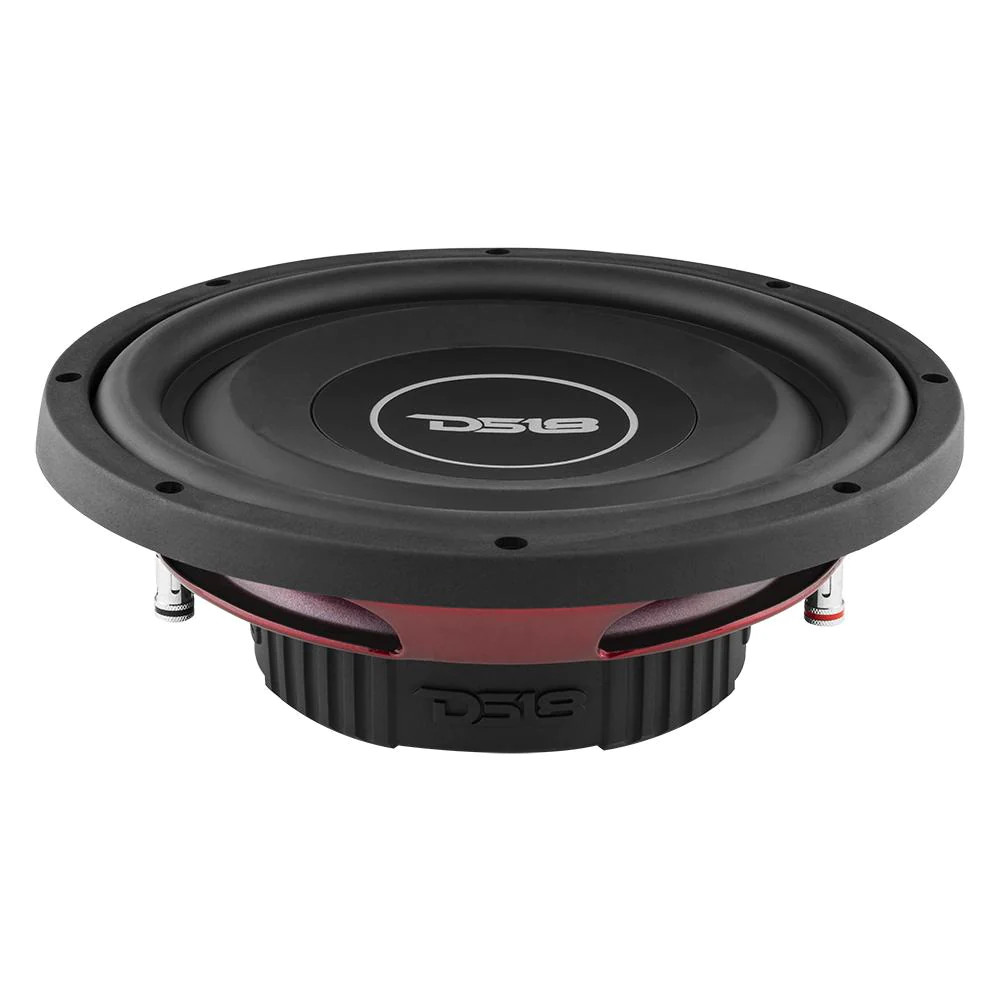

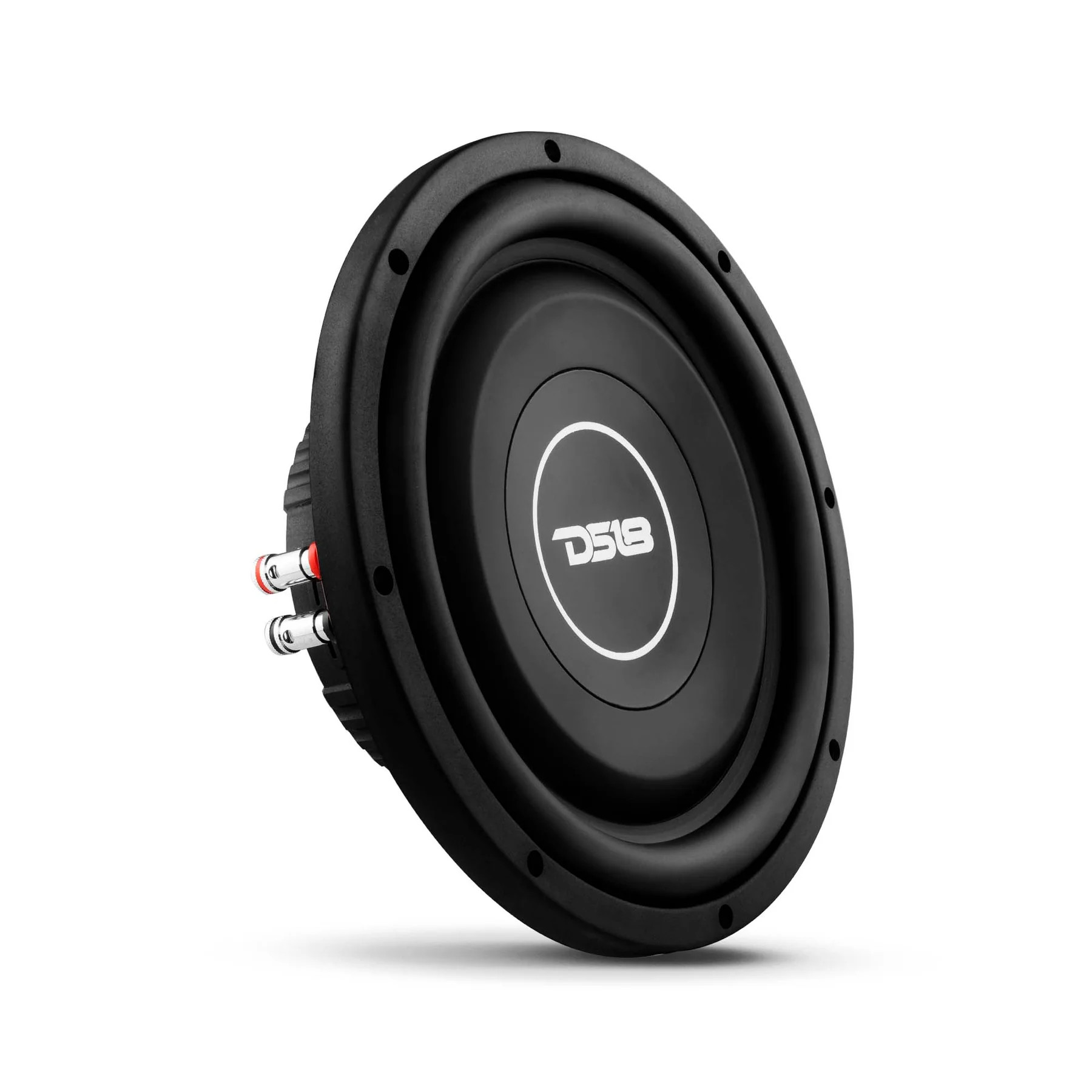

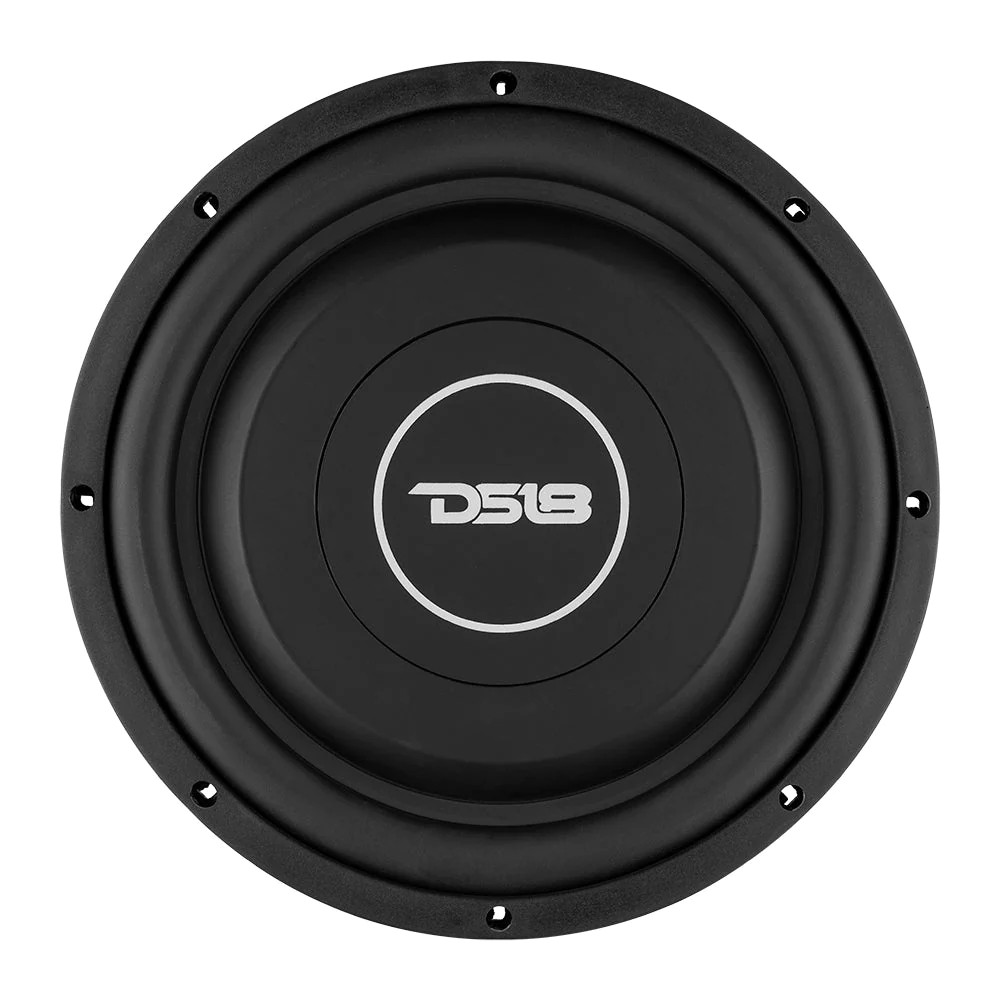

DS18 SHALLOW 10" 700W DVC SUBWOOFER

SPECS

SKU
SRW10.4D
Nominal Diameter
10" / 254mm
Nominal Impedance
4+4 Ohm
RMS Power Handling
200 Watt
MAX Power Handling
400 Watt
Sensitivity (1w/1m)
87 db
Frequency Response
23 - 250Hz
Recommended Low Pass Crossover
90 Hz

MOTOR

Voice Coil Diameter
2" / 50.8 mm
Voice Coil Former Material
Aluminum
Winding Material
SV
Cone Material
Paper
Dust Cap Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Gloss Red
Magnet Material
Ferrite
Magnet Weight
45 Oz
Displacement Volume
1.86L / 0.065ft3

Thiele & Small Parameters

Equivalent Volume Vas
16.8L / 0.59ft3
Free Air Resonance Fs
50 Hz
Mechanical Factor Qms
7.503
Electrical Factor Qes
1.128
Total Factor Qts
0.98
Moving Mass Mms
112.281g
Compliance Cms
0.09 mm/N
Bl Factor BI
14.194
Voice Coil Inductance Le
18.14 mH
Diaphragm Area Sd
366.44 cm2
Dc Resistance Re
3.4+3.4 ohms
Efficiency Bandwidth Product EBP
44.3
Mechanical Mass Without Air Mmd
104.464g

Measurement

Overall Diameter
10.23" / 260mm
Overall Depth
3.62" / 92mm
Front Mount Baffle Cutout
9.13" / 232mm
Mounting Depth
3.07" / 78mm
Motor Diameter
5.51" / 140mm
Gross Single Unit Weight (lb)
8.5
Single Unit Box Dimensions W x L x H (Inches)
10.75 x 10.75 x 4.25
Quantity of Units in Master Carton
4
Gross Master Carton Weight (lb)
35
Master Carton Dimensions W x L x H (Inches)
22.5 x 11.5 x 9.5
