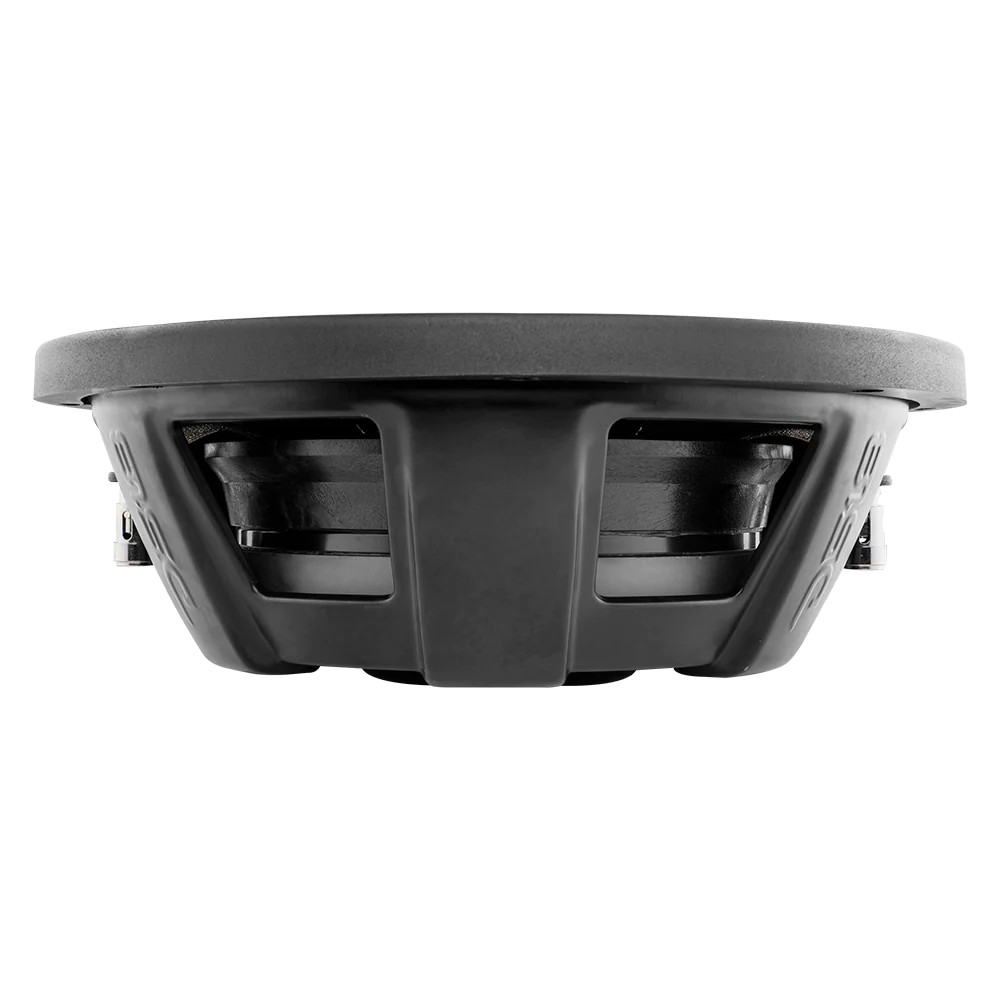

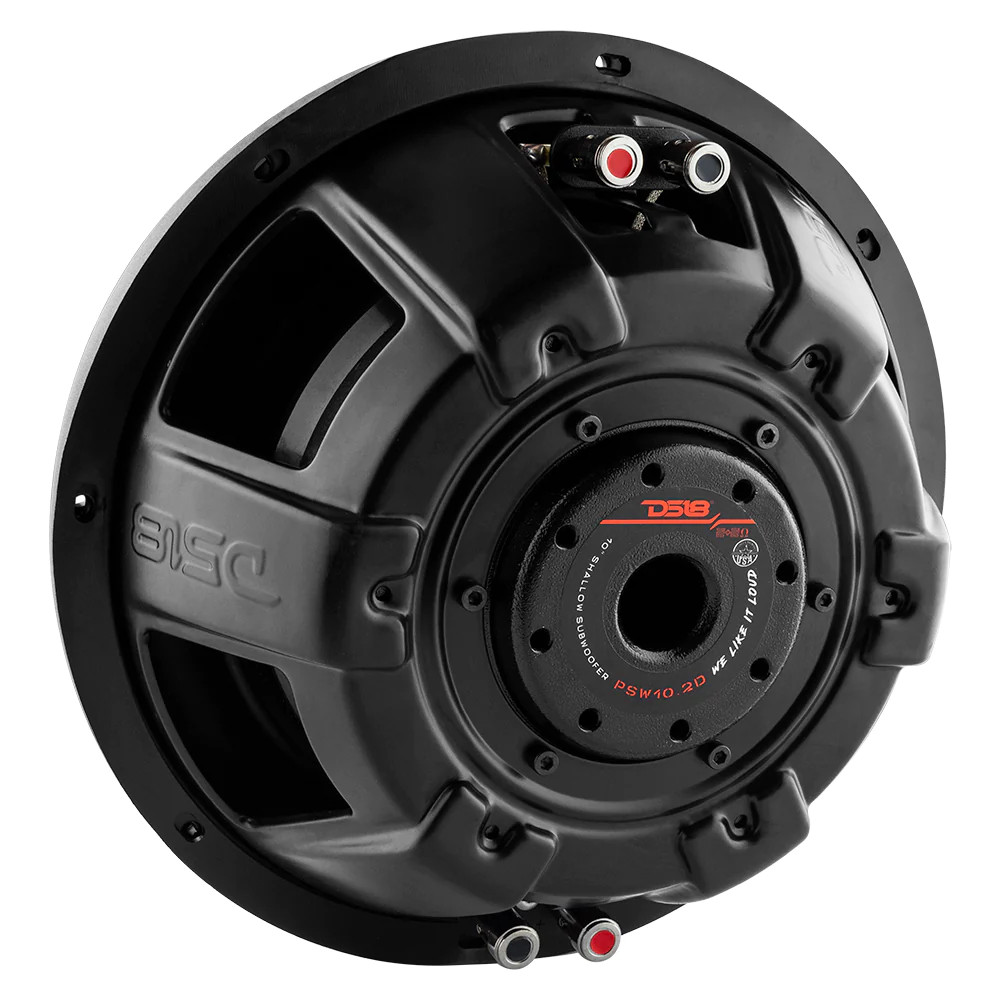

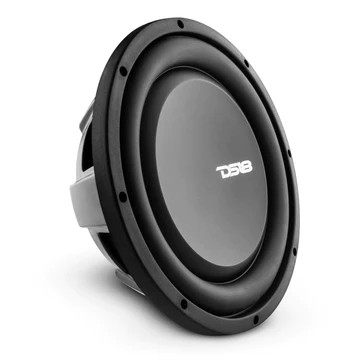

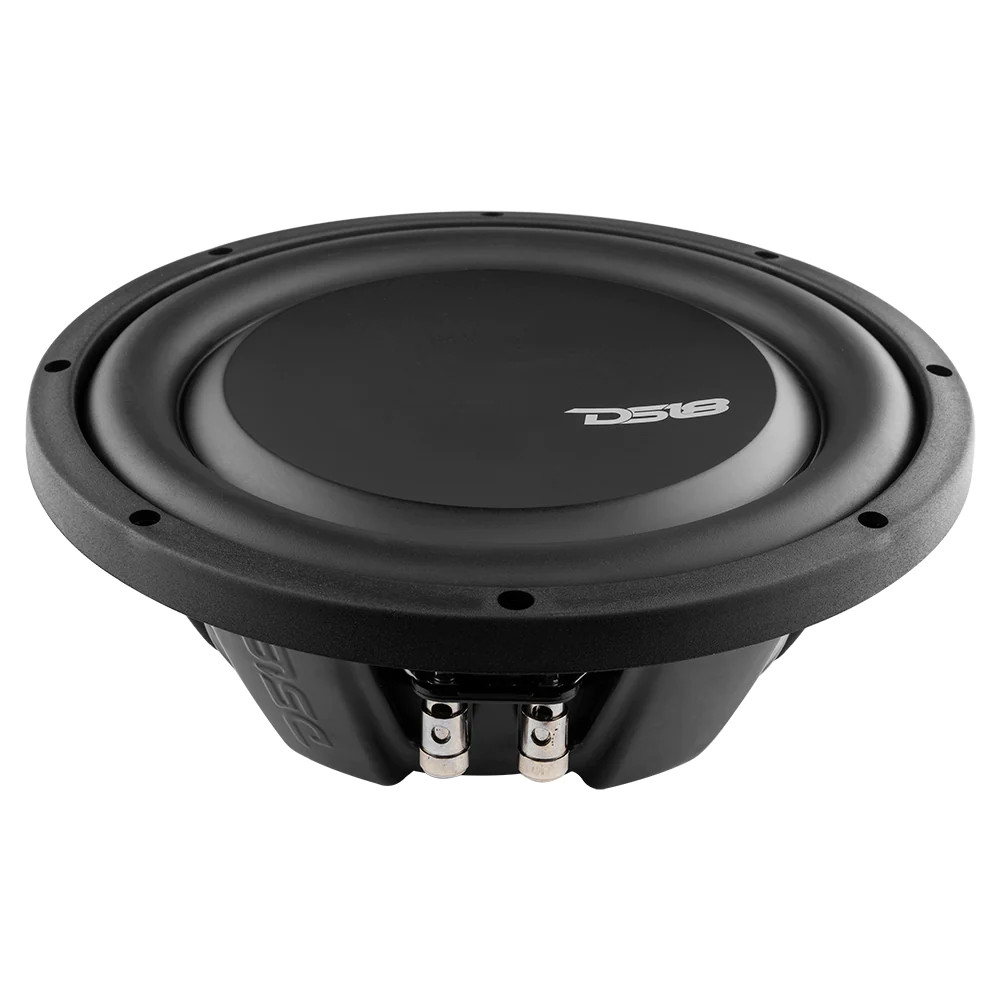

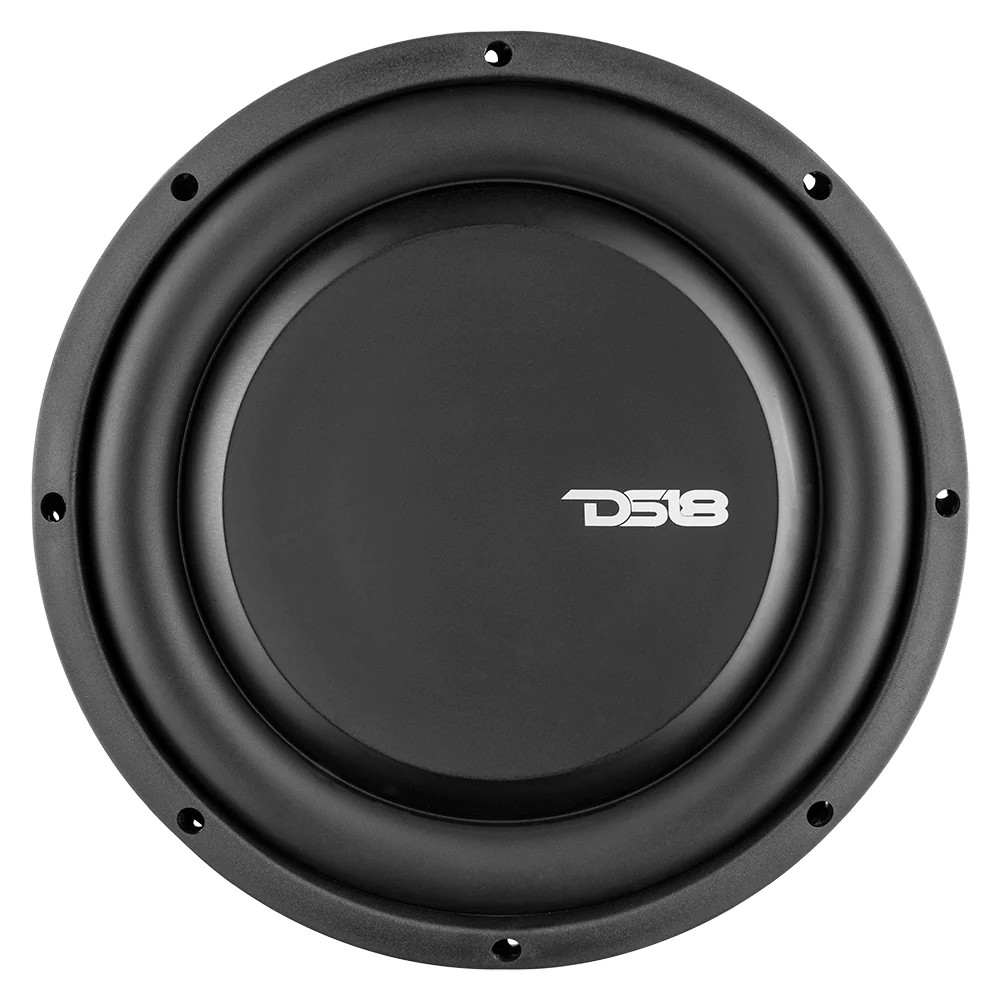

DS18 WATER RESISTANT 10" SHALLOW SUBWOOFER 1000 WATTS RMS DUAL 2 OHM

SPECS

SKU
PSW10.2D
Nominal Diameter
10" / 254 mm
Nominal Impedance
2+2 Ohms
RMS Power Handling
500 W
Maximum Power Handling
1000 W
Sensitivity (1w/1m)
84 dB
Frequency Response
20 - 800 Hz
Recommended Lo Pass Crossover
90 Hz

MOTOR

Voice Coil Diameter
2.5" / 63.5 mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Water Resistant PPI
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Matt Black
Magnet Material
Ferrite
Magnet Weight
58 Oz
Displacement Volume
0.8L / 0.028ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
22L / 0.77ft3
Free Air Resonance Fs
32 Hz
Mechanical Factor Qms
3.84
Electrical Factor Qes
0.56
Total Factor Qts
0.49
Moving Mass Mms
165 g
Compliance Cms
0.134 mm/N
Bl Factor BI
14
Voice Coil Inductance Le
1.7 mH
Diaphragm Area Sd
336.54 cm2
DC Resistance Re
1.8+1.8 Ohms
Efficiency Bandwidth Product EBP
57

RECOMMENDED ENCLOSURES

Sealed Internal Volume (minimum)
14.2L / 0.5ft3
Sealed Box Output Response F3
44 Hz

MEASUREMENT

Overall Diameter
10.23" / 260 mm
Overall Depth
3.6" / 92 mm
Front Mount Baffle Cutout
9.2" / 234 mm
Mounting Depth
3" / 78 mm
Motor Diameter
6.5" / 165 mm
Gross Single Unit Weight (lb)
11.5
Single Unit Box Dimensions W x L x H (Inches)
12.25 x 11.5 x 4.75
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
24
Master Carton Dimensions W x L x H (Inches)
12.5 x 12 x 10
