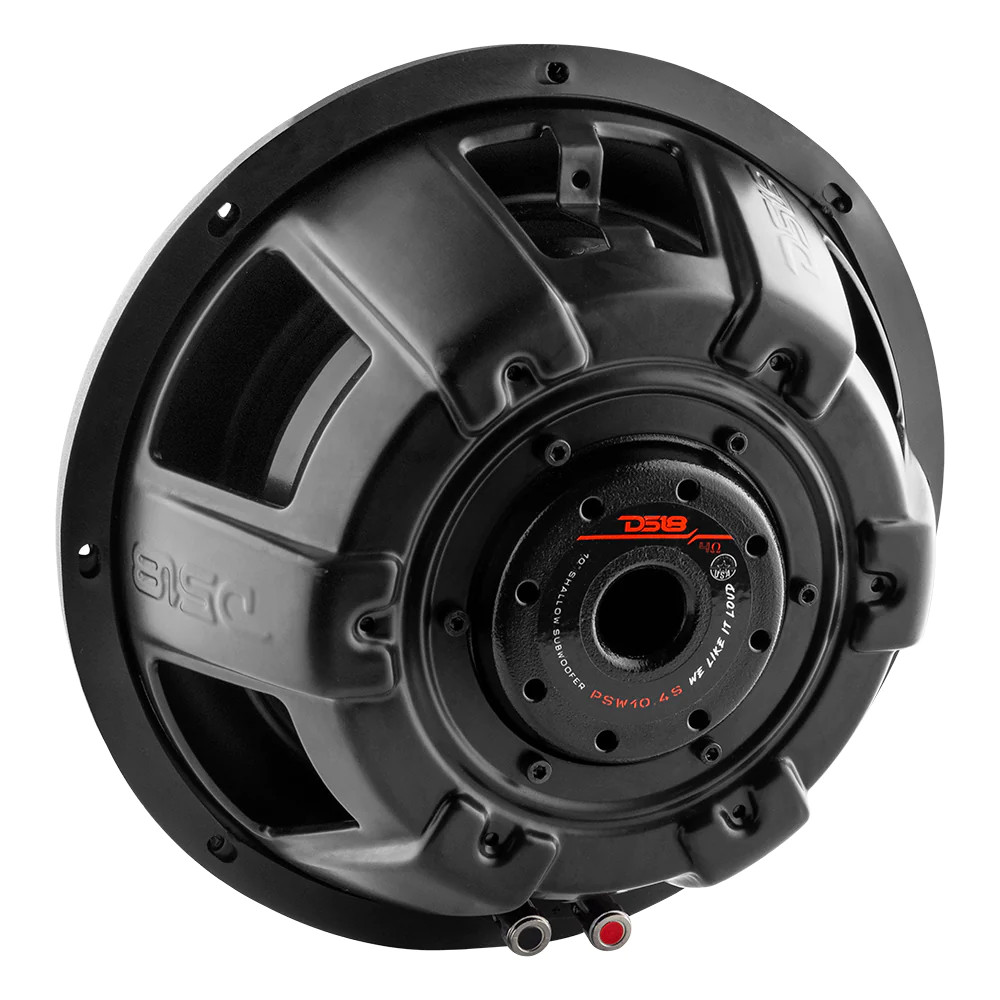

DS18 WATER RESISTANT 10" SHALLOW SUBWOOFER 1000W RMS SINGLE 4 OHM

SPECS

SKU
PSW10.4S
Nominal Diameter
10" / 254 mm
Nominal Impedance
4 Ohms
RMS Power Handling
500 W
Maximum Power Handling
1000 W
Sensitivity (1w/1m)
84 dB
Frequency Response
20 - 800 Hz
Recommended Lo Pass Crossover
90 Hz

MOTOR

Voice Coil Diameter
2.5" / 63.5 mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Water Resistant PPI
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Matt Black
Magnet Material
Ferrite
Magnet Weight
58 Oz
Displacement Volume
0.8L / 0.028ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
20L / 0.7ft3
Free Air Resonance Fs
32 Hz
Mechanical Factor Qms
4.203
Electrical Factor Qes
0.565
Total Factor Qts
0.498
Moving Mass Mms
175 g
Compliance Cms
0.119.5 mm/N
Bl Factor BI
14.72
Voice Coil Inductance Le
1.5 mH
Diaphragm Area Sd
336.54 cm2
DC Resistance Re
3.6 Ohms
Efficiency Bandwidth Product EBP
56.6

RECOMMENDED ENCLOSURES

Sealed Internal Volume (minimum)
14.2L / 0.5ft3
Sealed Box Output Response F3
44 Hz

MEASUREMENT

Overall Diameter
10.23" / 260 mm
Overall Depth
3.6" / 92 mm
Front Mount Baffle Cutout
9.2" / 234 mm
Mounting Depth
3" / 78 mm
Motor Diameter
6.5" / 165 mm
Gross Single Unit Weight (lb)
11.5
Single Unit Box Dimensions W x L x H (Inches)
12.25 x 11.5 x 4.75
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
24
Master Carton Dimensions W x L x H (Inches)
12.5 x 12 x 10
