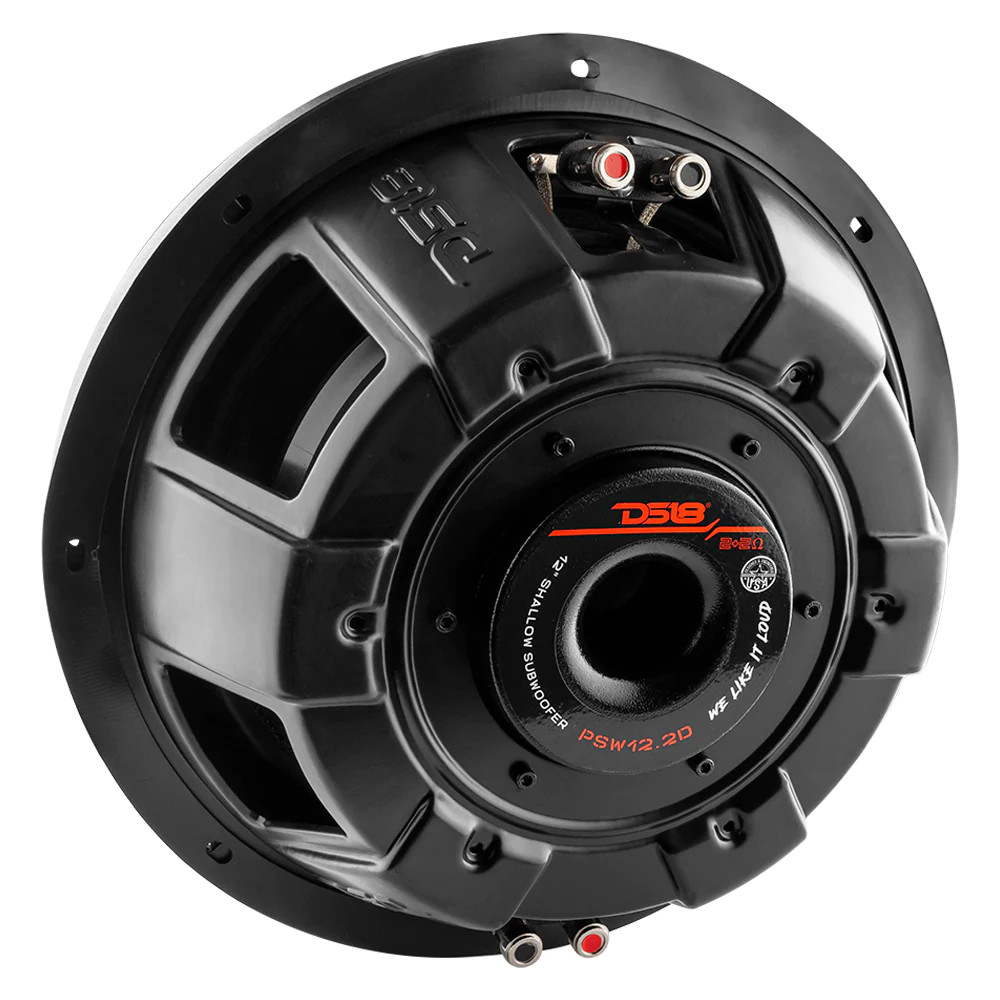

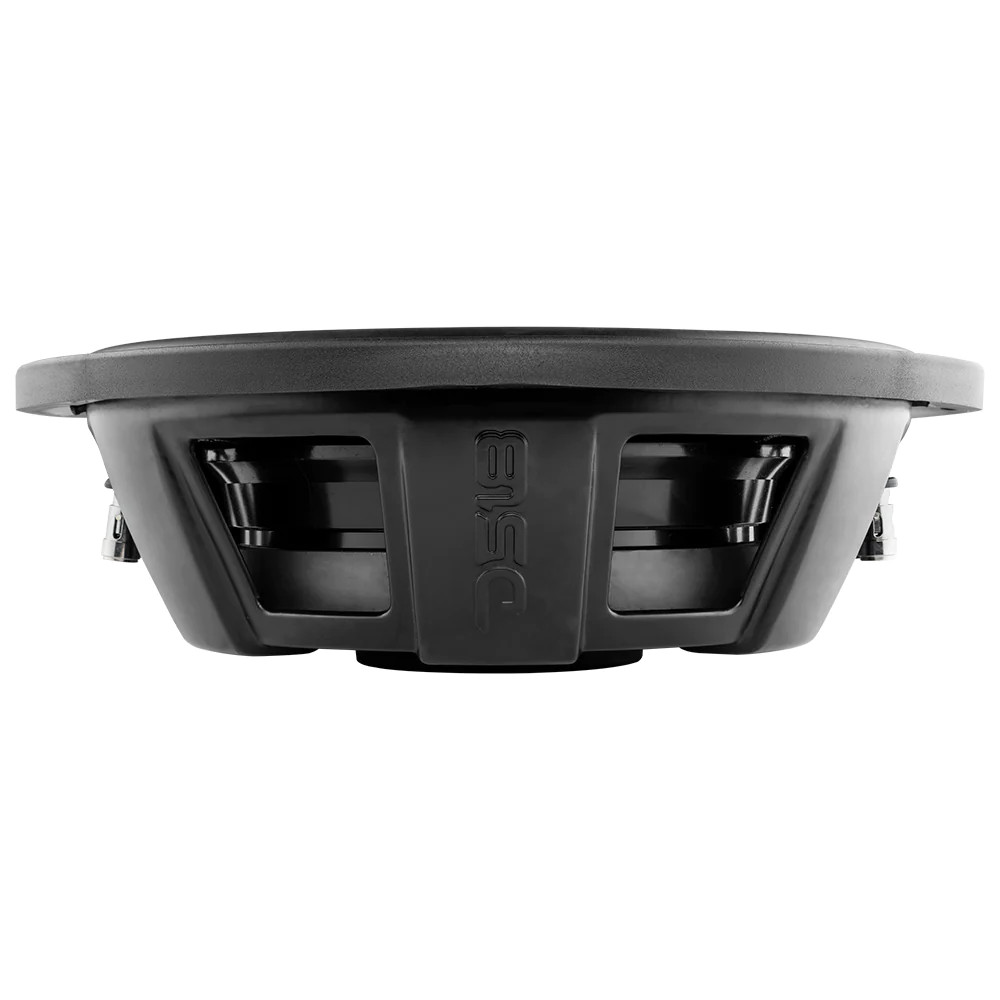

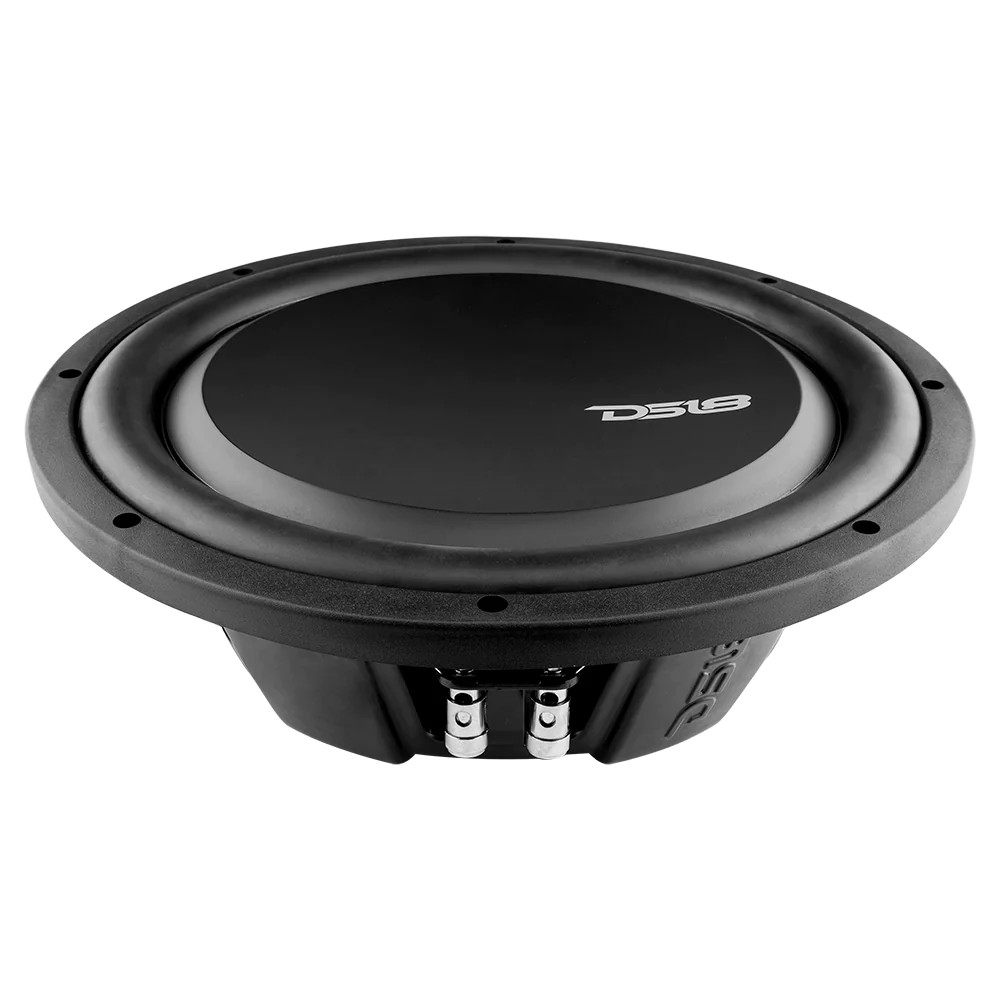

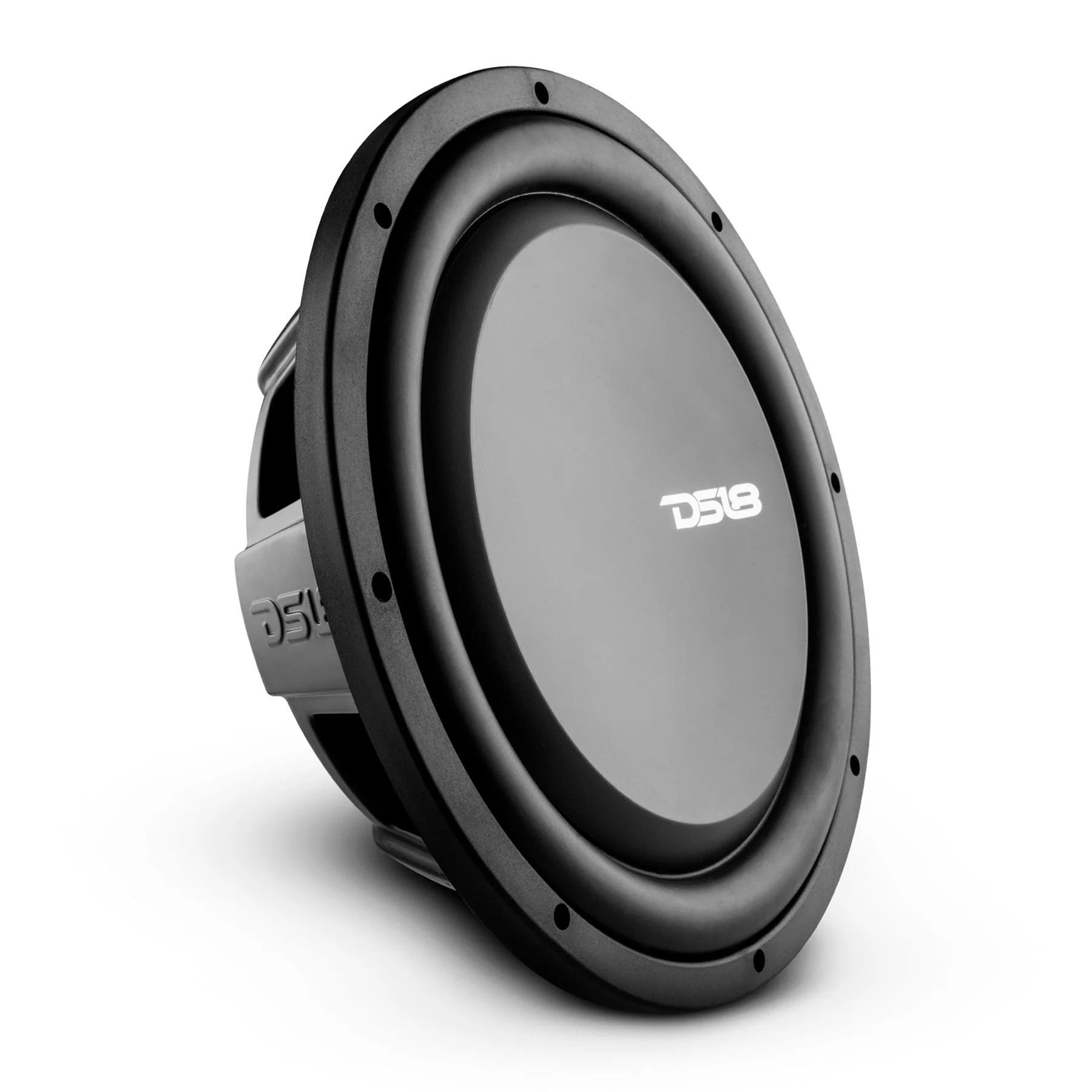

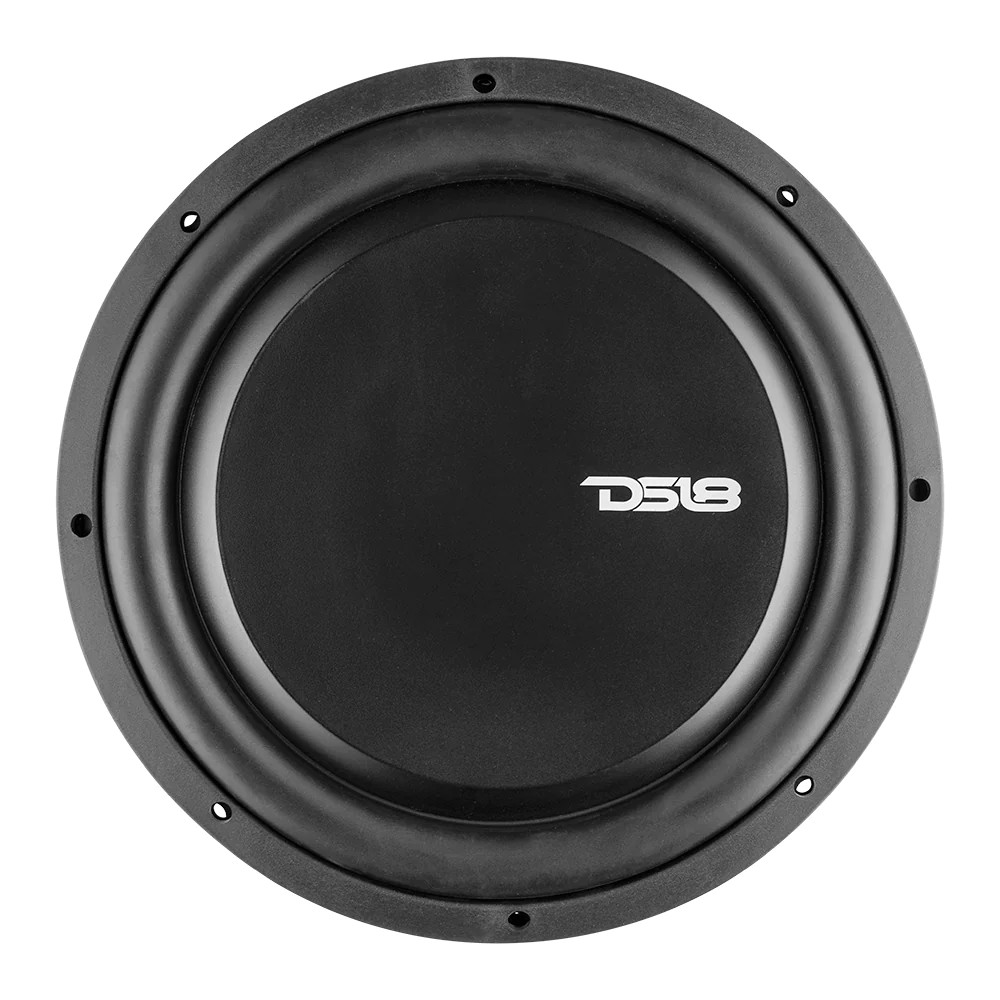

DS18 WATER RESISTANT 12" SHALLOW SUBWOOFER 600W RMS DUAL 2 OHM

DS18

Write a Review
SKU:
DS-PSW122D

Description

DS18 WATER RESISTANT 12" SHALLOW SUBWOOFER 600W RMS DUAL 2 OHM

  • 12" Shallow Subwoofer
  • MAX Power: 1200 Watts
  • RMS Power: 600 Watts
  • Impedance: 2-Ohm DVC
  • Ferrite Magnet
  • Water Resistant

SPECS

SKU
PSW12.2D
Nominal Diameter
12" / 304.8 mm
Nominal Impedance
2+2 Ohms
RMS Power Handling
600 W
Maximum Power Handling
1200 W
Sensitivity (1w/1m)
85 dB
Frequency Response
20 - 600 Hz
Recommended Lo Pass Crossover
80 Hz



MOTOR

Voice Coil Diameter
3" / 76.2 mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Water Resistant PPI
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Matt Black
Magnet Material
Ferrite
Magnet Weight
68 Oz
Displacement Volume
0.95L / 0.033ft3



THIELE & SMALL PARAMETERS

Equivalent Volume Vas
46L / 1.62ft3
Free Air Resonance Fs
31 Hz
Mechanical Factor Qms
3.97
Electrical Factor Qes
0.67
Total Factor Qts
0.57
Moving Mass Mms
216 g
Compliance Cms
124 mm/N
Bl Factor BI
14.96
Voice Coil Inductance Le
1.6 mH
Diaphragm Area Sd
510.71 cm2
DC Resistance Re
1.8+1.8 Ohms
Efficiency Bandwidth Product EBP
46.2



RECOMMENDED ENCLOSURES

Sealed Internal Volume
28L / 1ft3
Sealed Box Output Response F3
40 Hz



MEASUREMENT

Overall Diameter
12.2" / 310 mm
Overall Depth
3.9" / 100 mm
Front Mount Baffle Cutout
10.6" / 270 mm
Mounting Depth
3.3" / 84 mm
Motor Diameter
8" / 203 mm
Gross Single Unit Weight (lb)
15
Single Unit Box Dimensions W x L x H (Inches)
14.25 x 13 x 5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
31
Master Carton Dimensions W x L x H (Inches)
14.5 x 13.75 x 10.5
