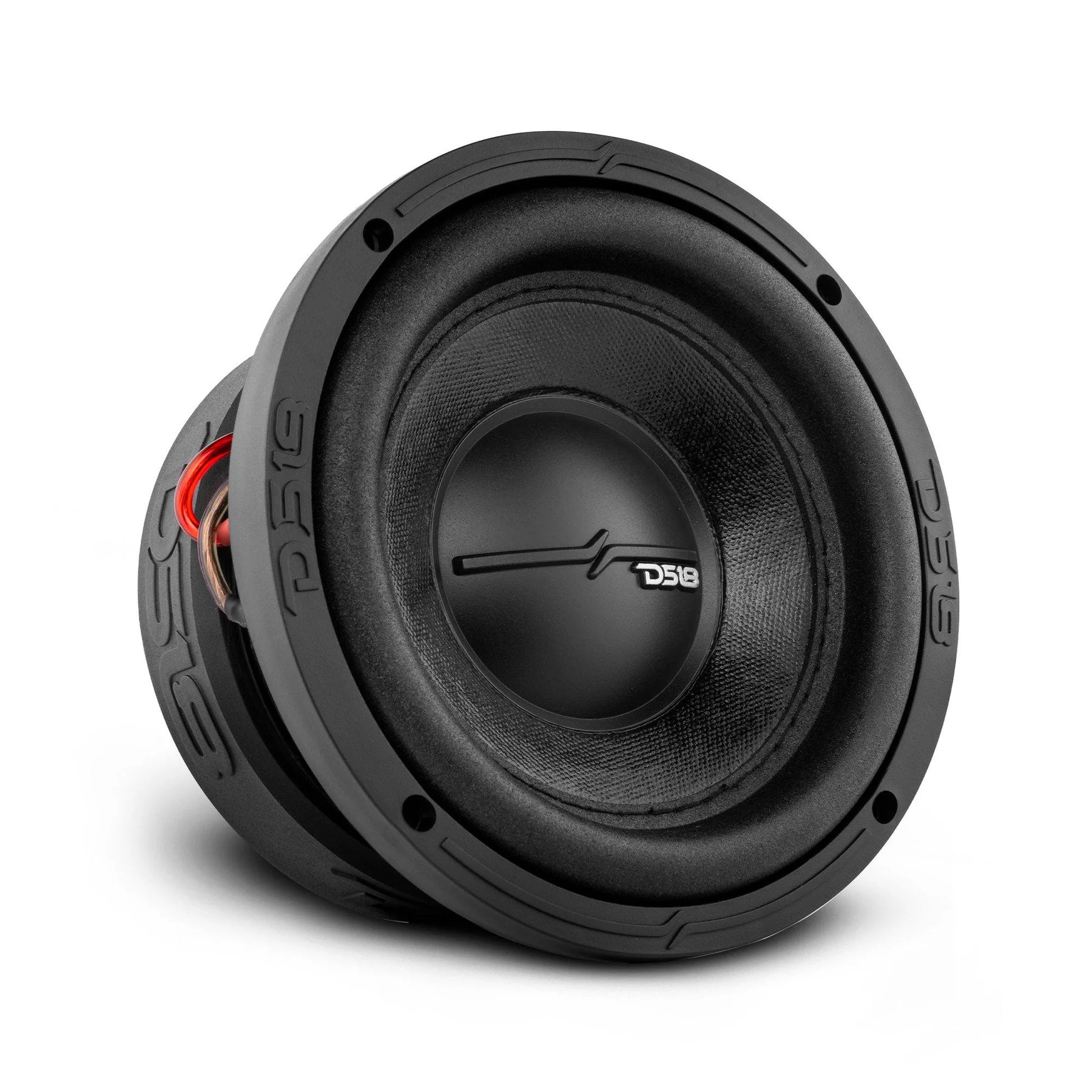

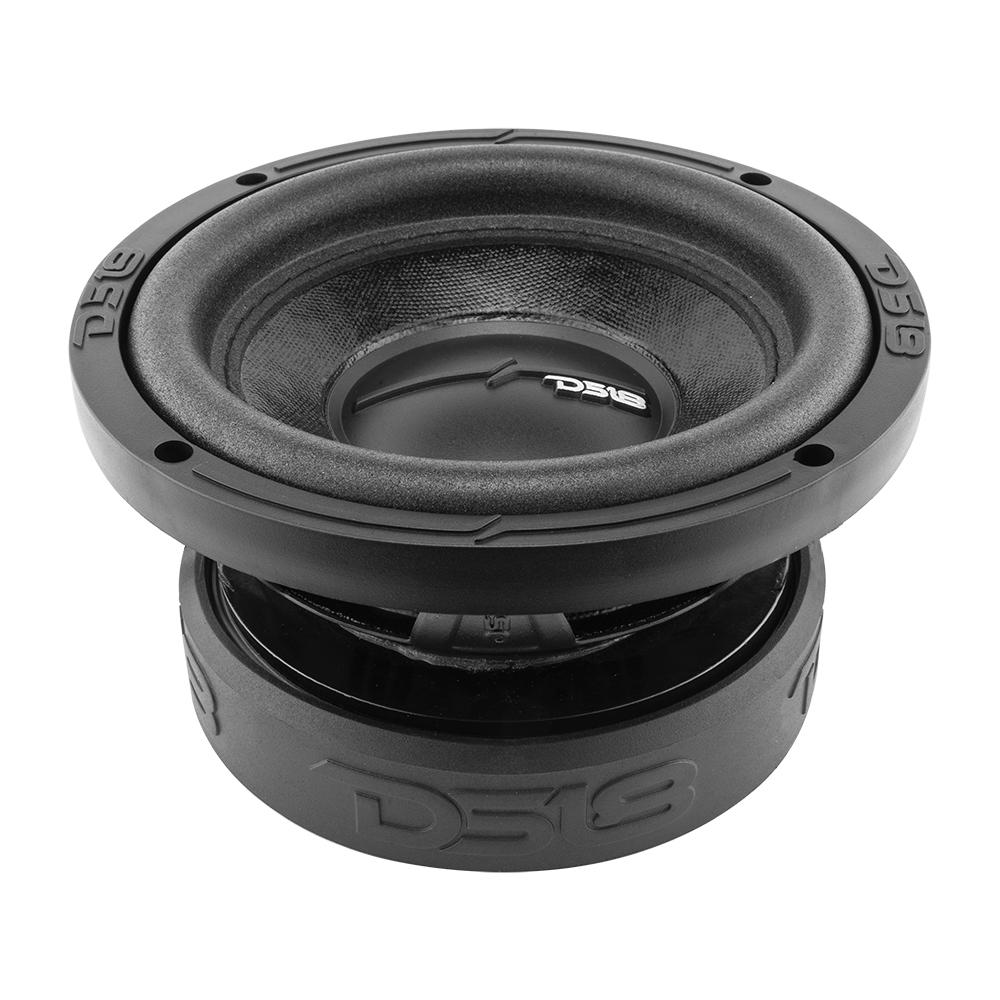

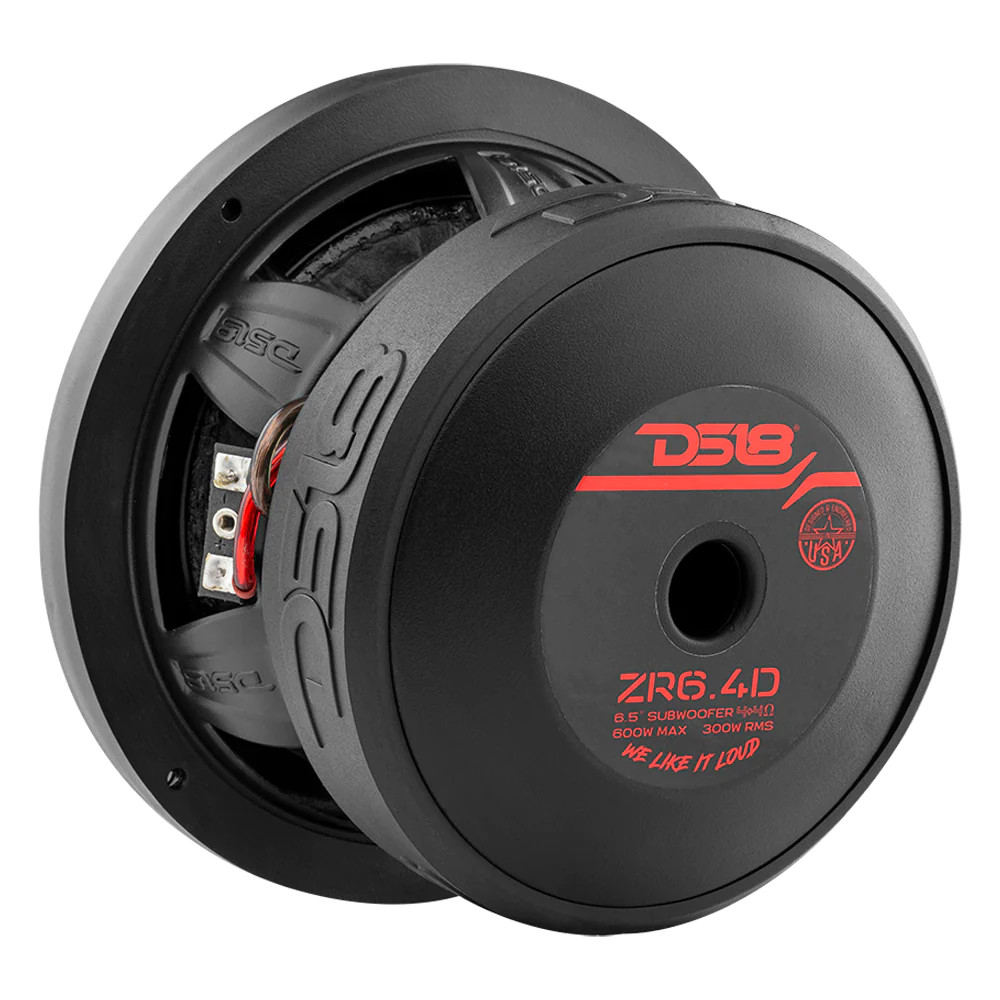

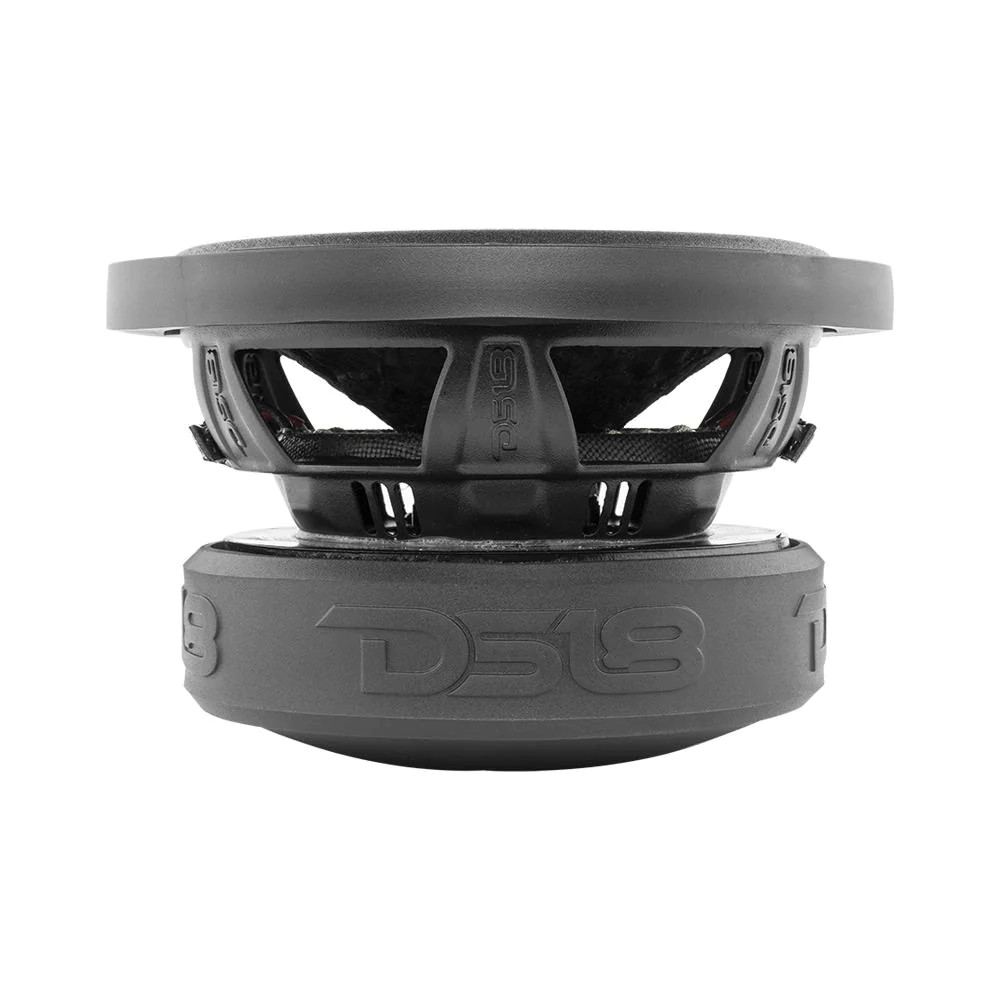

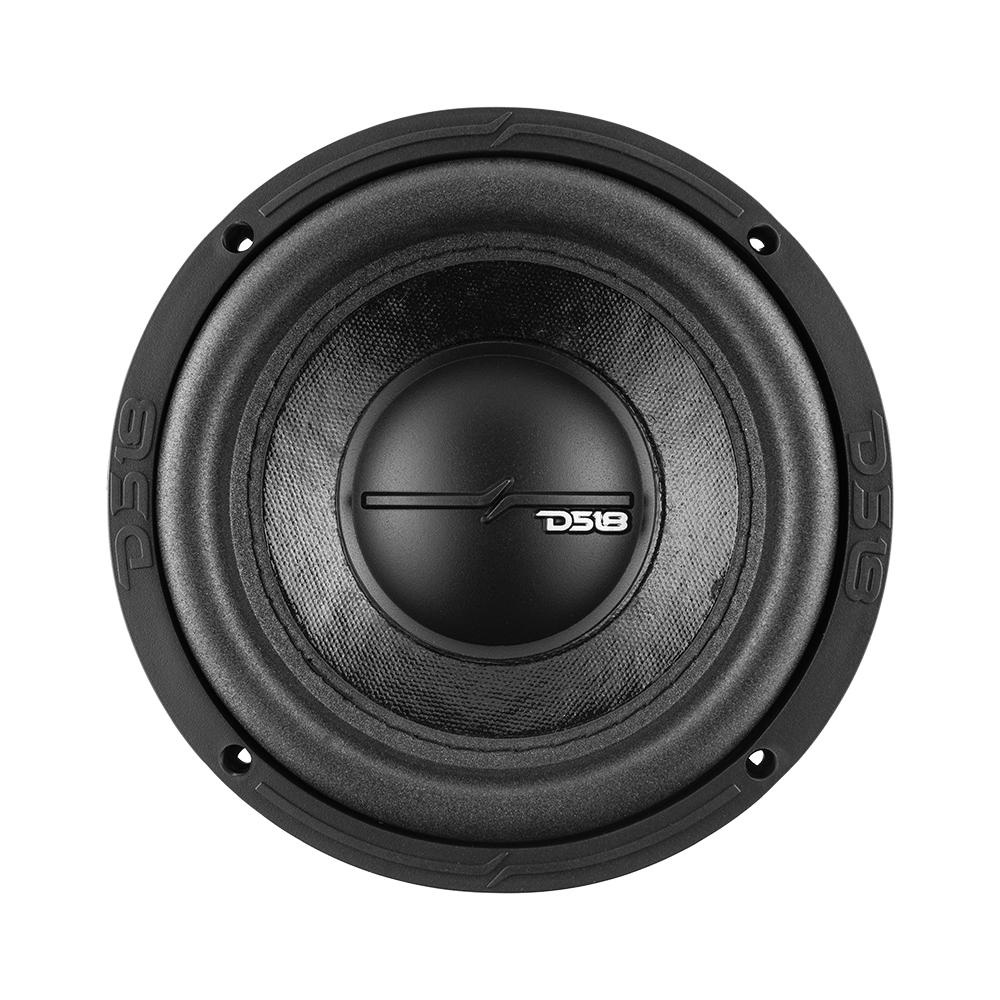

DS18 ZR 6" Subwoofer with 1000 Watts Dvc 4-Ohm

SPECS

SKU
ZR6.4D
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
4 + 4 Ohm
RMS Power Handling
300W
Maximum Power Handling
600W
Sensitivity (1w/1m)
82 dB
Frequency Response
38-200Hz
Recommended Lo Pass Crossover
160Hz

MOTOR

Voice Coil Diameter
1.5" / 38.8mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Ferrite
Magnet Weight
50 Oz
Displacement Volume
0.02 ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
2.79 L
Free Air Resonance Fs
70 Hz
Mechanical Factor Qms
3.611
Electrical Factor Qes
0.86
Total Factor Qts
0.695
Moving Mass Mms
44.6g
Compliance Cms
96.01? m/N
Bl Factor BI
6.53
Voice Coil Inductance Le
461.9m mH
Diaphragm Area Sd
143 Cm2
DC Resistance Re
3.4 + 3.4 Ohm
Efficiency Bandwidth Product EBP
81.4

MEASUREMENTS

Overall Diameter
6.75" / 171.6mm
Overall Depth
4.23" / 107.4mm
Front Mount Baffle Cutout
5.54" / 140.8mm
Mounting Depth
3.49" / 88.8mm
Motor Diameter
5.23" / 133mm
Gross Single Unit Weight (lb)
7.5
Dimensions W x L x H (Inches)
7.5 x 7.5 x 5.25
Quantity of Units in Master Carton
4
Gross Master Carton Weight (lb)
30.5
M/C Dimensions W x L x H (Inches)
16.75 x 8.25 x 11.25
