DS18 ZR Class D 1-Channel Amplifier 1500 Watts Rms

SPECS

SKU
ZR1500.1D
Total Watts (Peak)
4500W
RMS Power @ 4 Ohm
550W
RMS Power @ 2 Ohm
950W
RMS Power @ 1 Ohm
1500W

AUDIO

Frequency Response
10-220Hz
Signal to Noise Ratio
>95dB
Efficiency @ 4 Ohm
85%
Damping Factor
220
Input Impedance
20K ohm
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.2-6V
High Level Input
No
Selectable X-Over
LPF Fixed
X-Over Filter Range
40-180Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
30-80Hz
Infrasonic Filter
10-50Hz
Phase Selector
No

FEATURES

Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Clipping/protect/power

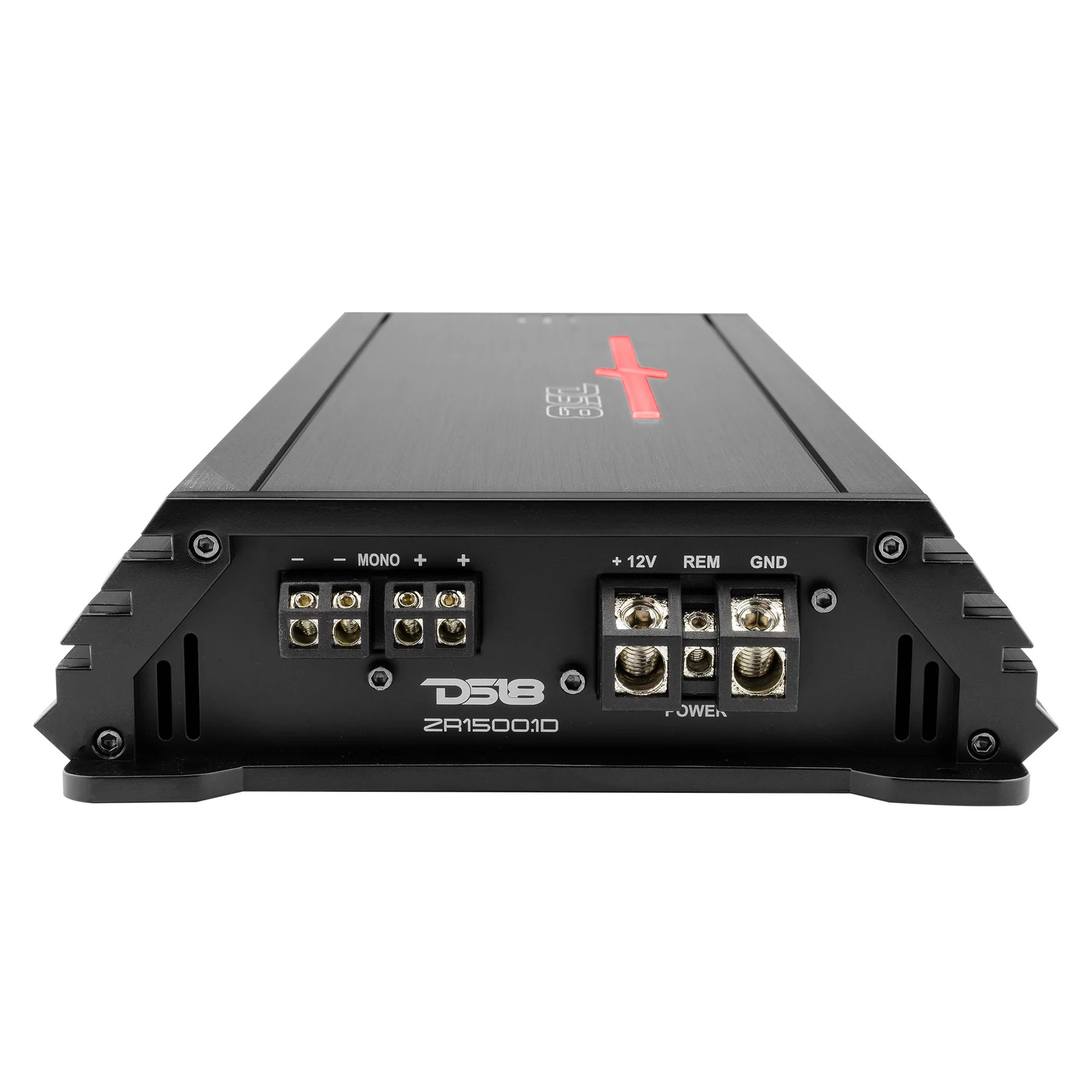

Power Input Terminal Size
4 GA
Fuse Size
160 A

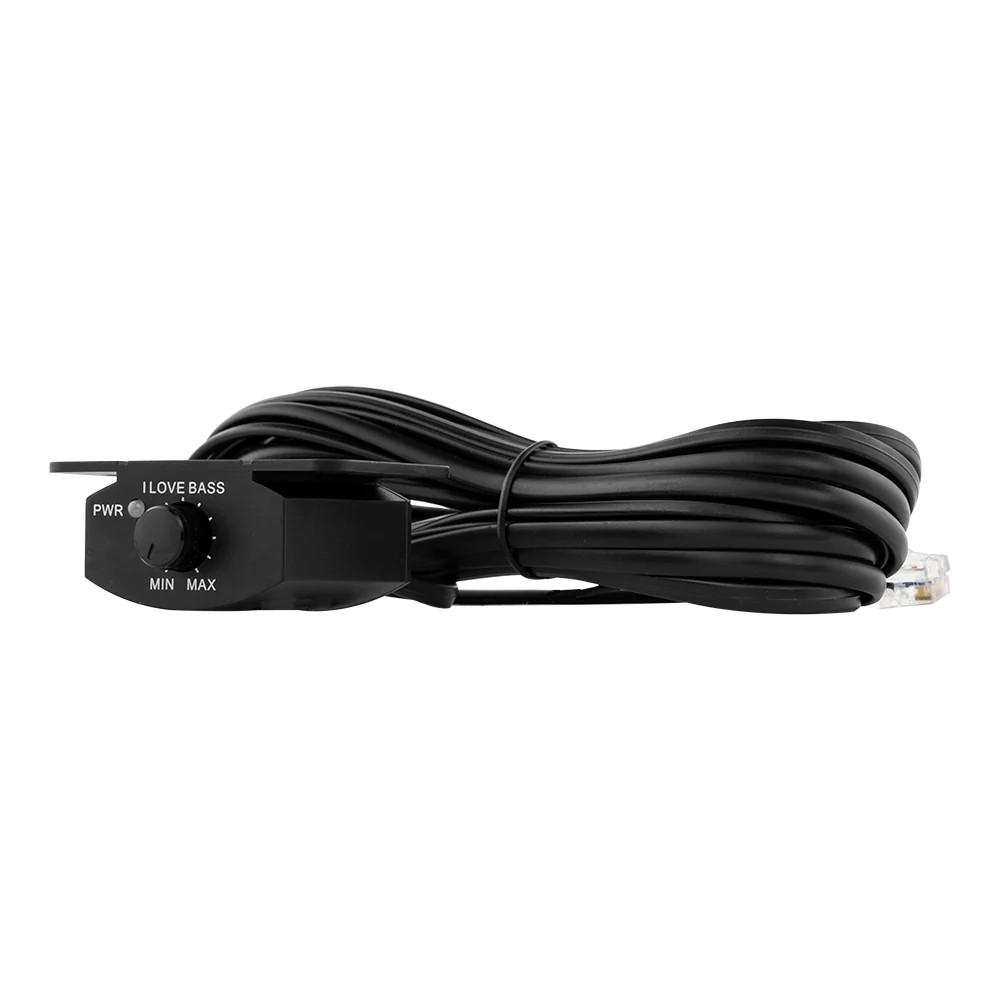

Remote Level Control
Yes / Dash Mount
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes <9 / >16 Volts
Clipping Protection
Yes
Body Color / Finish
Black Aluminum Brush

MEASUREMENT

Overall Length
14.8" / 376mm
Overall Wide
7.24" / 184mm
Overall Height
2" / 53mm
Heatsink Length
13.4" / 341mm
Gross Single Unit Weight
7Lb
