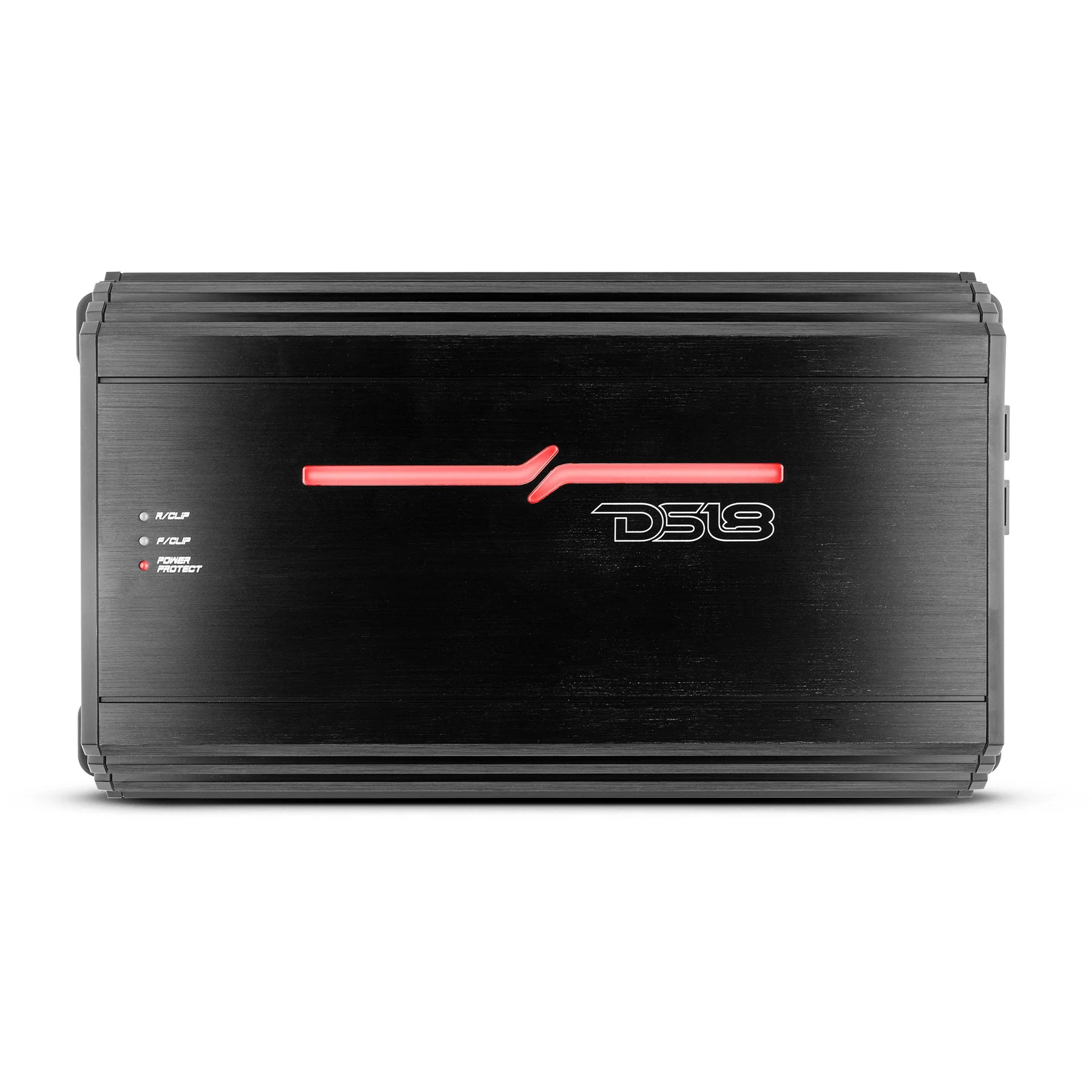

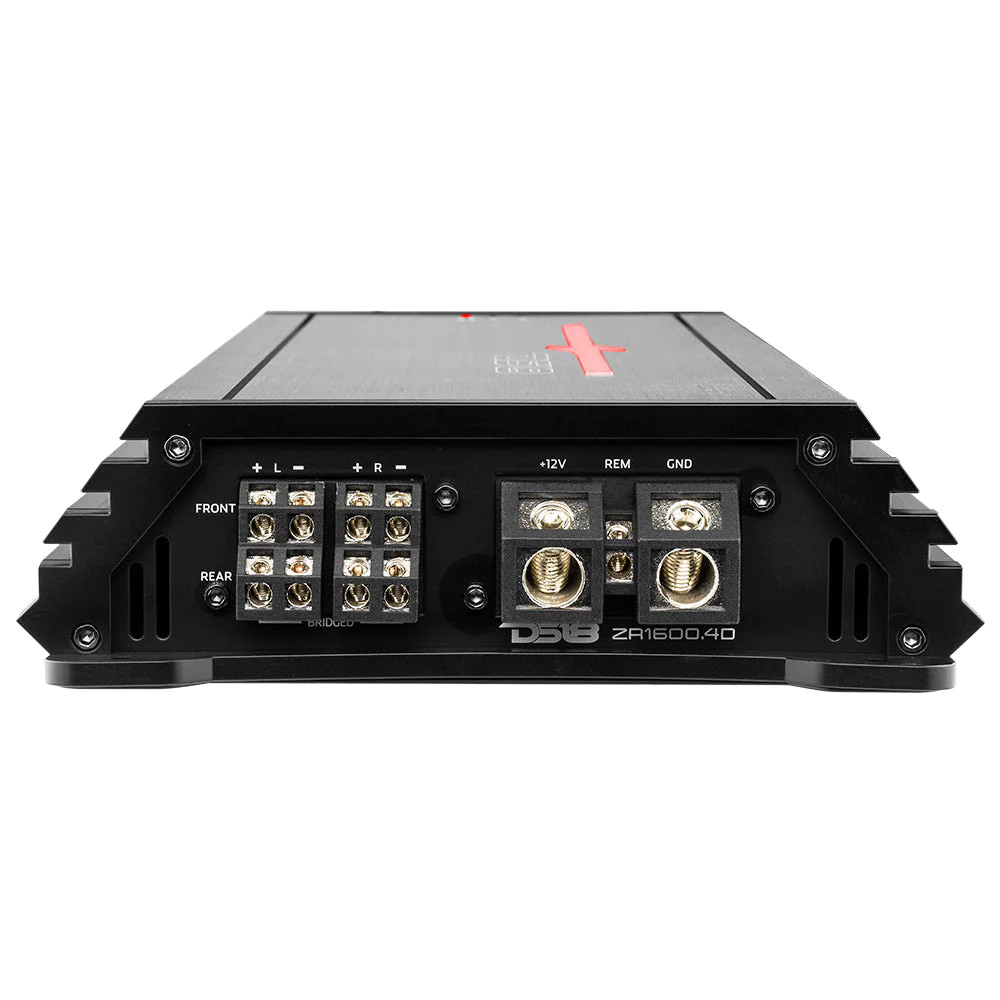

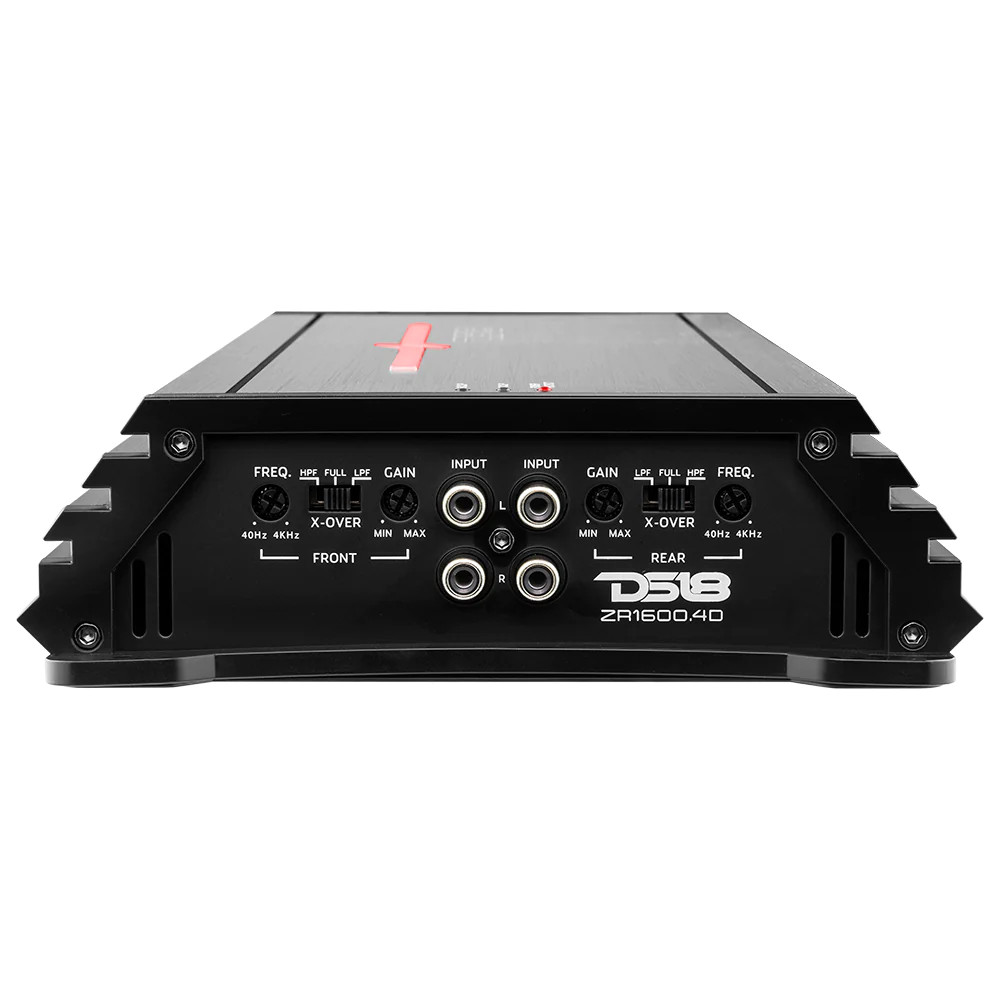

DS18 ZR CLASS D 4CH FULL RANGE 400W RMS X 4CH AMPLIFIER

SPECS

SKU
ZR1600.4D
Total Watts (Peak)
7200W
RMS Power @ 4 Ohm
4 x 400W
RMS Power @ 2 Ohm
4 x 680W
RMS Power @ 4 Ohm Bridge
2 x 1200W

AUDIO

Frequency Response
20Hz-20KHz
Signal to Noise Ratio
>90dB
Efficiency @ 4 Ohm
82%
Damping Factor
160
Input Impedance
20K ohms
Channel Separation
60dB
Total Harmonic Distortion (THD)
1.00%
Low Level Input Range
0.2-6V
Selectable X-Over
FULL/LPF/HPF
High Level Input
No
X-Over Filter Range
40Hz-4KHz

FEATURES

Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 Ohm (Stereo) / 4 Ohm (Bridge)
Led Indicator
Clipping/protect/power
Power Input Terminal Size
0 GA
Fuse Size
280 A
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Voltage Input Protection
Yes <9 / >16 Volts
Clipping Protection
Yes
Body Color / Finish
Black Aluminum Brush

MEASUREMENT

Overall Length
12.83" / 326mm
Overall Wide
7.24" / 184mm
Overall Height
2" / 53mm
Heatsink Length
11.45" / 291mm
Gross Single Unit Weight
6.18 LB
