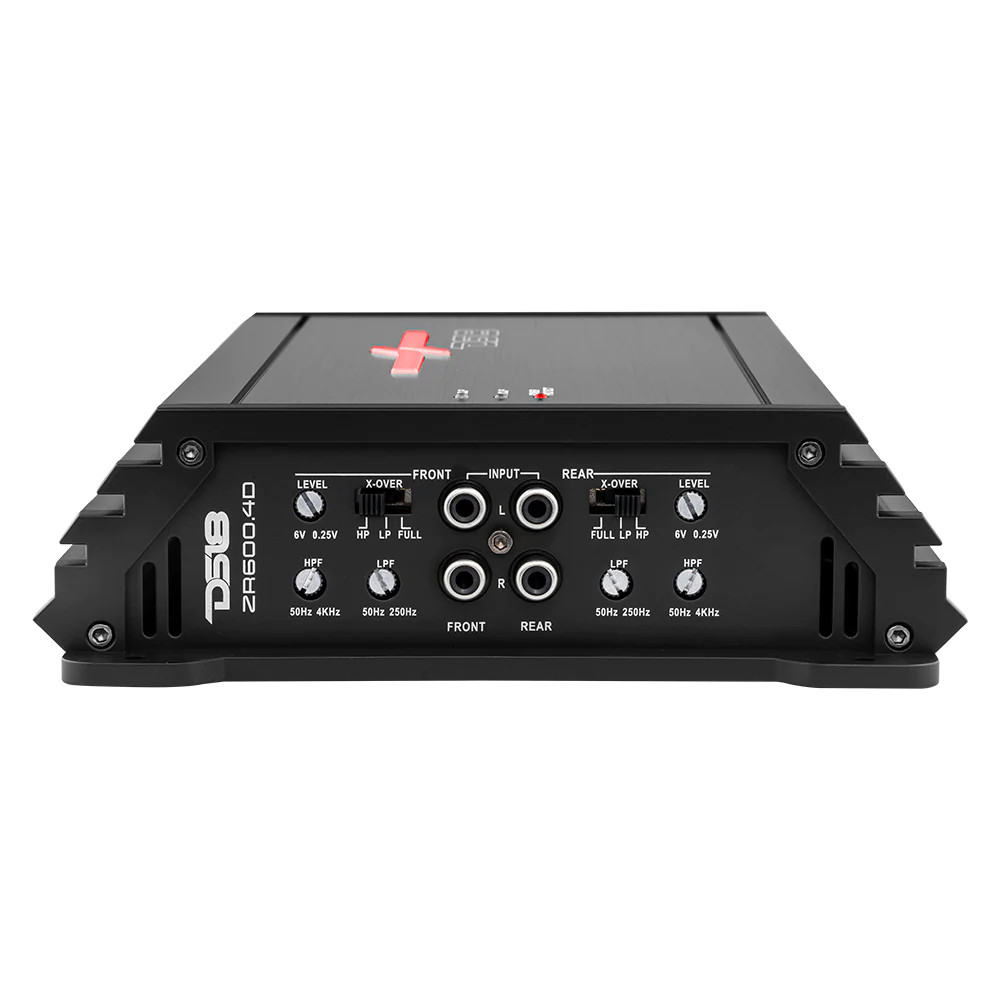

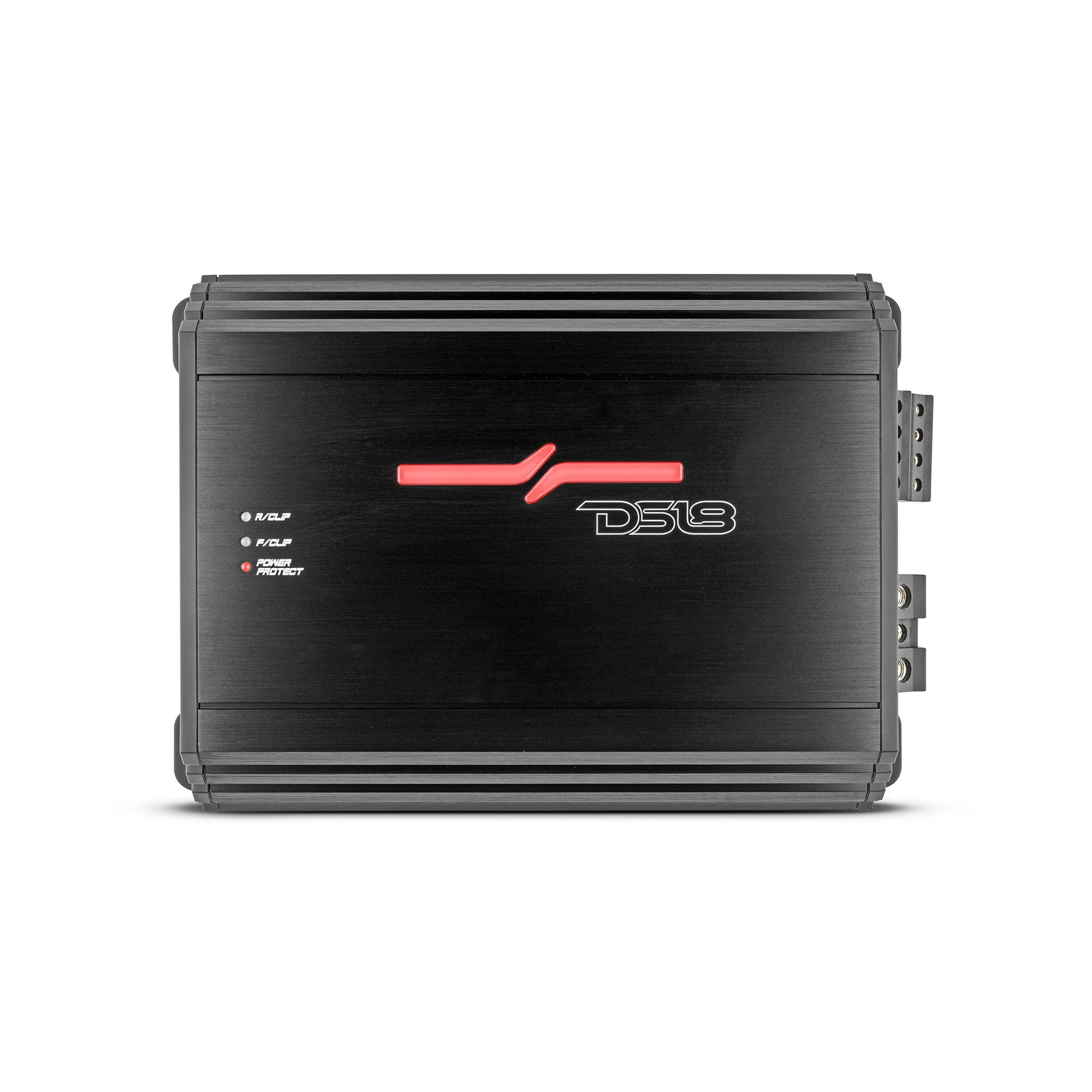

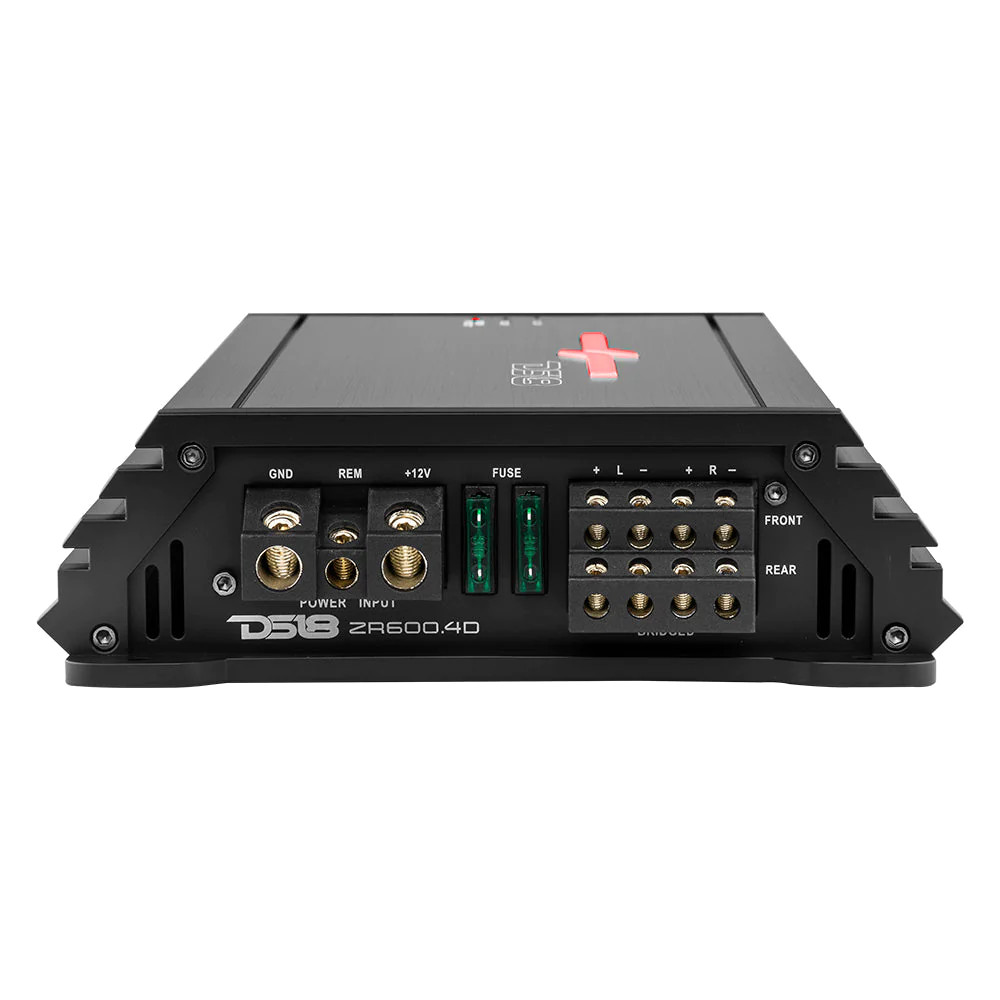

DS18 ZR CLASS D 4CH FULL RANGE AMPLIFIER 150W X 4 @ 4OHM

SPECS

SKU
ZR600.4D
Total Watts (Peak)
2400W
RMS Power @ 4 Ohm
4 x 150W
RMS Power @ 2 Ohm
4 x 240W
RMS Power @ 4 Ohm Bridge
2 x 400W

AUDIO

Frequency Response
20Hz-20KHz
Signal to Noise Ratio
>90dB
Efficiency @ 4 Ohm
90%
Damping Factor
160
Input Impedance
20K ohm
Channel Separation
60dB
Total Harmonic Distortion (THD)
1.00%
Low Level Input Range
0.2-6V
Selectable X-Over
FULL/LPF/HPF
X-Over Filter Range
40Hz-4KHz

FEATURES

Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 Ohm (Stereo) / 4 Ohm (Bridge)
Led Indicator
Clipping/protect/power
Power Input Terminal Size
4GA
Fuse Size
2 x 30A
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes <9 / >16 Volts
Clipping Protection
Yes
Body Color / Finish
Black Aluminum Brush

MEASUREMENT

Overall Length
10" / 254mm
Overall Wide
7.24" / 184mm
Overall Height
2" / 53mm
Heatsink Length
8.54" / 217mm
Gross Single Unit Weight
4.11Lb
