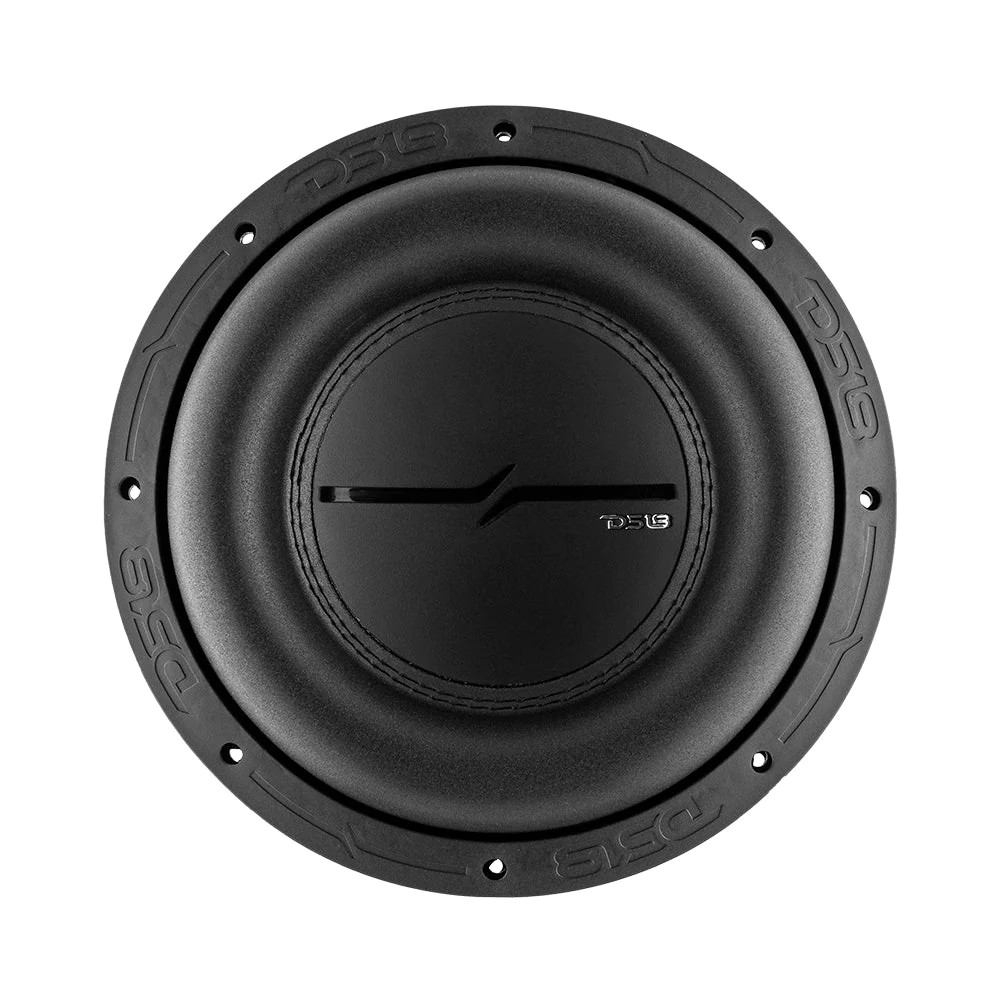

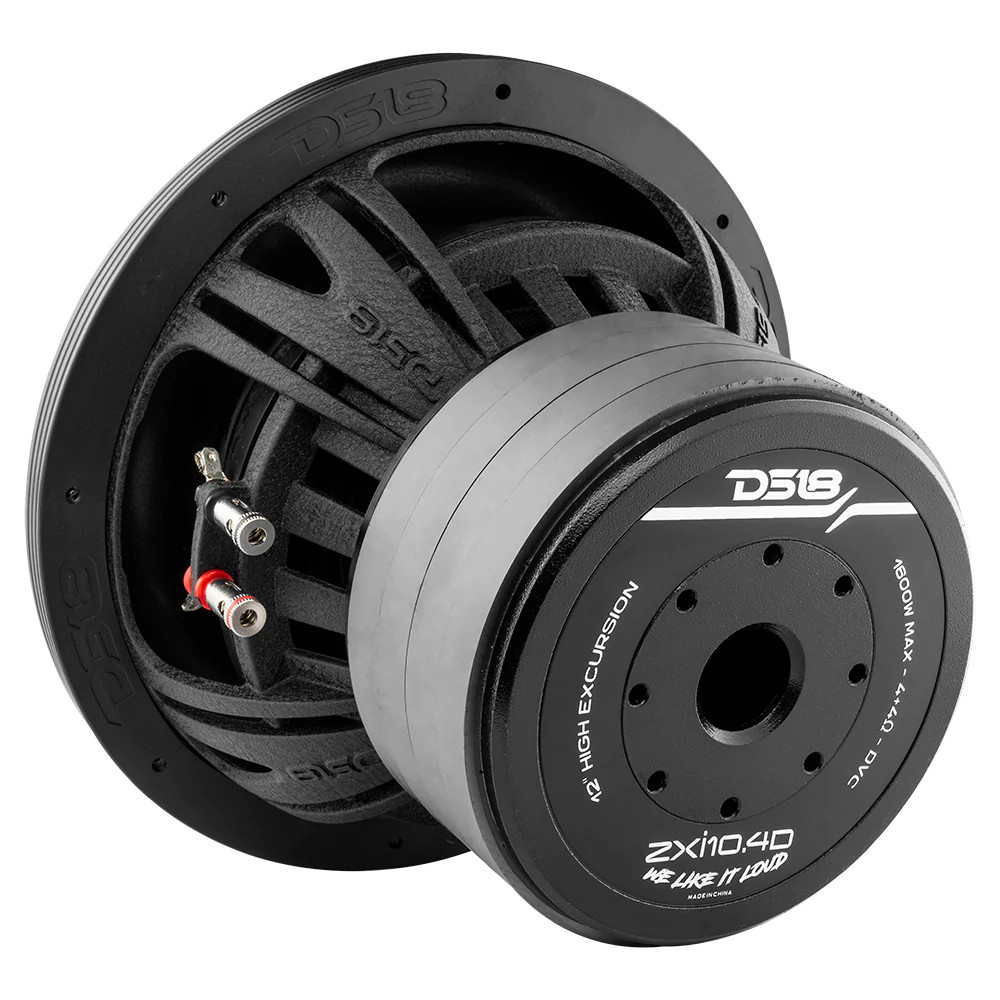

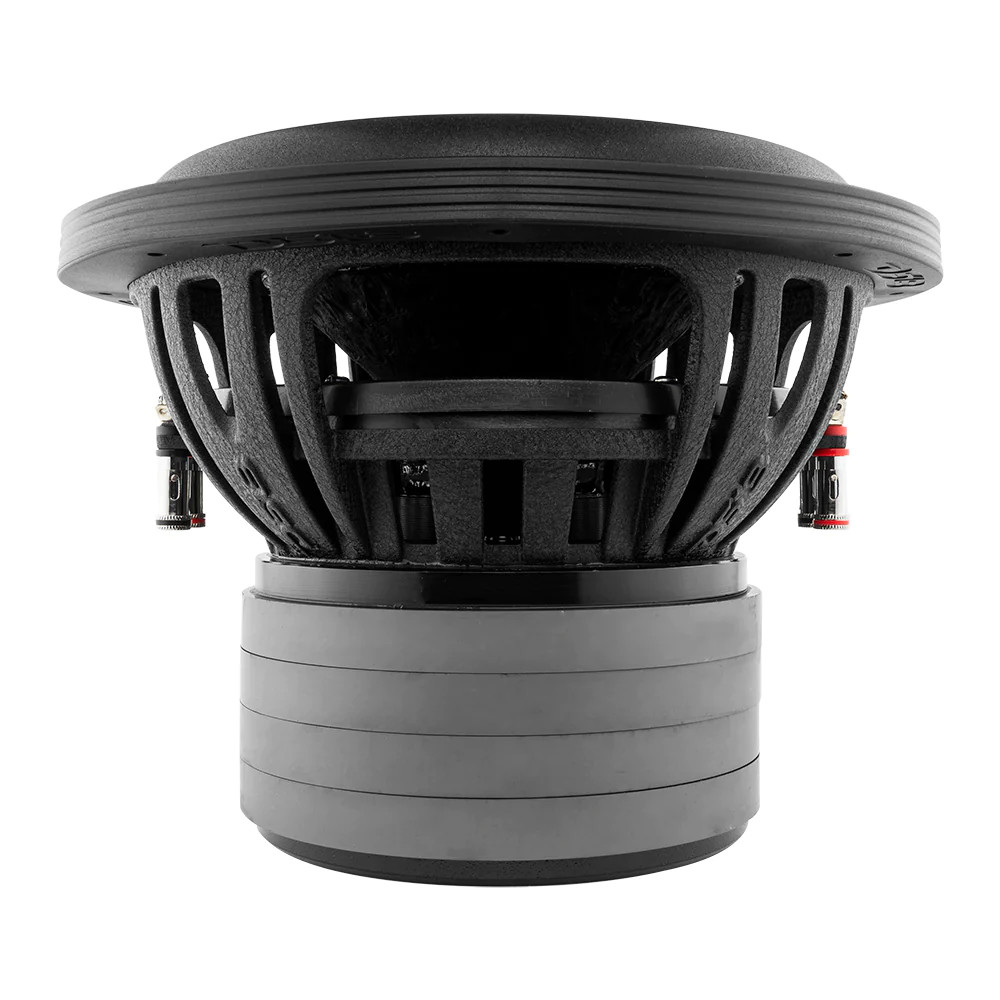

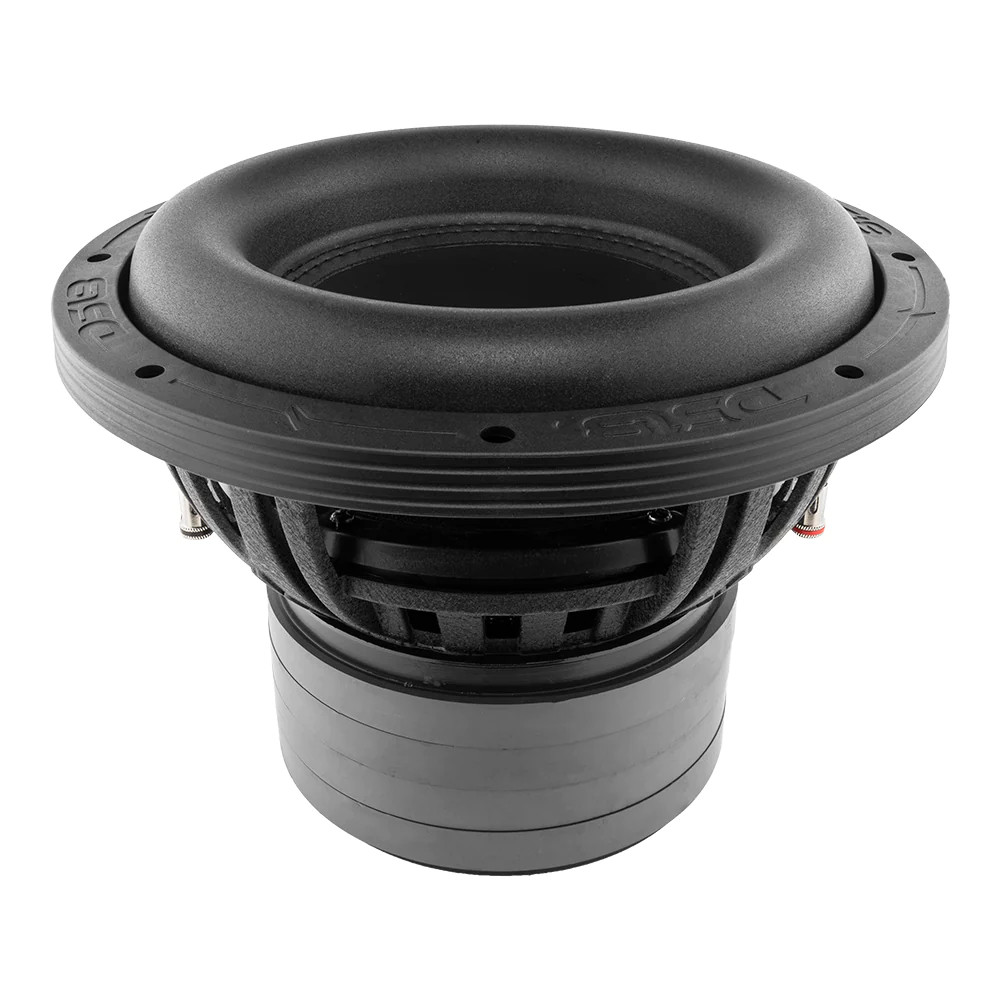

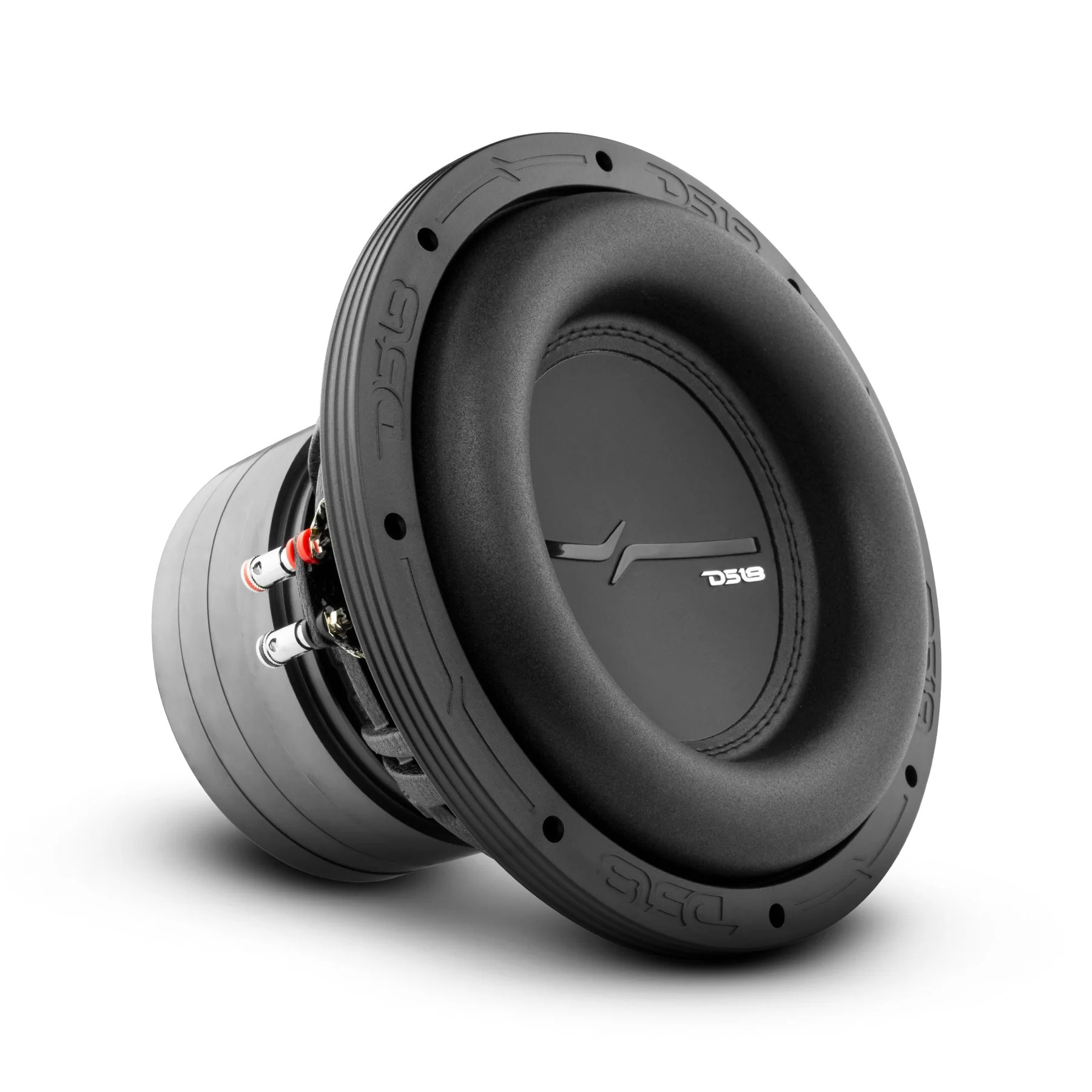

DS18 ZXI High Excursion 10" Subwoofer 1600W Watts Dvc 4-Ohm 4 Magnets

SPECS

SKU
ZXI10.4D
Nominal Diameter
10" / 254mm
Nominal Impedance
4 + 4 ohms
RMS Power Handling
800W
Maximum Power Handling
1600W
Sensitivity (1w/1m)
86dB
Frequency Response
20-900Hz
Recommended Lo Pass Crossover
90Hz

MOTOR

Voice Coil Diameter
2.5" / 63.5mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Black Sandblasted
Magnet Material
Ferrite
Magnet Weight
196 Oz (4 x 49 oz)
Displacement Volume
2.23L / 0.078ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
16.84L / 0.594ft3
Free Air Resonance Fs
29Hz
Mechanical Factor Qms
5.169
Electrical Factor Qes
0.473
Total Factor Qts
0.432
Moving Mass Mms
237.173g
Compliance Cms
0.109mm/N
Bl Factor Bl
27.387
Voice Coil Inductance Le
63.69 mH
Diaphragm Area Sd
330.06cm2
DC Resistance Re
3.4+3.4 ohm
Efficiency Bandwidth Product EBP
61.3

RECOMMENDED ENCLOSURES

Sealed Internal Volume
14.2L / 0.5ft3
Sealed Box Output Response F3
41.5Hz
Ported Internal Volume
35.4L / 1.25ft3
Port Size *Square (W x H x Long)
1.16" x 10.31 x 24.49" / 29.5 x 262 x 622.1mm
Port Tuning Frequency FB
30Hz
Ported Box Output Response F3
24Hz

MEASUREMENTS

Overall Diameter
10.96" / 278.5mm
Overall Depth
8.34" / 212mm
Front Mount Baffle Cutout
9.36" / 237.7mm
Mounting Depth
6.91" / 175.5mm
Motor Diameter
6.69" / 170mm
Gross Single Unit Weight
26.5
Dimensions W x L x H
12 x 12 x 9.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight
55
Master Carton Dimensions W x L x H
12.5 x 12.5 x 20.25
