Description
ECHOMASTER TERRAINVIEW UNDERBODY UNIVERSAL 4-CAMERA KIT WITH DVR
Get an amazing view of the terrain around your Jeep. Rock Crawler, or Overlander, and capture it on DVR with TerrainView from Echomaster! Add 4 cameras to any vehicle with a single video input. View 1, 2, 3 or all 4 cameras at once on your existing display.
INCREASED VISIBILITY

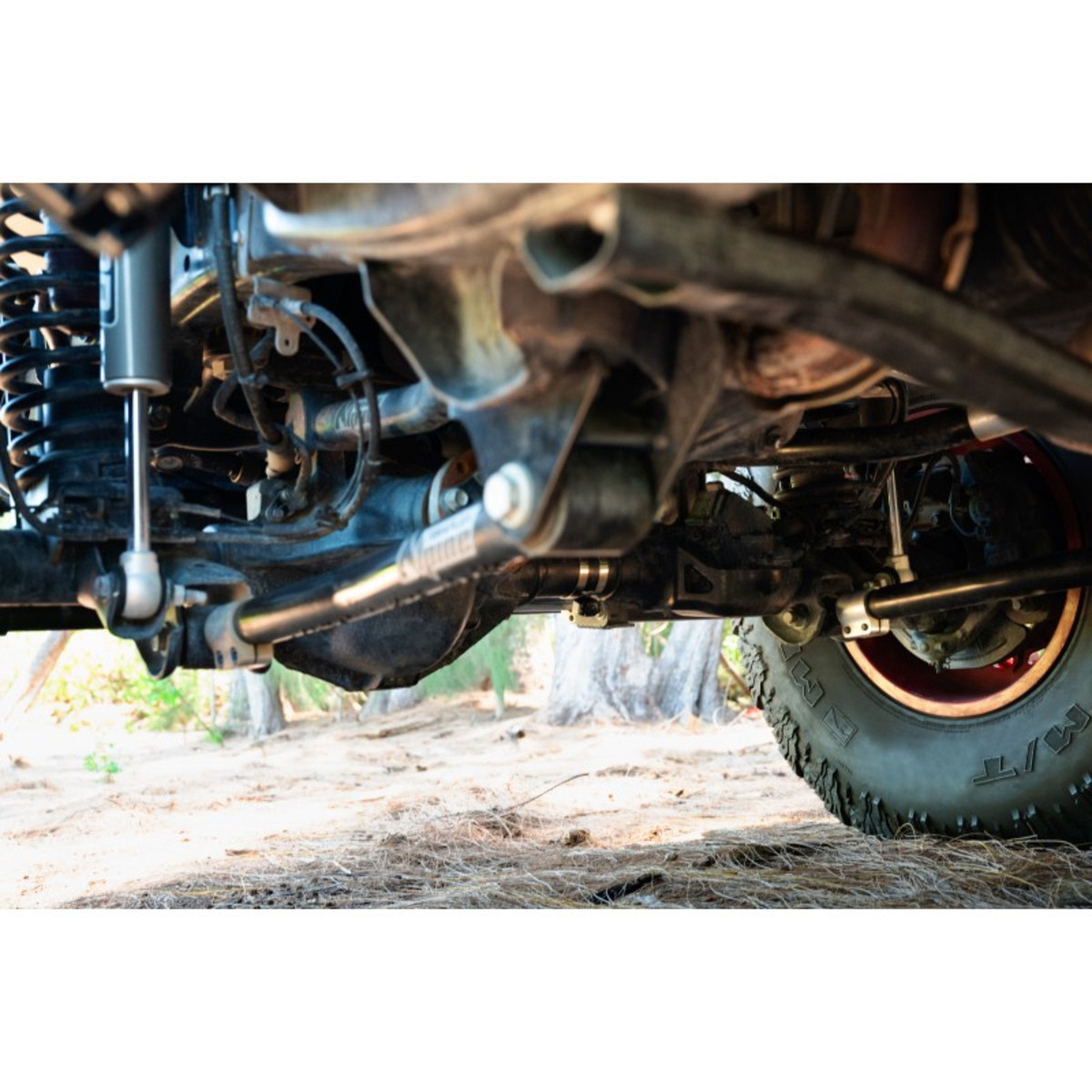

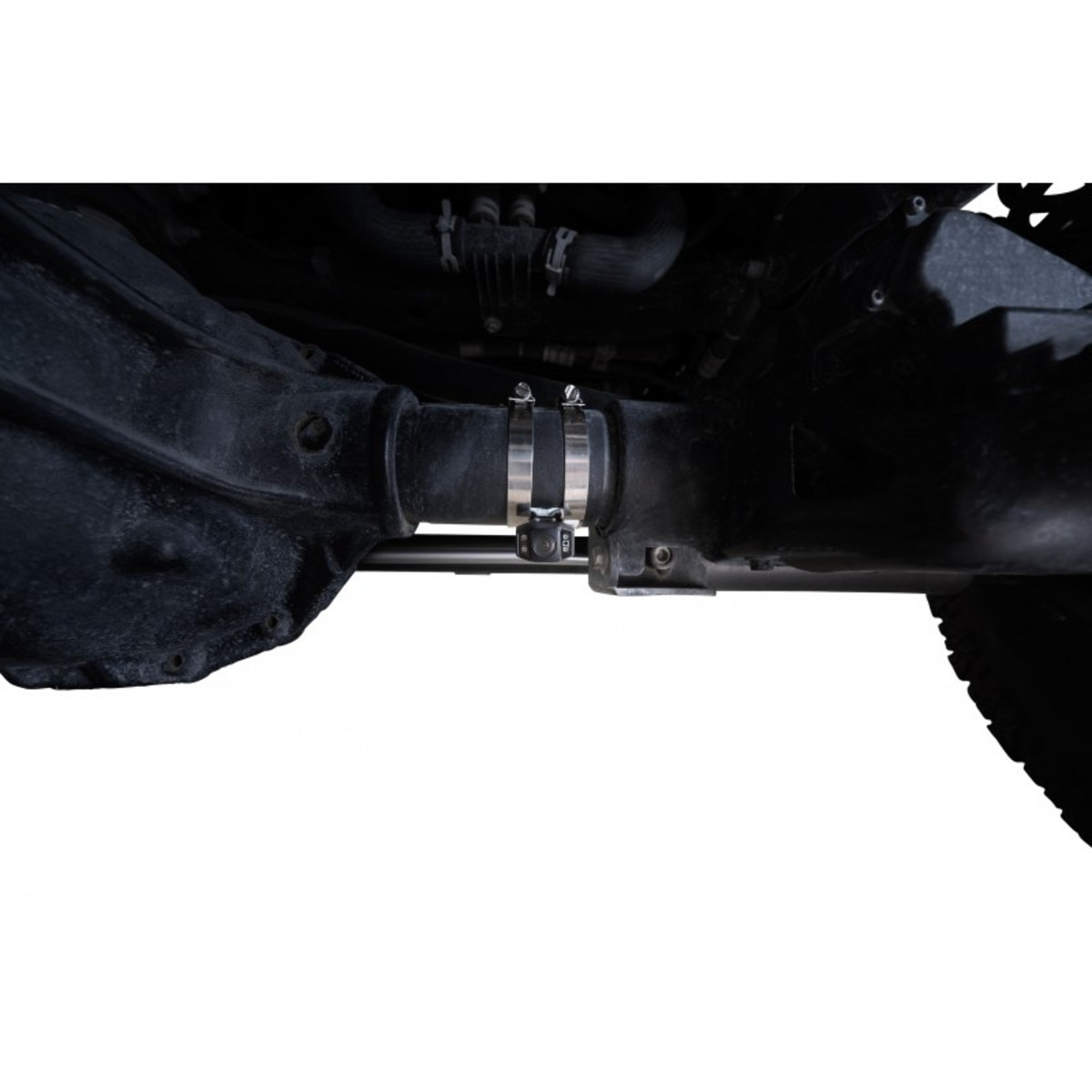

Get an unobstructed view of what’s around and under your vehicle from 4 different angles

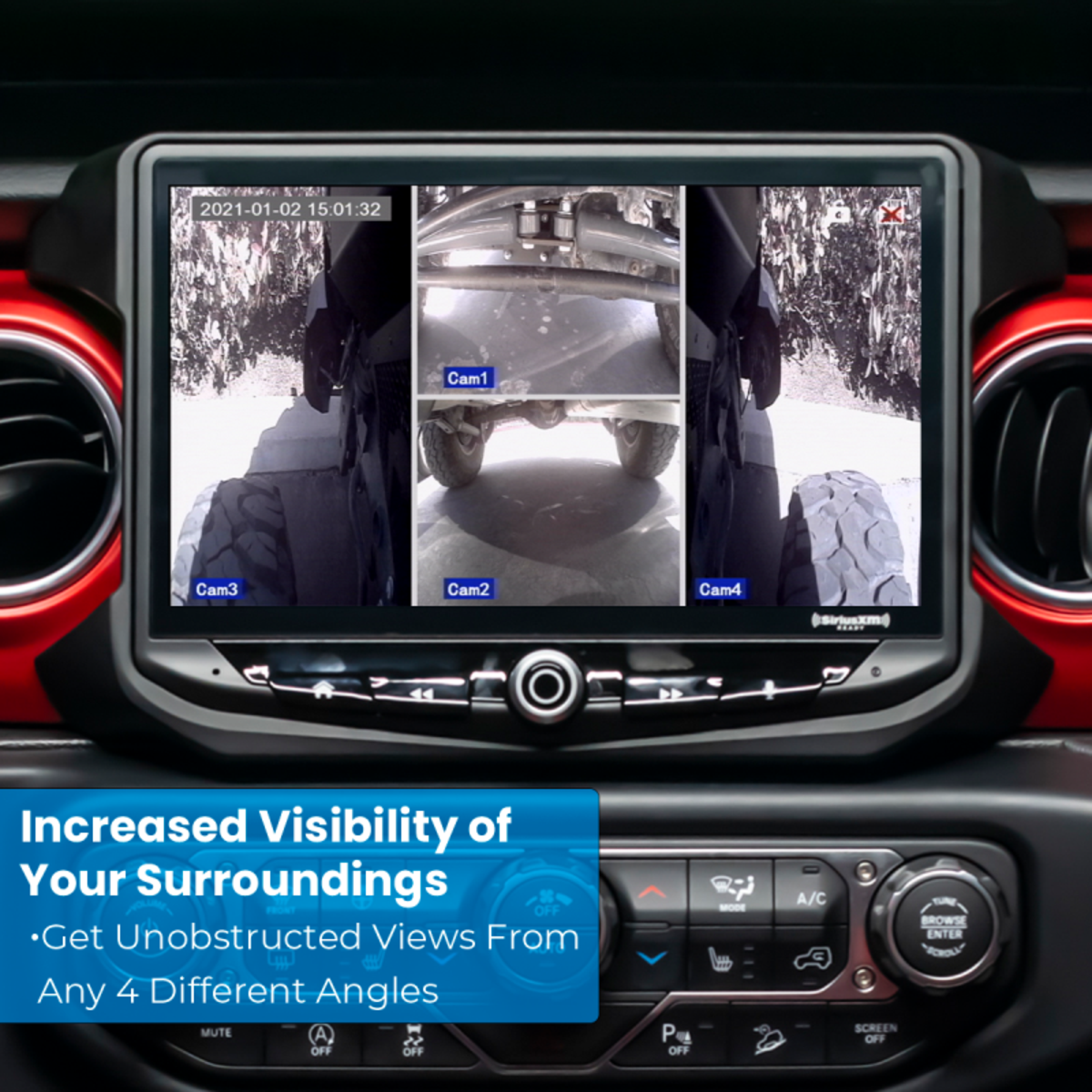

15 VIEWING OPTIONS
Access any specific camera. Or see a split-screen view of multiple cameras simultaneously
EASY TO CONNECT
5-pin plugs replace more complicated wiring, simplifying installation
BUILT-IN DVR
Automatically capture your adventures from all 4 cameras on a micro sd card (not included)
DURABLE
Trail-ready IP67-rated camera is ready to withstand the harsh elements.
3-YEAR CAMERA WARRANTY
Provides peace of mind
ADDITIONAL FEATURES:
Wired remote control button Toggle through all 15 available view combinations by clicking the button
Wireless remote control Wireless IR remote provides access to a specific camera or cameras
Direct camera access 12-volt trigger wires are provided for each of the 4 cameras. Wire these to your existing switches, or add any switches, and directly access any camera at any time
Turn-signal activation Connect the direct access trigger wires to your turn signals to activate a side-view camera when using your turn signal
TECHNICAL SPECS

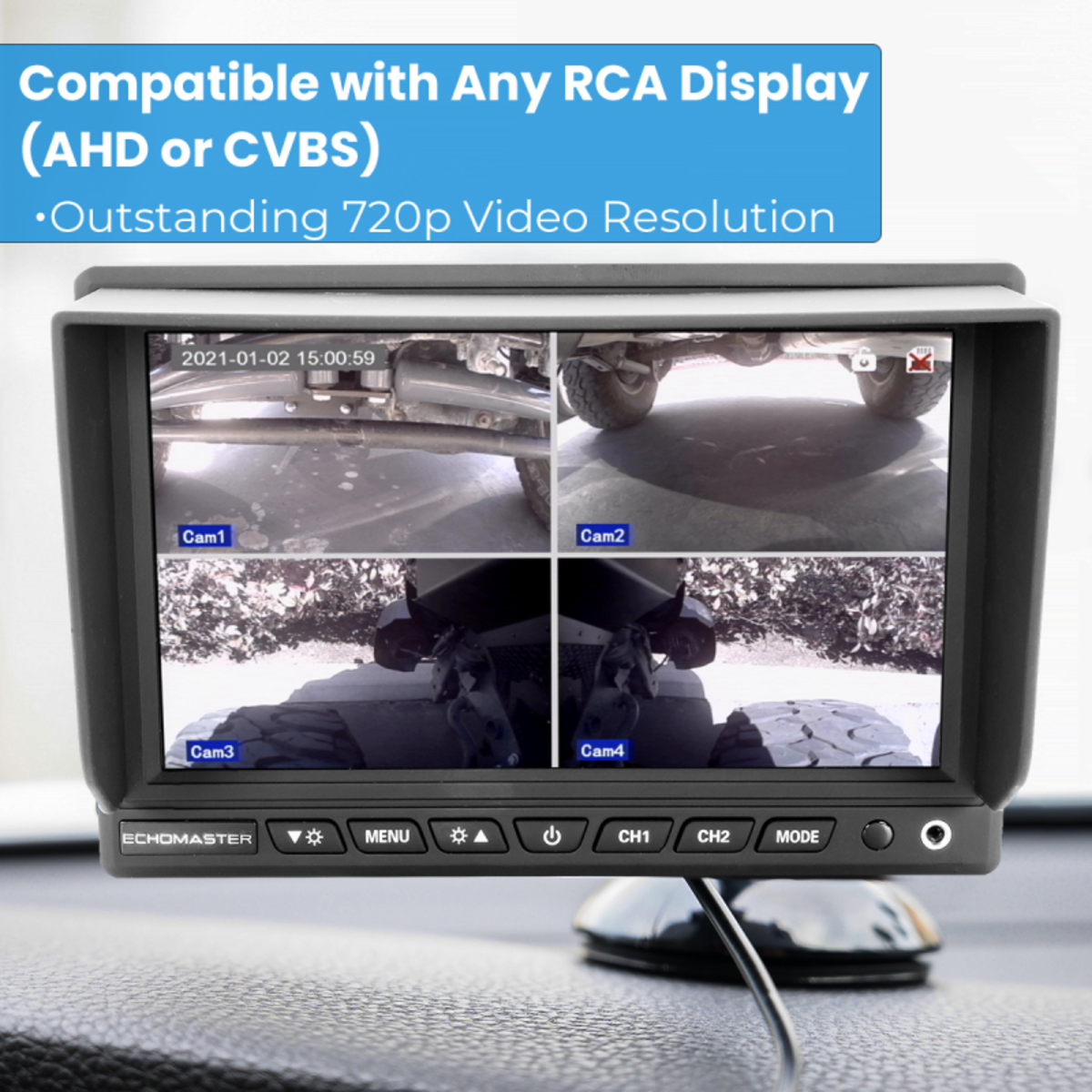

• Video output options:
• CVBS output at 648 x 488
• AHD output at 1280 x 720
• Camera viewing angle 170 degrees
• Sensor type 1/4” CMOS
• All cameras equipped with infrared LEDs for low light situations
• Water/debris resistance rating IP67
• Mirror option (selectable using DIP switch)
• v1.0 Supports up to 128GB Micro SD Card (not included)
• v2.0 128GB USB thumb drive
• 3-Year warranty on cameras, 1-year on video multiplexer

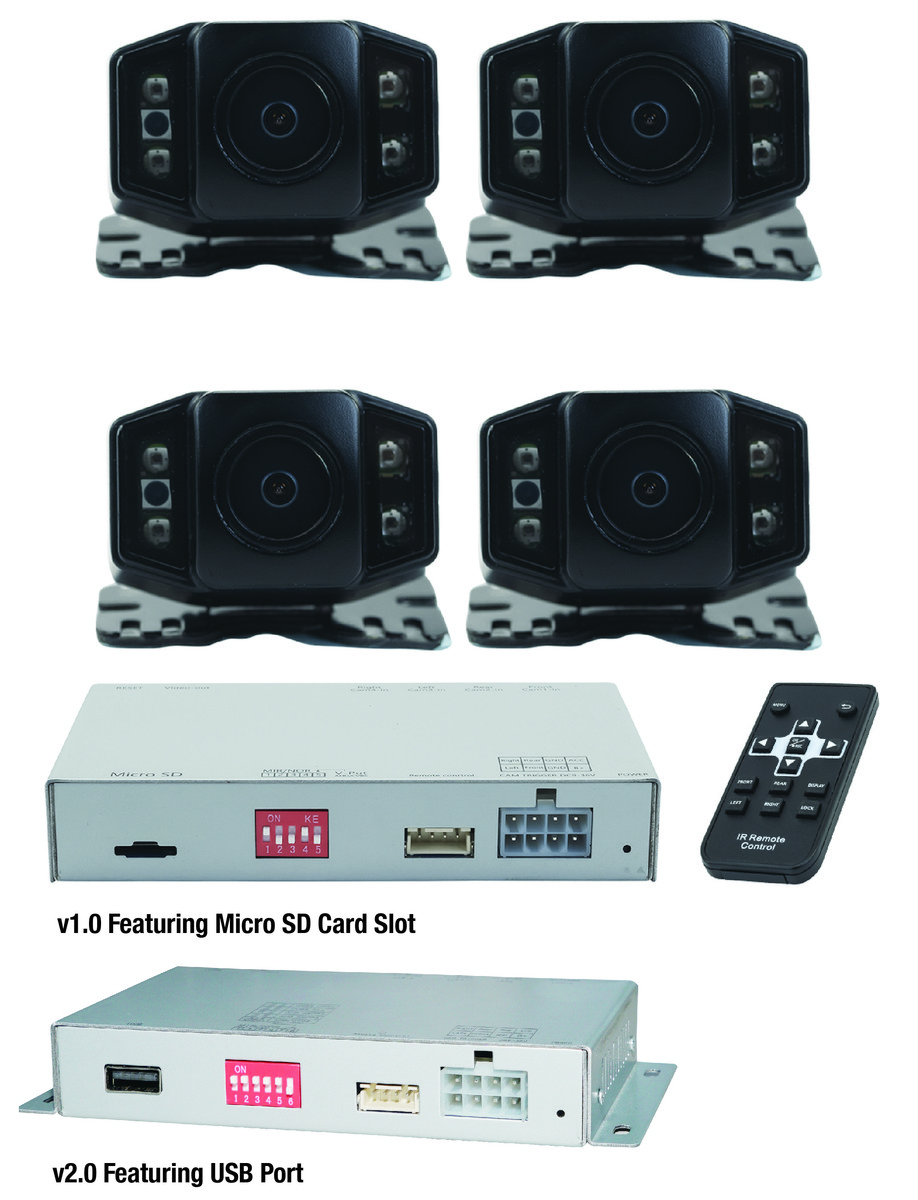

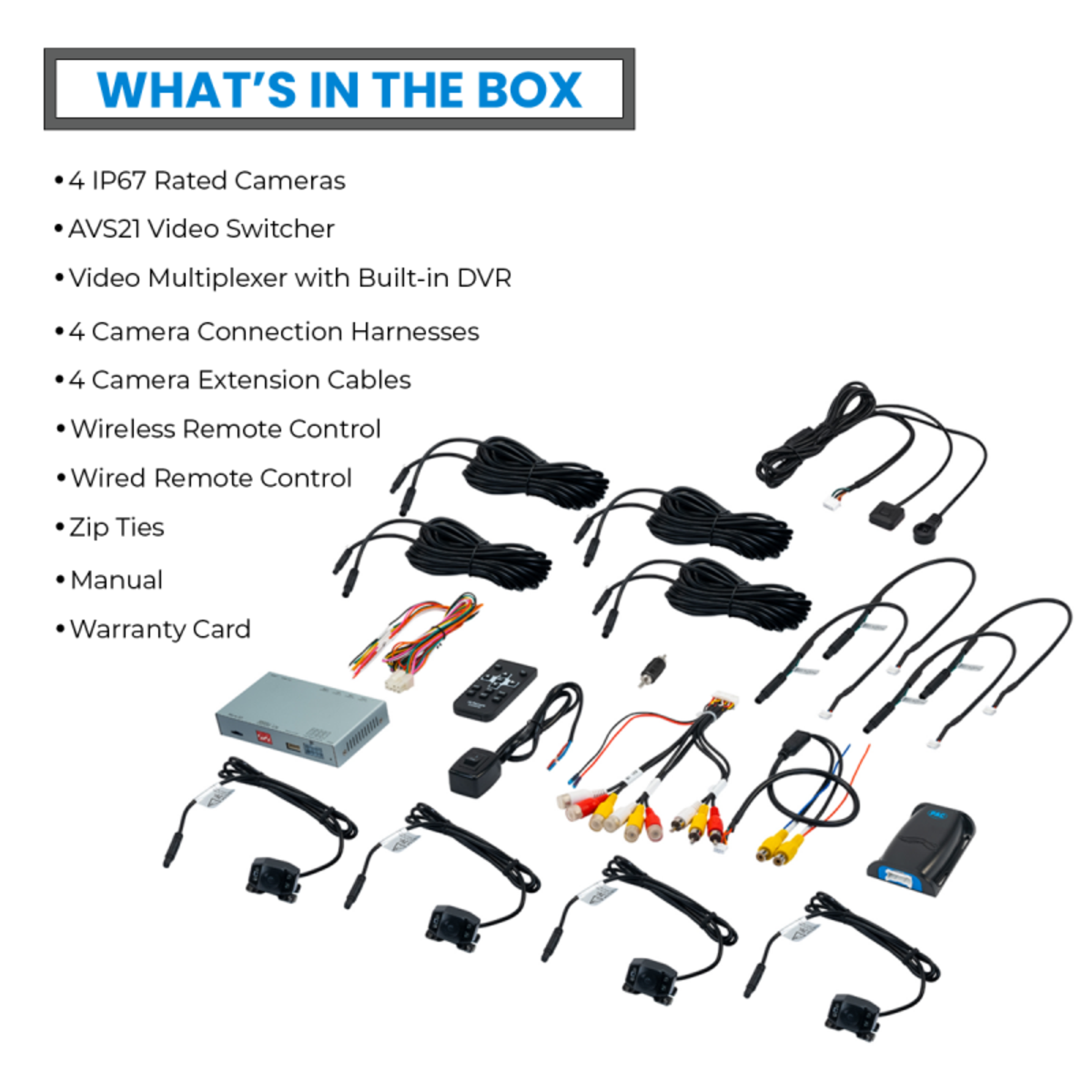

WHAT’S IN THE BOX* (v1.0 only)
• 4x IP67-Rated cameras
• 1 AVS21 video switcher

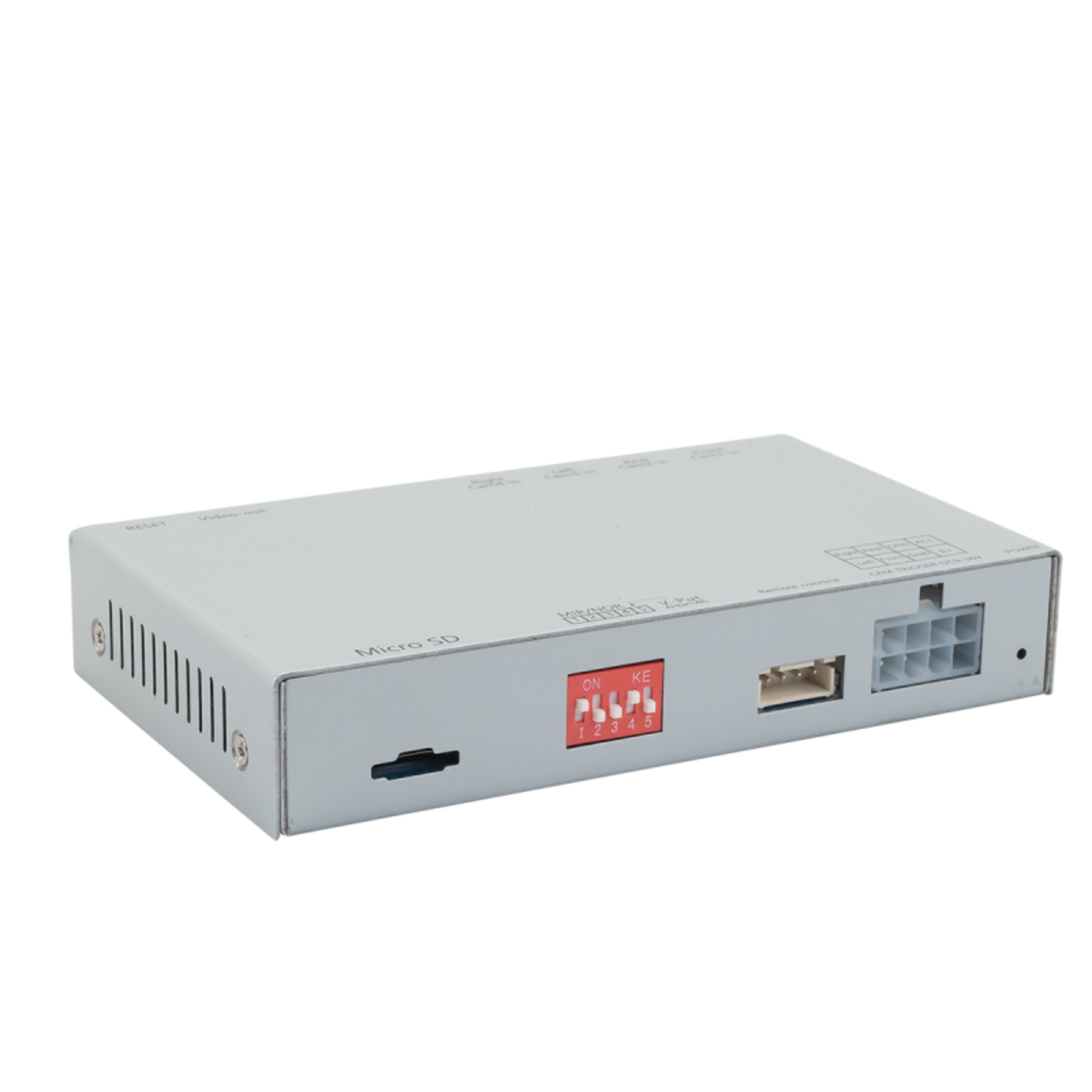

• 1 Video multiplexer with built-in DVR
• 4 Camera connection harnesses
• 4 Camera extension cables
• Wireless remote control
• Wired remote control
• Zip ties
• Manual
• Warranty card
* MICRO SD Card Not Included (Class 10 SD card required) version 1.0 only
WHAT’S IN THE BOX* (v2.0 only)
• 4x IP67-Rated cameras
• 1 AVS21 video switcher
• 1 Video multiplexer with built-in DVR
• 4 Camera connection harnesses
• 4 Camera extension cables
• Wireless remote control
• Wired remote control
• USB extention
• RCA cable
• Zip ties
• Manual
• Warranty card
* 128GB USB thumb drive not available for v2.0
