Description
JEEP WRANGLER JK HORIZON12® MULTIMEDIA INFOTAINMENT DISPLAY WITH INTEGRATION & INSTALLATION KIT
Stinger introduces the latest innovation in the HORIZON lineup: the HORIZON12® Multimedia Infotainment Display System. This 12.8-inch Full HD 1920 x 1080 capacitive touchscreen, with a 16:9 aspect ratio, delivers stunning visuals.
The HORIZON12® is packed with features, including wireless or wired Apple CarPlay® and Android Auto™, hands-free Bluetooth®, built-in HD Radio®, and SiriusXM readiness. It also offers advanced accessory management with on-screen integration for AudioControl’s DM Series processors and amplifiers and seamless operation of Stinger ENLIGHT10 lighting products. Customize your experience with selectable icons, titles, switch types, or upload your own for a personalized interface.

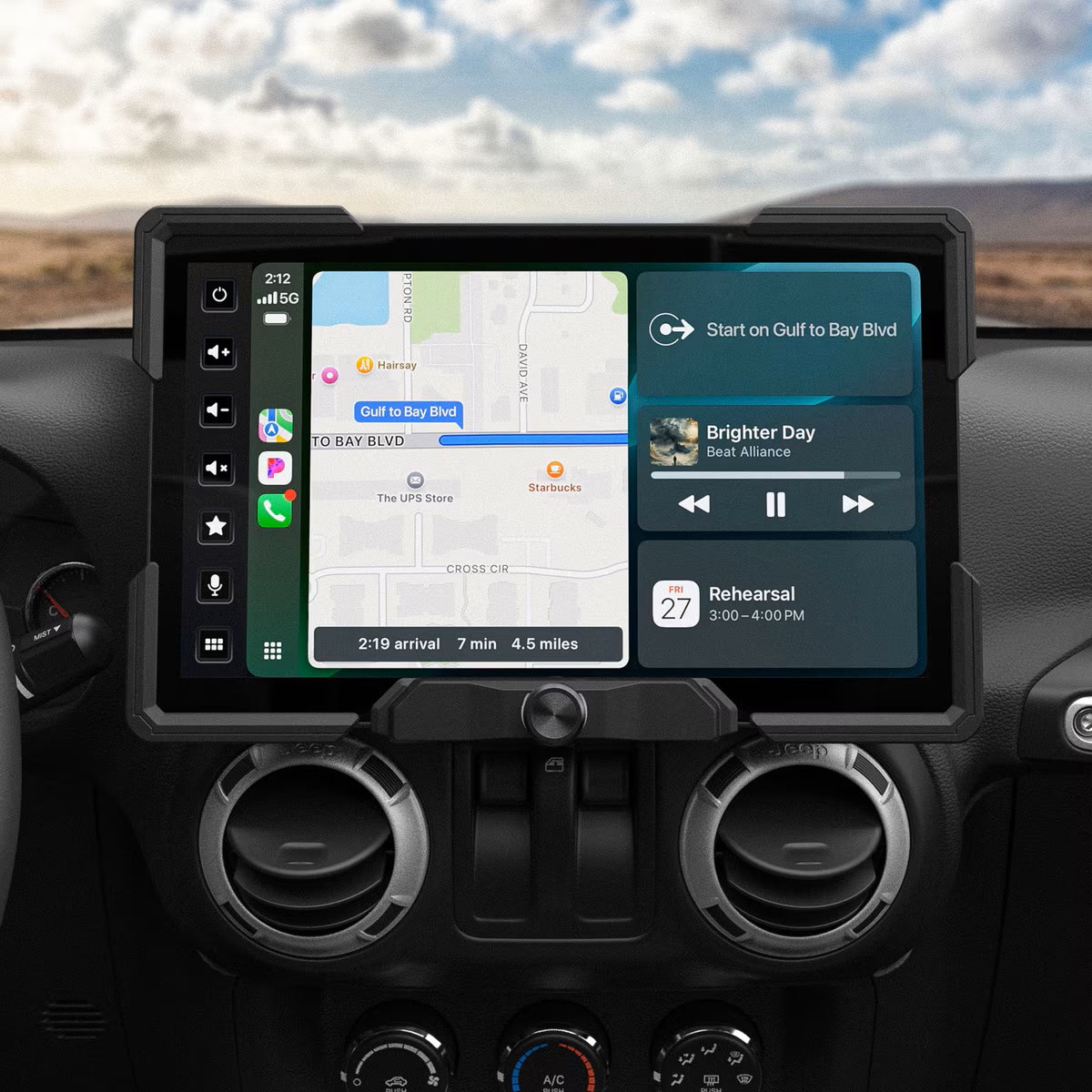

For Jeep JK owners, the HORIZON12 integrates with PAC's RadioPRO Advanced interface (SRX-JK11128), allowing you to replace your Jeep Wrangler's factory radio while retaining factory features and unlocking elevated capabilities for an exceptional driving experience. For the first time, this kit is sold as a complete package, combining the HORIZON12 multimedia head unit and the installation dash kit for an all-in-one solution to upgrade your driving experience.
HORIZON12 INTEGRATION & INSTALLATION KIT
Installation Dash Kit Features
- Enables on-screen gauges to monitor vehicle vitals such as battery voltage and coolant temp
- Enables off-road screen featuring pitch and roll
- Complete feature retention: warning chimes, steering wheel mounted radio controls, factory amplifier (if equipped)
- Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake signals
- USB and HDMI flush mount connection ports
- Complete plug-and-play system: no vehicle modifications needed!
- Flush-mounted plastics for a seamless OEM experience
Kit includes everything needed for installation
- Factory-matched radio mounting panels for HORIZON12
- CH1A-SRK RadioPRO for Jeep vehicles
- Complete plug-and-play installation harnesses
- Dash-mount USB and HDMI cable
- Adapters for satellite, AM/FM radio, and factory USB retention (if equipped)
VEHICLE-SPECIFIC APPLICATION THAT ALLOWS USER CUSTOMIZATIONS
Vehicle Gauges*
- Eight gauges on screen, save up to 2 presets
- Battery Voltage
- Coolant Temperature
- Fuel Level
Vehicle Off-Road Screen
- Pitch
- Roll
- GPS coordinates
- Compass
Vehicle Drivetrain Screen
- Enhanced with Jeep off-road data including:
- Axle and sway bar status
- Steering angle
- Current position (latitude/longitude)
- Altitude
Vehicle Information Screen

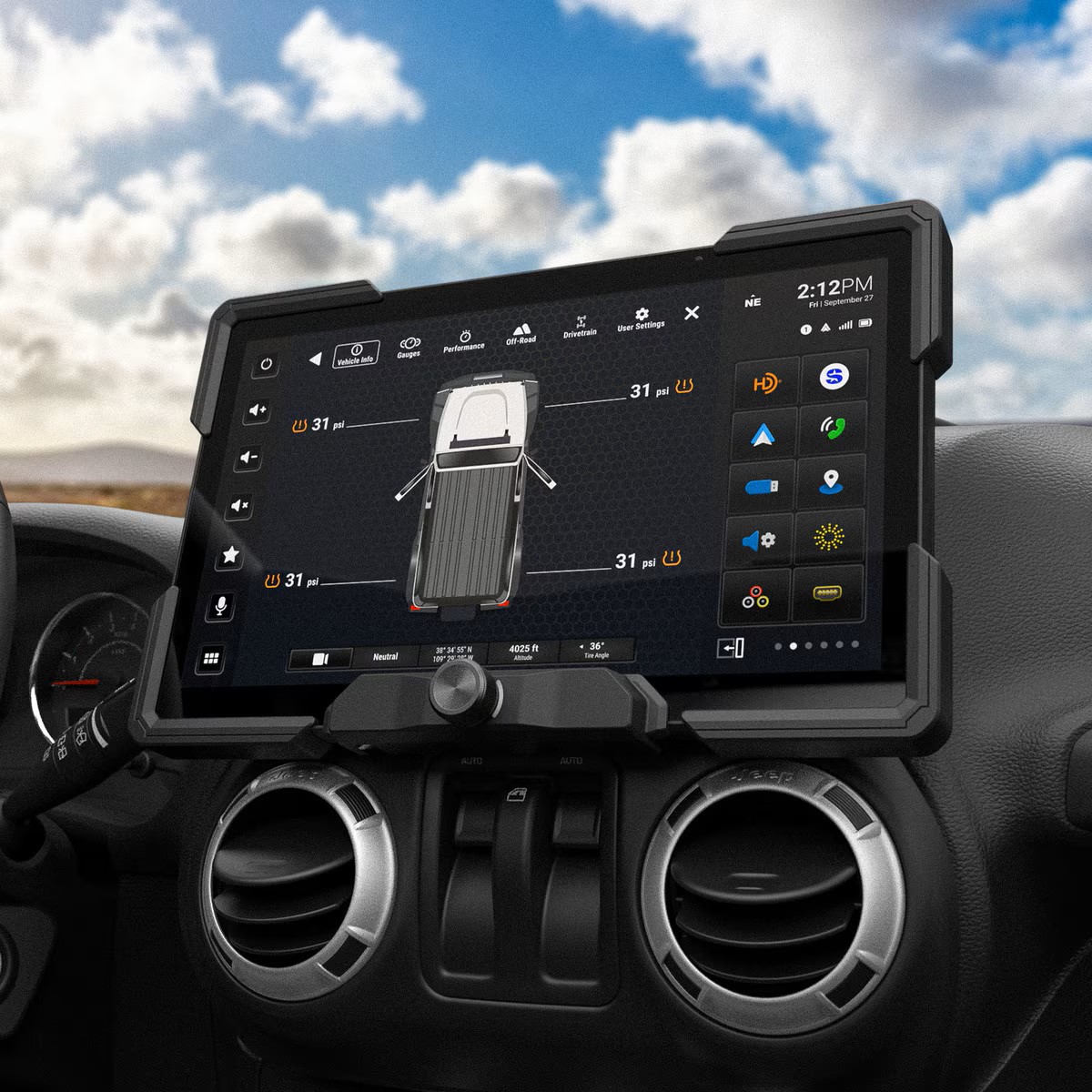

- Tire pressure
- Current vehicle status - door open/closed
- View and clear check engine status
- Additional features
- Turn-signal trigger override (touch display)
- Millisecond adjustment on time correction
- Graphical audio settings (X-over, factory EQ)
- Gain adjustment on crossover
- EQ-band level indicator (pop-up)
- Camera identification icons
- Apple CarPlay and Android Auto
- RGB tuning for color-matching illumination
*The following gauges are only available for vehicle years 2012+ when data is present:
Engine Oil Pressure, Engine Oil Temperature
*Transmission Temperature only available with automatic transmission
Transmission Temp shows N/A when in Park and Neutral
Due to continual development, features and specifications are subject to change.
HORIZON12 MULTIMEDIA INFOTAINMENT DISPLAY SYSTEM
Display Features
- 12.8-inch, high-resolution capacitive touchscreen display with 16.7M colors
- Anti-glare, anti-reflective, and anti-fingerprint film protection
- Optically bonded screen for moisture and dust resistance
- Customizable and personalizable background with moveable Home screen icons
- IP65-rated touchscreen*
Audio Features
- 4.5Vrms, 8ch RCA audio outputs with subwoofer control
- Toslink (optical) audio output; 48kHz variable for clean, noise-free signals
- 15-band adjustable graphic EQ with 6 user EQ presets
- Built-in crossover with high-pass and low-pass filters (HPF and LPF)
- Built-in equalizer for detailed sound customization
- On-screen control of AudioControl’s DM Smart app for advanced tuning
- HD Radio support for enhanced audio quality
- Digital fiber optic output for audiophile-grade sound
Connectivity Features
- Wireless and wired Apple CarPlay® and Google Android Auto™
- SiriusXM-Ready™ (tuner and subscription required)
- Hands-free Bluetooth® 5.1 for dual phone connections, calling, and music streaming
- 3 USB ports for charging and data input (2 USB-A, 1.5A output; 1 USB-C, 3A output)
- HDMI input for external audio/video playback from compatible devices
- Built-in microSD card slot for optional NextGen iGO navigation
Safety & Camera Features
- Display up to 4 safety cameras (sold separately) for enhanced visibility
- Selectable camera inputs for modes such as blind spot viewing, trailer towing, or standard rear view
- Rear camera audio input for RV camera microphone compatibility
Performance & Convenience Features
- Fast wake-up capability
- Customizable multi-zone user interface to combine preferred controls and widgets
- Packed with the latest technology for seamless media, safety, and audio integration
*Radio chassis is not IP-rated
*USB-C connection is required for wired CarPlay and Android Auto
ENHANCE YOUR EXPERIENCE WITH OUR COMPATIBLE PRODUCTS
Stinger ENLIGHT10 Lighting:
Illuminate your ride with dynamic LED lighting that enhances visibility and style. Control the ENLIGHT10 lighting directly on-screen for a seamless and personalized lighting experience.
AudioControl DM Series Processors & Amplifiers:
Take full advantage of on-screen control for AudioControl’s DM Series processors and amplifiers. Instantly tweak audio settings without needing a laptop or tablet, making customization effortless.
SwitchHub On-Board Accessory Control Interface:
Manage up to 4 accessories directly from your HORIZON12 screen. No need for additional switches—gain convenient control with a sleek, integrated interface.
Echomaster AHD Cameras:
Upgrade to Echomaster’s AHD cameras for superior resolution (720p standard HD) compared to traditional CVBS cameras (480p). Improve safety and visibility with advanced camera technology compatible with the HORIZON12.
