Description
JEEP WRANGLER JL/GLADIATOR JT HORIZON12® MULTIMEDIA INFOTAINMENT DISPLAY WITH INTEGRATION & INSTALLATION KIT
Stinger introduces the latest innovation in the HORIZON lineup: the HORIZON12® Multimedia Infotainment Display System. This 12.8-inch Full HD 1920 x 1080 capacitive touchscreen, with a 16:9 aspect ratio, delivers stunning visuals.
The HORIZON12® is packed with features, including wireless or wired Apple CarPlay® and Android Auto™, hands-free Bluetooth®, built-in HD Radio®, and SiriusXM readiness. It also offers advanced accessory management with on-screen integration for AudioControl’s DM Series processors and amplifiers and seamless operation of Stinger ENLIGHT10 lighting products. Customize your experience with selectable icons, titles, switch types, or upload your own for a personalized interface.

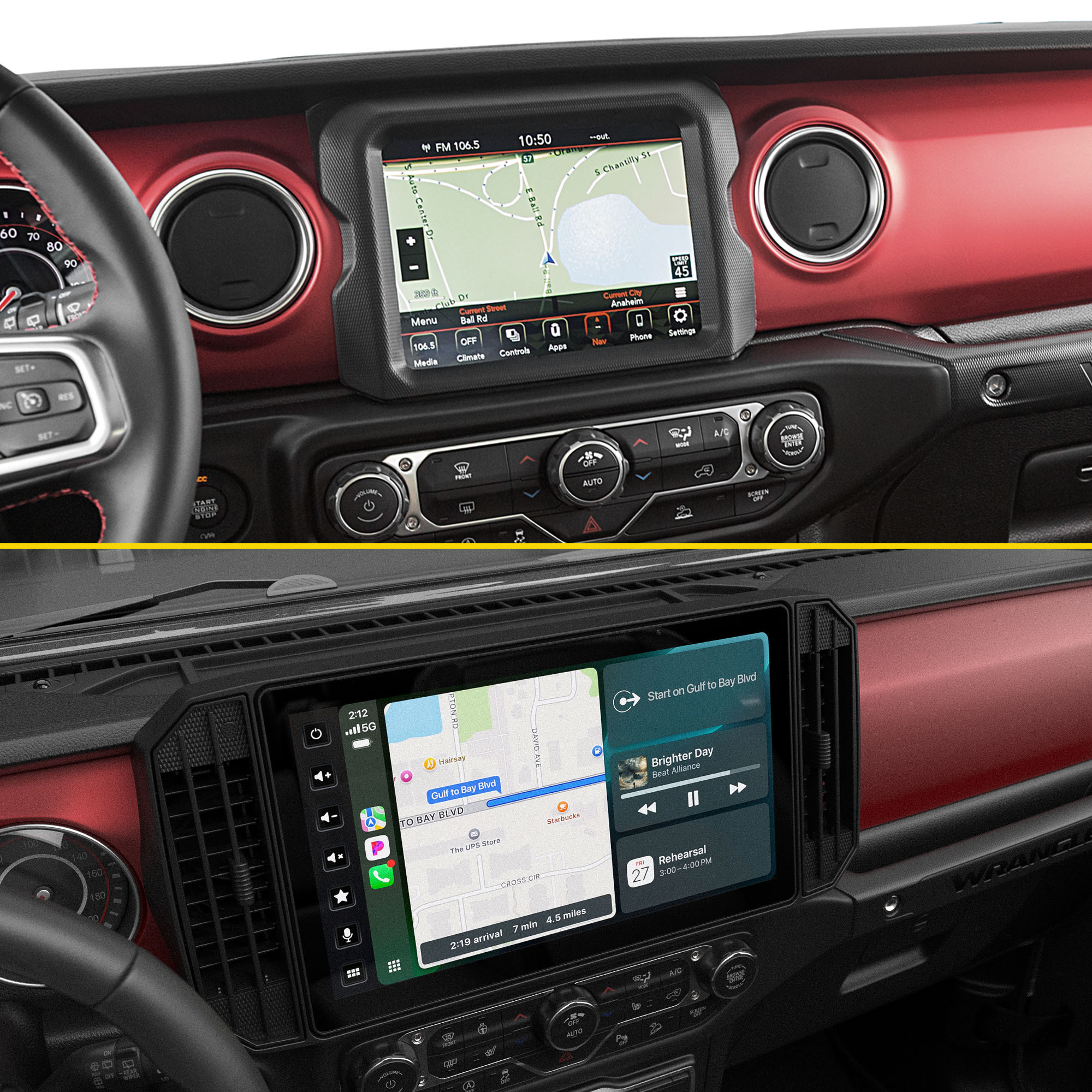

For Jeep JL/ JT owners, the HORIZON12 integrates with PAC's RadioPRO Advanced interface (SRX-JW18128), allowing you to replace your Jeep Wrangler or Gladiator's factory radio while retaining factory features and unlocking elevated capabilities for an exceptional driving experience. For the first time, this kit is sold as a complete package, combining the HORIZON12 multimedia head unit and the installation dash kit for an all-in-one solution to upgrade your driving experience.
HORIZON12 INTEGRATION & INSTALLATION KIT
Installation Dash Kit Features
- Dash kit and mounting hardware included for a beautiful factory look with the HORIZON12 Stinger multimedia head unit
- Enables interactive on-screen climate controls, vehicle settings, & customizable vehicle performance apps
- Provides more control over your installation with RadioPRO Advanced controlled camera triggers, steering wheel controls, and factory amplifier control
- Retains (if equipped)
- All factory cameras in full high-definition
- Dual-zone and Manual factory climate control
- Factory amplifier
- Factory USB ports
- Safety group chimes, including ParkSense®
- Steering wheel controls
- Auxiliary switch panel settings
- Heated seats / heated steering wheel
- On-screen vehicle settings menu
Kit includes everything needed for installation
- Factory-matched mounting dash kits for HORIZON12
- RadioPRO Advanced vehicle integration module
- PAC-Link adapter for Stinger multimedia units
- High-definition factory camera retention module
- Vehicle-specific plug-n-play wire harness
- Satellite antenna adapter
- AM/FM antenna adapter
- USB retention cables
- External chime speaker

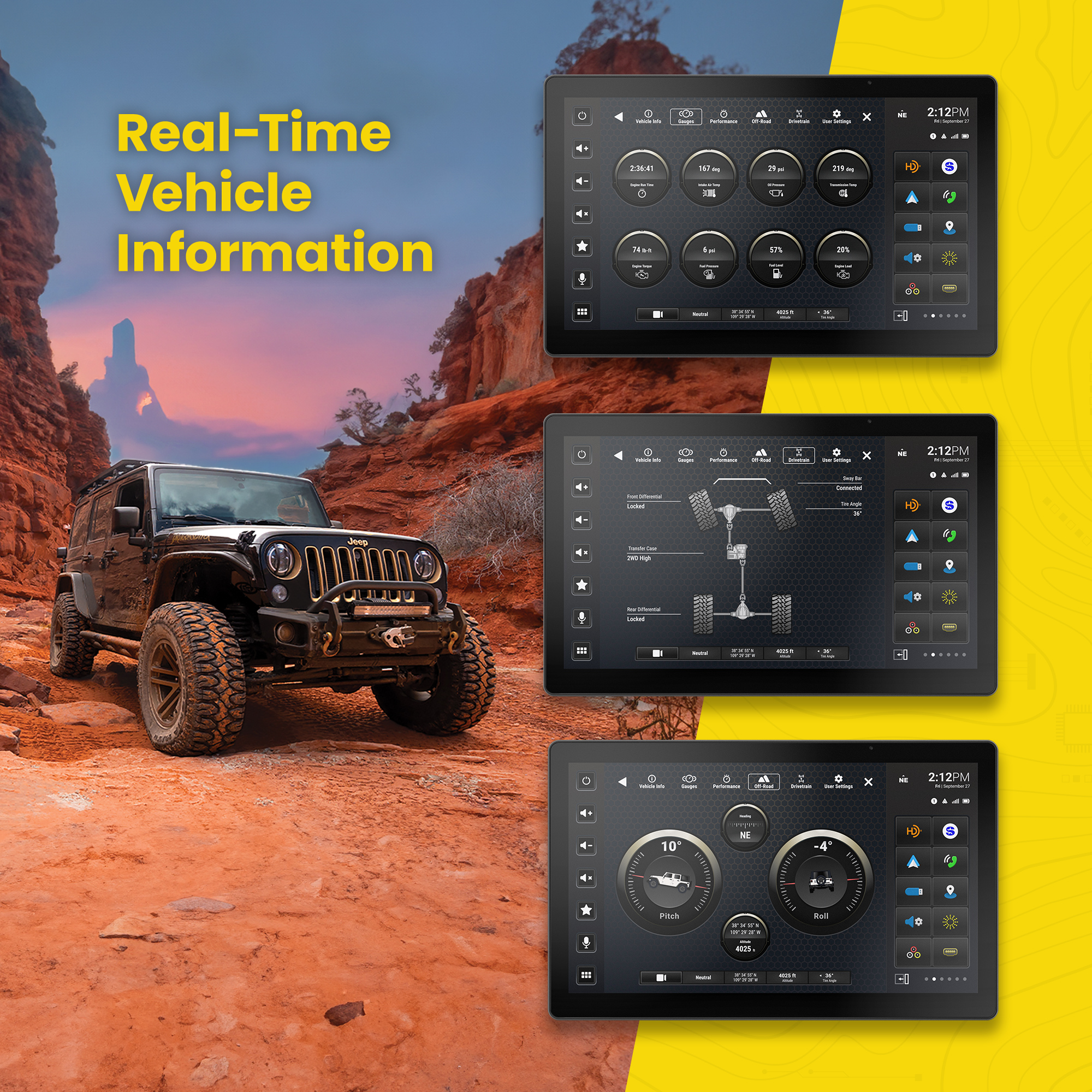

VEHICLE-SPECIFIC APPLICATION THAT ALLOWS USER CUSTOMIZATIONS
Vehicle Information Screen
- Tire pressure with custom pressure threshold
- Current vehicle status – including door open/closed/removed
- View and clear check engine status
Vehicle Drivetrain Screen
- Enhanced with Jeep off-road data including:
- Transfer case
- Axle and sway bar status
- Current position (latitude/longitude)
- Altitude
- Steering angle

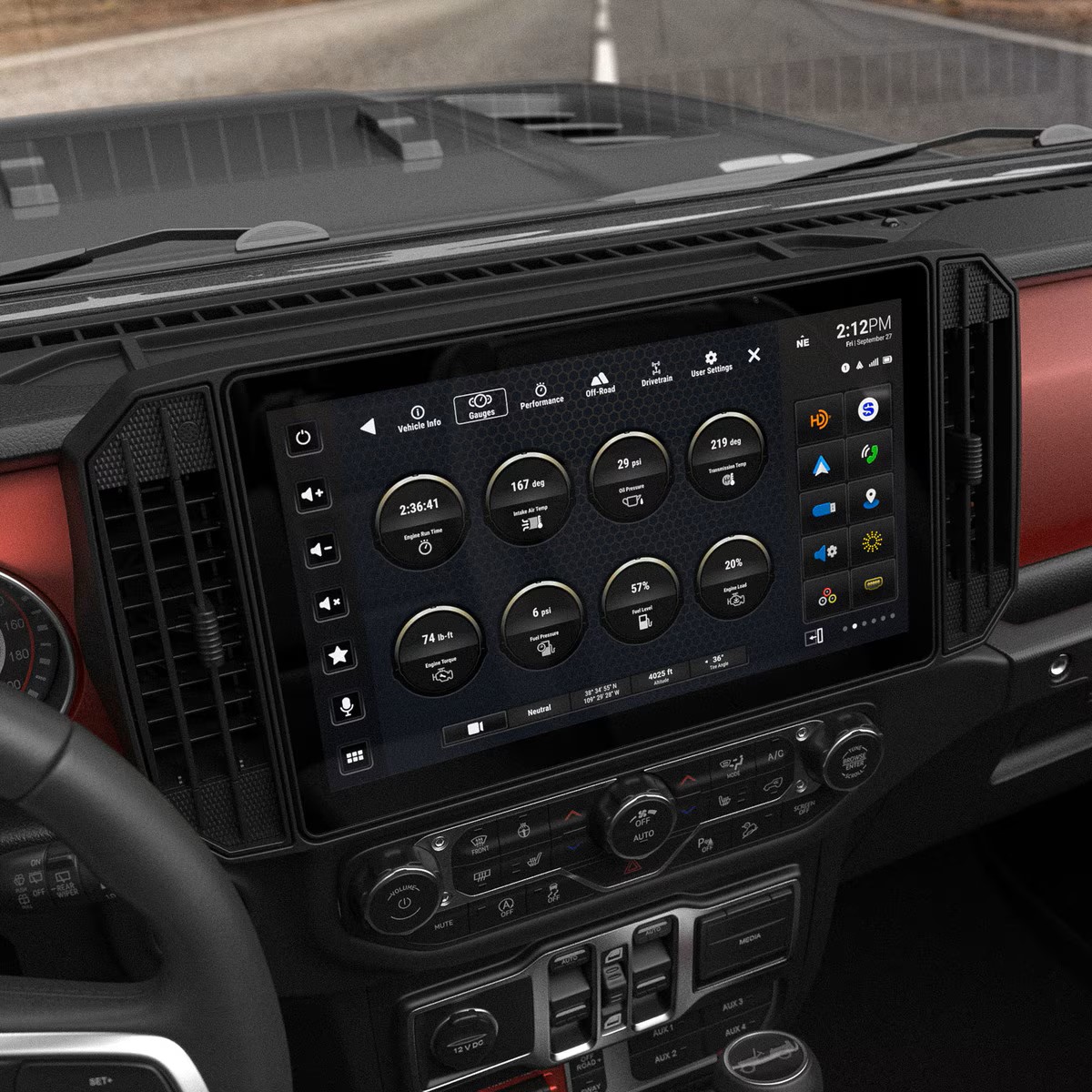

Vehicle Gauges
- Eight gauges on screen, save up to 2 presets
- Battery voltage
- Oil temperature
- Oil pressure
- Transmission temperature
- Coolant temperature
Vehicle Off-Road Screen
- Pitch
- Roll
- GPS coordinates
- Compass
Vehicle Performance Screens
- Speed
- RPM
- Current/best 0-60mph time
- Current/best 60-0mph brake distance
- Current/best ¼ mile time
HORIZON12 MULTIMEDIA INFOTAINMENT DISPLAY SYSTEM
Display Features
- 12.8-inch, high-resolution capacitive touchscreen display with 16.7M colors
- Anti-glare, anti-reflective, and anti-fingerprint film protection
- Optically bonded screen for moisture and dust resistance
- Customizable and personalizable background with moveable Home screen icons
- IP65-rated touchscreen*
Audio Features
- 4.5Vrms, 8ch RCA audio outputs with subwoofer control
- Toslink (optical) audio output; 48kHz variable for clean, noise-free signals

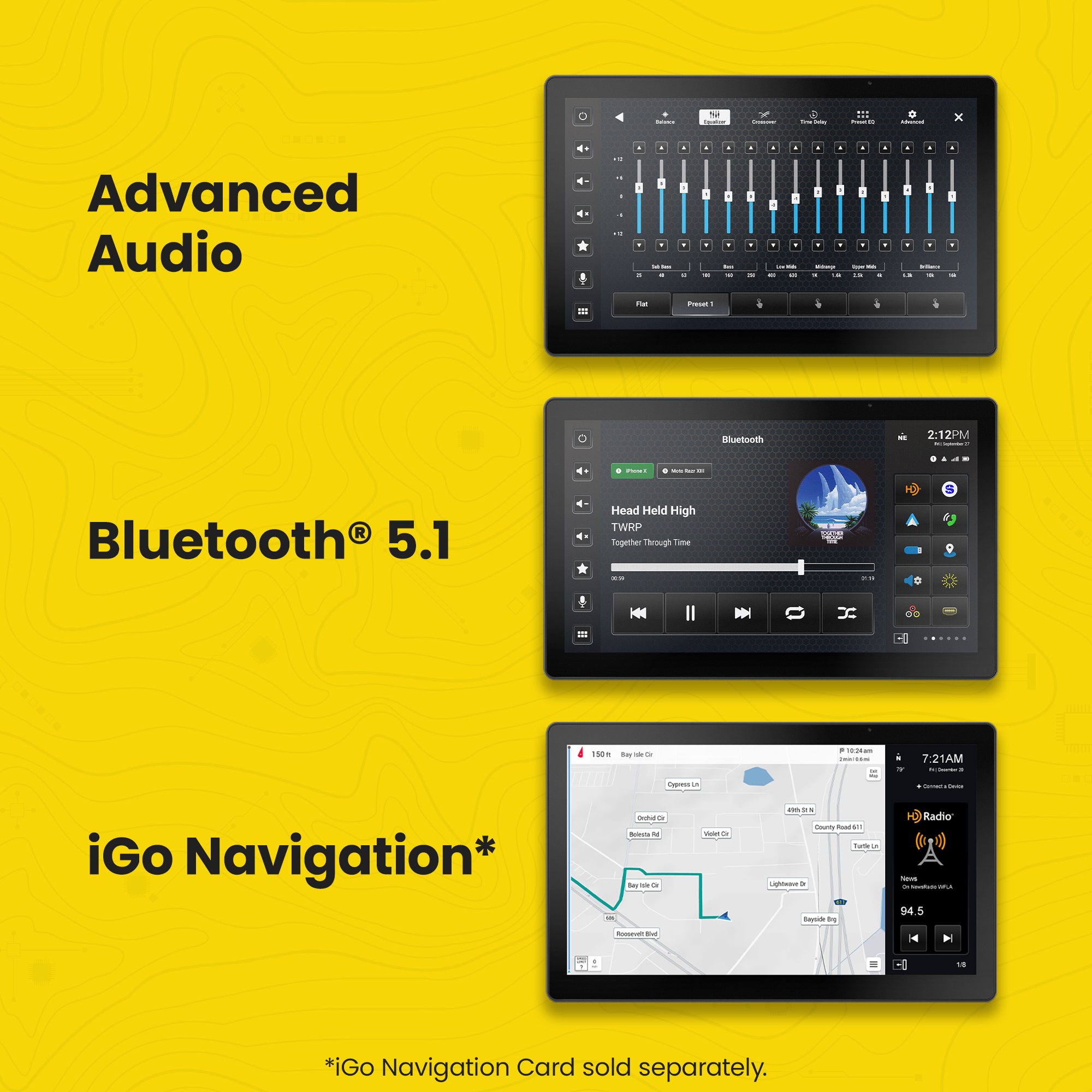

- 15-band adjustable graphic EQ with 6 user EQ presets
- Built-in crossover with high-pass and low-pass filters (HPF and LPF)
- Built-in equalizer for detailed sound customization
- On-screen control of AudioControl’s DM Smart app for advanced tuning
- HD Radio support for enhanced audio quality
- Digital fiber optic output for audiophile-grade sound
Connectivity Features

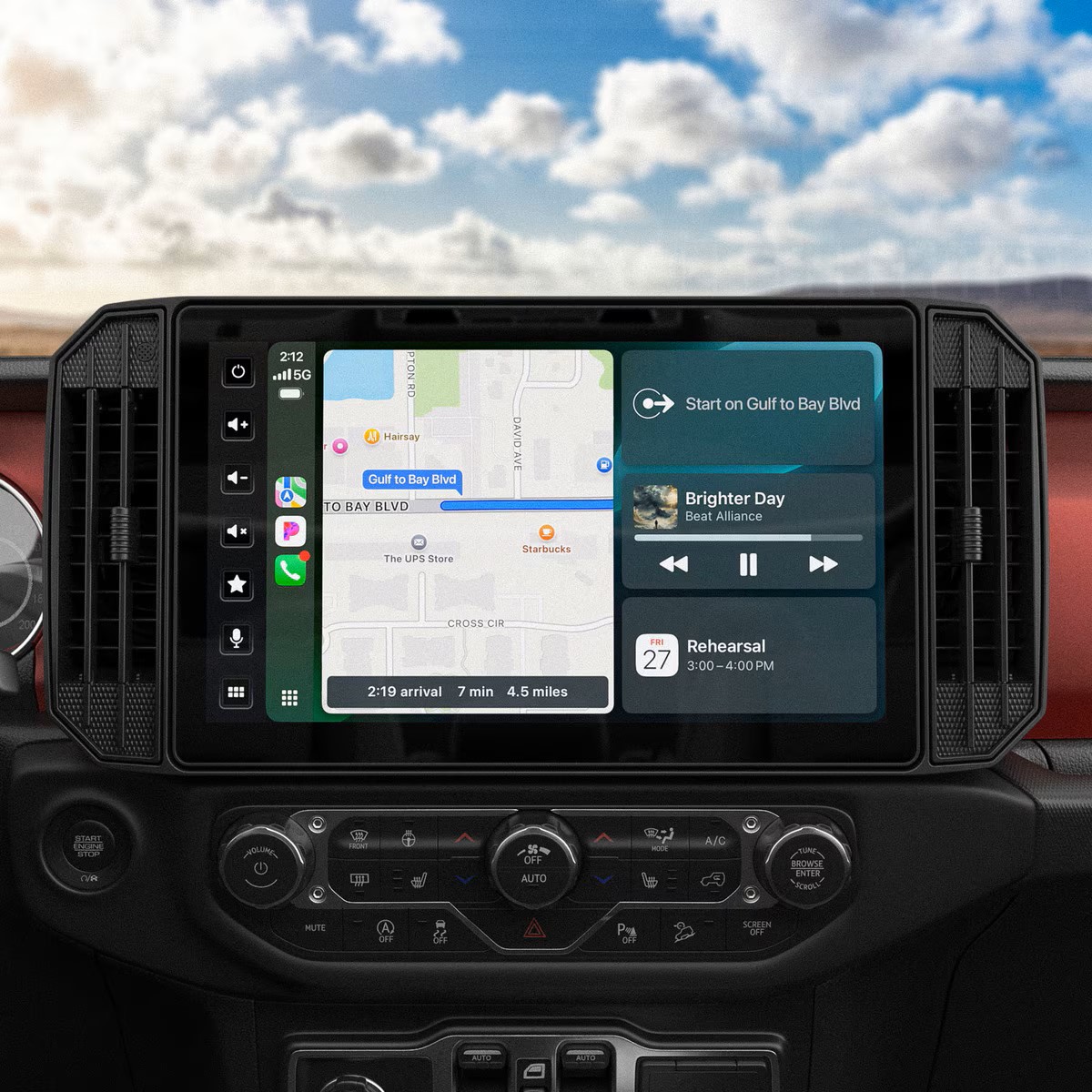

- Wireless and wired Apple CarPlay® and Google Android Auto™
- SiriusXM-Ready™ (tuner and subscription required)
- Hands-free Bluetooth® 5.1 for dual phone connections, calling, and music streaming
- 3 USB ports for charging and data input (2 USB-A, 1.5A output; 1 USB-C, 3A output)
- HDMI input for external audio/video playback from compatible devices
- Built-in microSD card slot for optional NextGen iGO navigation
Safety and Camera Features
- Display up to 4 safety cameras (sold separately) for enhanced visibility
- Selectable camera inputs for modes such as blind spot viewing, trailer towing, or standard rear view
- Rear camera audio input for RV camera microphone compatibility
Performance & Convenience Features
- Fast wake-up capability

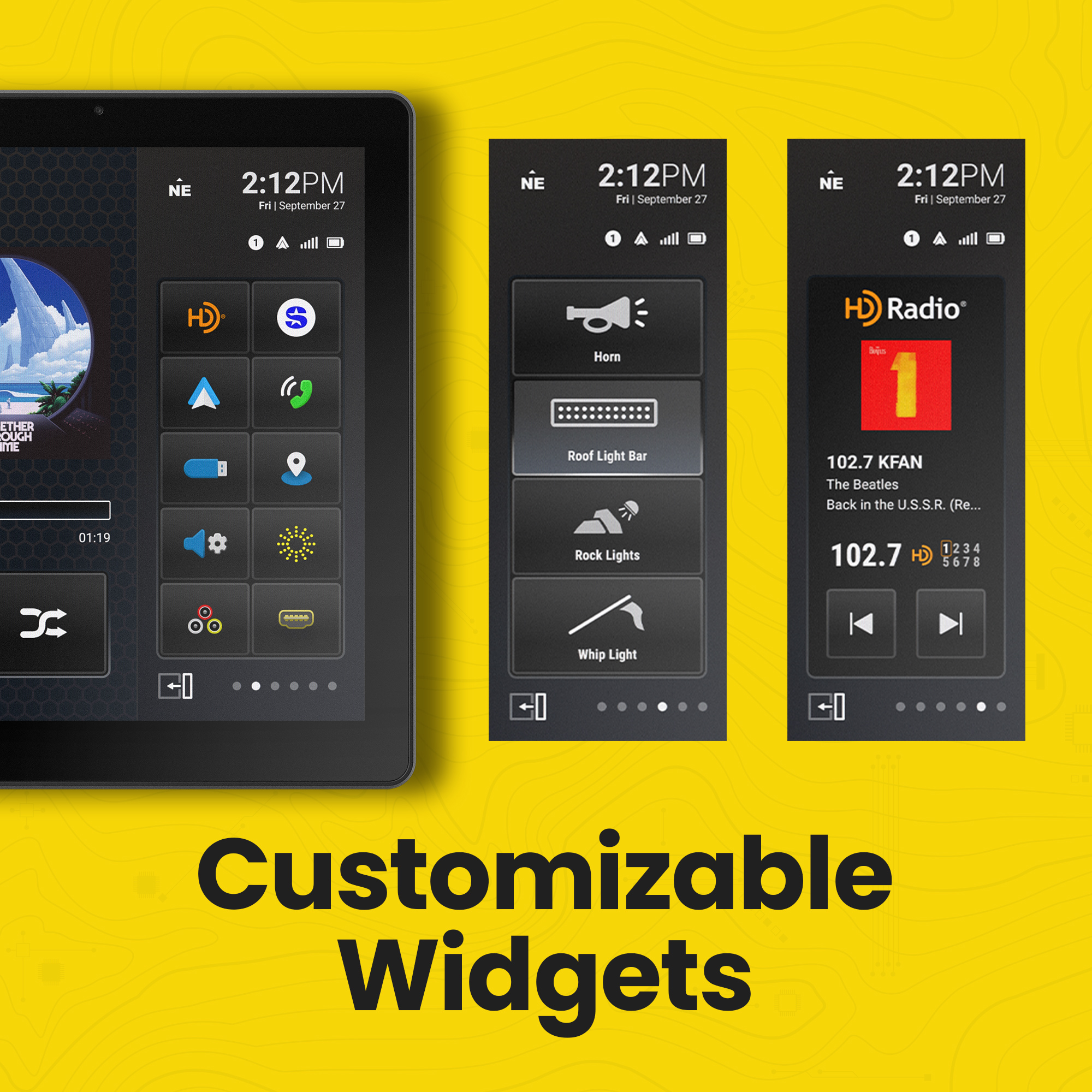

- Customizable multi-zone user interface to combine preferred controls and widgets
- Packed with the latest technology for seamless media, safety, and audio integration
Entertainment Features
- Seamless smartphone integration for music, navigation, and communication
- Access a variety of media sources, including CarPlay®, Android Auto™, SiriusXM, and HD Radio
- Experience sharp and vibrant visuals with high-resolution graphics
*Radio chassis is not IP-rated
*USB-C connection is required for wired CarPlay and Android Auto
ENHANCE YOUR EXPERIENCE WITH OUR COMPATIBLE PRODUCTS
Stinger ENLIGHT10 Lighting:
Illuminate your ride with dynamic LED lighting that enhances visibility and style. Control the ENLIGHT10 lighting directly on-screen for a seamless and personalized lighting experience.
AudioControl DM Series Processors & Amplifiers:
Take full advantage of on-screen control for AudioControl’s DM Series processors and amplifiers. Instantly tweak audio settings without needing a laptop or tablet, making customization effortless.
SwitchHub On-Board Accessory Control Interface:
Manage up to 4 accessories directly from your HORIZON12 screen. No need for additional switches—gain convenient control with a sleek, integrated interface.
Echomaster AHD Cameras:
Upgrade to Echomaster’s AHD cameras for superior resolution (720p standard HD) compared to traditional CVBS cameras (480p). Improve safety and visibility with advanced camera technology compatible with the HORIZON12.
