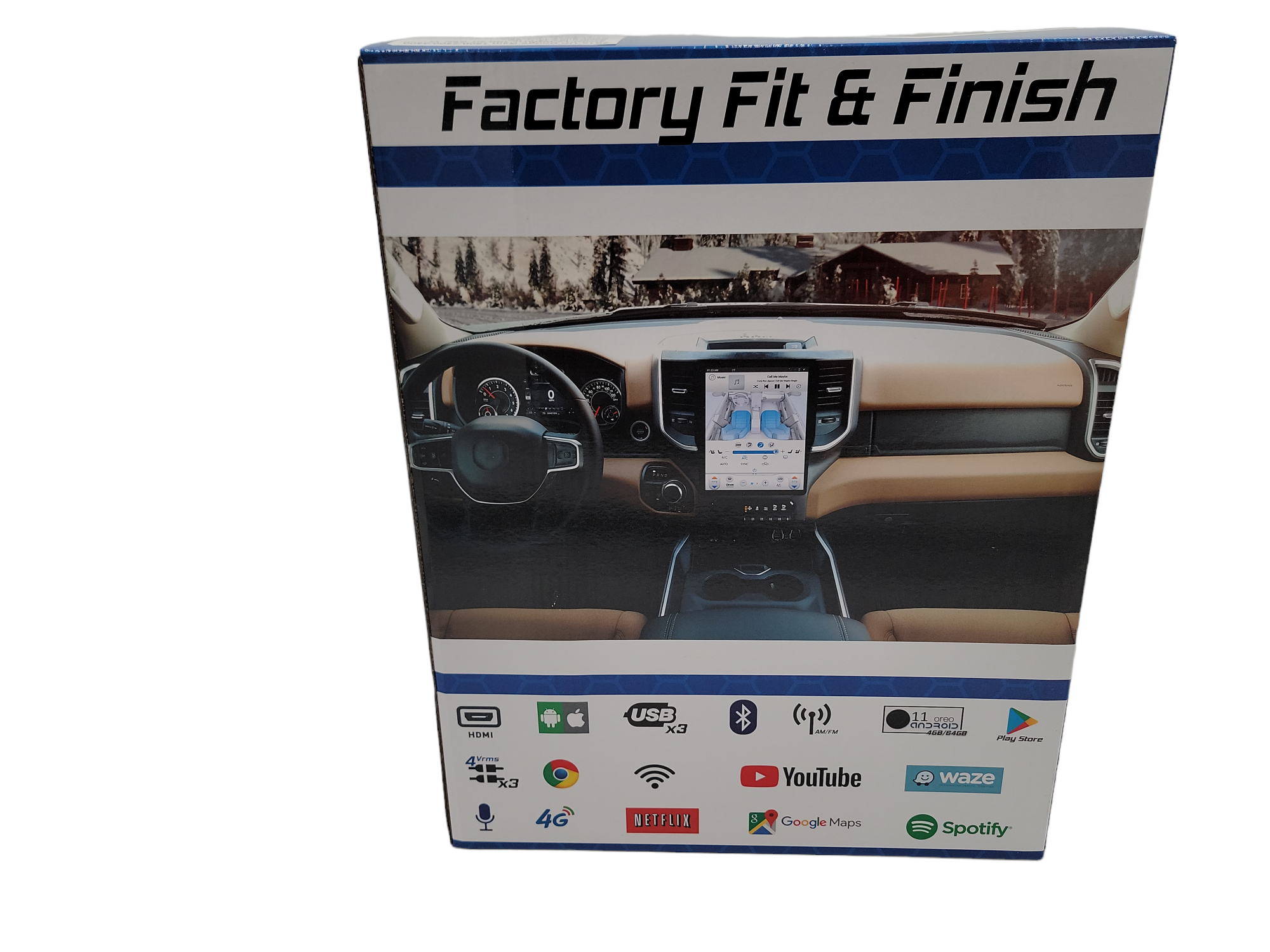

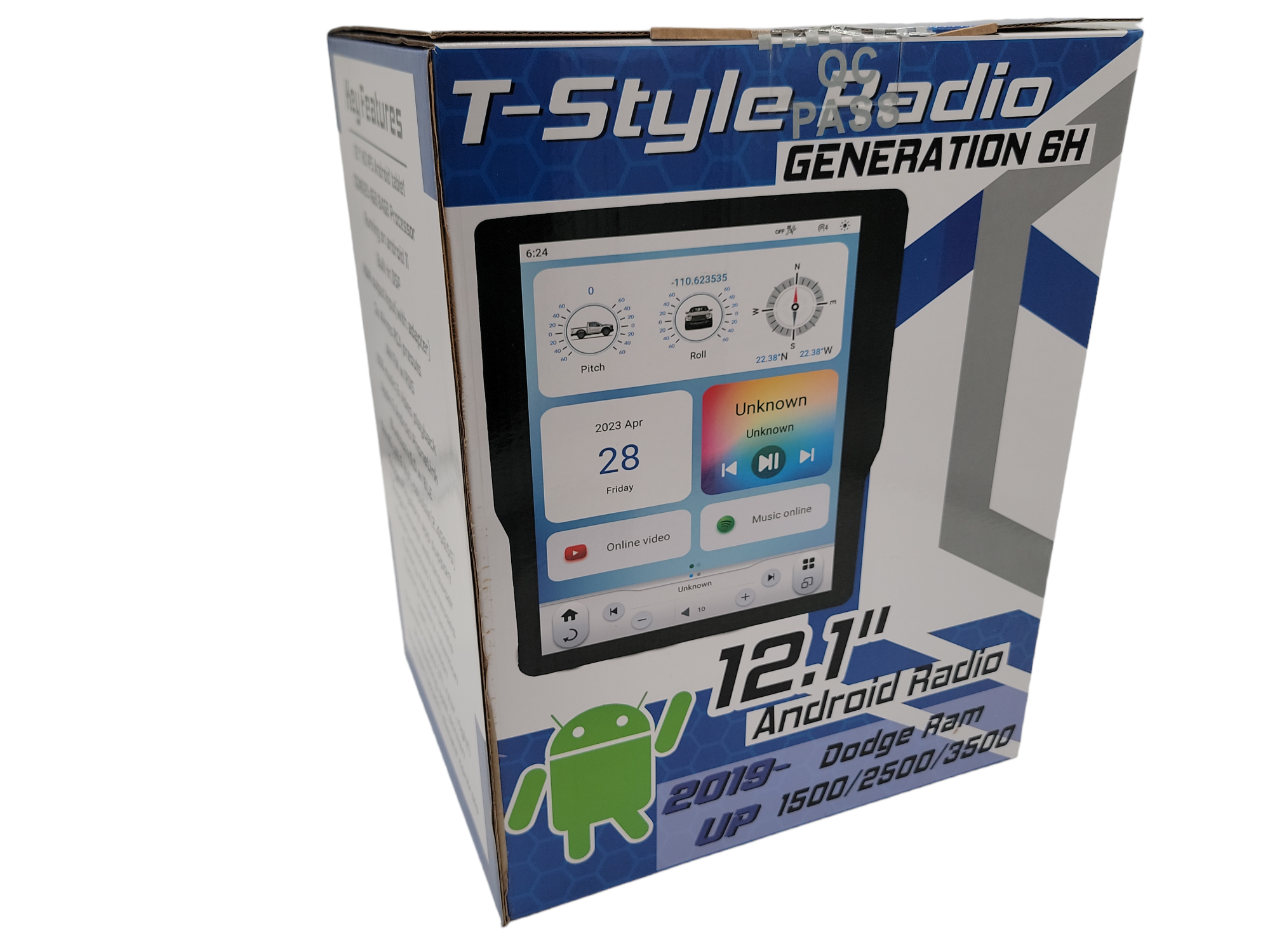

LINKSWELL GEN VI T-Style Dodge RAM Pickup 12.1" 2K HD Screen, Radio/Tablet w/Qualcomm Octacore, 2019-2024 Dodge Ram w/5" or 8" MonitorAndroid 11.0 w/HDMI Out, Optional HDMIIn Module Available

LINKSWELL

Write a Review
SKU:
L-TS-DGPU12-1RR-6H

Description

LINKSWELL GEN VI T-Style Dodge RAM Pickup 12.1" 2K HD Screen, Radio/Tablet w/Qualcomm Octacore, 2019-2024 Dodge Ram w/5" or 8" Monitor Android 11.0 w/HDMI Out, Optional HDMI In Module Available

***2022-2024 Models require the DGPUPWHARN22 Harness***

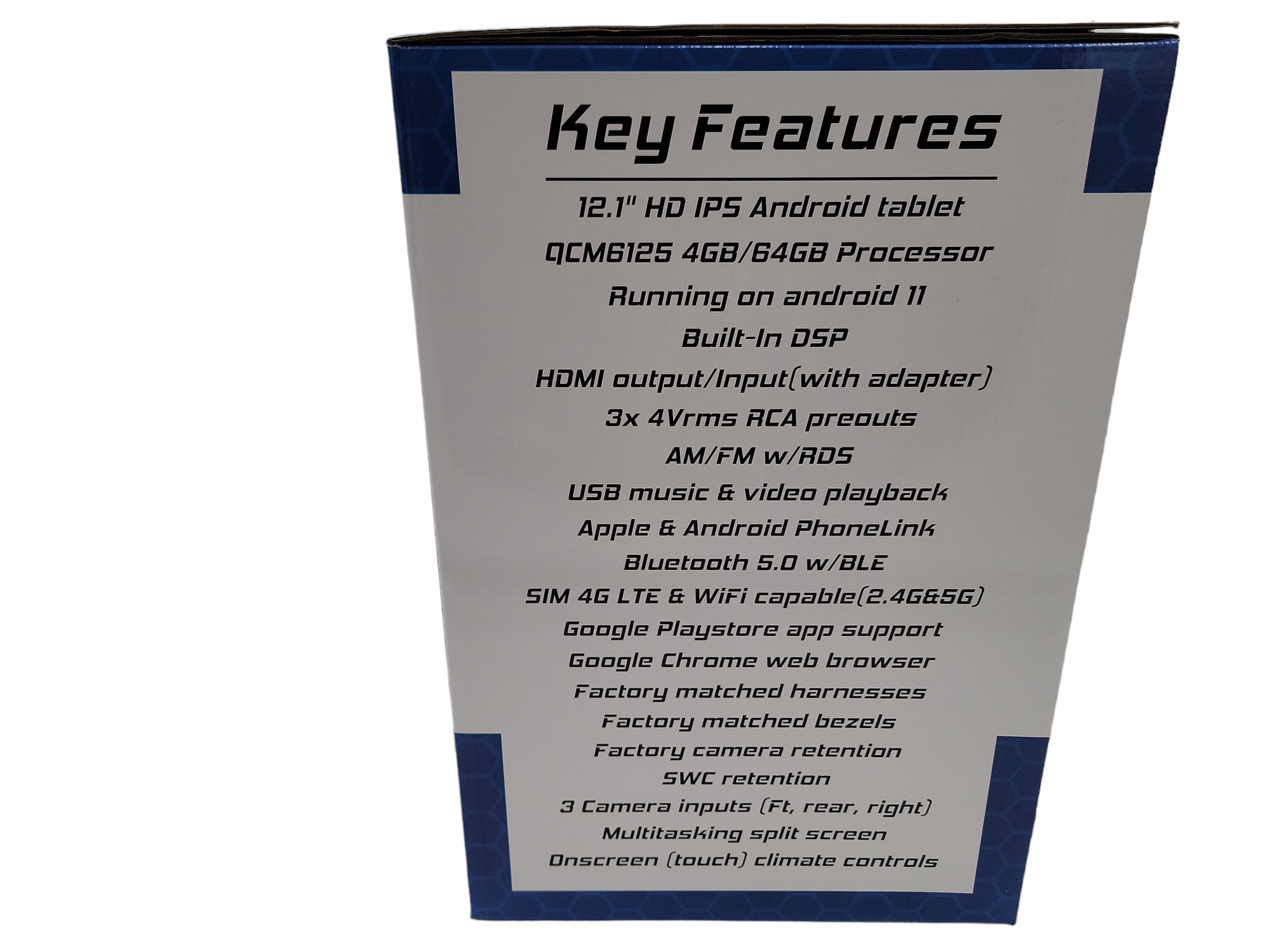

DESCRIPTION

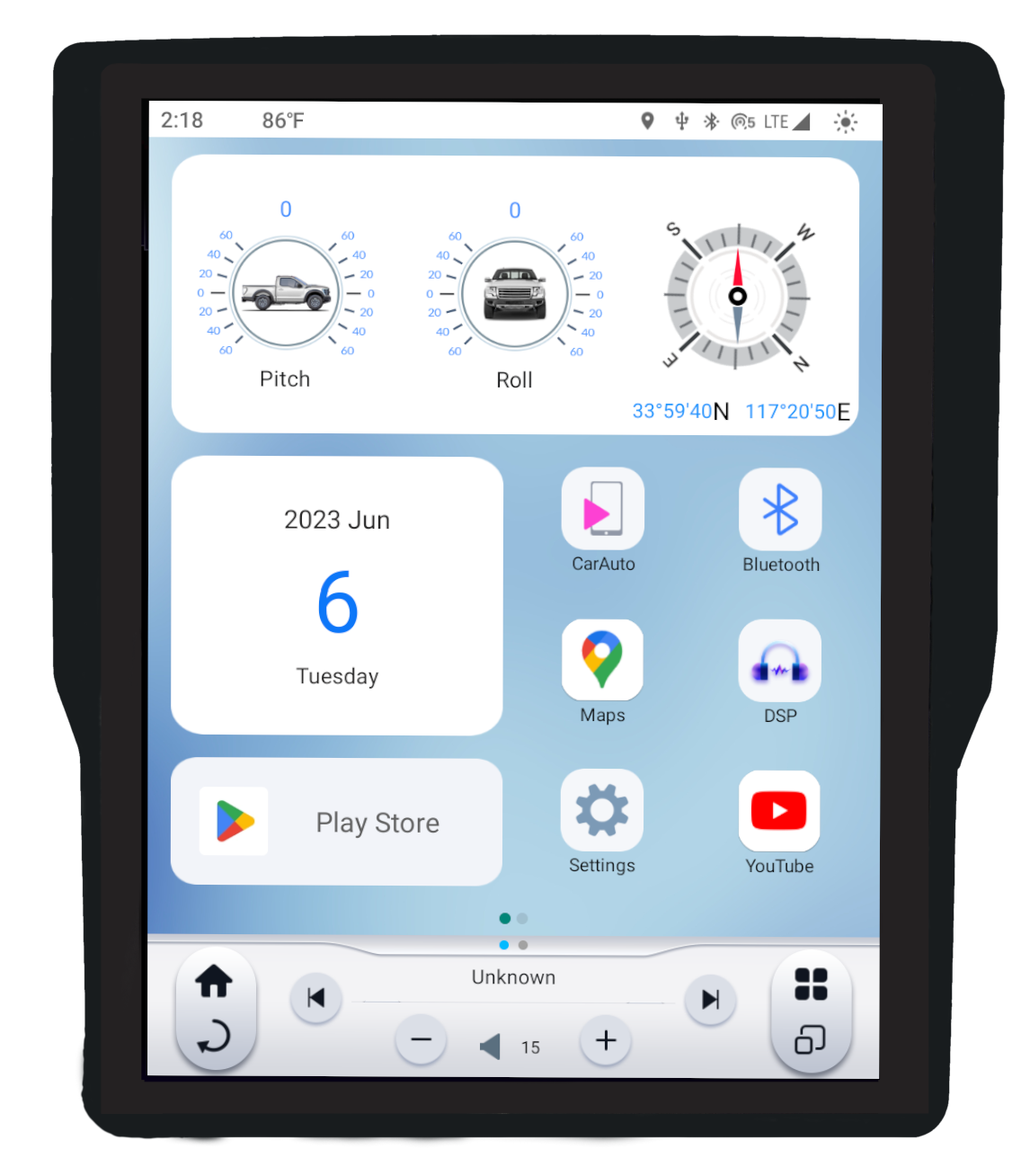

  • 12.1″ HD touch screen Android Tablet
  • Android 11 w/Fast Boot
  • Qualcomm QCM6125 8Core Processor
    • 8GB Ram
    • 128GB Memory
  • Google Play Store App Downloads
  • Multi-Function on screen X KNOB
    • Volume, Fan Speed, Temp, etc.
  • **USING WIFI** run Google Maps, WAZE or other Data based navigations
  • AM/FM Radio w/RDS (12 FM presets, 6 AM presets, plus My Favorite Stations )
  • 3 USB inputs (1 factory input, 1 auxiliary)
  • BT 5.0 DR/EDR/BLE
    • Bluetooth may work with certain Bluetooth controlled devices
  • USB Music and Video player w/HD Video and Video in motion options
  • HDMI Output
  • HDMI Input
    • REQUIRES PART NUMBER LW-TSHMDI-IN
  • 4X50 Watt built-in amplifier w/DSP & EQ
  • 4 Volt RCA Preouts (Front, Rear, Sub)
  • SPDIF Output
    • Optical
  • EQ
    • 16 Band
    • Low Pass/High Pass Filter
    • Subwoofer
      • Filter
      • Gain Control
  • PhoneLink System (Apple & Android compatible)
    • Wireless Apple CarPlay
    • Wired / Wireless Android Auto
    • AirPlay
  • On Screen/touch screen climate controls – if equipped A/C, Dual Zone Climate, Seat heaters/coolers, defroster, etc.
    • X-KNOB
  • 3 Camera inputs (Front, rear, side)
    • Retains Factory reverse Camera
    • Optional Multi-Cam adapter (TS-DGMCADPT) available to add 6 Camera inputs with onscreen access and CanBus triggers
  • Display factory parking sensors (if equipped)
  • WIFI for web browser, and streaming apps
    • 2.4 GHz
    • 5G



*All 2022-up need power harness part# TS-DGPUHARN

Extra Information

Brand:
LINKSWELL
