Description

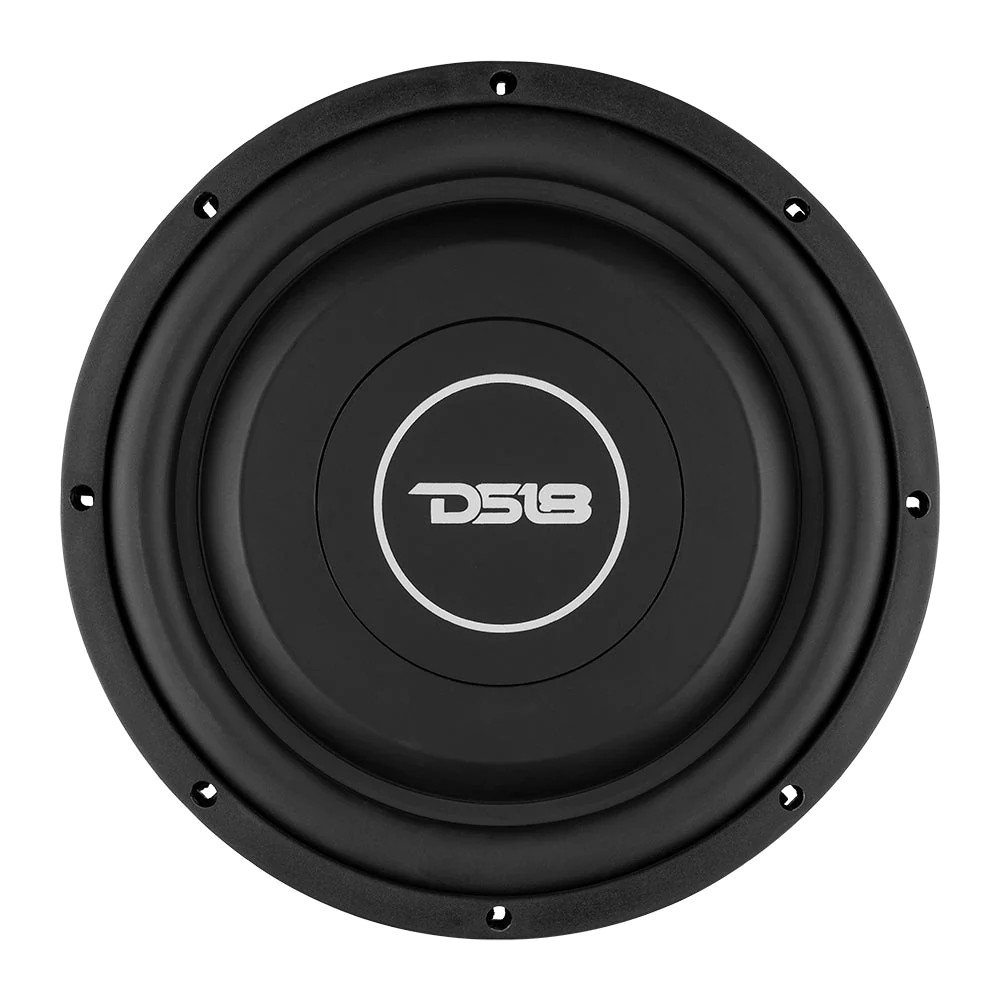

SRW Shallow-Mount 10" Subwoofer 200 Watts Rms SVC 4-Ohm

10" Shallow Subwoofer
MAX Power: 400 Watts
RMS Power: 200 Watts
Impedance: 4-Ohm 2" SVC
Ferrite Magnet
87dB

SPECS

SKU
SRW10.4
Nominal Diameter
10" / 254mm
Nominal Impedance
4 Ohm
RMS Power Handling
200 Watt
MAX Power Handling
400 Watt
Sensitivity (1w/1m)
87 db
Frequency Response
23 - 250Hz
Recommended Low Pass Crossover
90 Hz

MOTOR

Voice Coil Diameter
2" / 50.8 mm
Voice Coil Former Material
Aluminum
Winding Material
SV
Cone Material
Paper
Dust Cap Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Gloss Red
Magnet Material
Ferrite
Magnet Weight
45 Oz
Displacement Volume
1.86L / 0.065ft3

Thiele & Small Parameters

Equivalent Volume Vas
17L / 0.6ft3
Free Air Resonance Fs
48 Hz
Mechanical Factor Qms
7.917
Electrical Factor Qes
0.989
Total Factor Qts
0.879
Moving Mass Mms
120.505g
Compliance Cms
0.091 mm/N
Bl Factor BI
11.135
Voice Coil Inductance Le
11.33 mH
Diaphragm Area Sd
366.44 cm2
Dc Resistance Re
3.4+3.4 ohms
Efficiency Bandwidth Product EBP
48.5
Mechanical Mass Without Air Mmd
112.689g

Measurement

Overall Diameter
10.23" / 260mm
Overall Depth
3.62" / 92mm
Front Mount Baffle Cutout
9.13" / 232mm
Mounting Depth
3.07" / 78mm
Motor Diameter
5.51" / 140mm
Gross Single Unit Weight (lb)
8.5
Single Unit Box Dimensions W x L x H (Inches)
10.75 x 10.75 x 4.25
Quantity of Units in Master Carton
4
Gross Master Carton Weight (lb)
35
Master Carton Dimensions W x L x H (Inches)
22.5 x 11.5 x 9.5
