Description

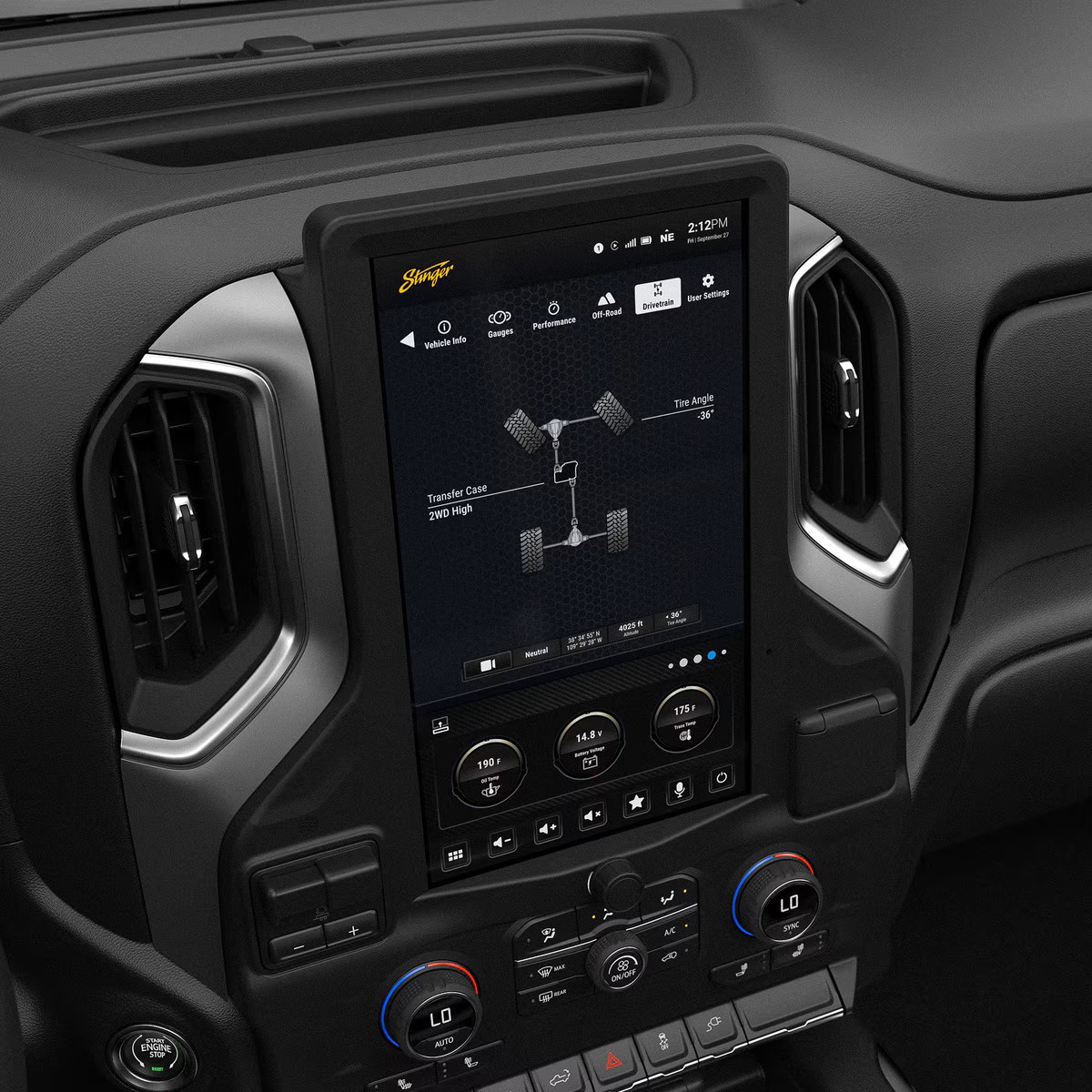

STINGER 2019-2023 SELECT CHEVY SILVERADO/GMC SIERRA HORIZON12 FULL INTEGRATION KIT
Compatibility
2019-2021 CHEVROLET SILVERADO/GMC SIERRA 1500
2020-2023 CHEVROLET SILVERADO HD/GMC SIERRA HD
2022 CHEVROLET SILVERADO LTD/GMC SIERRA LIMITED
COMPATIBLE WITH RPO CODE IOR ONLY
Take your GM truck to the next level with a real-time information display built for everyday driving and with towing in mind. It’s designed to handle the elements, featuring an optically bonded screen that resists dust, dirt, and moisture.
Personalize your setup with a dynamic multi-zone interface—add your most-used widgets, customize backgrounds and colors to match your style. Stay confident while towing with support for four camera in- puts, compatible with both AHD and standard resolutions—giving you clearer views of your trailer, hitch, blind spots, and rear surroundings.
Whether you need a towing camera display, a reliable truck monitoring system, or a durable off-road screen, this display delivers the performance, flexibility, and reliability serious drivers demand.
Key Features

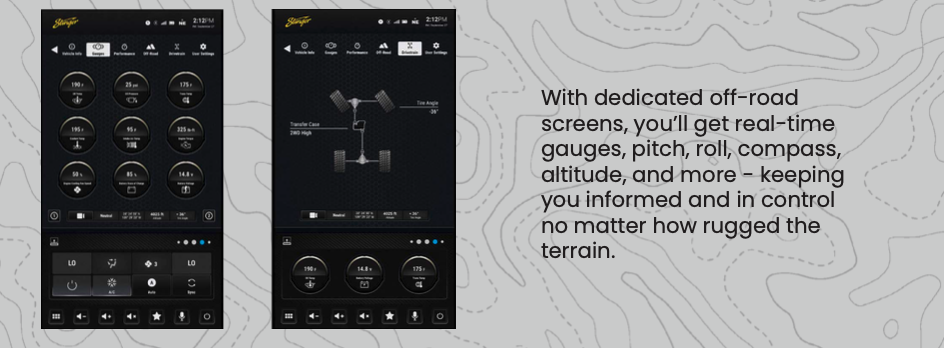

• On-screen gauges to monitor vehicle vitals such as battery voltage and coolant temperature
• OEM Safety: front parking assist, rear parking assist, reverse camera (if equipped), optional dynamic and static parking lines
• Complete feature retention: warning chimes, steering wheel mounted radio controls, Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake signals
• Complete plug-and-play system: no vehicle modifications needed!
Fully Integrated Kit Includes Everything Needed for Installation
• Flush mounted plastics with a convenient built-in volume knob
• GM6B-SRK RadioPRO Advanced vehicle integration module for GM vehicles* (*Not compatible with BOSE)
• Complete plug-and-play installation harnesses
• Adapters for AM/FM radio and SirusXM (SXV Module Required)
• External chime speaker
• HORIZON12 infotainment system
• 12.8-inch, 1920x1080 Full HD touchscreen with anti-glare, anti-reflective & anti-finger- print film protection
• Optically bonded screen for moisture and dust resistance
• IP65 rated touchscreen* (*Radio Chassis is not IP rated)
• Wireless (and wired) Apple CarPlay® and Wireless (and wired) Google Android Auto
• SiriusXM-ReadyTM (SiriusXM Connect Vehicle Tuner and Subscription required)
• Built-in HD Radio tuner
• Accessory Control to control up to four accessories on-screen (SwitchHub recommended)
• 4.5Vrms 8ch RCA audio outputs with subwoofer control
• Toslink (Optical) Variable Audio Output
• 15 Band Adjustable EQ with 6 user presets for each audio source
• 1 HDMI rear input
• 2 USB-A rear inputs, 1.5A output; 1 USB-C rear input for wired CarPlay and Android Auto,
3A charging
• Handsfree Bluetooth® 5.1 A2DP, supports dual phone connections
• Built-in microSD card slot for optional iGO Navigation
• Fast Wake-Up Enabled
• 4 AHD/CVBS Camera Video inputs with trigger activation
• Mic Audio input from rear camera

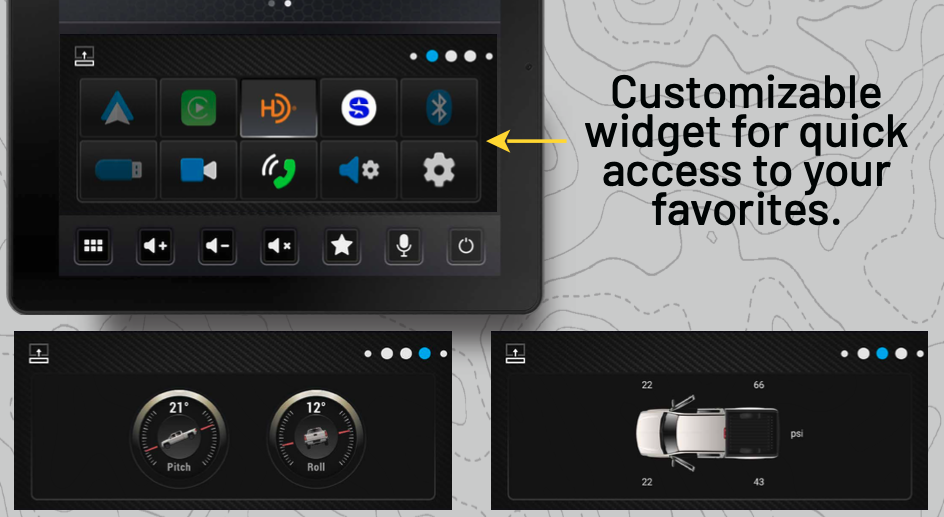

• Customizable illumination colors, display backgrounds, and multi-zone user interface (combine the most useful controls and select your favorite widgets)
