Description

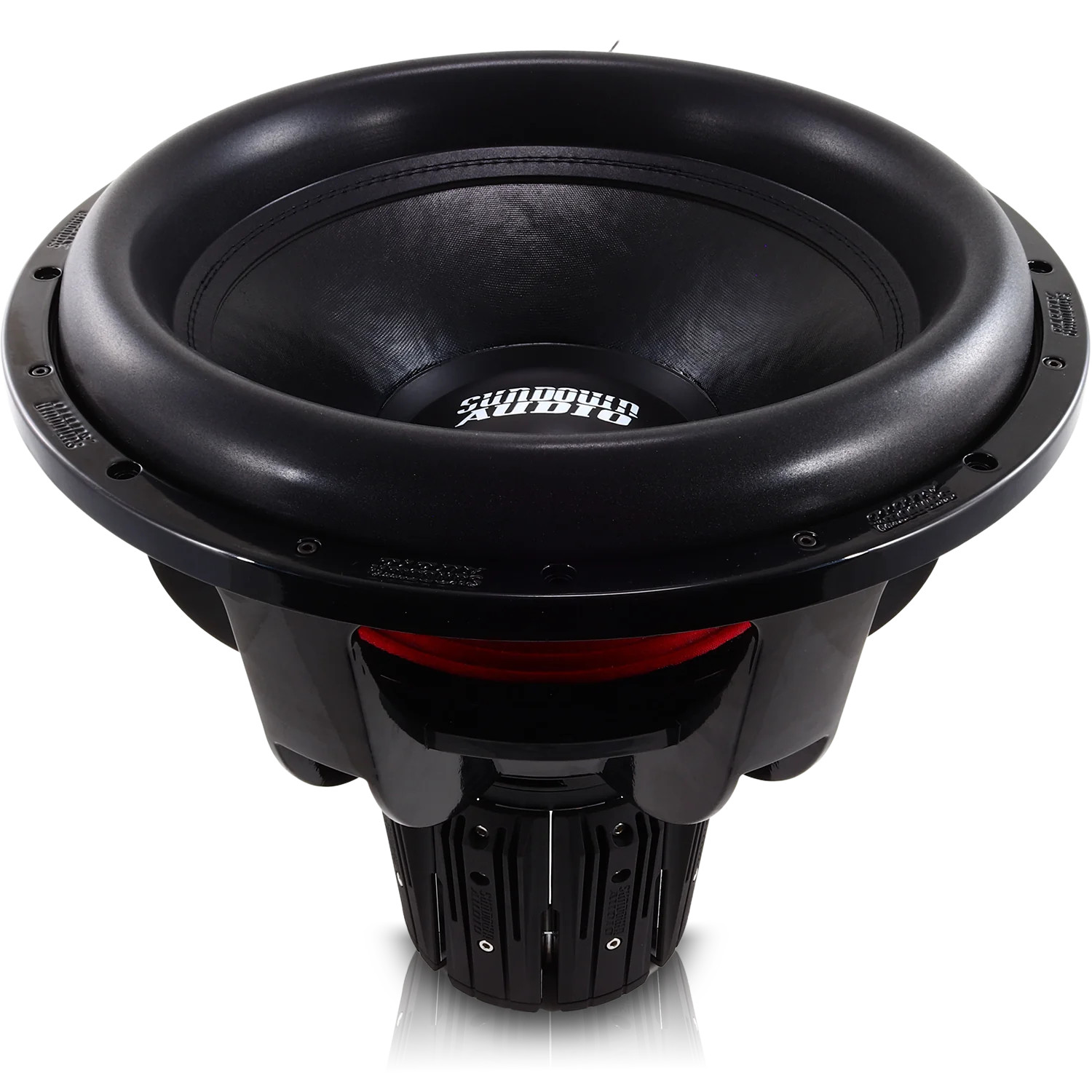

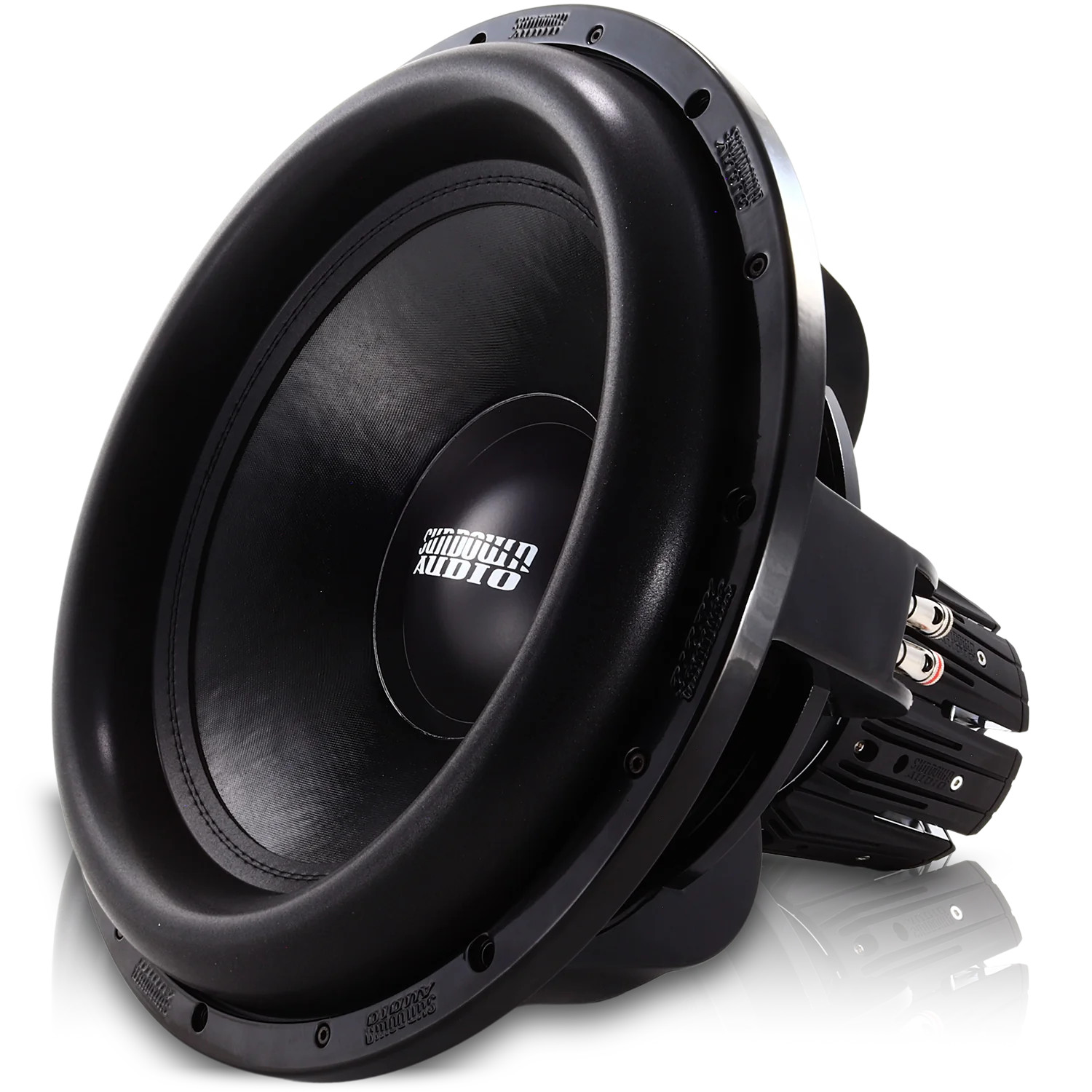

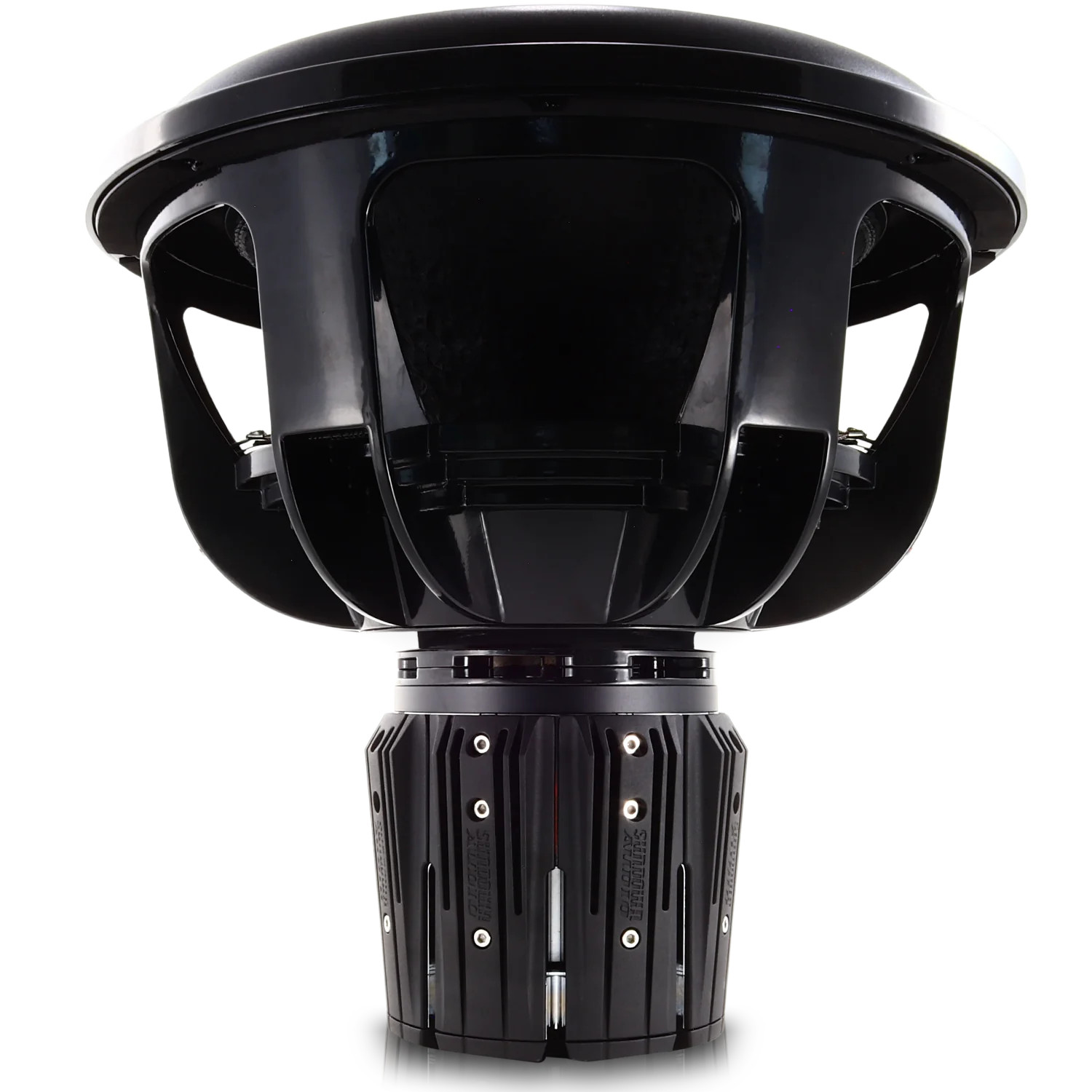

SUNDOWN AUDIO NS v.6 18" D2 (3000-watt)
FEATURES:
- Power Handling: 3000 Watts RMS
- Custom tooled basket
- Custom-tooled ultra-linear spider packs
SPECIFICATIONS:
NS V.6 18
| T/S SPECS | NS V.6 18″ D1 | NS V.6 18″ D2 |
|---|---|---|
| RE (Ohms) | 1.8090 | 3.6629 |
| FS (Hz) |
28.6283
|
28.3677 |
| VAS (L) | 78.9335 | 82.9318 |
| Qes | 0.4955 | 0.4948 |
| Qms | 5.2141 | 5.1127 |
| Qts | 0.4525 | 0.4511 |
| Le (mH) | 1.7089 | 3.3898 |
| BL (NA) | 21.7903 | 30.4106 |
| Mms (Grams) | 722.9906 | 700.8333 |
| Cms (uM/N) | 42.7481 | 44.9135 |
| Sens (dB @ 1w/1m) | 87.4738 | 87.5755 |
ENCLOSURE SPECIFICATIONS
| Sealed Enclosure | Not Recommended |
| Ported Enclosure | 7 cu.ft. net |
| Recommended Tuning | 32Hz |
| Recommended Port Area | 100 sq.in. |
| Displacement | .27 cu. ft. |
| Depth | 16.25" |
| Outside Diameter | 18.46" |
| Cut-Out | 16.68" |
| Physical Dimensions | Coming Soon |
