Description

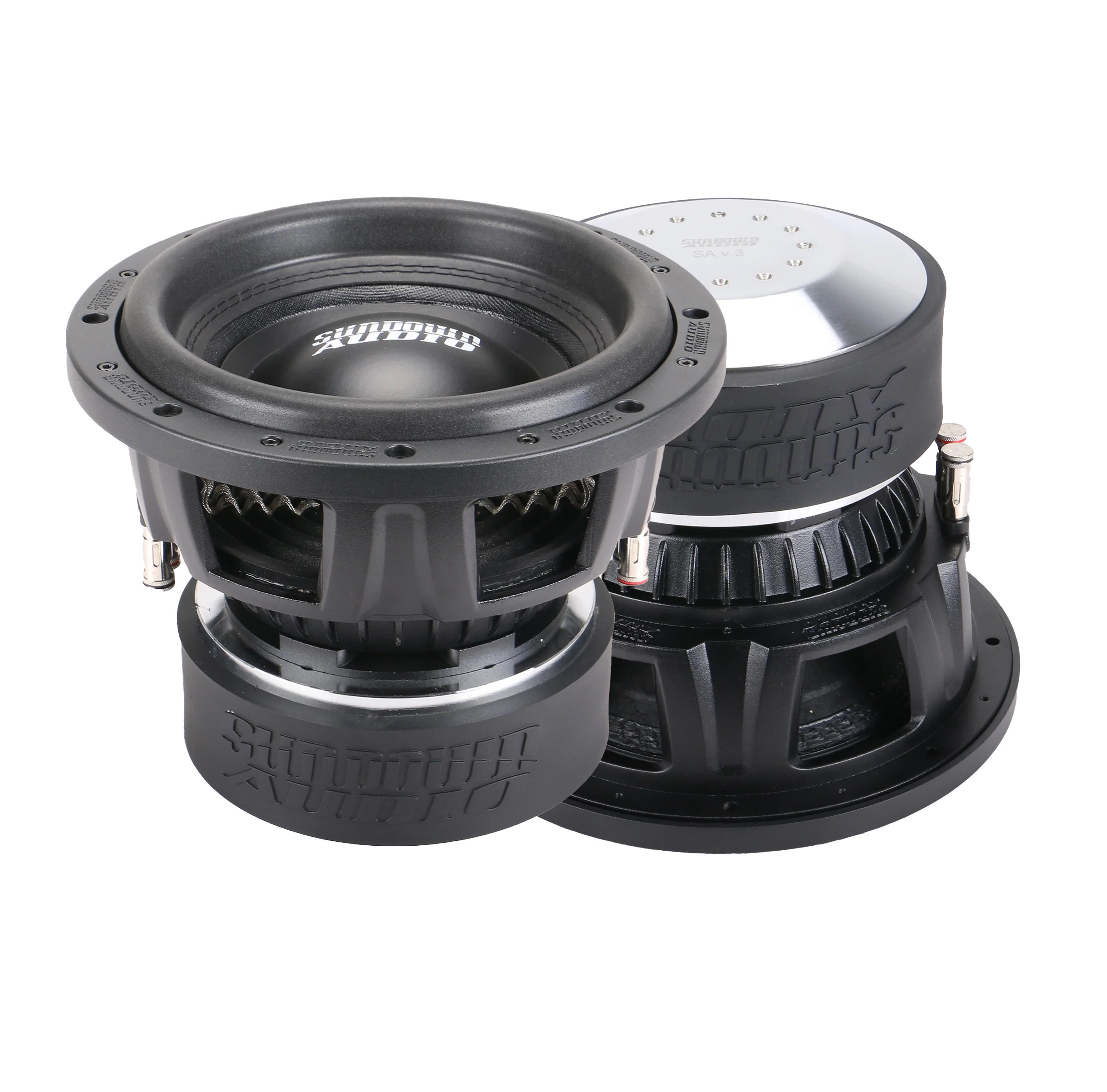

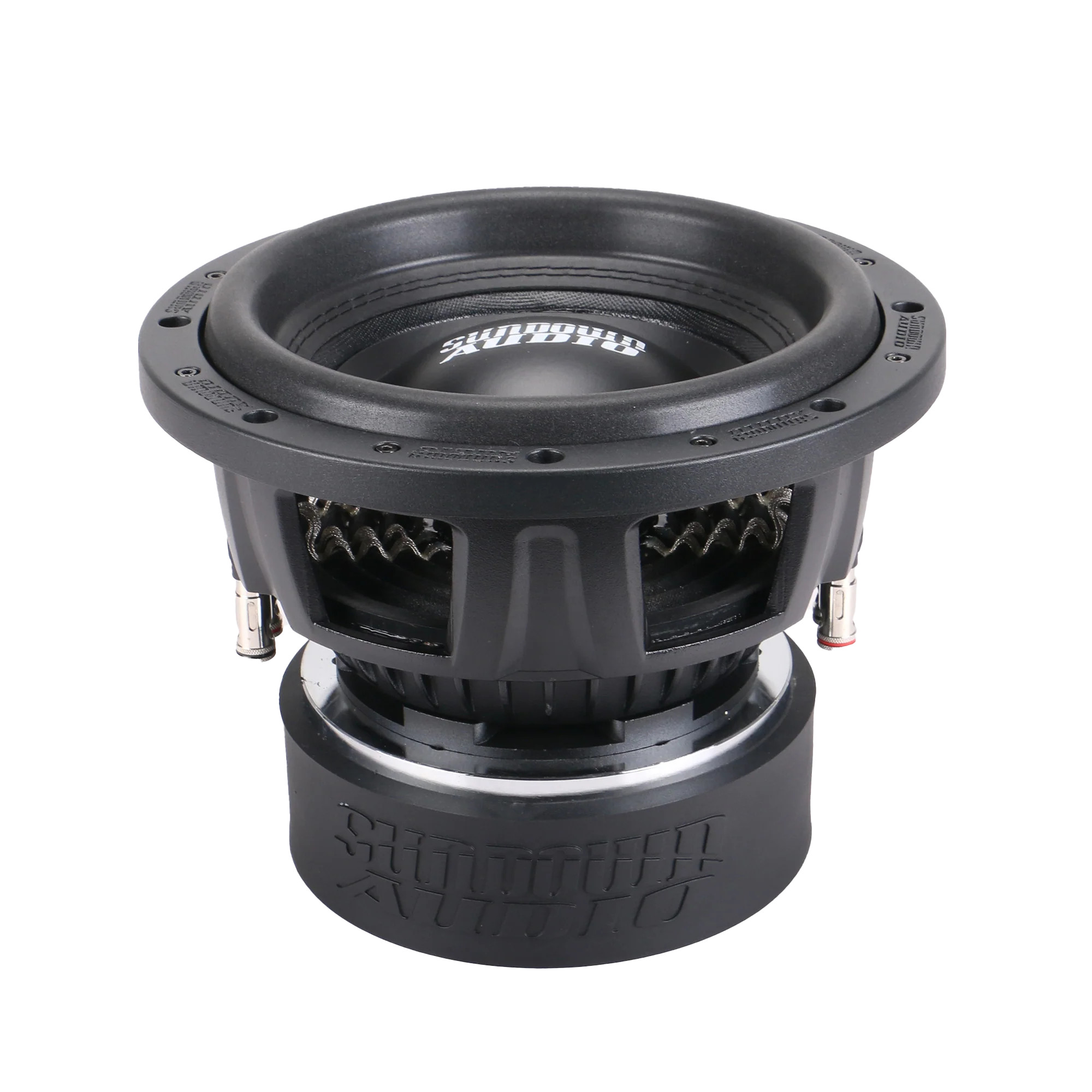

SUNDOWN AUDIO SA Series, Version 3, 10" D2 (3000w Peak / 1500w RMS)
-
1500 Watts RMS / 3000 Watts Peak
-
Dual 2 or 4 ohm voice coils
-
Vented magnetic gap & solid pole piece with vent channels
-
Aluminum 2.75” voice coil former for superior heat dissipation
-
Innovative high velocity, cast aluminum vented frame spacer ring
-
Magnet ID faraday ring & pole cap faraday ring for smooth acoustic response
-
High-temperature copper voice coil wire
-
Spring-loaded terminals
-
Stitched-on double “XL” tinsel leads
This SA-10/12 v.3 series is the next generation upgrade to the v.2 series. We stuck with the 2.75” coil diameter and added another 5mm of length for additional linear x-max (22mm now). We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level. Compared to the v.2 the v.3 features taller cones and wider spiders to enhanced linearity and coil stability to the next level. We also utilized full 3D FEA to further optimize the spider packs for this generation.
The motor also features a large magnet shorting ring (faraday ring) & pole cap faraday ring to reduce distortion and deliver smoother response across the entire acoustic spectrum. With the v.3 upgrade we integrated a completely "locked-in" faraday ring that is physically held in place by the T-Yoke. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and custom-tooled aluminum frame (same frame as the bigger brother U v.2 series) are used to complete this masterpiece. On top of the ~22mm of one-way linear excursion we have an x-mech limit of 41mm one-way before coil bottom making it nearly "bottomless." The new motor was designed as a "little brother" to the U v.2 series so you will also note the updated venting system with a solid pole piece from the back and channeled pole on the inside.
| T/S Specs | |
|---|---|
|
RMS Power (D4)
|
|
|
RMS Power (D2)
|
|
|
Peak Power (D2)
|
|
|
Peak Power (D4)
|
|
|
RE D2 (Ohms)
|
|
|
RE D4 (Ohms)
|
|
|
FS D2 (Hz)
|
|
|
FS D4 (Hz)
|
|
|
VAS D2 (L)
|
|
|
VAS D4 (L)
|
|
|
Qes D2
|
|
|
Qes D4
|
|
|
Qms D2
|
|
|
Qms D4
|
|
|
Qts D2
|
|
|
Qts D4
|
|
|
Le D2 (mH)
|
|
|
Le D4 (mH)
|
|
|
BL D2 (NA)
|
|
|
BL D4 (NA)
|
|
|
Mms D2 (Grams)
|
|
|
Mms D4 (Grams)
|
|
|
Cms D2 (uM/N)
|
|
|
Cms D4 (uM/N)
|
|
|
Sens D2 (dB @ 1w/1m)
|
|
|
Sens D4 (dB @ 1w/1m)
|
|
|
Xmax D2
|
|
|
Xmax D4
|
|
| Subwoofer Measurements | |
|
Documentation
|
|
|
Displacement (Inches)
|
|
|
Depth (Inches)
|
|
|
Cutout (Inches)
|
|
|
Motor Diameter (Inches)
|
|
| Ported Enclosure Specs | |
|
Ported Enclosure Size
|
|
|
Recommended Port Area
|
|
|
Recommended Port Tuning
|
|
| Sealed Enclosure Specs | |
|
Sealed Enclosure Size
|
|
| 4th Order Enclosure Specs | |
|
4th Order Sealed Side
|
|
|
4th Order Ported Side
|
|
|
4th Order Port Area
|
|
|
4th Order Port Length
|
|
