Description

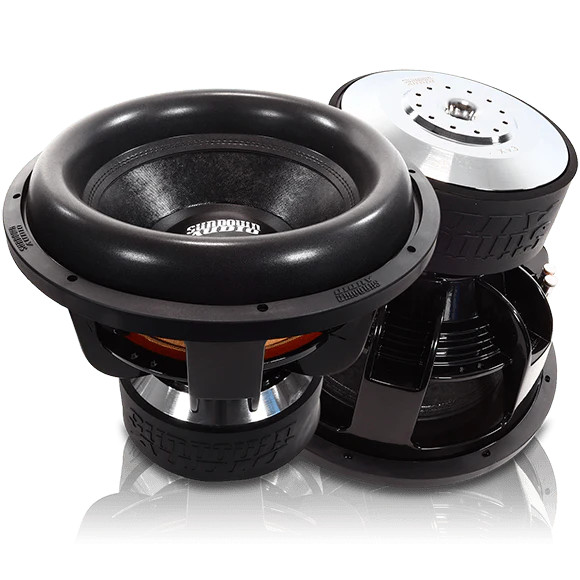

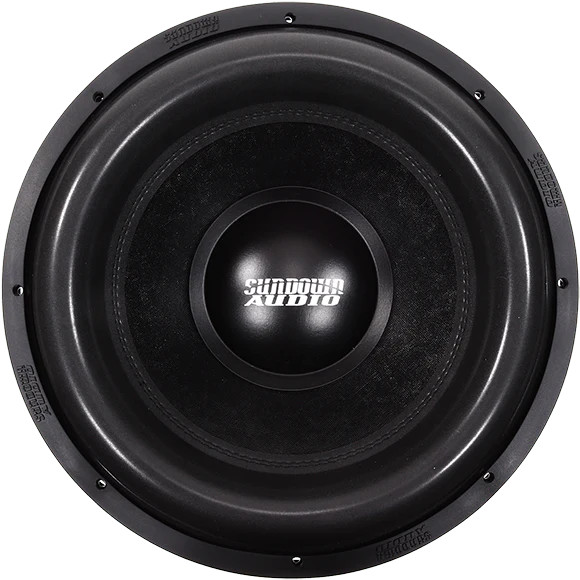

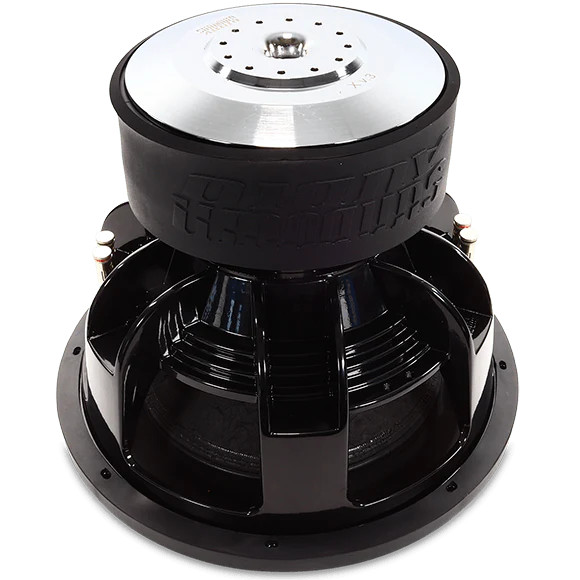

SUNDOWN AUDIO X-15 v.3 (2000-watt) D2 SUBWOOFER
SPECIFICATIONS
| T/S SPECS | X V.3 15″ D1 | X V.3 15″ D2 |
|---|---|---|
| RE (Ohms) | 1.4 | 3.2 |
| FS (Hz) | 31.418 | 31.423 |
| VAS (L) | 45.907 | 45.924 |
| Qes | 0.486 | 0.561 |
| Qms | 2.562 | 2.801 |
| Qts | 0.409 | 0.468 |
| Le (mH) | ||
| BL (NA) | 15.518 | 21.831 |
| Mms (Grams) | 423.721 | 423.436 |
| Cms (uM/N) | 60.563 | 60.585 |
| Sens (dB @ 1w/1m) | 86.5dB |
85.9dB |
ENCLOSURE SPECIFICATIONS
| X v.3 15 | |
| Sealed Enclosure | N/A |
| Ported Enclosure | 4.25 cu ft |
| Recommended Tuning | 32hz |
| Recommended Port Area | 68 sq in |
| Displacement | 0.22 cu ft |
| Depth | 11.6" |
| Outside Diam. | 15.51" |
| Cutout | 13.83" |
| Physical Dimensions | Download |
