Description

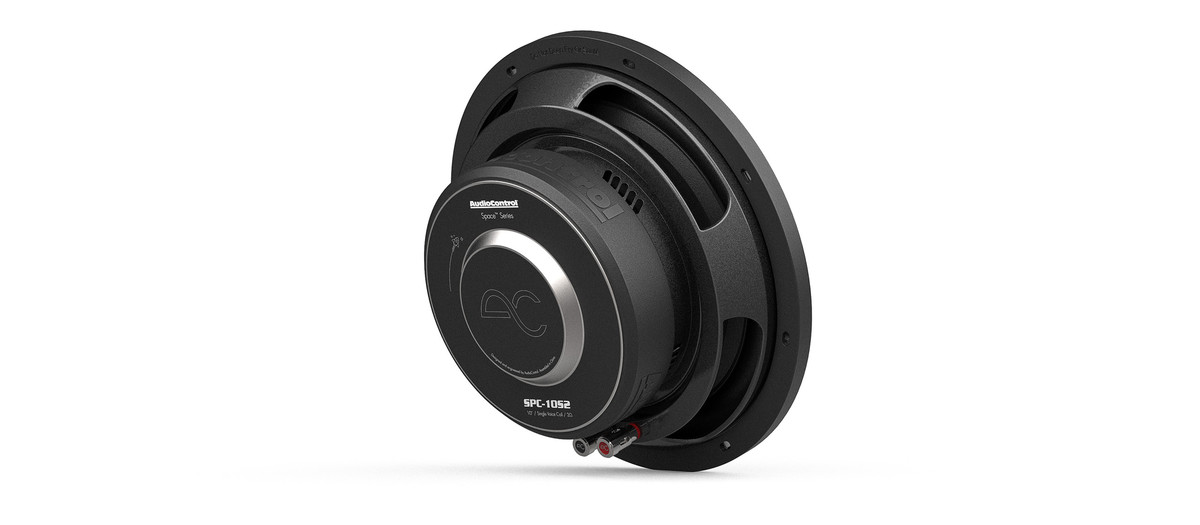

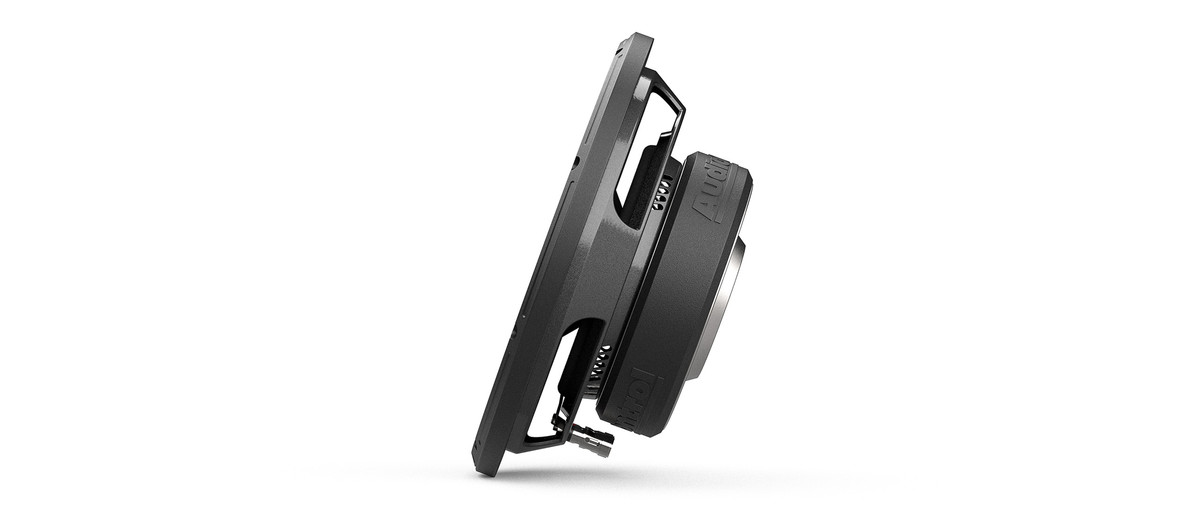

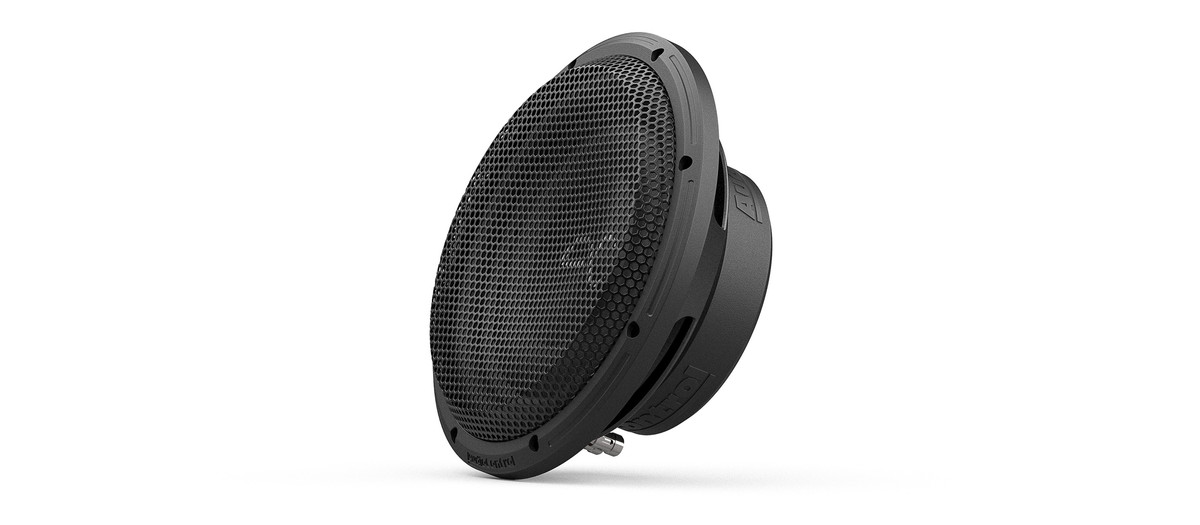

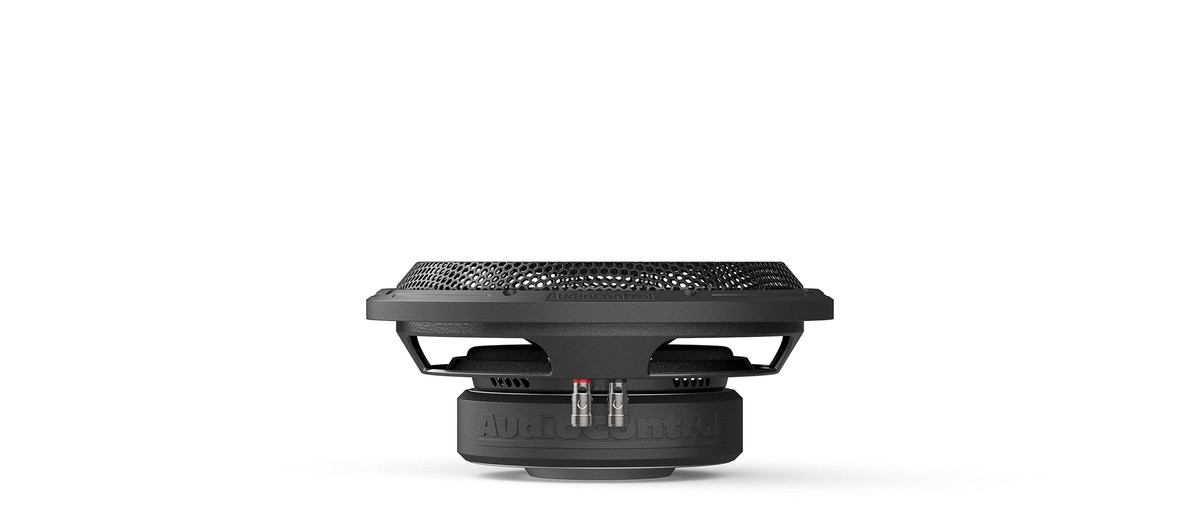

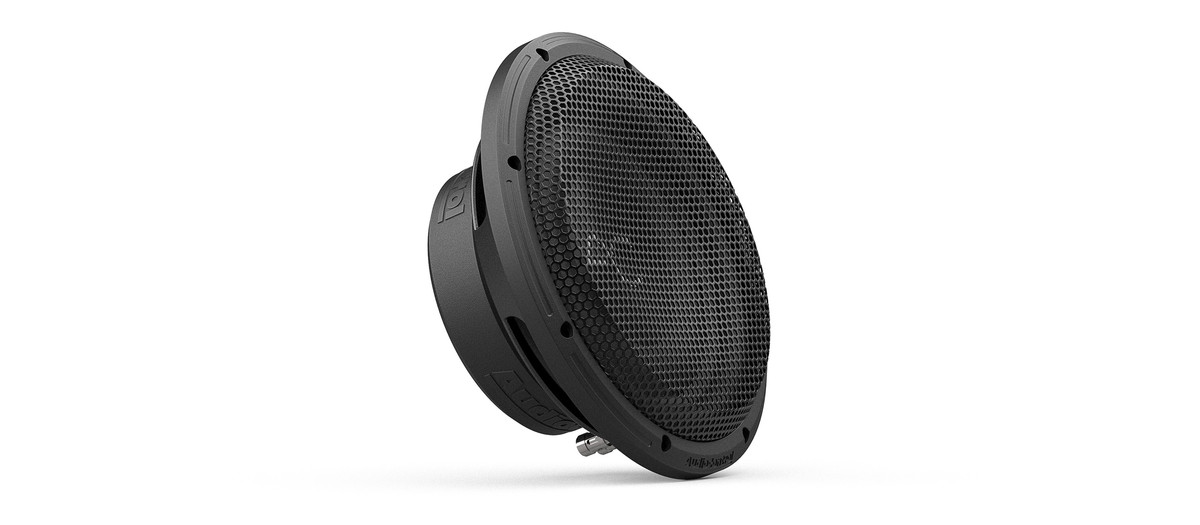

AUDIOCONTROL Space Series 10" Single 2 Ohm Low Profile Subwoofer
- Low-Profile Shallow Mount Subwoofer
- Fiber Matrix Injection Molded Polypropylene Cone
- Weather-Resistant Design
- 3-Layer High Temp Voice Coil Former
- Optimal Thermal Efficiency
- Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
- Removable Subwoofer Grille Included
PAIRINGS
Our Sonic Sommeliers Recommend the Following:
A single Space Series 2 ohm subwoofer pairs beautifully with the ACM-1.300 or ACX-300.1 for the conservative to moderate listener.
For more dramatic output, seek out the ACX-600.1.
Planning to savor the sonic bliss from one of our LC-5.1300 or D-5.1300 ampliļ¬ers? The full-bodied power delivered from the output of channel 5 is a perfect match. Bon appétit!
For system designs utilizing two Space Series 2 ohm subwoofers, we recommend the LC-1.1500… delightful!
Seeking superlative space-saving subsonic nirvana? Planning to include three or more Space Series subwoofers in your system? Consult an expert at your favorite authorized AudioControl dealer, or visit audiocontrol.com for more system conļ¬gurations that deliver the ultimate in listening pleasure.
specifications
thiele/small parameters
Nominal Impedance (Z) 2 ohms
DC Resistance (Re) ]] 3.2 ohms
Resonance Frequency (Fs) 37.3460 Hz
Piston Area (Sd) 0.0330 m2
Force Factor (BL) 14.0082 T.m
Mechanical Q Factor (Qms) 2.8618
Electrical Q Factor (Qes) 0.4044
Total Q Factor (Qts) 0.3543
Sensitivity 1W/M (SPL) 87.2957
Mechanical Comp (Cms) 0.1719 mm/N
Moving Mass (Mms) 105.6787 g
Linear Excursion (Xmax) . 9 mm
Volume Acoustic Comp (Vas) 26.1432 Ltr/0.923238 cu ft
Reference Efficiency (NO.) 0.32% RMS
Power (Pe) 400 Watts
Frequency Response 20-250 Hz
Voice Coil Diameter 2.5 in/63.5 mm
Displacement 0.045 cu ft/ 1.275 Ltr
