Description

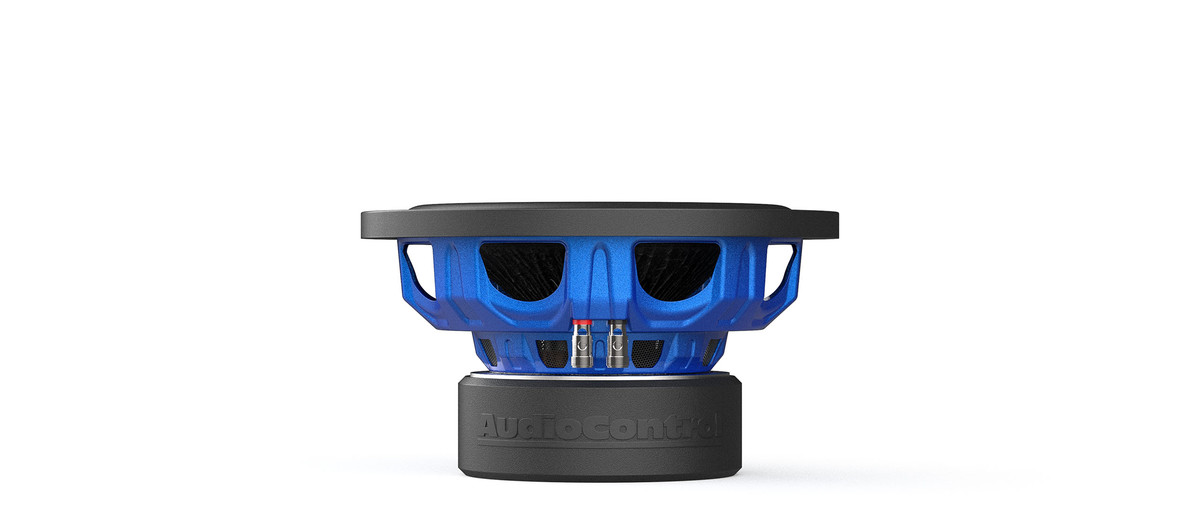

AUDIOCONTROL Spike Series 10" Single 4 Ohm Subwoofer
- High Excursion Design for Ultra Low Bass
- Fiber Matrix Paper Cone with Mica Coating
- 3-Layer High Temp Voice Coil Former
- Dual Damping System for Linear Bass Reproduction
- Dual Dust Cap System for Enclosure Compression Control
- Efficient Heavy-Duty Motor Design
- Removable Subwoofer Grille Included
PAIRINGS
Our Sonic Sommeliers Recommend the Following: A single Spike Series 4 ohm subwoofer pairs handsomely with the ACM-2.300 or ACX-300.2 for the conservative to moderate listener. For more abusive output levels, pursue the LC-1.800.
Planning to delight in the unsparing output from our LC-5.1300 or D-5.1300 amplifier? The ample power delivered by channel 5 is a splendid match! Bon appétit!
For system designs utilizing two Spike Series 4 ohm subwoofers, we recommend the LC-1.800… Exquisite!
Seeking an even more intense aural experience? Planning to include three or more Spike Series subwoofers in your system? Consult an expert at your favorite authorized AudioControl dealer, or visit audiocontrol.com for more system configurations that deliver vibrant volume and ample amplitude.
specifications
thiele/small parameters
Nominal Impedance (Z) 4 ohms
DC Resistance (Re) ]] 3.2 ohms
Resonance Frequency (Fs) 41.2638 Hz
Piston Area (Sd) 0.0314 m2
Force Factor (BL) 13.6742 T.m
Mechanical Q Factor (Qms) 4.83
Electrical Q Factor (Qes) 0.6576
Total Q Factor (Qts) 0.5788
Sensitivity 1W/M (SPL) 83.7199
Mechanical Comp (Cms) 0.1004 mm/N
Moving Mass (Mms) 148.1991 g
Linear Excursion (Xmax) . 14 mm
Volume Acoustic Comp (Vas) 13.8342 Ltr/ 0.4885 Cu ft
Reference Efficiency (NO.) 0.1419% RMS
Power (Pe) 500 Watts
Frequency Response 20-200 Hz
Voice Coil Diameter 2.5 in/63.5 mm
Displacement 0.0626 cu ft/ 1.771 Ltr
