Description

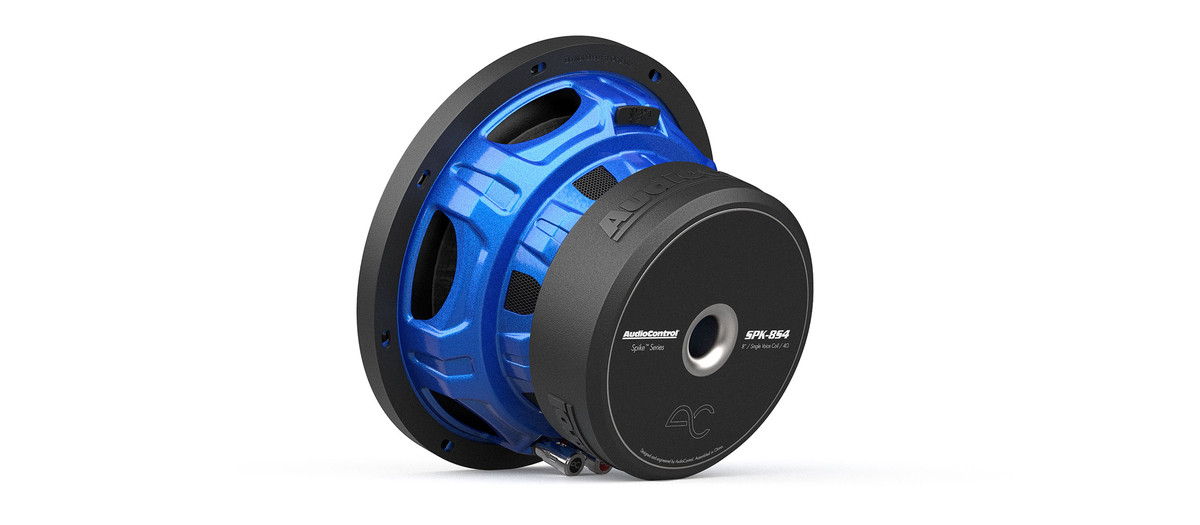

AUDIOCONTROL Spike Series 8" Single 4 Ohm Subwoofer
- High Excursion Design for Ultra Low Bass
- Fiber Matrix Paper Cone with Mica Coating
- 3-Layer High Temp Voice Coil Former
- Dual Damping System for Linear Bass Reproduction
- Dual Dust Cap System for Enclosure Compression Control
- Efficient Heavy-Duty Motor Design
- Removable Subwoofer Grille Included
PAIRINGS
Our Sonic Sommeliers Recommend the Following:
A single Spike Series 4 ohm subwoofer pairs ideally with the ACM-2.300 or ACX-300.2 for the conservative to moderate listener. For more imposing output, look no further than the LC-1.800.
Planning to appreciate the esteemed output from our LC-5.1300 or D-5.1300 amplifier? The stout power delivered from the output of channel 5 is a fantastic match. Bon appétit!
For system designs utilizing two Spike Series 4 ohm subwoofers, we recommend the LC-1.800… Delectable!
Seeking an array of audio output? Planning to include three or more Space Series subwoofers in your system? Consult an expert at your favorite authorized AudioControl dealer, or visit audiocontrol.com for more system configurations that deliver divine volume & clarity.
specifications
thiele/small parameters
Nominal Impedance (Z) 4 ohms
DC Resistance (Re) ]] 3.2 ohms
Resonance Frequency (Fs) 60.3665 Hz
Piston Area (Sd) 0.0194 m2
Force Factor (BL) 11.3310 T.m
Mechanical Q Factor (Qms) 5.4933
Electrical Q Factor (Qes) 0.8733
Total Q Factor (Qts) 0.7535
Sensitivity 1W/M (SPL) 81.9876
Mechanical Comp (Cms) 0.0752 mm/N
Moving Mass (Mms) 92.3784 g
Linear Excursion (Xmax) . 8.5 mm
Volume Acoustic Comp (Vas) 3.9378 Ltr/ 0.1390 Cu ft
Reference Efficiency (NO.) 0.0952%
RMS Power (Pe) 350 Watts
Frequency Response 30-500 Hz
Voice Coil Diameter 2.0 in/50.8 mm
Displacement 0.05 cu ft/ 1.44Ltr
