Description

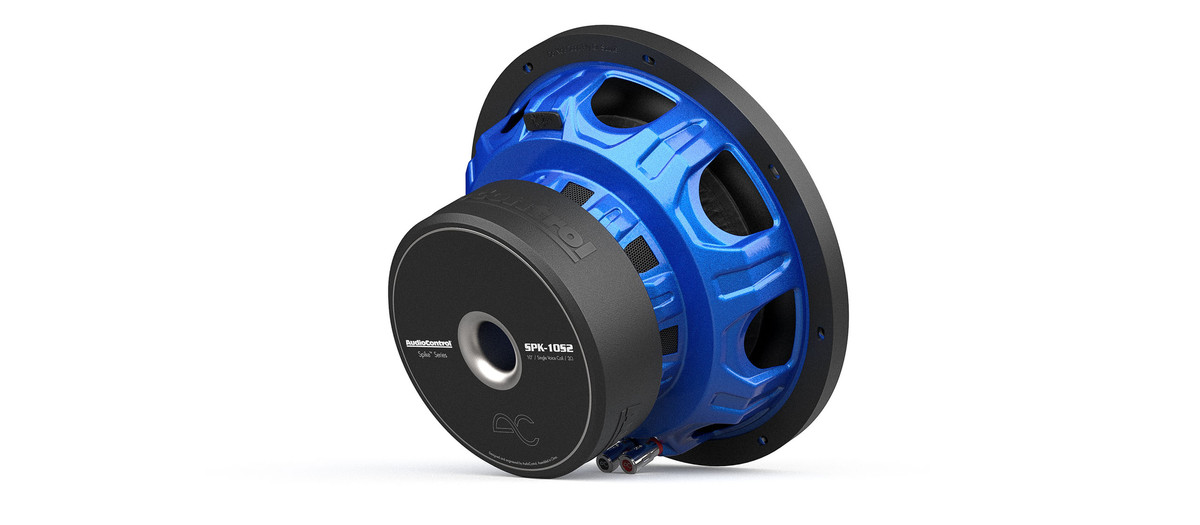

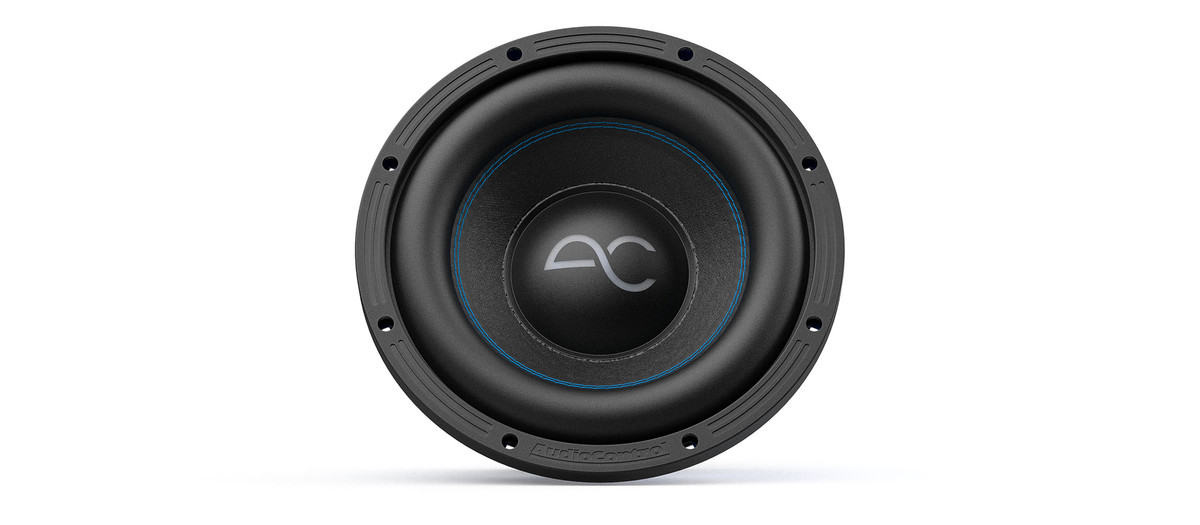

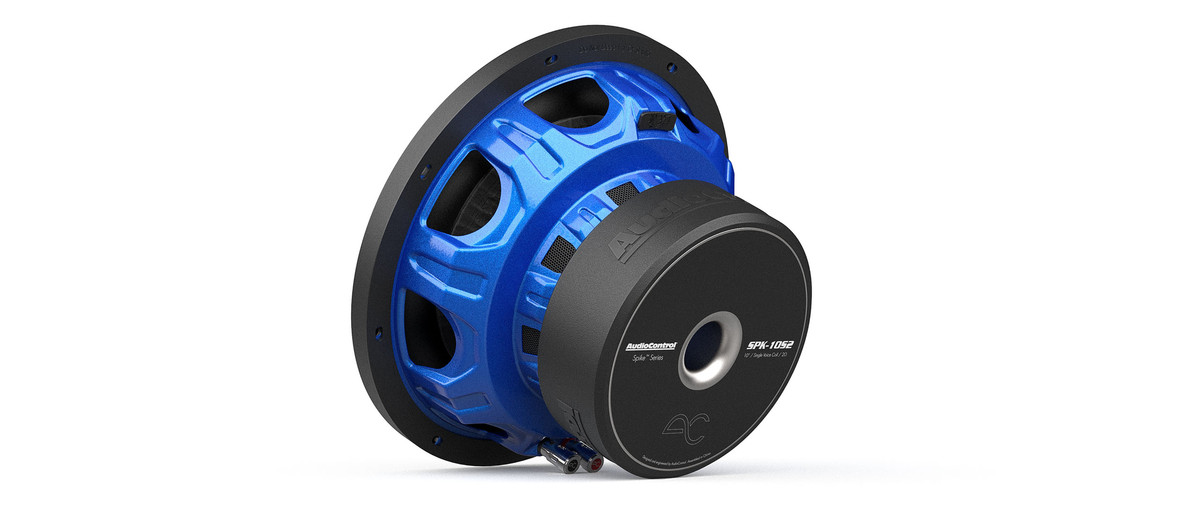

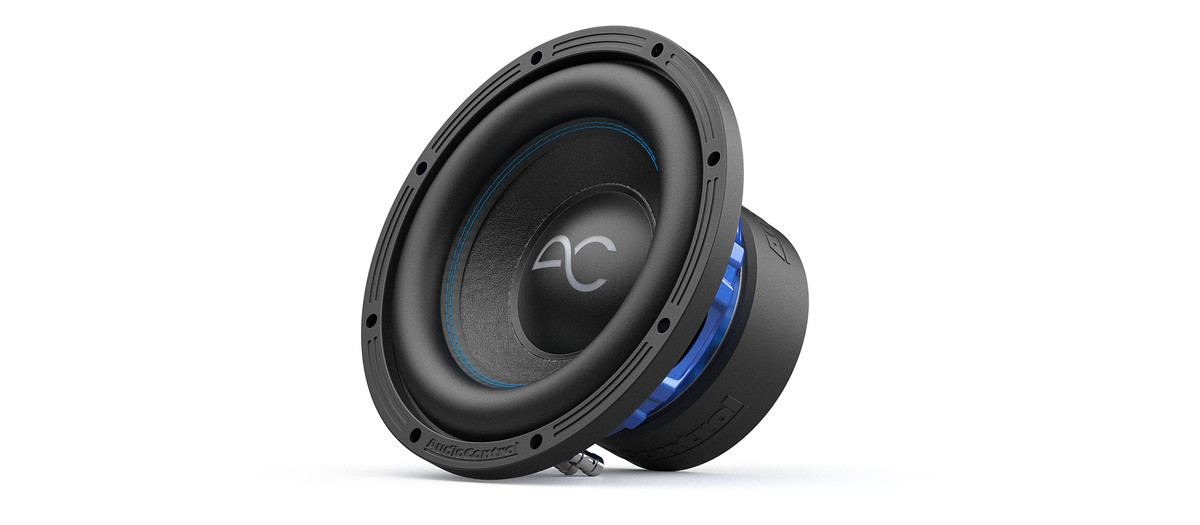

AUDIOCONTROL Spike Series 10" Single 2 Ohm Subwoofer
- High Excursion Design for Ultra Low Bass
- Fiber Matrix Paper Cone with Mica Coating
- 3-Layer High Temp Voice Coil Former
- Dual Damping System for Linear Bass Reproduction
- Dual Dust Cap System for Enclosure Compression Control
- Efficient Heavy-Duty Motor Design
- Removable Subwoofer Grille Included
PAIRINGS
Our Sonic Sommeliers Recommend the Following: A single Spike Series 2 ohm subwoofer pairs attractively with the ACM-1.300 or ACX-300.1 for the conservative to moderate listener. For more beefy bass, seek out the ACX-600.1.
Planning to enjoy the exuberant audio from one of our LC-5.1300 or D-5.1300 ampliļ¬ers? The outstanding output delivered from channel 5 is a perfect pairing. Bon appétit!
For system designs utilizing two Spike Series 2 ohm subwoofers, we recommend the LC-1.1500… Divine!
Seeking a plethora of punch and precision? Planning to include three or more Spike Series subwoofers in your system? Consult an expert at your favorite authorized AudioControl dealer, or visit audiocontrol.com for more system conļ¬gurations that deliver ludicrous lows.

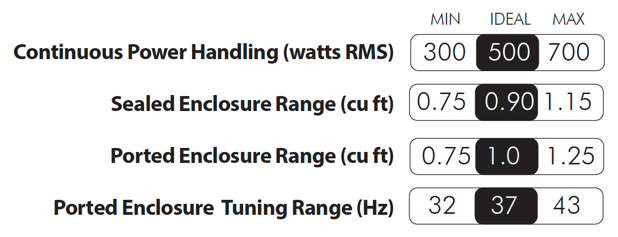

specifications
thiele/small parameters
Nominal Impedance (Z) 2 ohms
DC Resistance (Re) ]] 1.6 ohms
Resonance Frequency (Fs) 38.4879 Hz
Piston Area (Sd) 0.0314 m2
Force Factor (BL) 11.0788 T.m
Mechanical Q Factor (Qms) 6.1223
Electrical Q Factor (Qes) 0.6341
Total Q Factor (Qts) 0.5746
Sensitivity 1W/M (SPL) 82.2488
Mechanical Comp (Cms) 0.0850 mm/N
Moving Mass (Mms) 201.1450 g
Linear Excursion (Xmax) . 14 mm
Volume Acoustic Comp (Vas) 11.7161 Ltr/ 0.4137 Cu ft
Reference Efficiency (NO.) 0.1011% RMS
Power (Pe) 500 Watts
Frequency Response 20-200 Hz
Voice Coil Diameter 2.5 in/63.5 mm
Displacement 0.0626 cu ft/ 1.771 Ltr
