Description

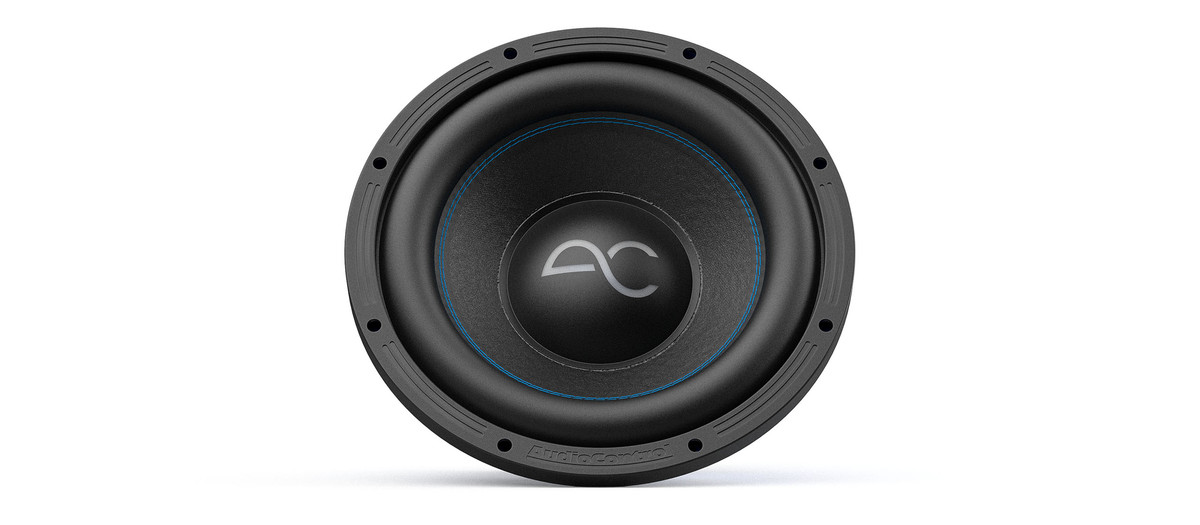

AUDIOCONTROL Spike Series 12" Single 2 Ohm Subwoofer
- High Excursion Design for Ultra Low Bass
- Fiber Matrix Paper Cone with Mica Coating
- 3-Layer High Temp Voice Coil Former
- Dual Damping System for Linear Bass Reproduction
- Dual Dust Cap System for Enclosure Compression Control
- Efficient Heavy-Duty Motor Design
- Removable Subwoofer Grille Included
PAIRINGS
Our Sonic Sommeliers Recommend the Following: A single Spike Series 2 ohm subwoofer pairs nicely with the ACM-1.300 or ACX-300.1 for the conservative to moderate listener. For more substantial sub bass, seek out the ACX-600.1.
Planning to revel in the plentiful power from our LC-5.1300 or D-5.1300 ampliļ¬er? The liberal output delivered by channel 5 is a fantastic ļ¬t! Bon appétit!
For system designs utilizing two Spike Series 2 ohm subwoofers, we recommend the LC-1.1500… Tasty!
Seeking even more plentiful punch? Planning to include three or more Spike Series subwoofers in your system? Consult an expert at your favorite authorized AudioControl dealer, or visit audiocontrol.com for more system conļ¬gurations that deliver supreme subsonic satisfaction.
specifications
thiele/small parameters
Nominal Impedance (Z) 2 ohms
DC Resistance (Re) ]] 1.6 ohms
Resonance Frequency (Fs) 37.3460 Hz
Piston Area (Sd) 0.0491 m2
Force Factor (BL) 11.0117 T.m
Mechanical Q Factor (Qms) 7.6824
Electrical Q Factor (Qes) 0.7362
Total Q Factor (Qts) 0.6718
Sensitivity 1W/M (SPL) 84.6196
Mechanical Comp (Cms) 0.0764 mm/N
Moving Mass (Mms) 237.7651 g
Linear Excursion (Xmax) . 14 mm
Volume Acoustic Comp (Vas) 25.7006 Ltr/ 0.9076 cu ft
Reference Efficiency (NO.) 0.1011% RMS
Power (Pe) 500 Watts
Frequency Response 20-200 Hz
Voice Coil Diameter 2.5 in/63.5 mm
Displacement 0.0885 cu ft/ 2.506 Lt
