Description

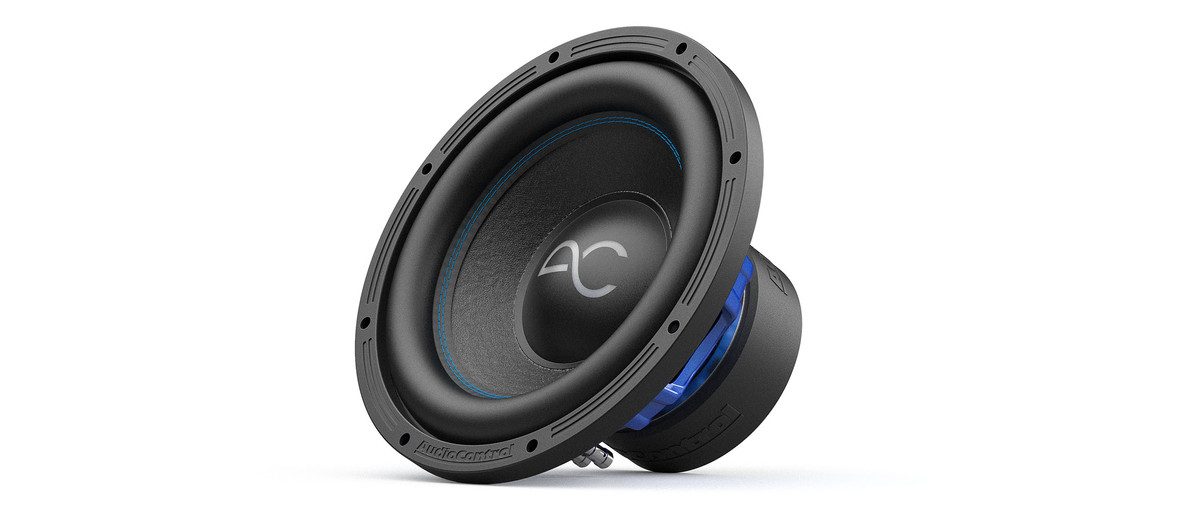

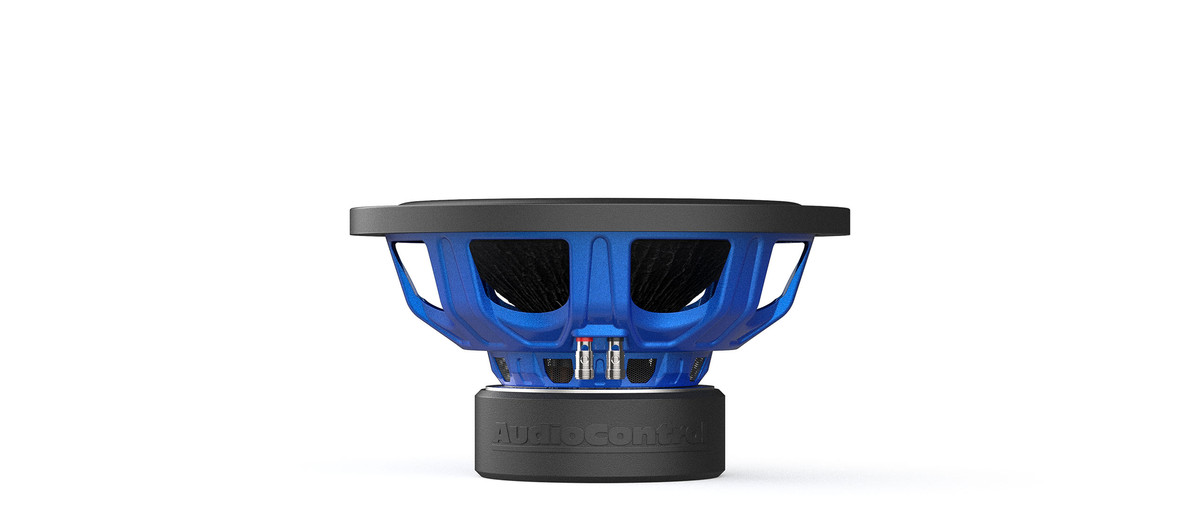

AUDIOCONTROL Spike Series 12" Single 4 Ohm Subwoofer
- High Excursion Design for Ultra Low Bass
- Fiber Matrix Paper Cone with Mica Coating
- 3-Layer High Temp Voice Coil Former
- Dual Damping System for Linear Bass Reproduction
- Dual Dust Cap System for Enclosure Compression Control
- Efficient Heavy-Duty Motor Design
- Removable Subwoofer Grille Included
PAIRINGS
Our Sonic Sommeliers Recommend the Following: A single Spike Series 4 ohm subwoofer pairs pleasingly with the
ACM-2.300 or ACX-300.2 for the conservative to moderate listener. For more lavish output, pair with the LC-1.800.
Planning to adore the well-endowed output from our LC-5.1300 or D-5.1300 ampliļ¬er? The generous power delivered by channel 5 is a solid match! Bon appétit!
For system designs utilizing two Spike Series 4 ohm subwoofers, we recommend the LC-1.800… Impressive!
Looking for a full on bass bonanza? Planning to include three or more Spike Series subwoofers in your system? Consult an expert at your favorite authorized AudioControl dealer, or visit audiocontrol.com for more system conļ¬gurations that deliver a bounty of bass.
specifications
thiele/small parameters
Nominal Impedance (Z) 4 ohms
DC Resistance (Re) ]] 3.2 ohms
Resonance Frequency (Fs) 40.4239 Hz
Piston Area (Sd) 0.0491 m2
Force Factor (BL) 13.7286 T.m
Mechanical Q Factor (Qms) 6.5823
Electrical Q Factor (Qes) 0.8207
Total Q Factor (Qts) 0.7297
Sensitivity 1W/M (SPL) 85.4588
Mechanical Comp (Cms) 0.0815 mm/N
Moving Mass (Mms) 190.3035 g
Linear Excursion (Xmax) . 14 mm
Volume Acoustic Comp (Vas) 27.4067 Ltr/ 0.9678 cu ft
Reference Efficiency (NO.) 0.2118% RMS
Power (Pe) 500 Watts
Frequency Response 20-200 Hz
Voice Coil Diameter 2.5 in/63.5 mm
Displacement 0.0885 cu ft/ 2.506 Lt
