Description

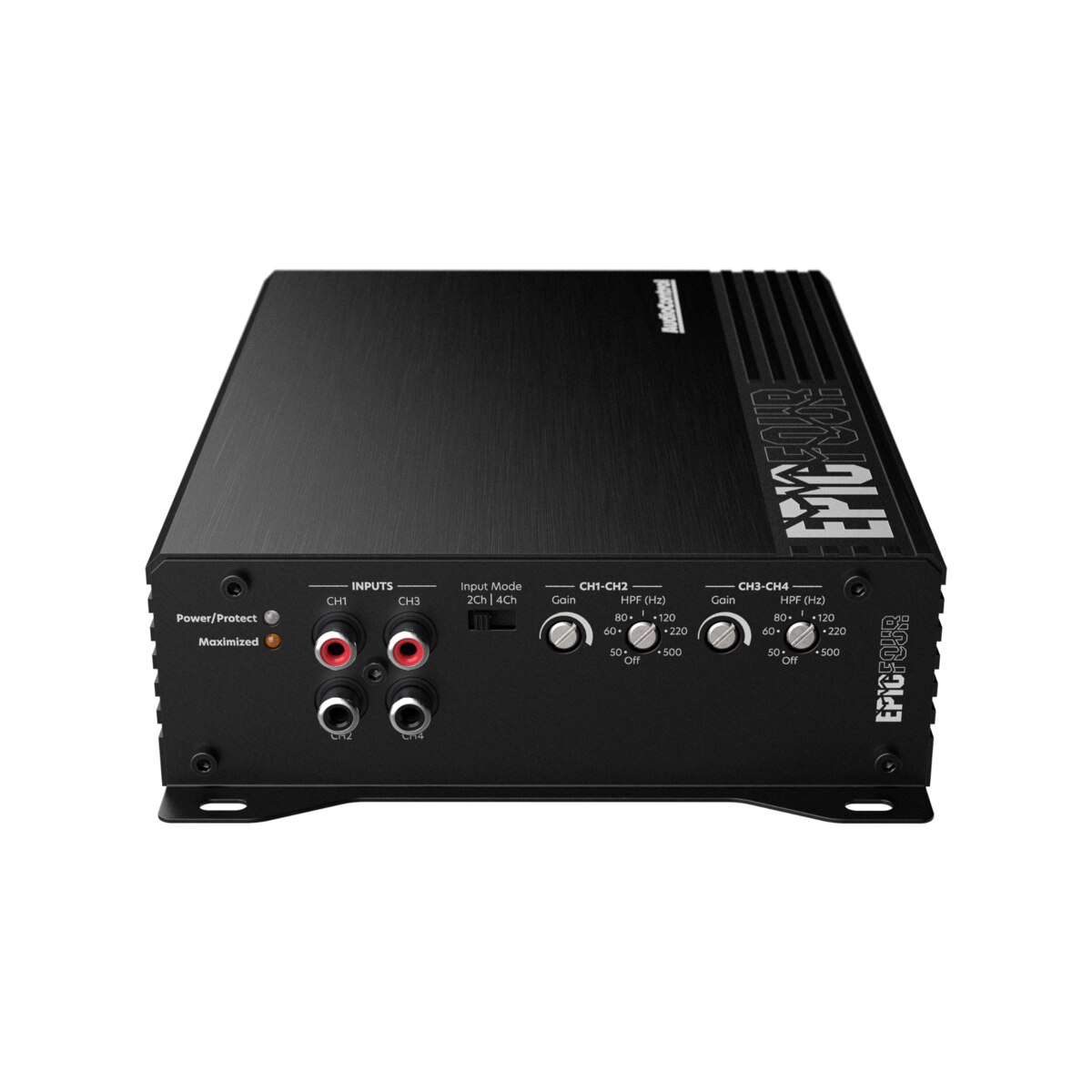

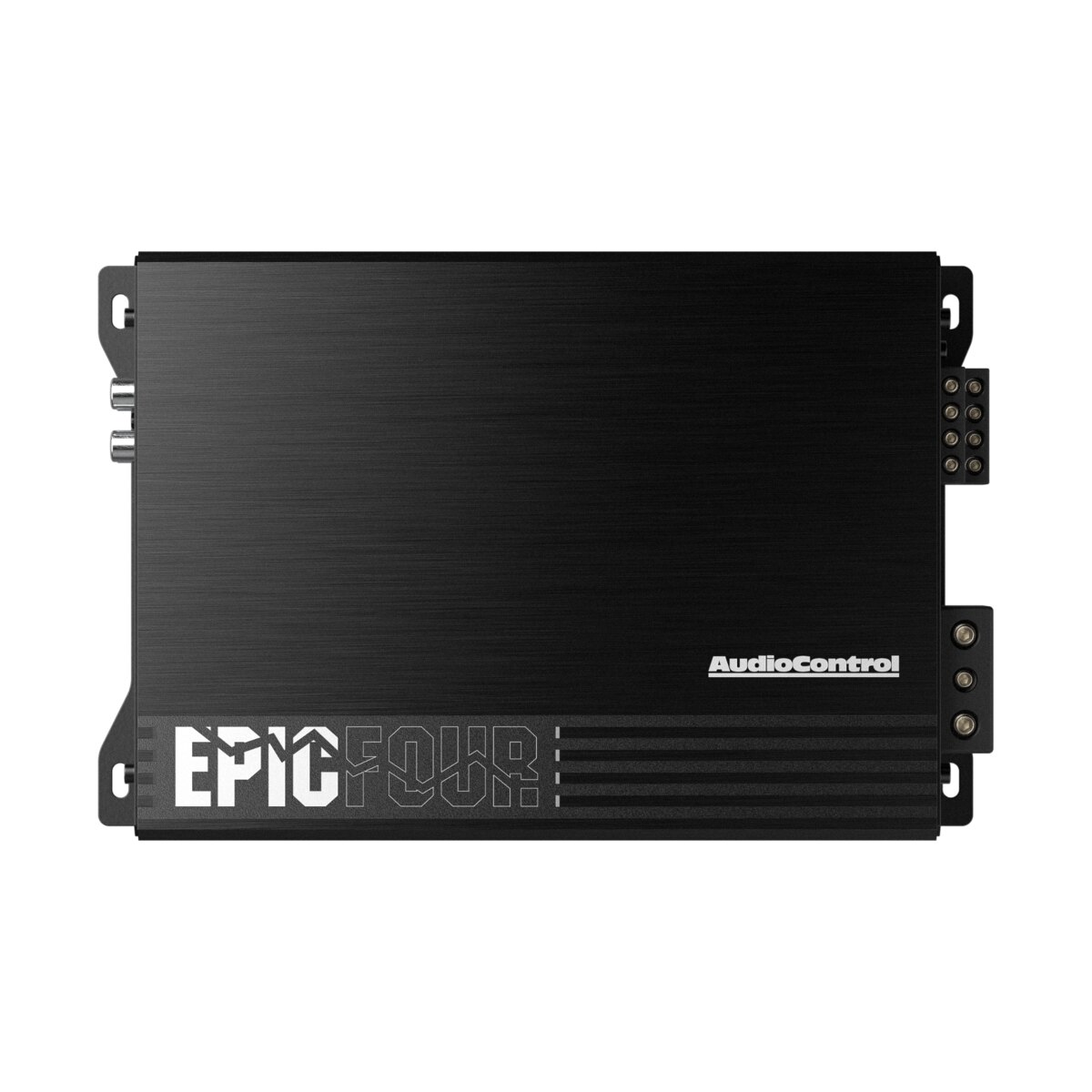

AudioControl EPIC Series 4-Channel Amplifier
FEATURES
• Compact High-Power Class D Amplifier
• High-Current Design – 2Ω Stable
• 4 x 100 Watts @ 4 ohms
• 4 x 200 Watts @ 2 ohms
• 2 x 400 Watts @ 4 ohms Bridged
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable High Pass Filters
• Solid Power/Speaker Terminals with Hex Screws
SPECIFICATIONS
INPUTS
- Line-Level Inputs: 500mV – 12V RMS
OUTPUTS
- Continuous Power (RMS) @ 14.4V
-
4 x 100 Watts @ 4 ohms
-
4 x 200 Watts @ 2 ohms
-
2 x 400 Watts @ 4 ohms Bridged
-
WEIGHTS & DIMENSIONS
- DIMENSIONS: 6.1″ W x 9.41″ L x 2.01″ H
PERFORMANCE
- Frequency Response (+/- 1 dB): 10 Hz – 22 kHz
- S/N Ratio: 90.1 dBa, Ref 100 Watts @ 4 ohms
- Power / Ground Wire Gauge: 4 AWG
- Recommended Fuse Rating: 80 Amps
- High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz
- Speaker Terminal Wire Gauge: 8 AWG
IN THE BOX: EPICFOUR, Wrench, Screws, Manual, Warranty
