Description
STINGER HORIZON 10.1-inch FLOATING MULTIMEDIA INFOTAINMENT DISPLAY SYSTEM
A new horizon at your fingertips with an elegant 10.1-inch capacitive touchscreen that is feature packed with wireless Android Auto® and Apple CarPlay®. Engineered for flexibility, HORIZON10 is compatible with single and double-DIN openings using standard radio installation kits.
In addition to popular cars and trucks, HORIZON10 also fits in vehicle applications like classic cars, golf carts, RV’s and UTV’s where a standard aftermarket radio might not be an option due to fitment constraints.
FEATURES
• 10.1-inch, 1280x800 HD touchscreen with anti-glare, anti-reflective & anti-fingerprint film protection
• Optically bonded screen for moisture and dust resistance

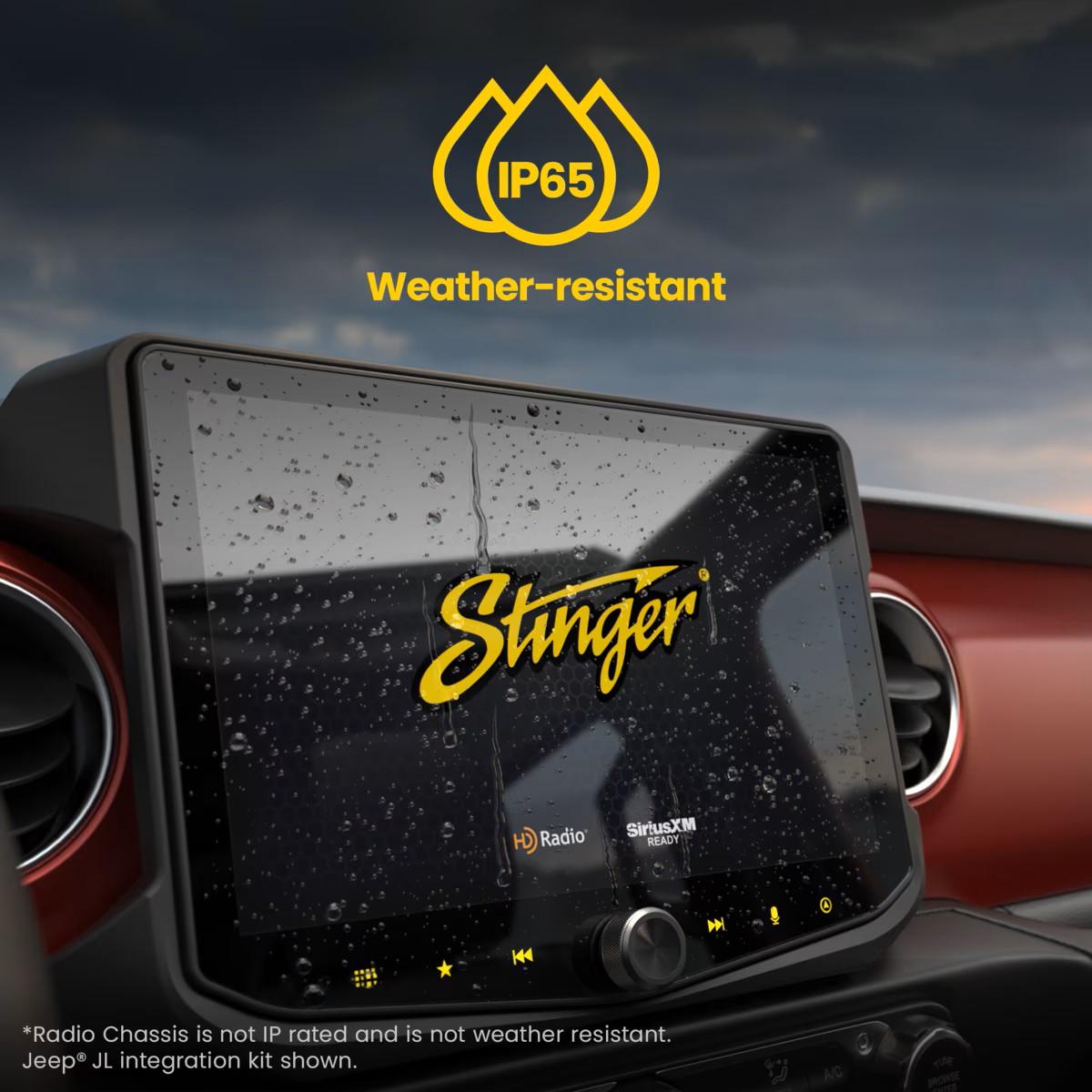

• IP65 rated touchscreen*
• Wireless (and wired) Apple CarPlay®
• Wireless (and wired) Google Android AutoTM
• SiriusXM-ReadyTM (SiriusXM Connect Vehicle Tuner and Subscription required)
• Built-in HD Radio tuner
• Accessory Control to control up to four accessories on-screen (SwitchHub recommended)
• 4.5Vrms 8ch RCA audio outputs with subwoofer control
• Toslink (Optical) Variable Audio Output
• 15 Band Adjustable EQ with 6 user presets for each audio source
• 1 HDMI rear input
• 2 USB-A rear inputs, 1.5A output; 1 USB-C rear input for wired CarPlay and Android Auto, 3A
charging
• Handsfree Bluetooth® 5.1 A2DP, supports dual phone connections
• Internal and external mic options
• Built-in microSD card slot for optional iGO Navigation
• Fast Wake-Up Capability
• 4 AHD/CVBS Camera Video inputs with wired triggers (PAC RadioPRO Compatible)
• Mic Audio input from rear camera
• Steering wheel control ready

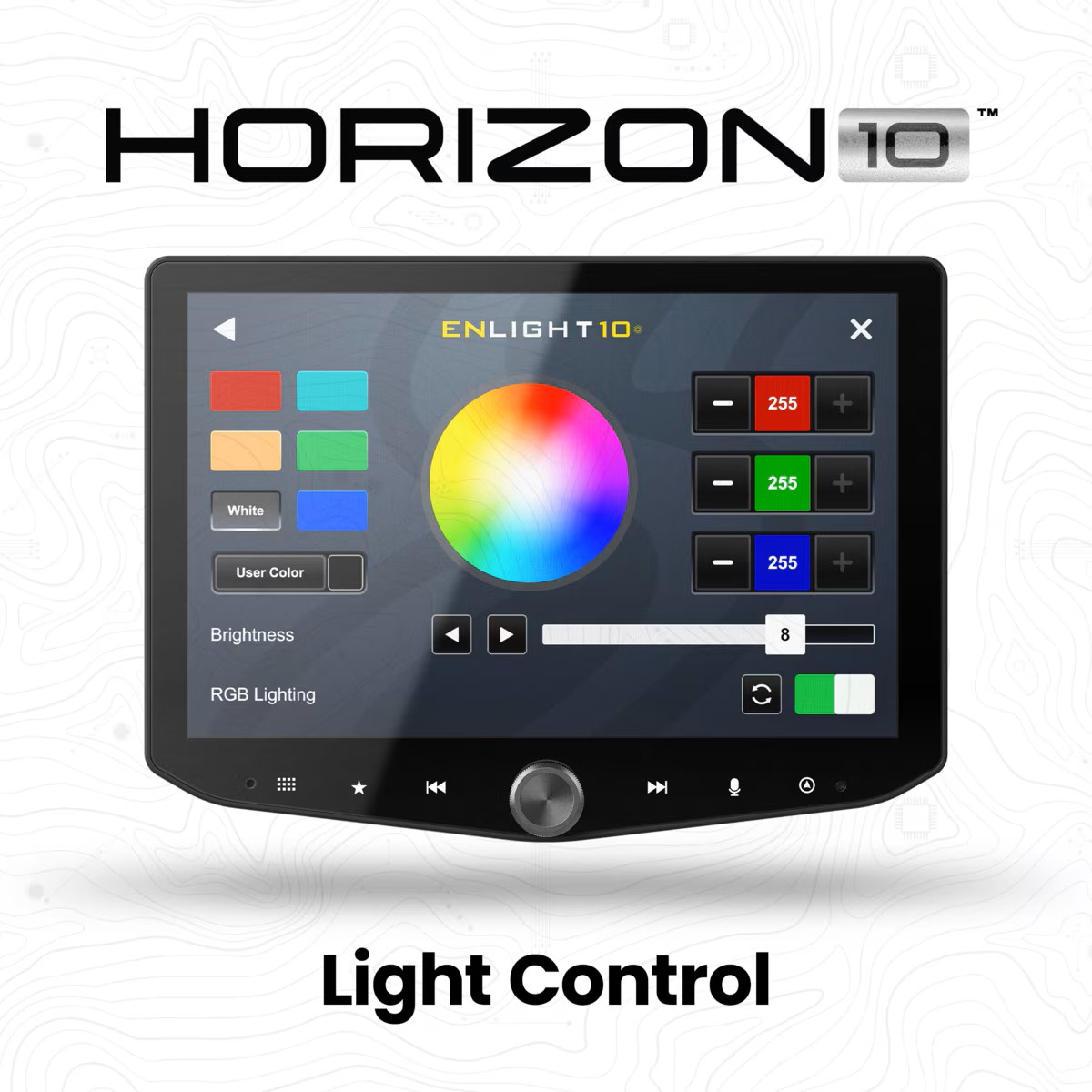

• Customizable illumination colors and display backgrounds
• Single ISO chassis mounting design
*Radio Chassis is not IP rated.
WHY YOU’LL LOVE HORIZON10
HORIZON10 is your new in-vehicle infotainment system featuring Stinger’s 10.1-inch floating touchscreen multimedia display. With HORIZON10, you can now enjoy a clean, user-friendly, interactive experience and modern aesthetic in any vehicle.
• Control your external DSP volume via the only Variable Volume Optical Output that allows you to control your volume when an external DSP is used, even with steering wheel control
• 3 USB ports for charging and data input
• HDMI Input for external audio/video from compatible devices with HDMI out
• Flexible Installation Options for single-DIN, double-DIN, flush mount and angled mounting and easily detachable display
• Versatile modular design allows for fitment in most vehicle applications where a standard radio will not fit
• Packed with the latest in technology including CarPlay®, Android AutoTM, HD Radio, and SiriusXM
• Hands-free calling and wireless music streaming via Bluetooth; Supports dual phone connections
• For the true audiophile, the digital fiber optic output generates a clean noise-free signal to any external DSP (sold separately).
• Equipped with a built-in equalizer so you can fine-tune your vehicle's sound system experience
• Drive safer and see from all angles; with HORIZON10, you can display up to 4 safety cameras (sold separately) • Experience the sharpest, clearest graphics with a 10.1-inch, anti-glare, high-resolution capacitive touchscreen display with 16.7M colors IMPROVE YOUR SOUND
HORIZON10’s sonic capabilities allow for a versatile and more detailed sound experience.
• On-screen control of AudioControl’s DM Smart app
• 4.5Vrms, 8ch RCA audio outputs with subwoofer control • Toslink (optical) audio output; 48kHz variable

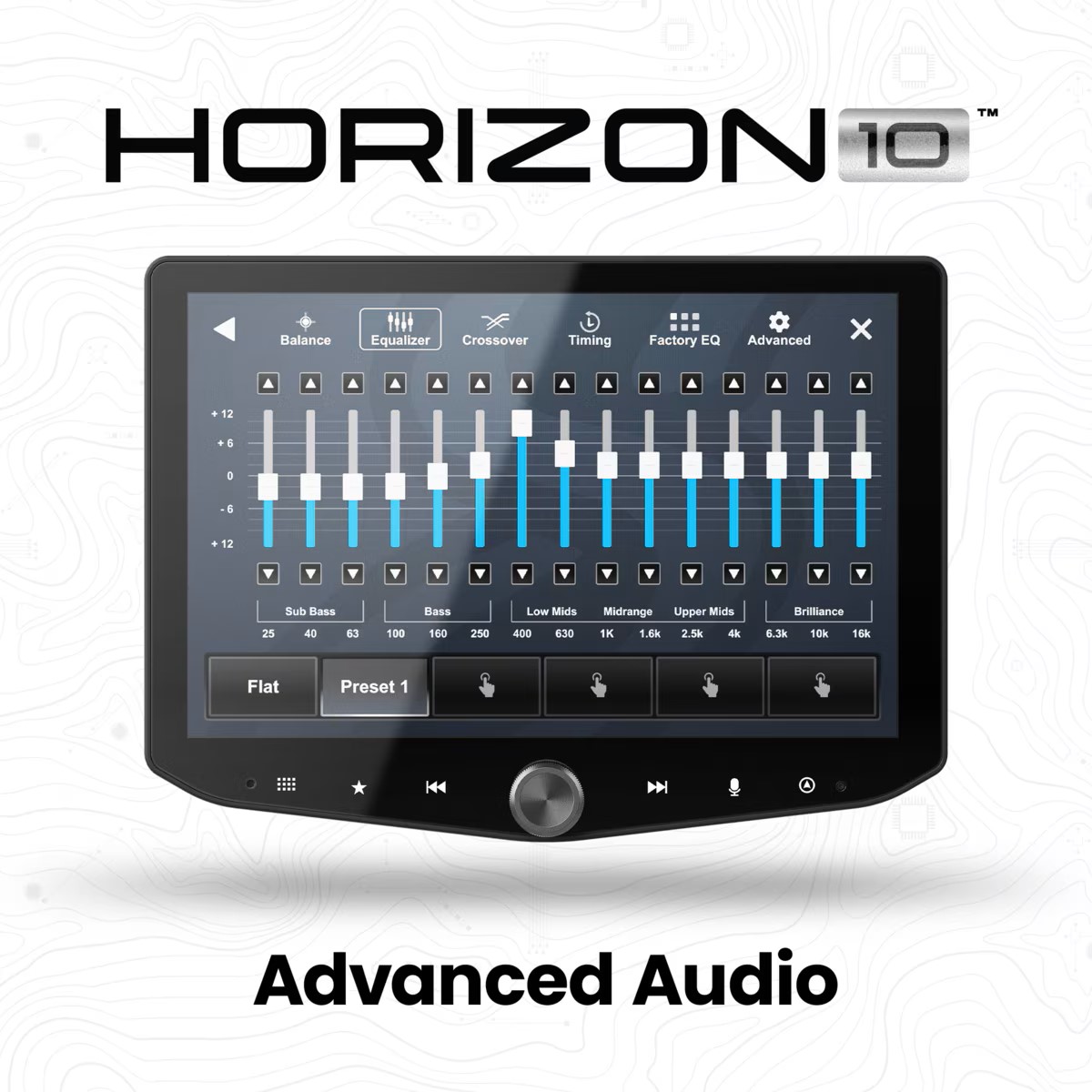

• 15-band adjustable graphic EQ
• 6 user EQ presets
• Built-in crossover with HPF and LPF
YOUR MEDIA, YOUR WAY
Gain total access to your smartphone's music and navigation capabilities.
• Apple CarPlay® (Wireless and Wired)
• Google Android AutoTM (Wireless and Wired)
• SiriusXM-ReadyTM
• HD Radio
• 3 USB rear inputs, 2 USB-A 1.5A output, 1 USB-C 3A output • Hands-free Bluetooth® 5.0
• HDMI input
YOUR SAFETY OPTIONS
In a world where road accidents are all too common, HORIZON10 can help reduce risk, increase safety and protect your precious cargo.

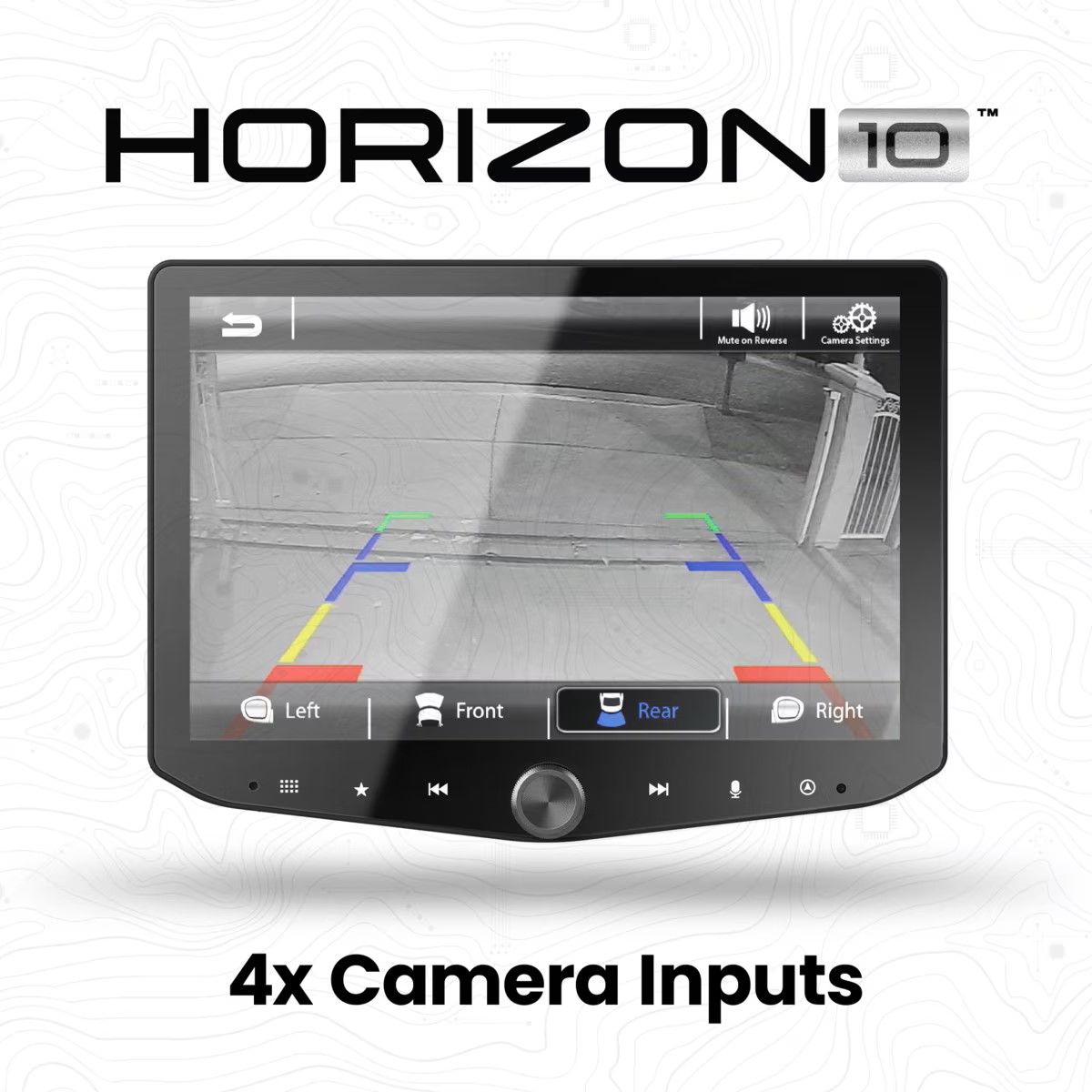

• 4 camera inputs, selectable via camera mode display, turn signal for blind spot viewing or simply by adding a rocker switch for trailer or tow viewing.
• Rear camera audio input enables the driver to hear sound from an optional RV camera microphone. • Built-in micro SD card slot for optional NextGen iGO navigation
• Customizable; personalizable background, moveable Home screen icons
